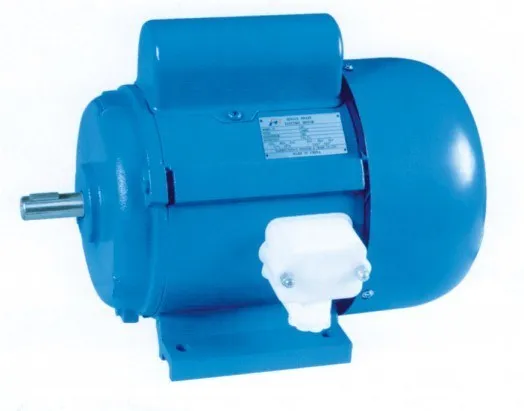

Aiko 1 hp . 240V . 4 pole Single-Phase Motor With Starting Capacitors | Model : CM-JY2A-4

Features :

• JY series single-phase capacitor start induction motor is widely used in air compressors. refrigerators. medical apparatus and other small machines which demand full-load starting. a large starting torque and limited starting current.

• These series motors are of totally enclosed fan-cooled. and have three frame sizes. 09. 1. 2. The frames are made of cast iron or cast aluminumaccording to the requests.
• Protection Type : IP44
• Insulation Class : B
• Cooling Type : IC411
• Rated Frequency : 50 Hz

Specifications :

• Model : JY2A-4
• Voltage : 240 V
• Frequency : 50 Hz
• Output :
• 0.75 kW
• 1 HP
• Speed : 1400 r/min
• Power Factor : 0.68
• Efficiency : 69 %
