Product Details
＋

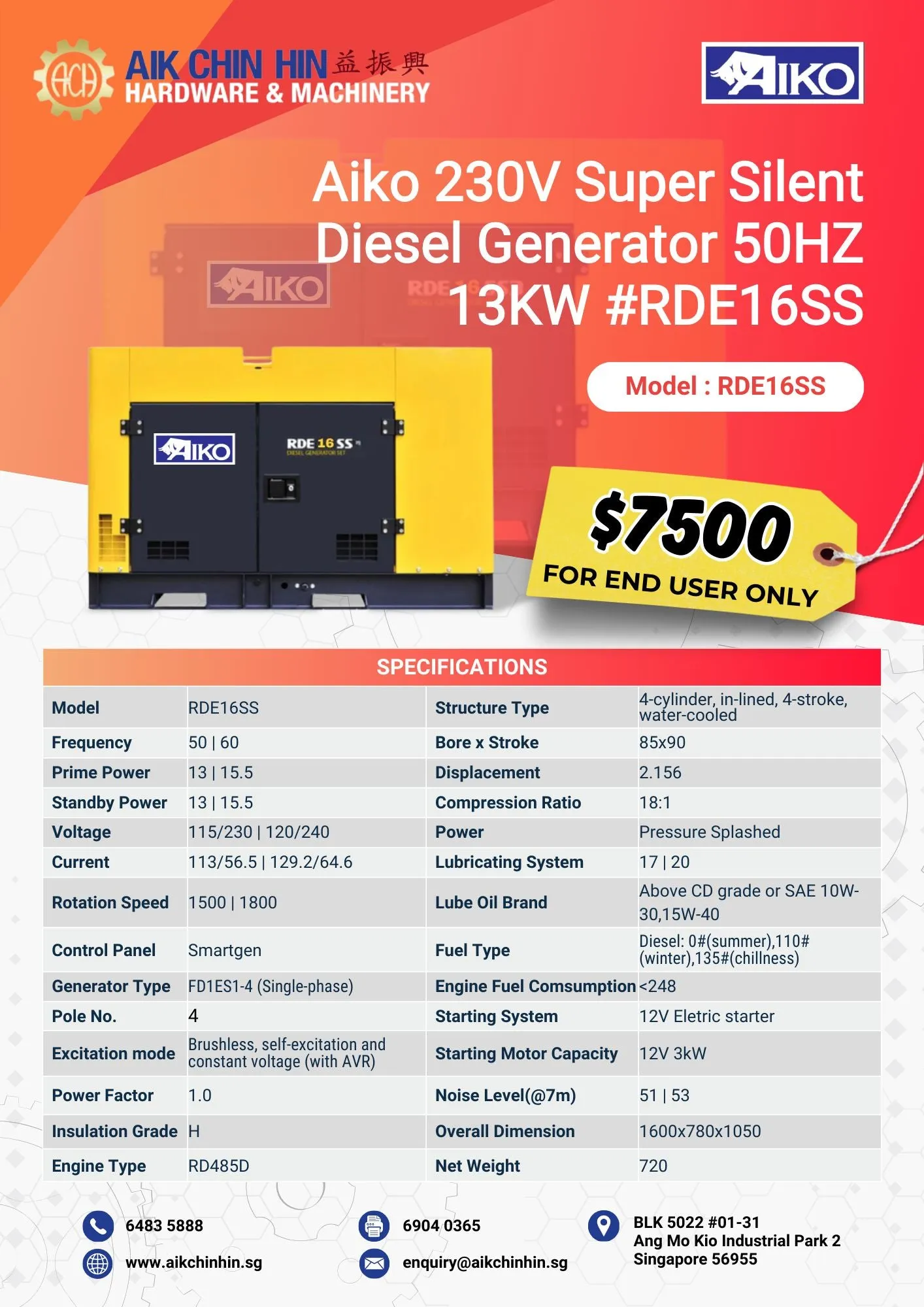

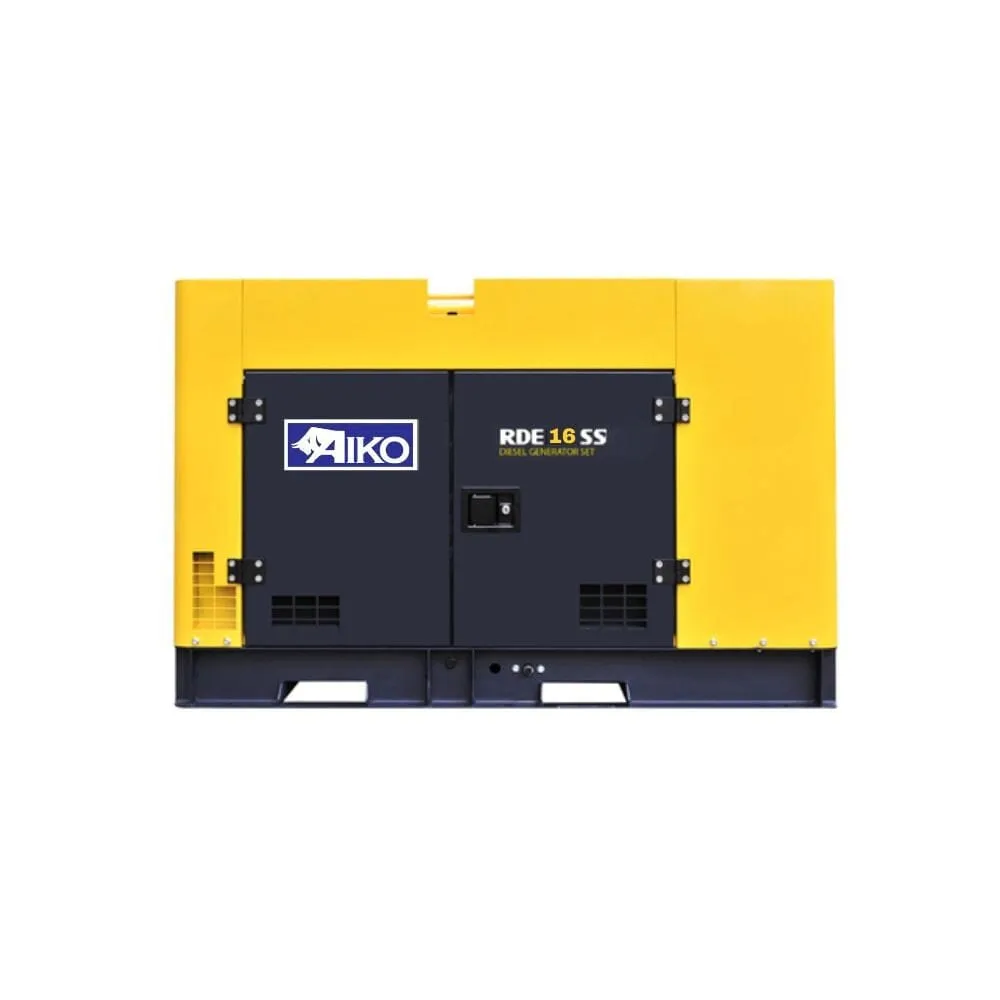

Aiko 230V Super Silent Diesel Generator 50HZ 13KW #RDE16SS | Model : RDE16SS
Description :
Robust and durable
- Compact. robust and flexible structures ensure long service life and quiet operation.
- Thicker painting treatments stand the wear and tear in extreme environmental conditions.
Cleaner. safer and quieter
- Waterproof canopy ensures protection against ingress of dust and water.
- All DEHRAY generators meet or exceed relevant standards for noise and emission regulations.
Design for easy transportation
- Lifting hook and forklift access are standard on all units. Compact structure minimize transportation costs.
Easy to use
- Control panel is simple and easy to operate.
- Built-in monitoring system ensures safe operation and basic parameter display
Specifications :
| Model | DH280 | |
| Capacities | Concrete | 28mm |
| Core bit | 54mm | |
| Diamond core bit (dry type) | 65mm | |
| Steel | 13mm | |
| Wood | 32mm | |
| No load speed | 0-980min1 | |
| Blows per minute | 0-5000min1 | |
| Overall length | 373mm | |
| Voltage | D.C. 36V | |
| Net weight | 3.9-5.1kg | |
| Model | RDE16SS | |
| Frequency | 50 | 60 |
| Prime Power | 13 kVA | 15.5 kVA |
| 13 kW | 15.5 kW | |
| Standby Power | 14 kVA | 17 kVA |
| 14 kW | 17 kW | |
| Voltage | 115/230 | 120/240 |
| Current | 113/56.5 | 129.2/64.6 |
| Rotation Speed | 1500 | 1800 |
| Control Panel | Smartgen | |
| Generator Type | FD1ES1-4 (Single-phase) | |
| Pole No. | 4 | |
| Excitation mode | Brushless. self-excitation and constant voltage (with AVR) | |
| Power Factor | 1.0 | |
| Insulation Grade | H | |
| Engine Type | RD485D | |
| Structure Type | 4-cylinder. in-lined. 4-stroke. water-cooled | |
| Bore x Stroke | 85x90 | |
| Displacement | 2.156 | |
| Compression Ratio | 18:1 | |
| Power | Pressure Splashed | |
| Lubricating System | 17 | 20 |
| Lube Oil Brand | Above CD grade or SAE 10W-30.15W-40 | |
| Fuel Type | Diesel: 0#(summer).110#(winter).135#(chillness) | |
| Engine Fuel Comsumption | <248 | |
| Starting System | 12V Eletric starter | |
| Starting Motor Capacity | 12V 3kW | |
| Noise Level(@7m) | 51 | 53 |
| Overall Dimension | 1600x780x1050 | |
| Net Weight | 720 | |
