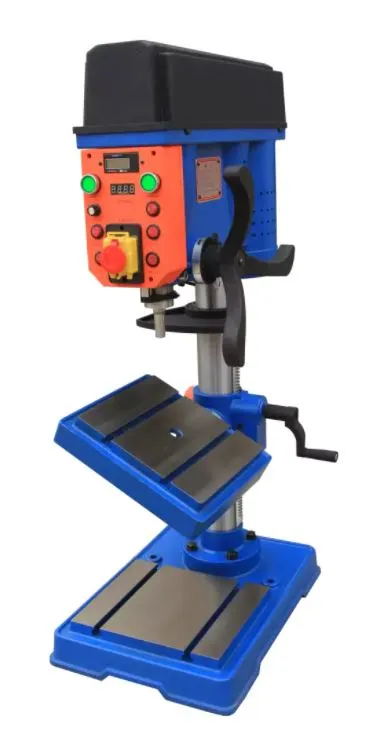

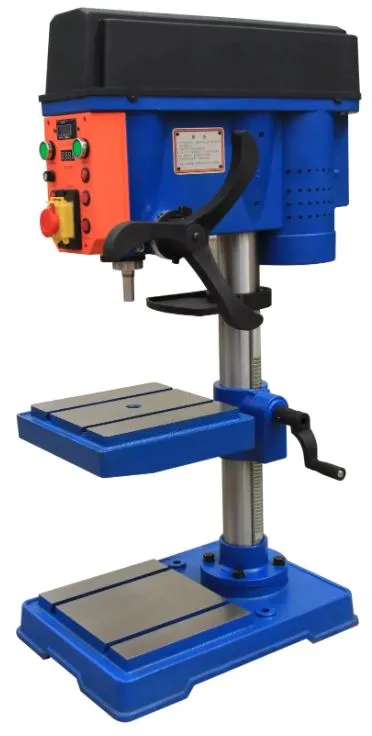

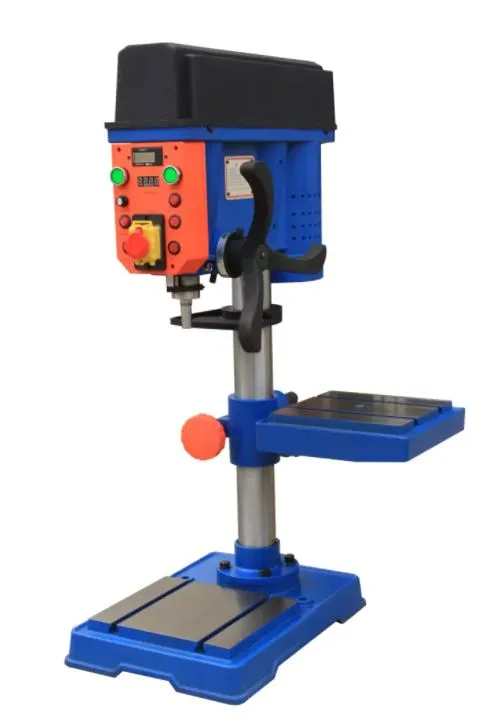

Aiko 240V Drilling And Tapping Machine | Model : WTZ-16T

Features :

• High precision: spindle tolerance 0.01mm

• Carbon-fiber head body: wear-resistance and rigidity make quill life over 10 years.

• Variable spindle speed: automatically change speed

• Energy-save: no idle running on energy-saving switch

• Drilling / tapping switch: 100.000 times life

• Laser light re-position. visible and precise

• Intelligence digital readout depth with mm/min
• Intelligence shift between drilling/tapping: spindle brake 0.2 sec. can provide protection to screw tap for suddenly reverse turning.

Specifications :

• Model : WTZ-16T
• Voltage : 240 V
• Frequency : 50 Hz
• Phase : 1
• Ampere : 6 A
• Max Drilling : 16 mm
• Max Tapping : M12
• Chuck Size : 1-16 mm
• Table Size : 280 x 280 mm
• Spindle Taper : B18
• Spindle Travel : 85 mm
• Spindle Speeds Range : 260 - 1800 rpm
• Column Diameter : 72 mm
• Distance Spindle Axis to Colum Surface : 185 mm
• Distance from spindle to table 330 mm
• Distance from spindle to base : 510 mm
• Motor Power : 750W
• Base Size : 285 x 240 mmm
• Net Weight : 57 kg
• Gross Weight : 60 kg
