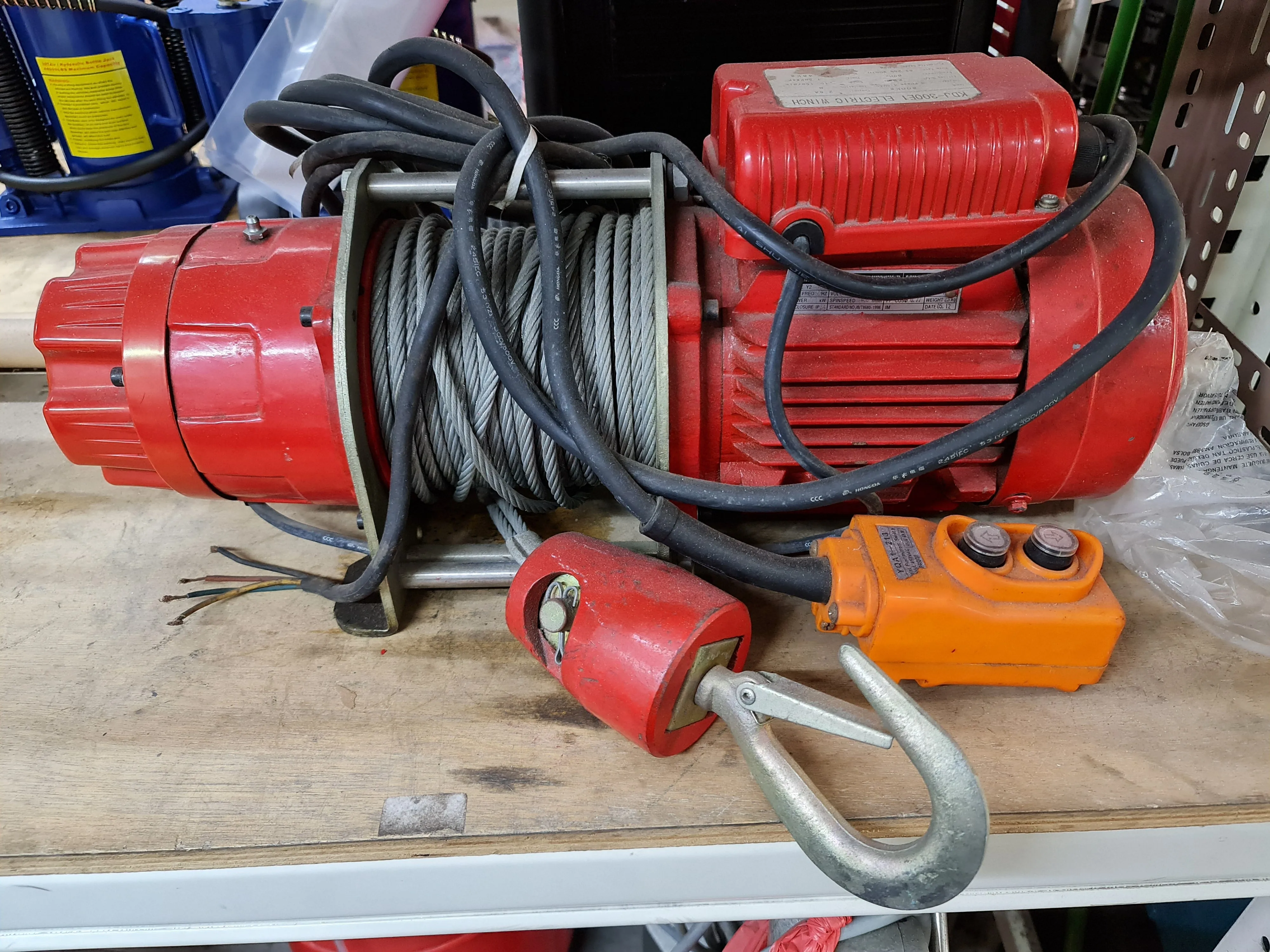

Aiko 415V 300Kg Compact Winch | Model : WIN-KDJ300E1

Features :

• Wire Rope ~ Fixing No escape of wire rope from the drum by means of P.T.screwdevice.
• Drum Transmission ~ The shaft direct driving drum provides rope replacement and altemation of rotation with easy.

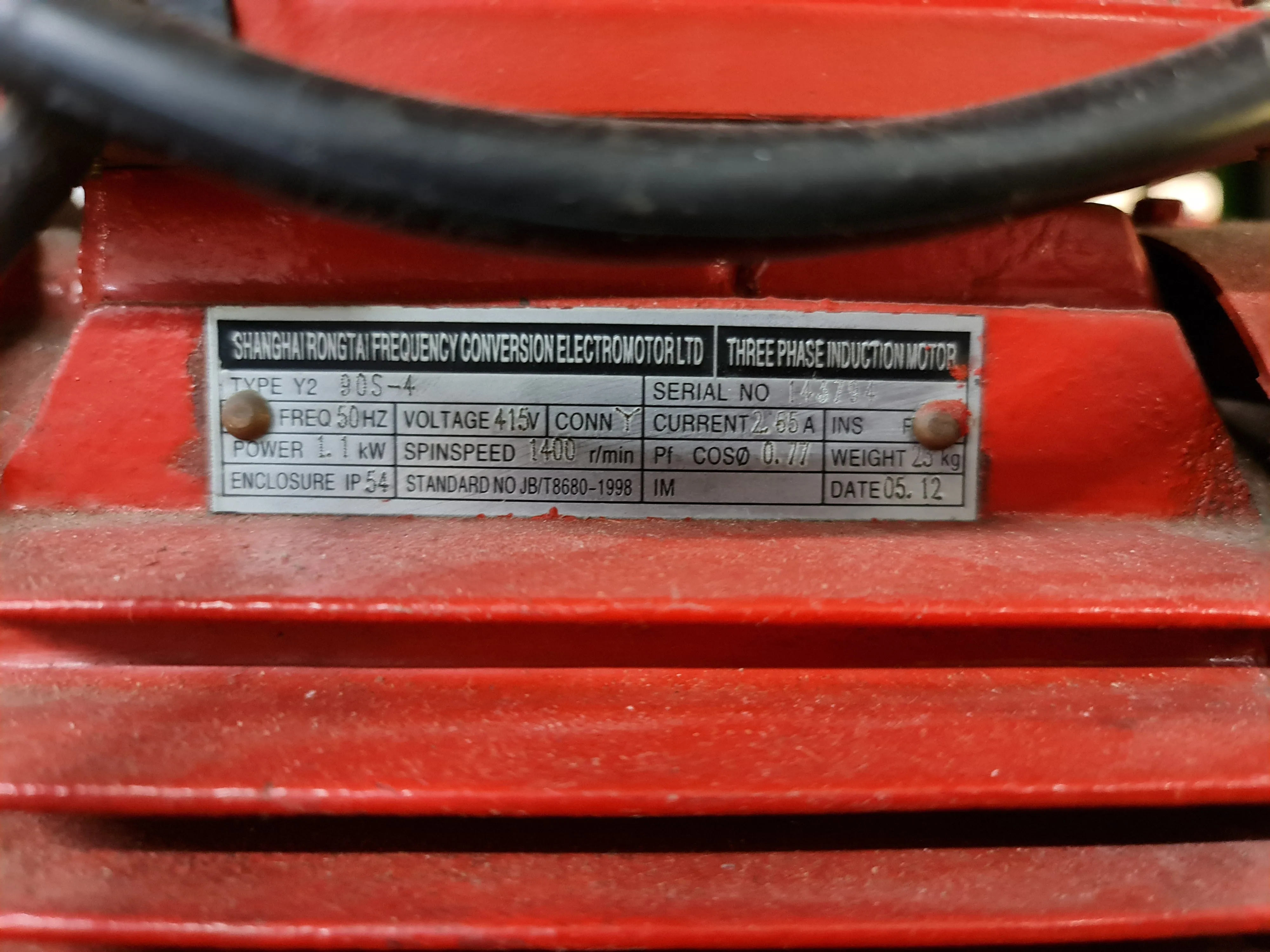

• Electromagnetic ~ Designed for both static and dynamic loading. Brake will automatically apply in the event of power cut. Large friction surface area. No adjustments or serving requirement. Gear Box ~ Provides strengh.durability and non-worry of breakage of structure .Special Motor ~ insulated B. with the features of big start torque. small inertia. lower temperature rise. it can work frequently for a long time. Driving Gear The heat treated gear with bearings features durable performance and anti-wear. Machine Fixture It is made of super armour plate. used for suspender. lifter and girder.

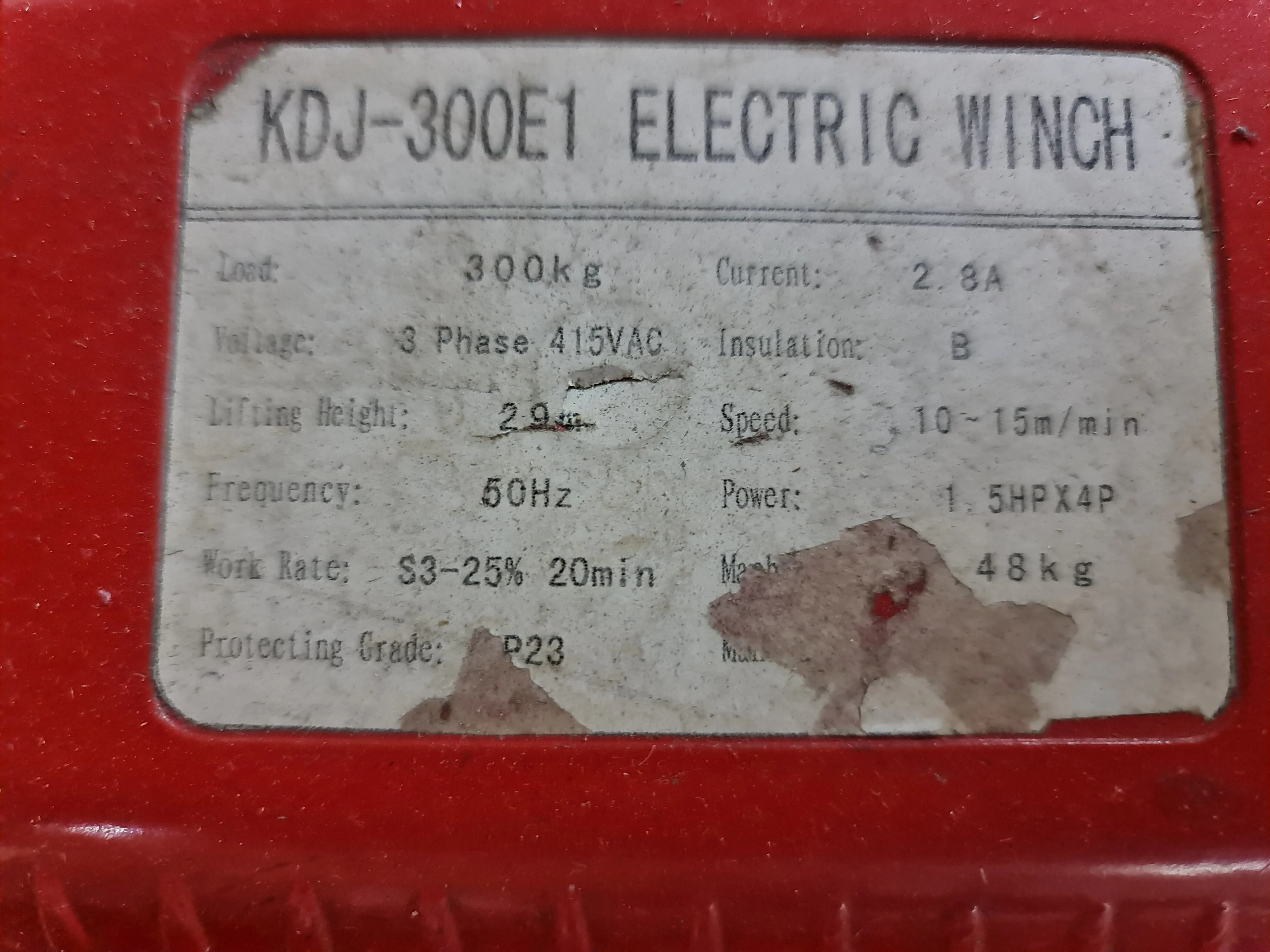

Specifications :

• Model : KDJ-300E1
• Load rated(kg) : 300 Speed(m/min) 11 13
• Motor(KW) : 1.14
• Voltage(V) AC : Three phase 220/380/415/440/480
• Frequency(Hz) : 50/60
• Lifting Height(m) : 29
• Steel Cable(mmm) : 630 730
• N.W.(kg) : 48
• Work Level : M3
