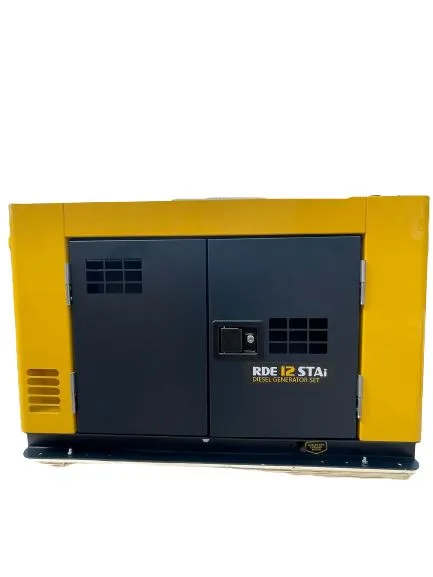

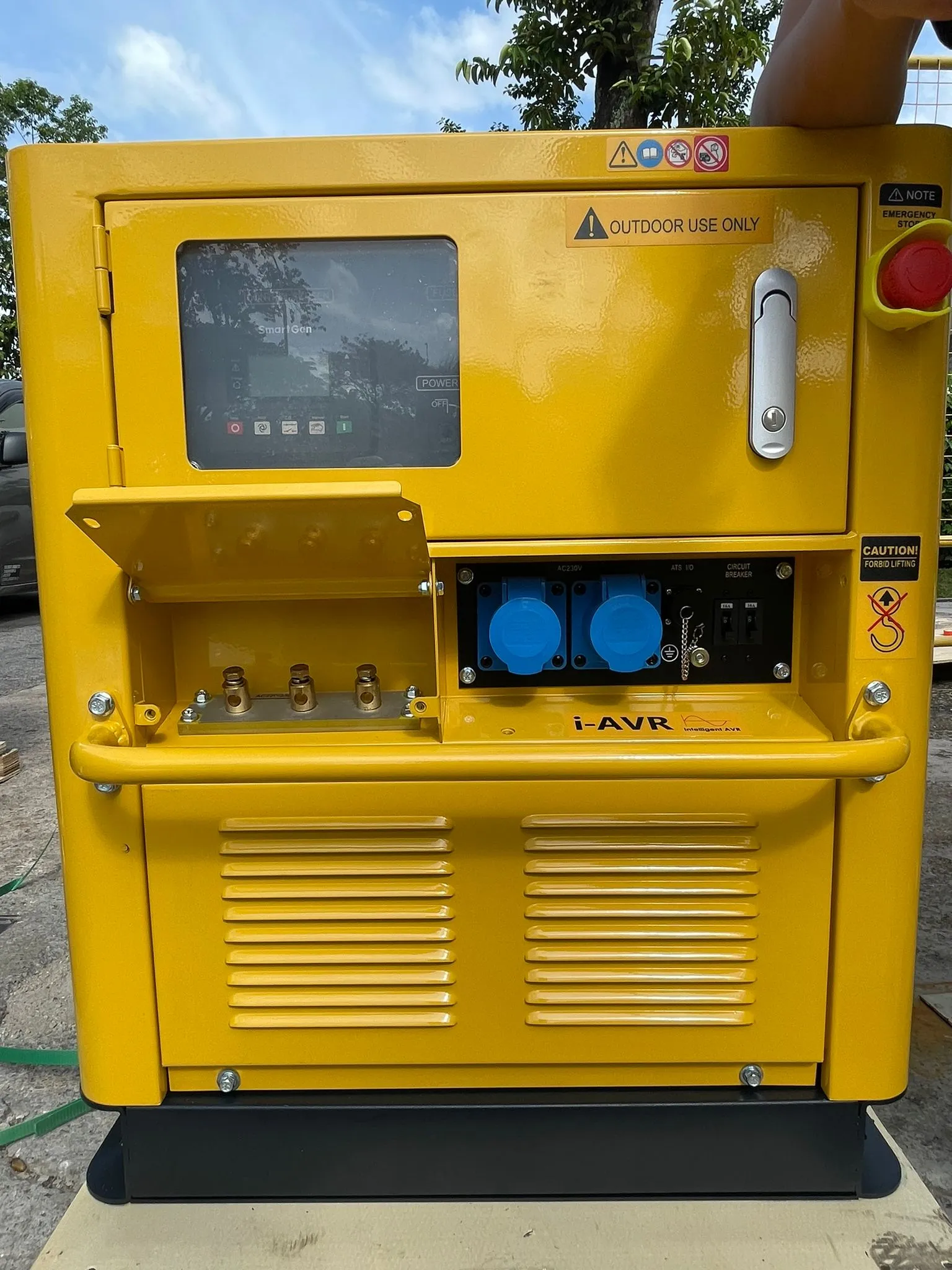

Aiko 8.5kva 240V 50hz 4-stroke Diesel Generator | Model : RDE12STAI

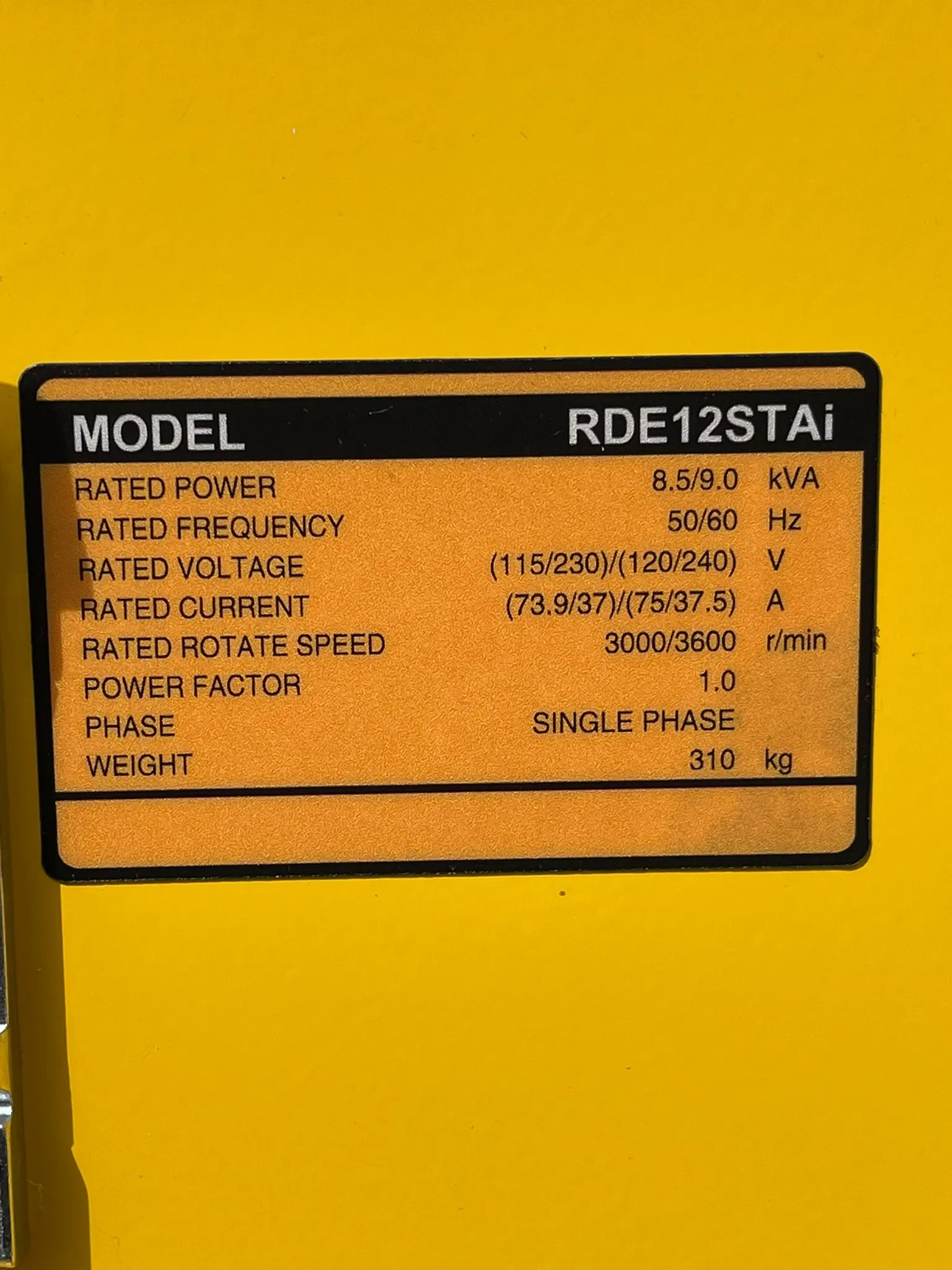

Specifications :

• Model :RDE12STAI
• Rated Frequency : 50 Hz
• Rated Output : 8.5 kVA
• Max. Output : 9.5 kVA
• Rated Voltage : 240 V
• Rated Current : 35.4 A
• Rated Speed : 3000 r/min
• Phase : Single - Phase
• Power Factor : 1.0 (Cos)
• Excitation Mode : Transistorized Self - Excitation and Constant Voltage
• Working Mode : 12 Hours continuous running
• Structure Mode : STA - Type (Ultra Silent Type)
• Connecting Mode : Transmission Shaft rigid Connection
• Dry Weight : 310 kg
• Fuel Consumption : < 340
• Overall Dimension : 1350 x 650 x 760 mm
• Noise LWA : 72 dBA

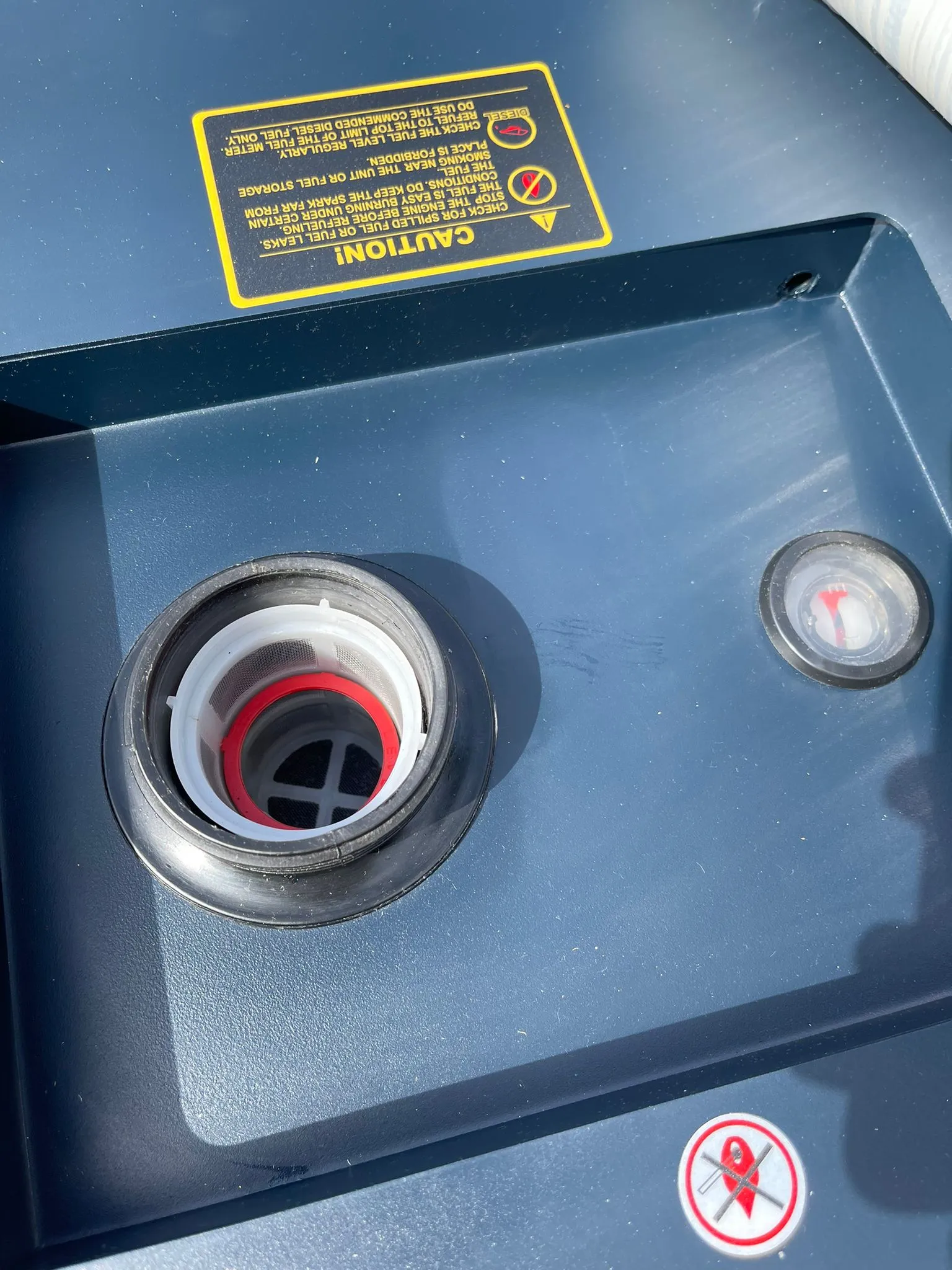

• Fuel Tank Capacity : 26 L

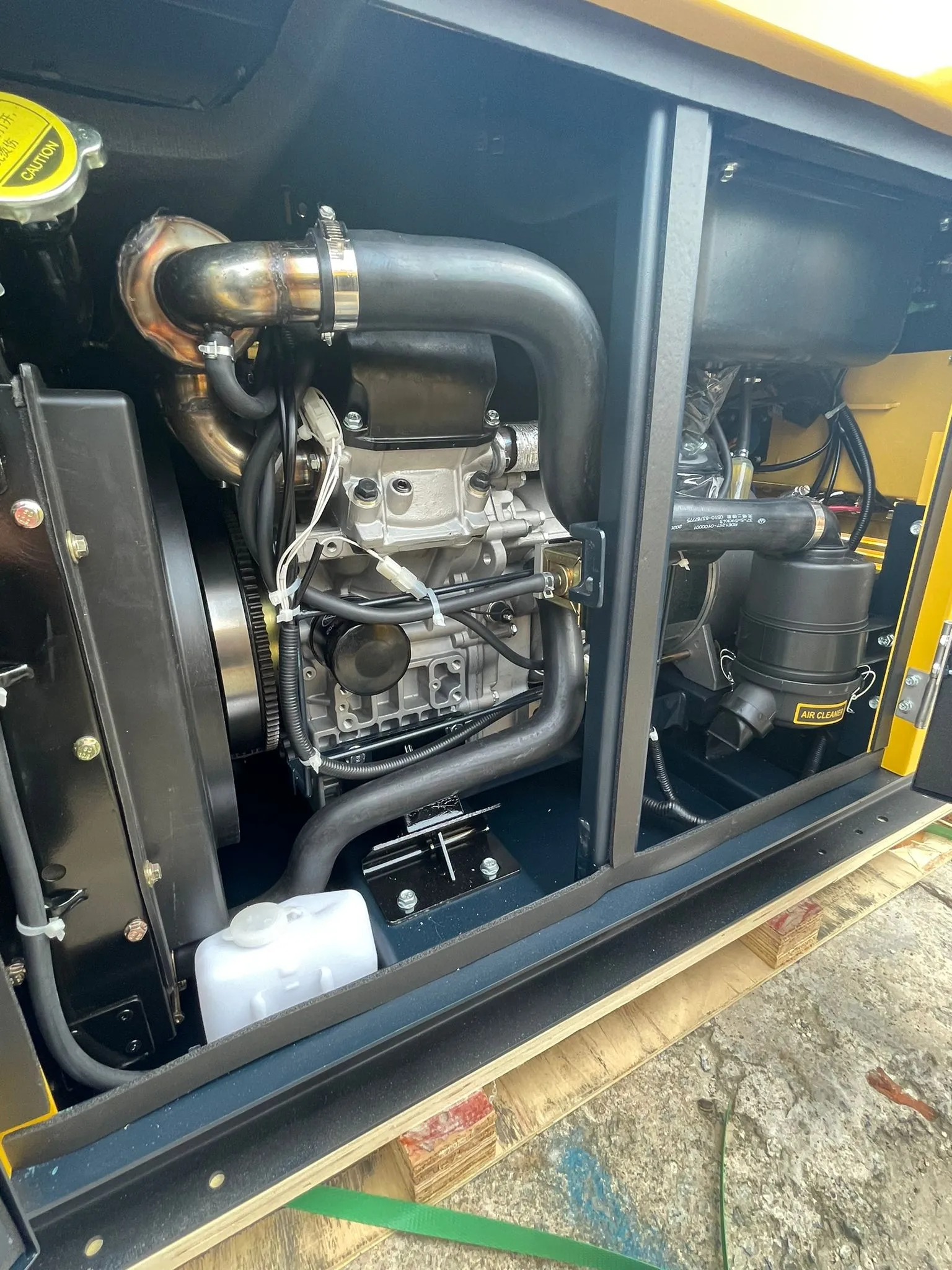

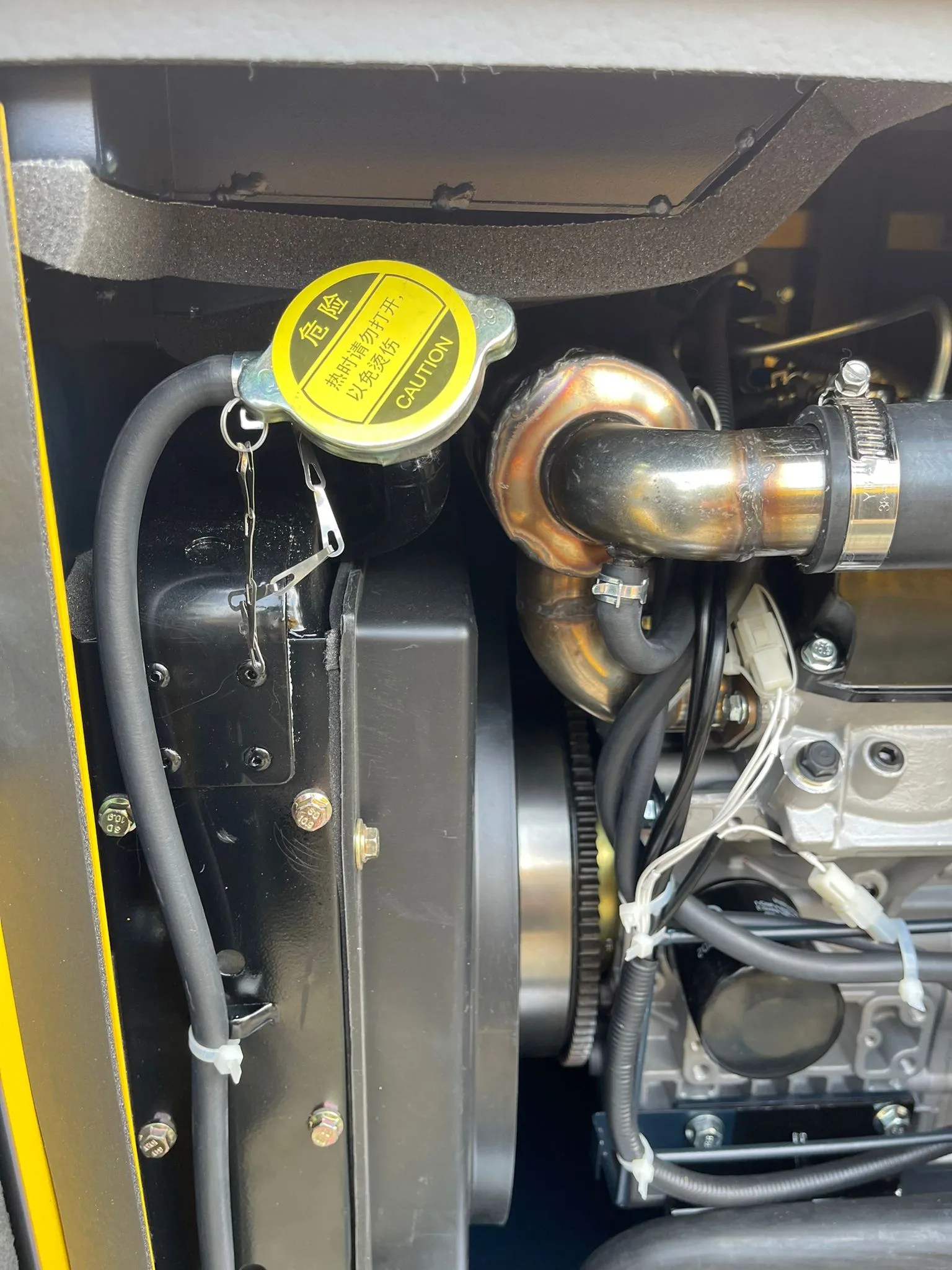

• Engine :
• Model : RD2V80G
• Structure : Double Cylinder . V-Type . Water Cooled . 4 - Stroke . Swirl Type
• Displacement : 794 ML
• Bore X Stroke : 80 x 79 mm
• Fuel Type : Diesel 0#(Summer) . 10#(Winter) . -35#(Chilly Winter)
• Oil Capacity : 2.27 L
• Compression Ratio : 23 : 1
• Rated Power : 12.5 kW / 30000 r/min
• Starting mode : 12V Electrical Starter
• Battery Capacity : 12V - 36Ah
