Product Details
＋

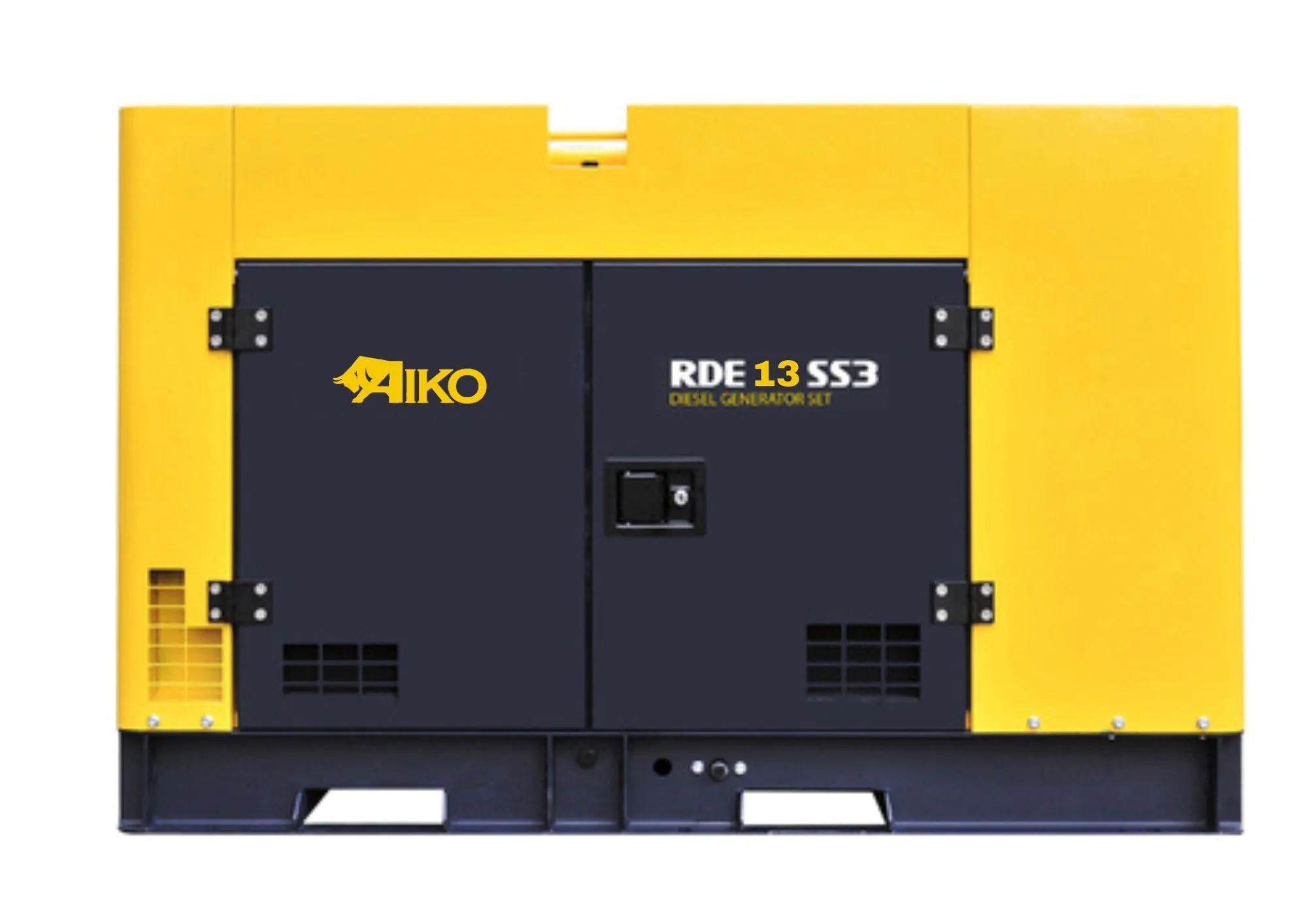

Aiko 8.5kW Super Silent Diesel Generator 230V/400V 50Hz | Model : RDE13SS3
Description :
Robust and durable
- Compact. robust and flexible structures ensure long service life and quiet operation.
- Thicker painting treatments stand the wear and tear in extreme environmental conditions.
Cleaner. safer and quieter
- Waterproof canopy ensures protection against ingress of dust and water.
- All DEHRAY generators meet or exceed relevant standards for noise and emission regulations.
Design for easy transportation
- Lifting hook and forklift access are standard on all units. Compact structure minimize transportation costs.
Easy to use
- Control panel is simple and easy to operate.
- Built-in monitoring system ensures safe operation and basic parameter display
Specification :
| RDE13SS3 | ||||
| Rated frequency | HZ | 50 | 60 | |
| Prime power | KVA | 10.6 | 13.1 | |
| KW | 8.5 | 10.5 | ||
| Standby power | KVA | 11.6 | 14.5 | |
| KW | 9.3 | 11.6 | ||
| Rated voltage | V | 400/230 | 416/240 | |
| Rated current | A | 15.3 | 18.2 | |
| Rated rotation speed | r/min | 1500 | 1800 | |
| Generator type | FD1C1-4 (Three-phase) | |||
| Pole No. | 4 | |||
| Phase number | Three-phase | |||
| Excitation mode | Brushless. self-excitation and constant voltage(with AVR) | |||
| Power factor | COS | 0.8(lag) | ||
| Insulation grade | H | |||
| Engine type | RD385D | |||
| Stucture type | 3-cylinder. in-lined. 4-stroke. direct-injected. water-cooled | |||
| Borestroke | mm | 8590 | ||
| Displacement | L | 1.532 | ||
| Compression ratio | 181 | |||
| Rated power | KW | 11 | 13 | |
| Lubrication system | Pressure splashed | |||
| Lube oil brand | Above CD grade or SAE 10W-30. 15W-40 | |||
| Starter system | 12V Electric starter | |||
| Starter motor capacity | V-KW | 12V 3KW | ||
| Battery capacity | V-Ah | 12V 65Ah | ||
| Engine fuel consumption | g/KW.h | 255 | ||
| Fuel type | 0#(summer)-10#(winter)-35#(chillness) diesel | |||
| Control panel type | Smartgen digital panel | |||
| Output | Receptacle | 2-single phase | ||
| Connection pole | with | |||
| Fuel tank capacity | L | 68 | ||
| Overall dimension | mm | 16007801050 | ||
