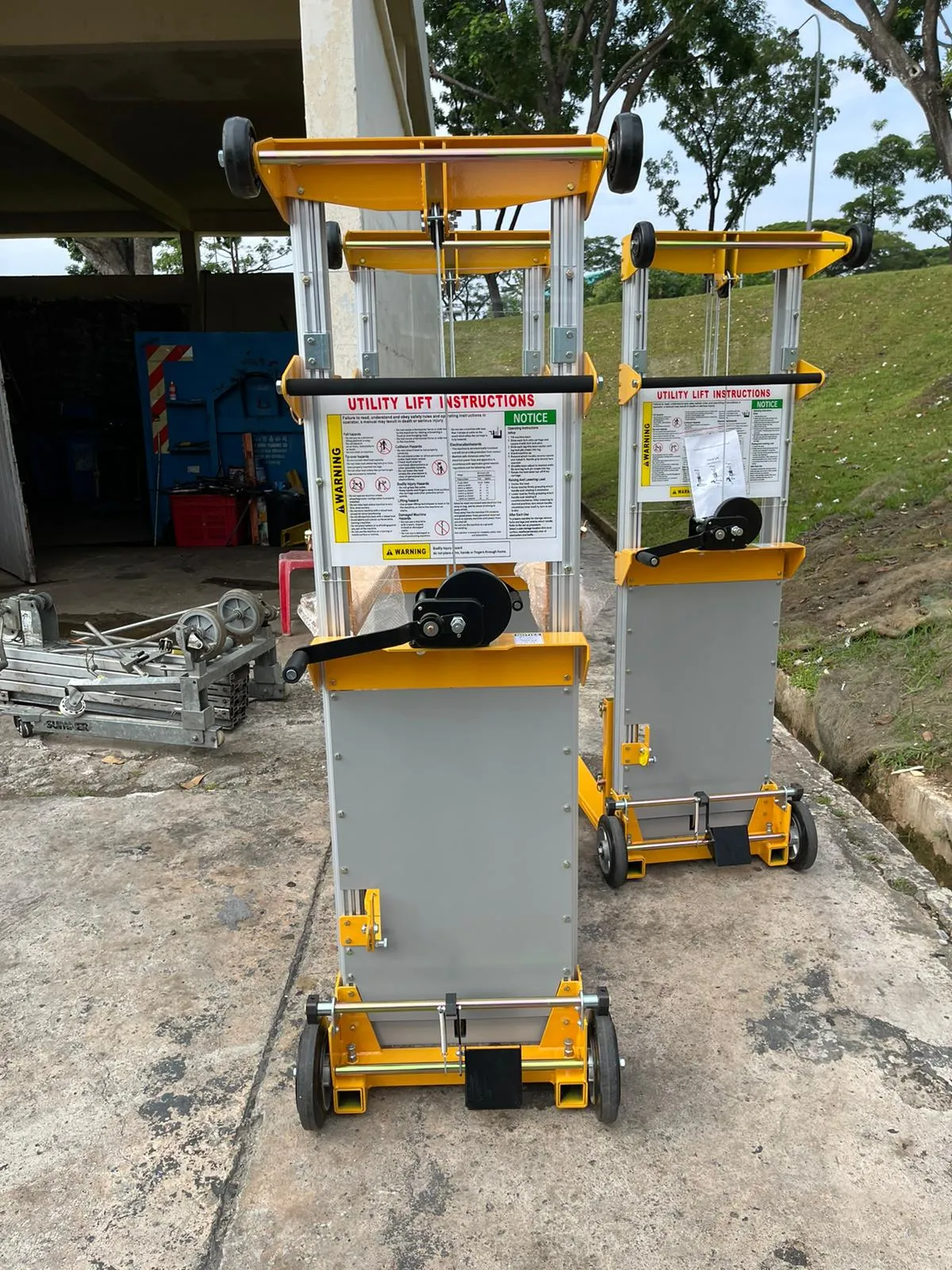

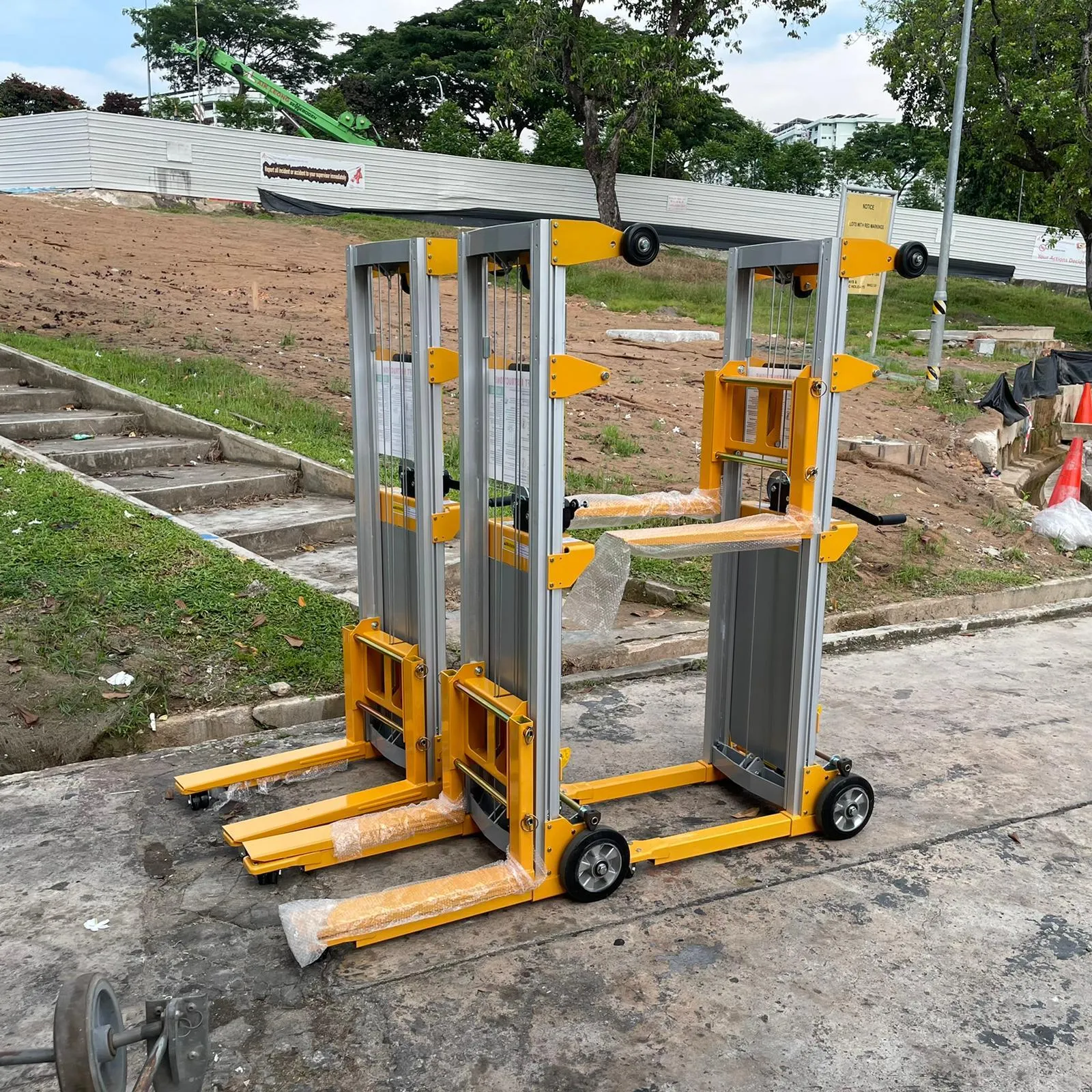

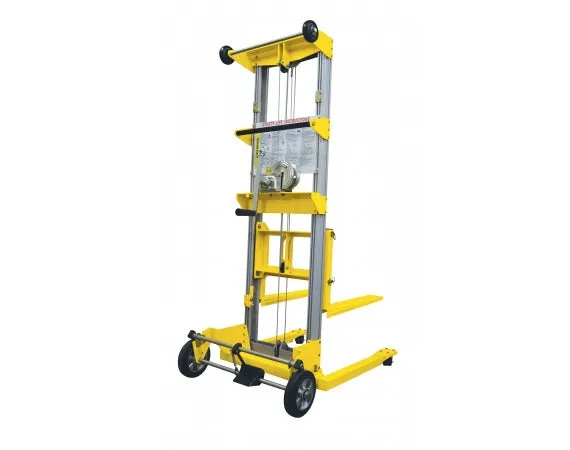

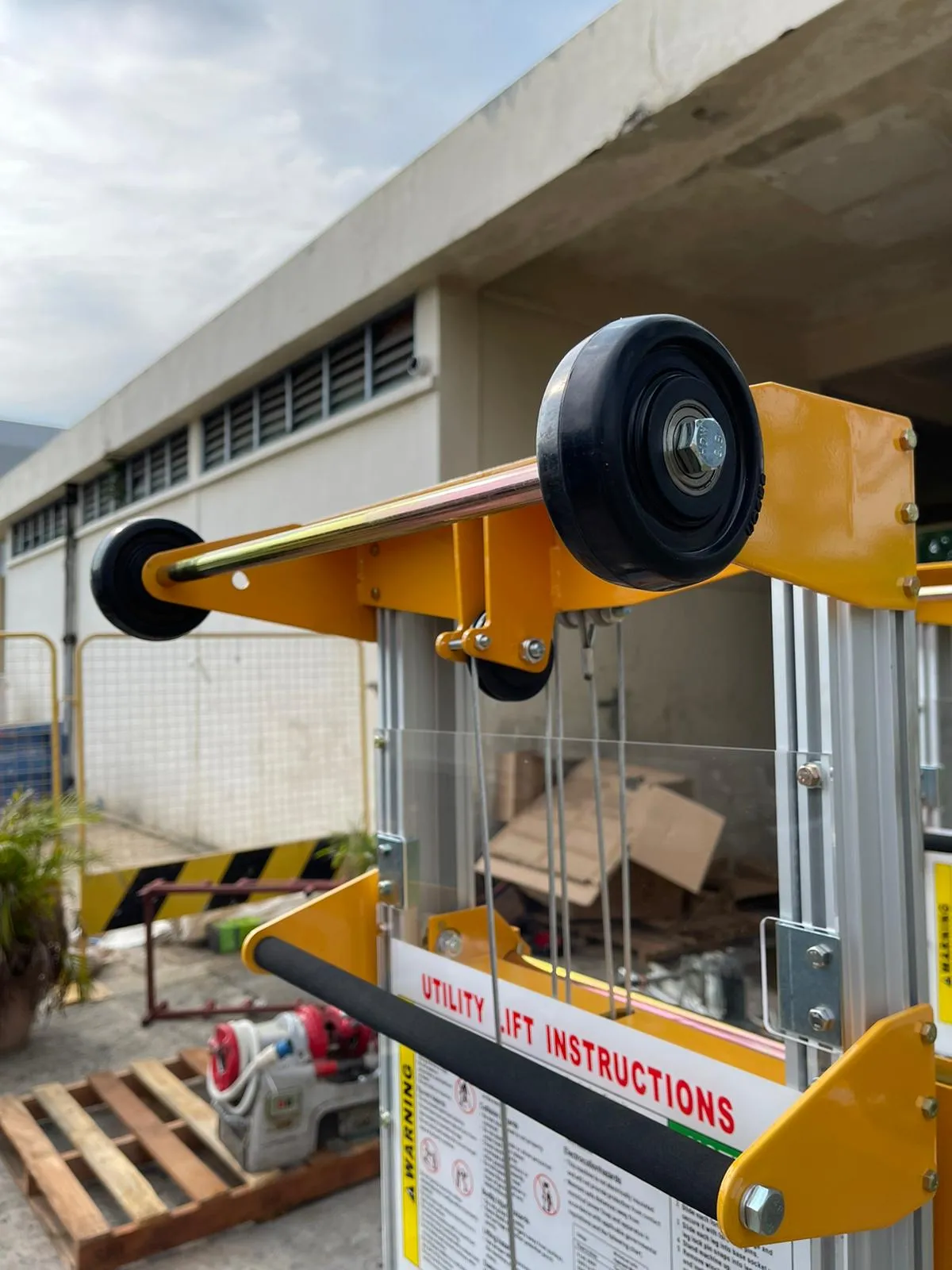

Aiko Aluminium High Lift Stacker 181Kg/2.5M-3M | Model : PT-STD181

Features :

• These aluminum winch lifters are great for assisting in the lifting. positioning. and installation of goods up to 2.5m or 3.0m in height
• All units fold for easy storage and transport

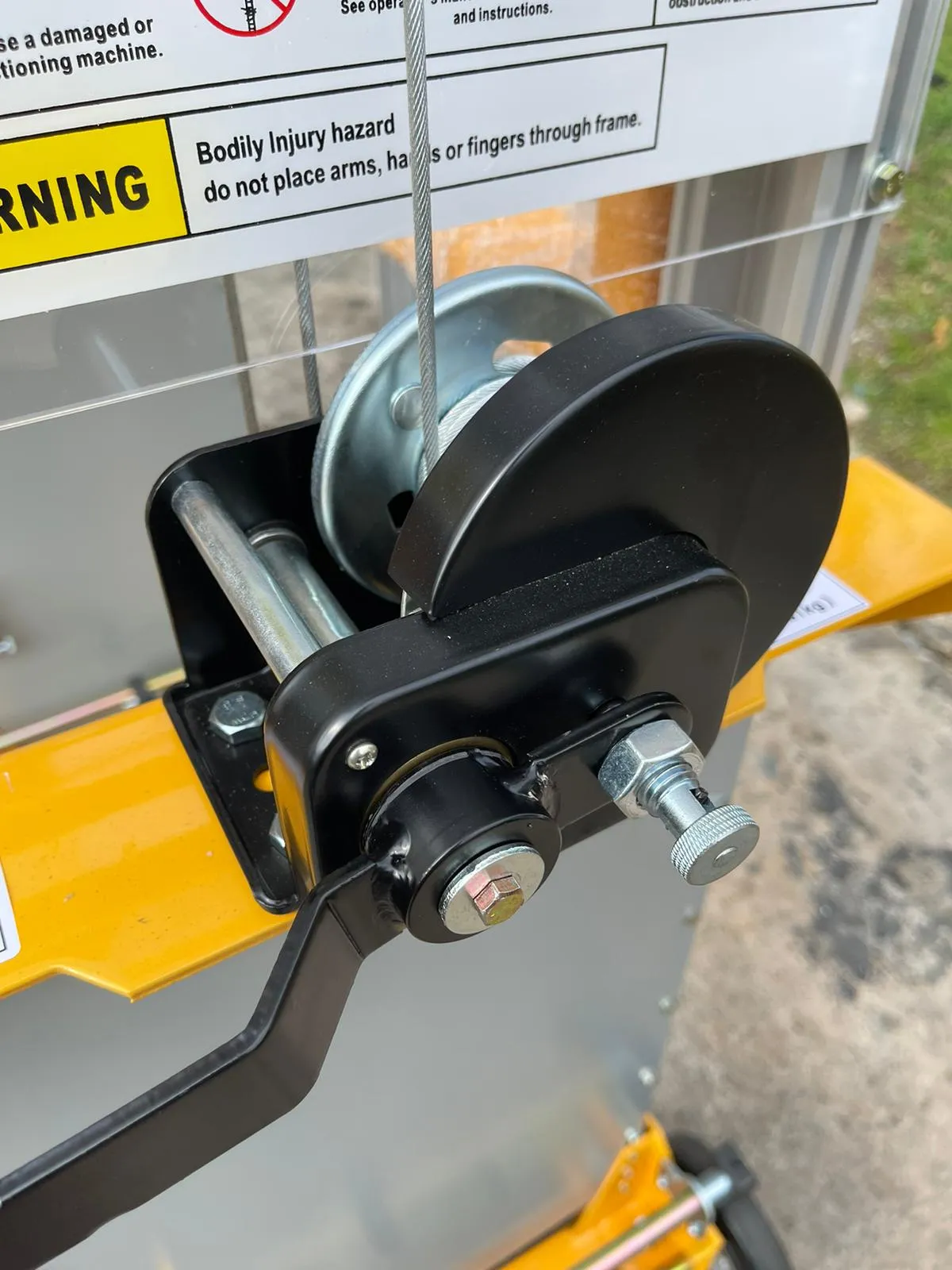

• Manual hand winch control with an automatic braking action

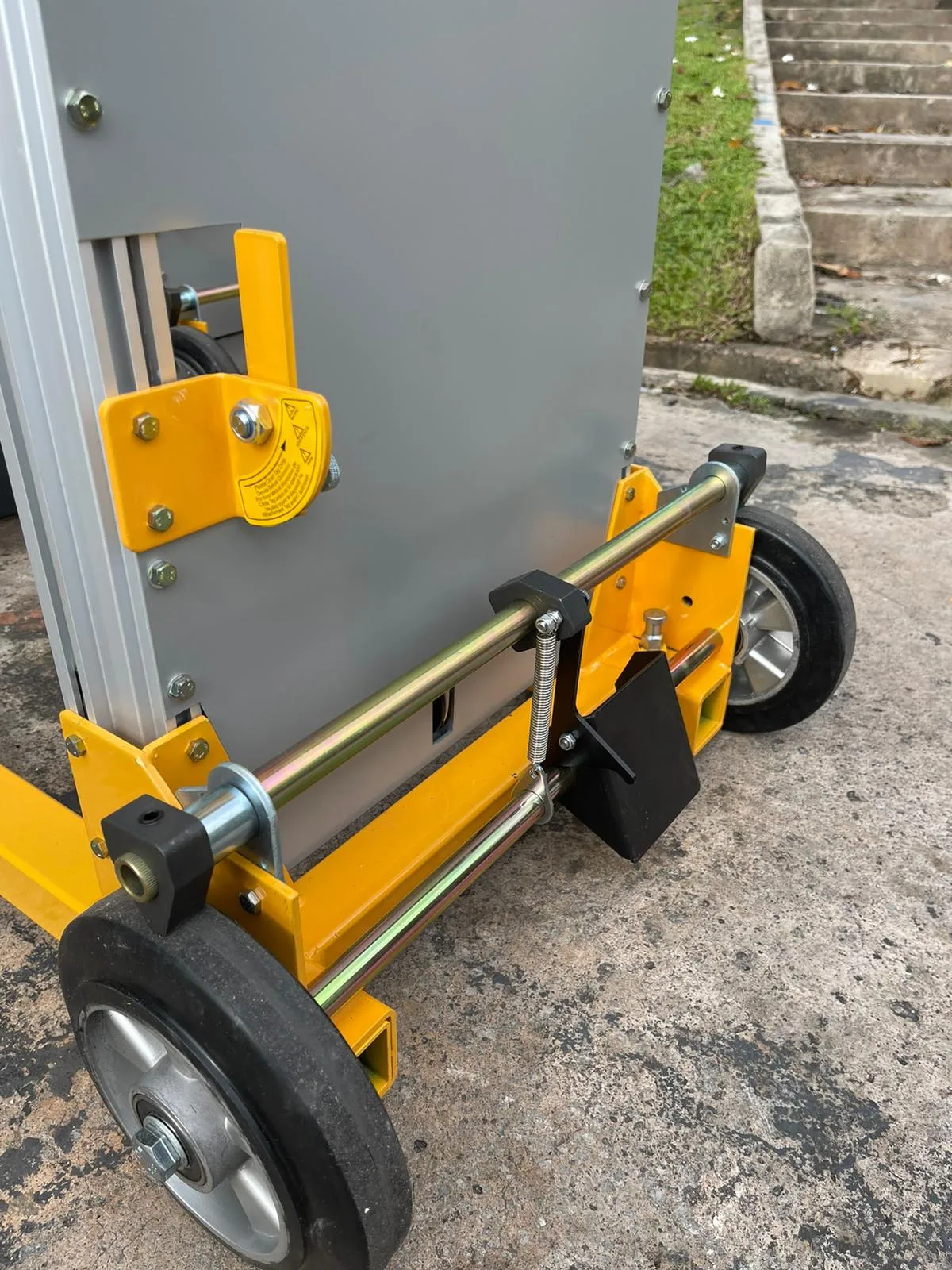

• Foot pedal brake
• Fits through standard doorways
• Quick setup requires no tools

Specifications :

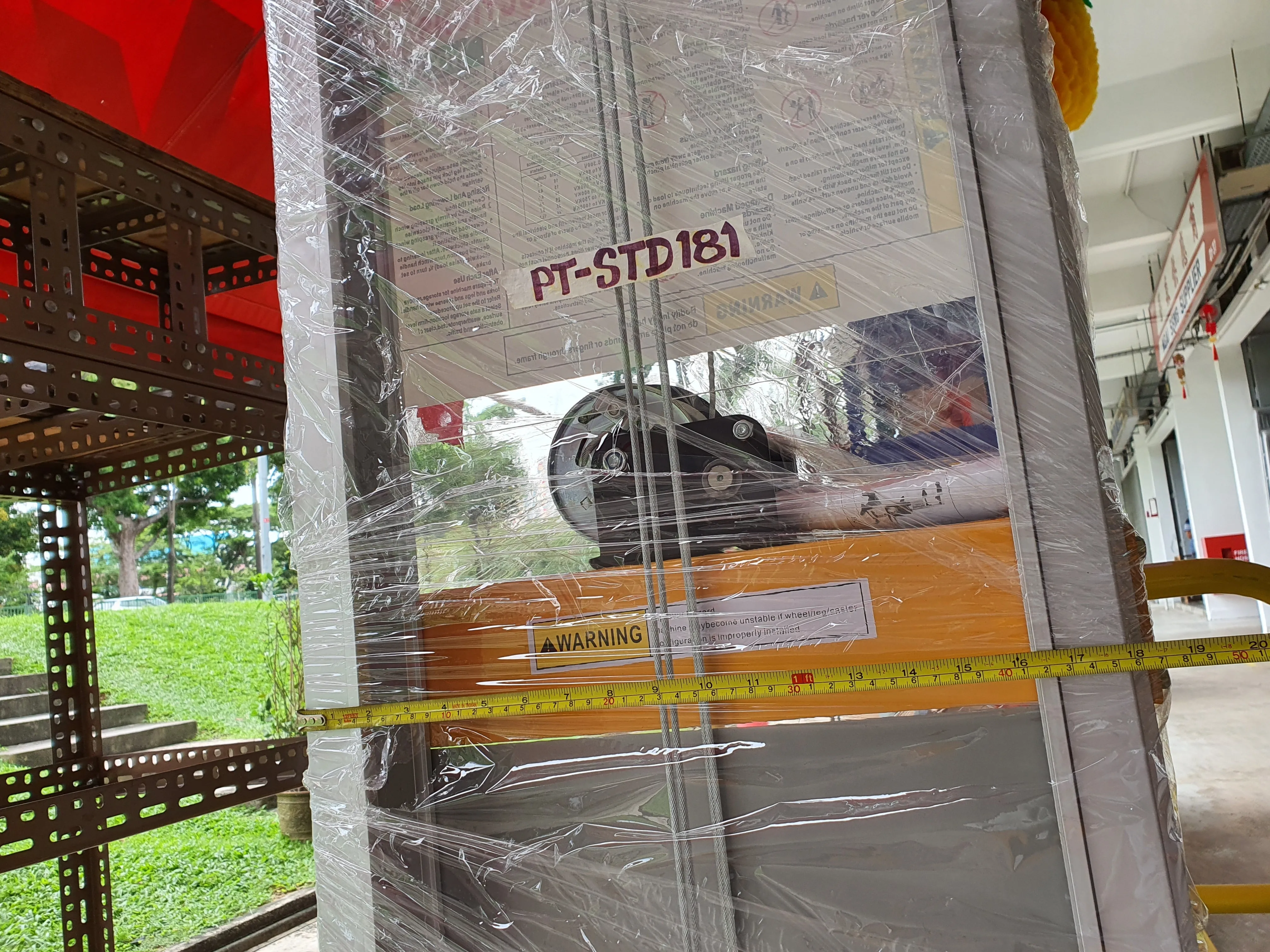

• Model :PT-STD181

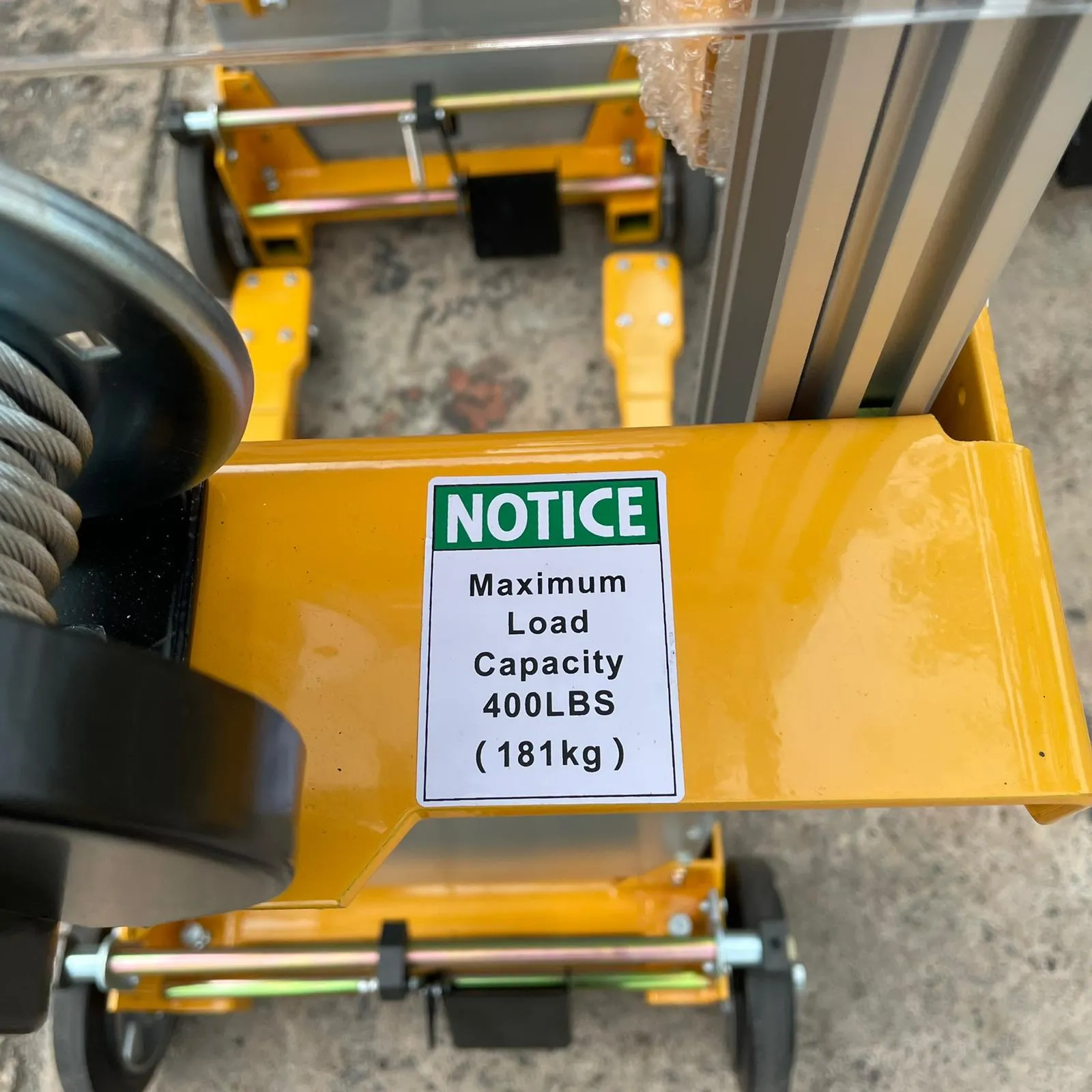

• Capacity: 181kg

• Lift Height (fork up): 3000mm

• Lift Height (fork down): 2500mm

• Fork Length: 570mm

• Single Fork Width: 105mm

• Outside Width of 2 Forks: 530mm

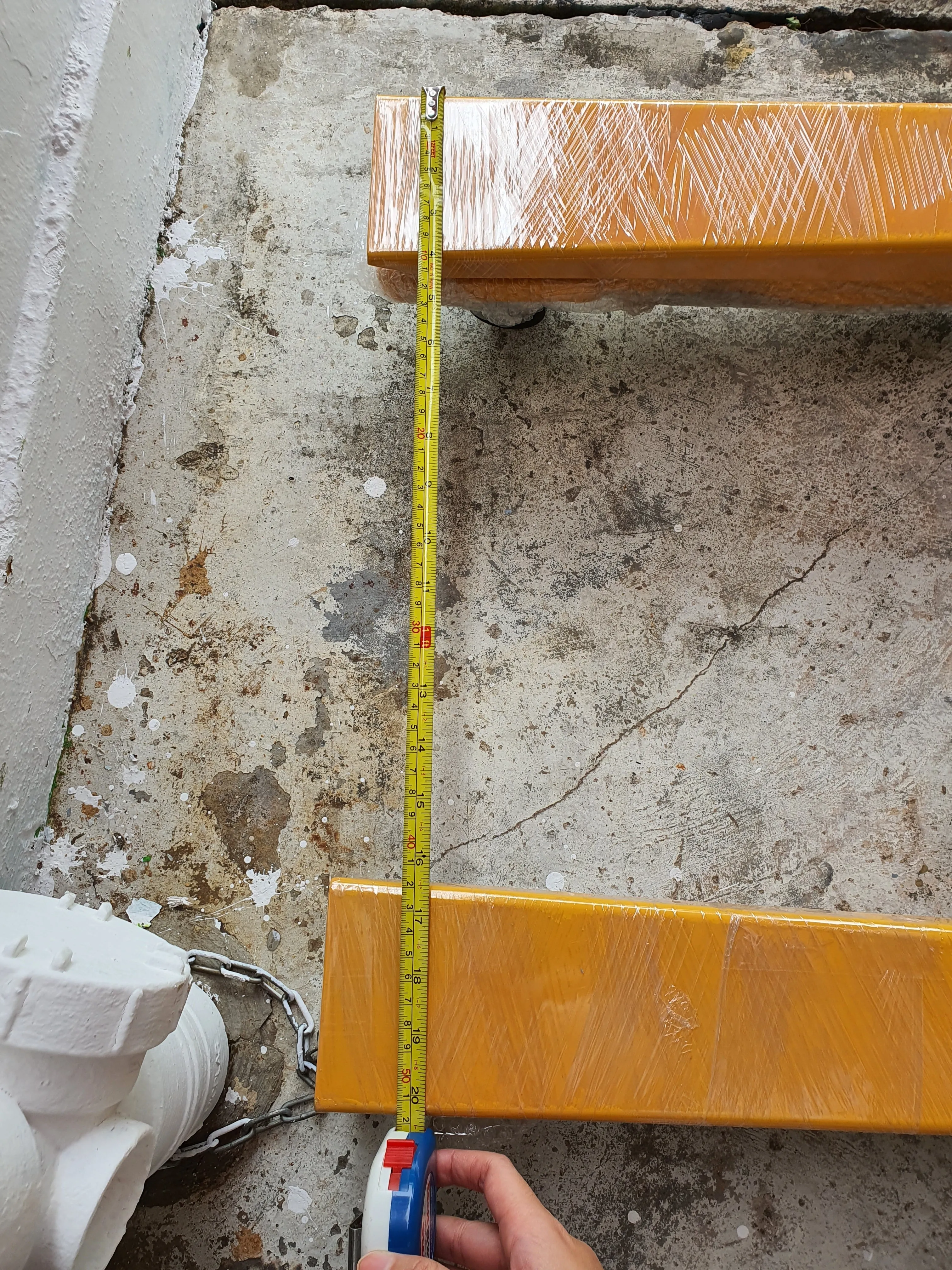

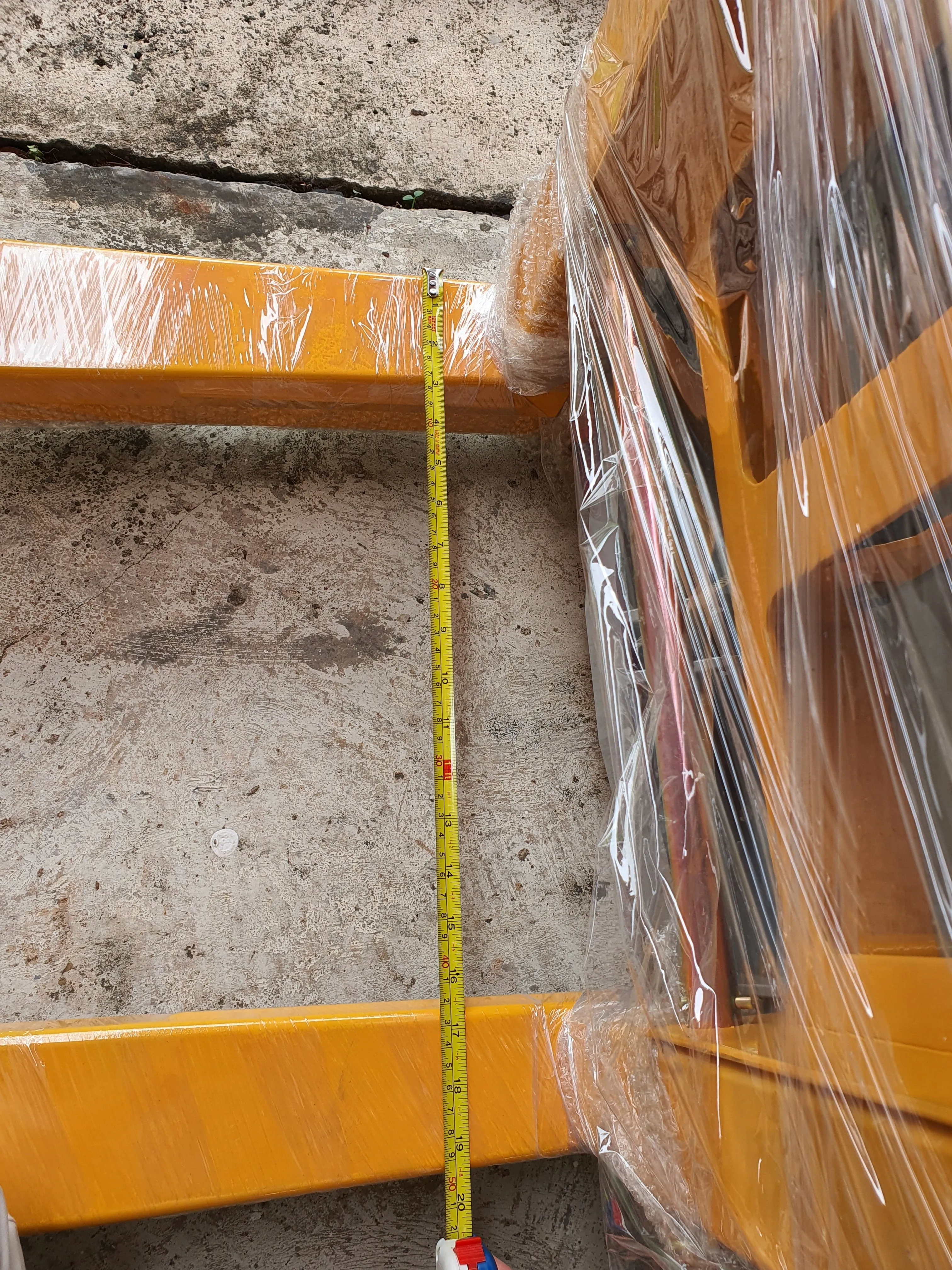

• Inside Width of 2 Forks: 330mm

• Load Center: 254mm

• Overall Length: 1100mm

• Overall Width: 736mm

• Lowest-Highest Mast Height: 1700mm-2500mm

• Minimum Fork Height: 51mm
• Single Leg Width: 105mm

• Unit Weight: 74kg
