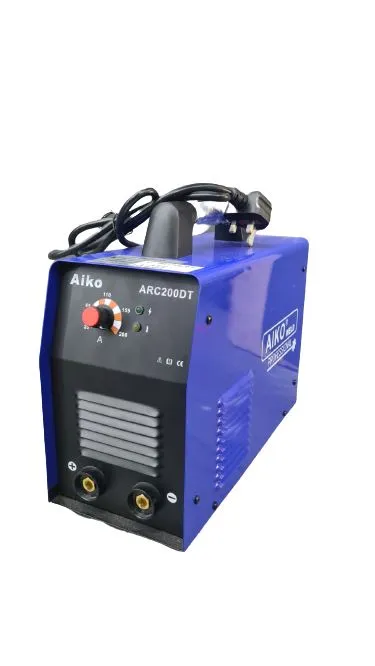

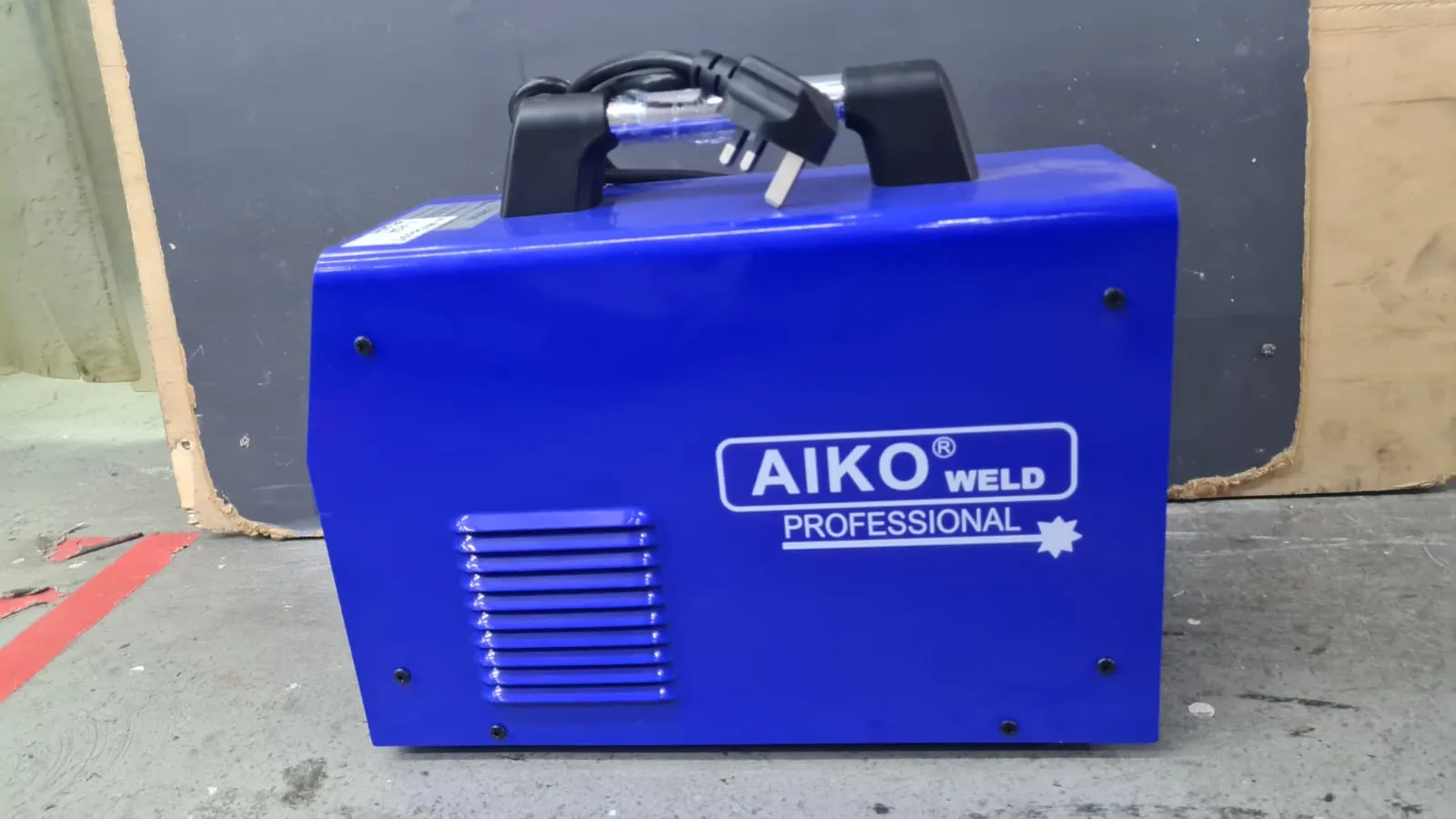

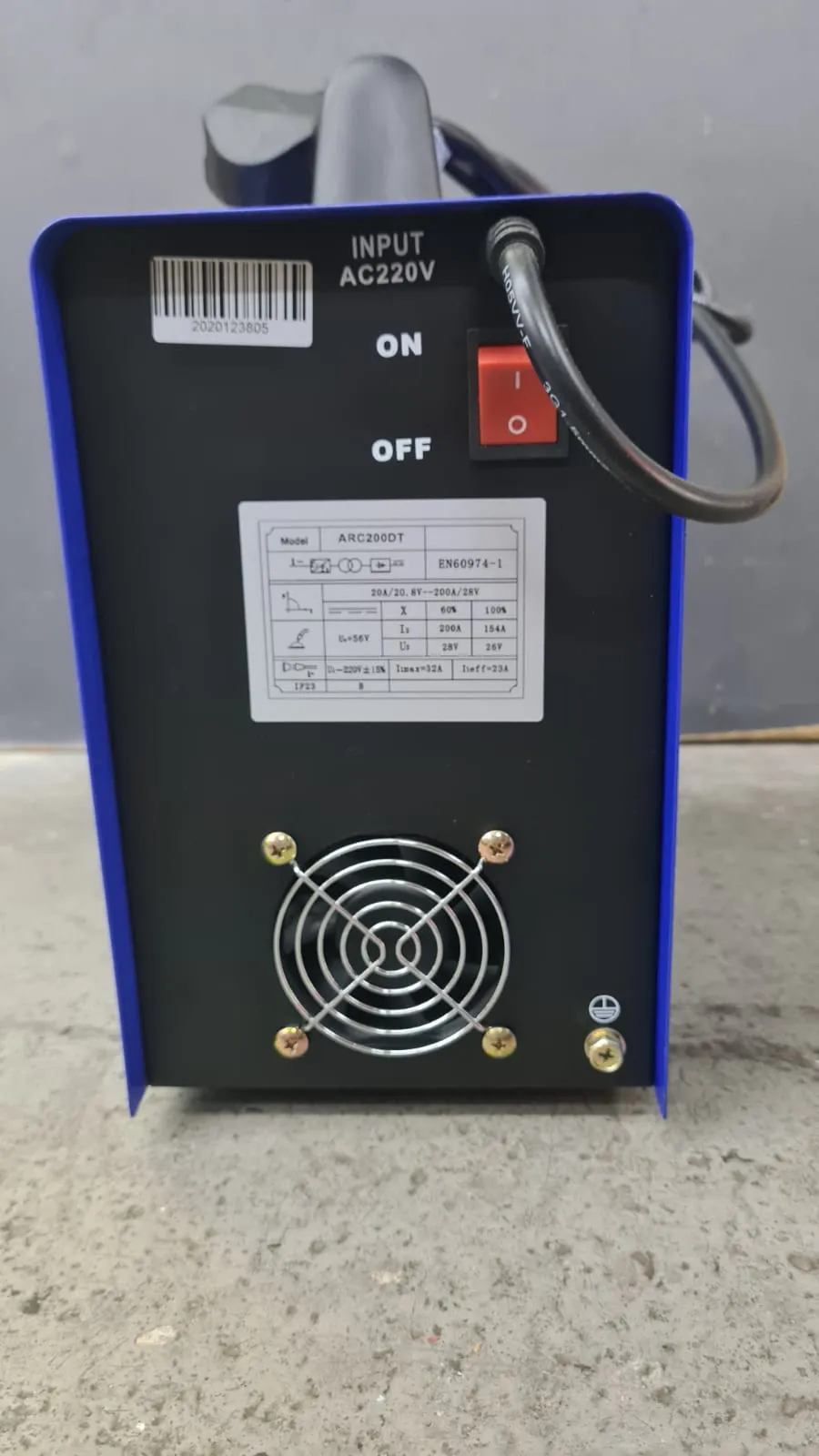

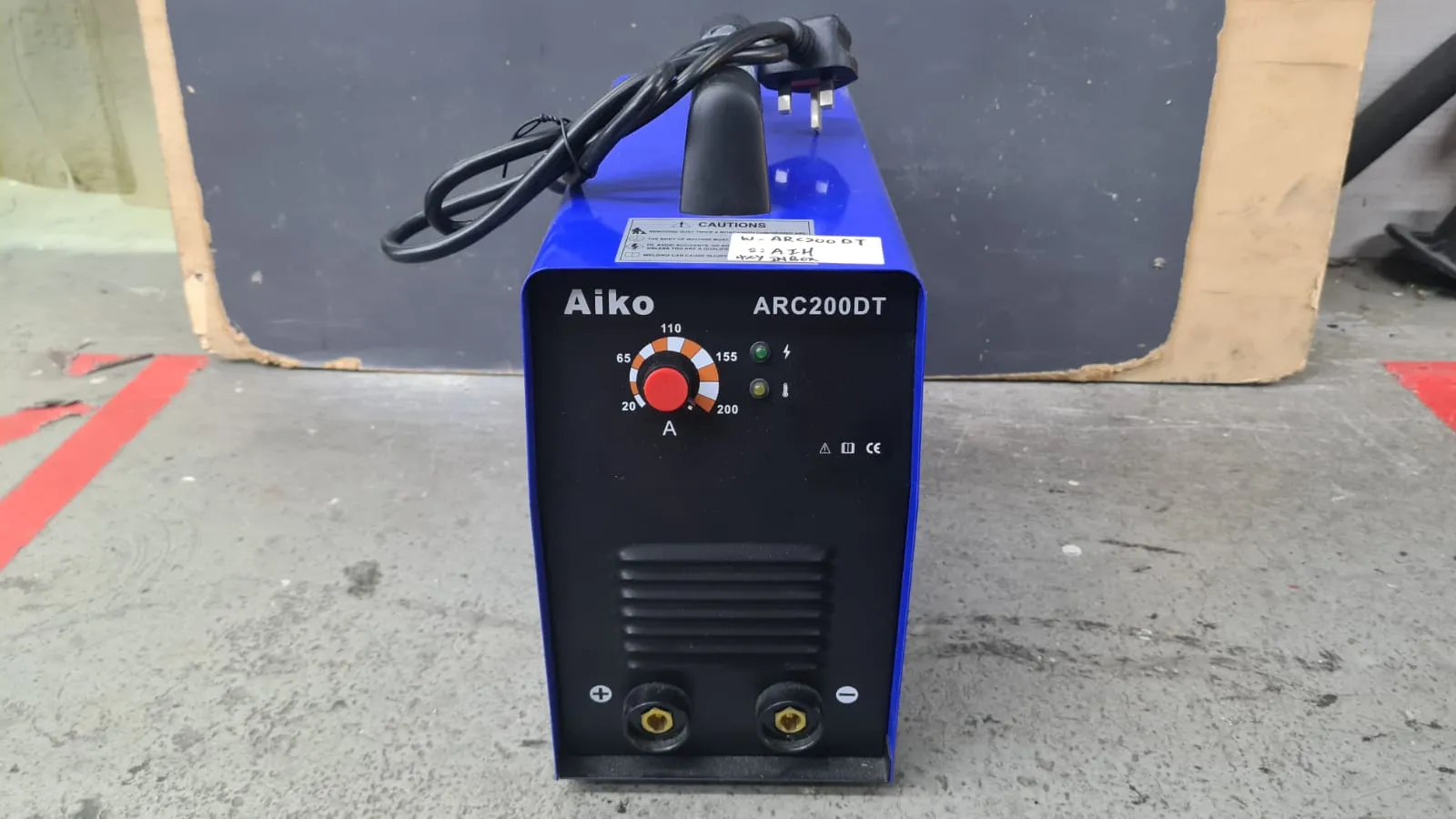

AIKO ARC200DT 240V Welding Set Come with 3m 16mm 2 Welding Cable & 3m 16mm2 Earth Cable| Model : W-ARC200DT

Features :

• Adopts IGBT inverter technology to achieve the high reliability and stability.
• Portable and durable. suitable for the aerial work and fieldwork. renovation.
• Arc starting fast for little splash. current stability for forming beautiful.
• Reliable and economical. all kinds of mechanical metal material welding repair.

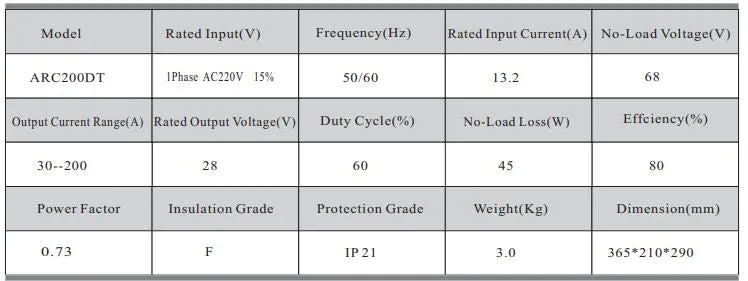

Specifications :

• Model : ARC200DT
• Rated Input :1Phase AC220 V (15%)
• Frequency : 50/60 Hz
• Rated Input Current : 13.2 A
• No-Load Voltage : 68 V
• Output Current Range : 30~200 A
• Rated Output Voltage : 28 V
• Duty Cycle : 60 %
• No-Load Loss : 45 W
• Efficiency : 80 %
• Power Factor : 0.73
• Insulation Grade : F
• Protection Grade : IP21
• Weight : 3 kg
• Dimension : 365 x 210 x 290 mm
