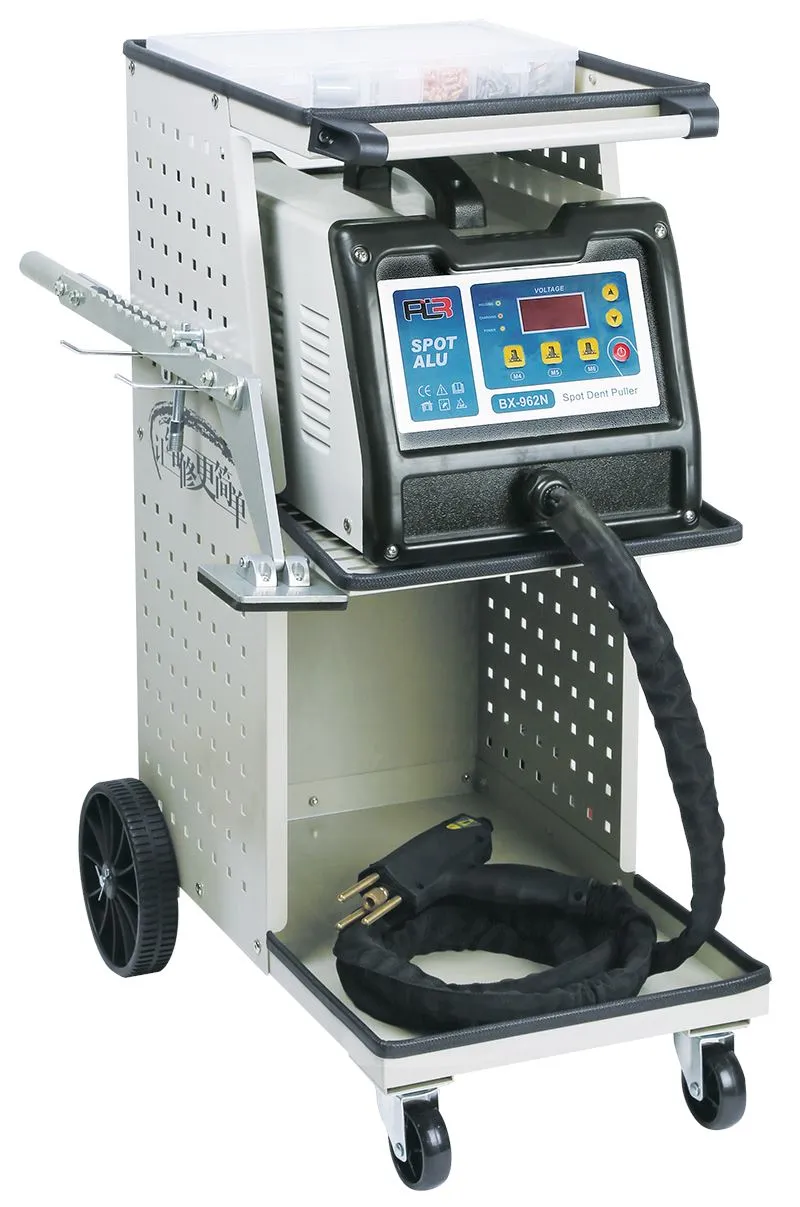

Aiko BX-962N Car Spot Welder For Body Repair (Aluminium) | Model: AM-BX-962N

Descriptions:

BX-962N is designed specifically to perform dent pulling on Aluminium. Using M4/M5/M6 studs. this device allows eliminating the bump and impacts (door panel. hood. ...) without stripping. It can also used for steel dent pulling uning steel studs.

Features:

• Adopting advanced digital control technology and humanized control design. accurately control capacitor work.
• Small weld marks. high welding strength and no damage to the back coating and paint surface.
• With imported capacitor. the charging time is short and the working efficiency is high.
• The screen displays working voltage and can be adjusted without any polarity.
• Being able to weld Alu stud and steel stud of M4.M5.M6.

Specifications:

• Model: BX-962N
• Power Supply: 1Hp 230V
• Input Voltage: AC 220V
• Frequency: 50/60Hz
• Rated Power: 1.5KVA
• Fuse: 10A
• Output voltage: 40-190V
• Insulation Grade: H
• Capacitor: 99000UF
• Stud Size: M4. M5. M6
• Duty Cycle: 80%
• Welding Mode: Spot
• Welding Gun Cable Length: 3M
• Package Size: 70*45*90cm
• Weight: 68KG
