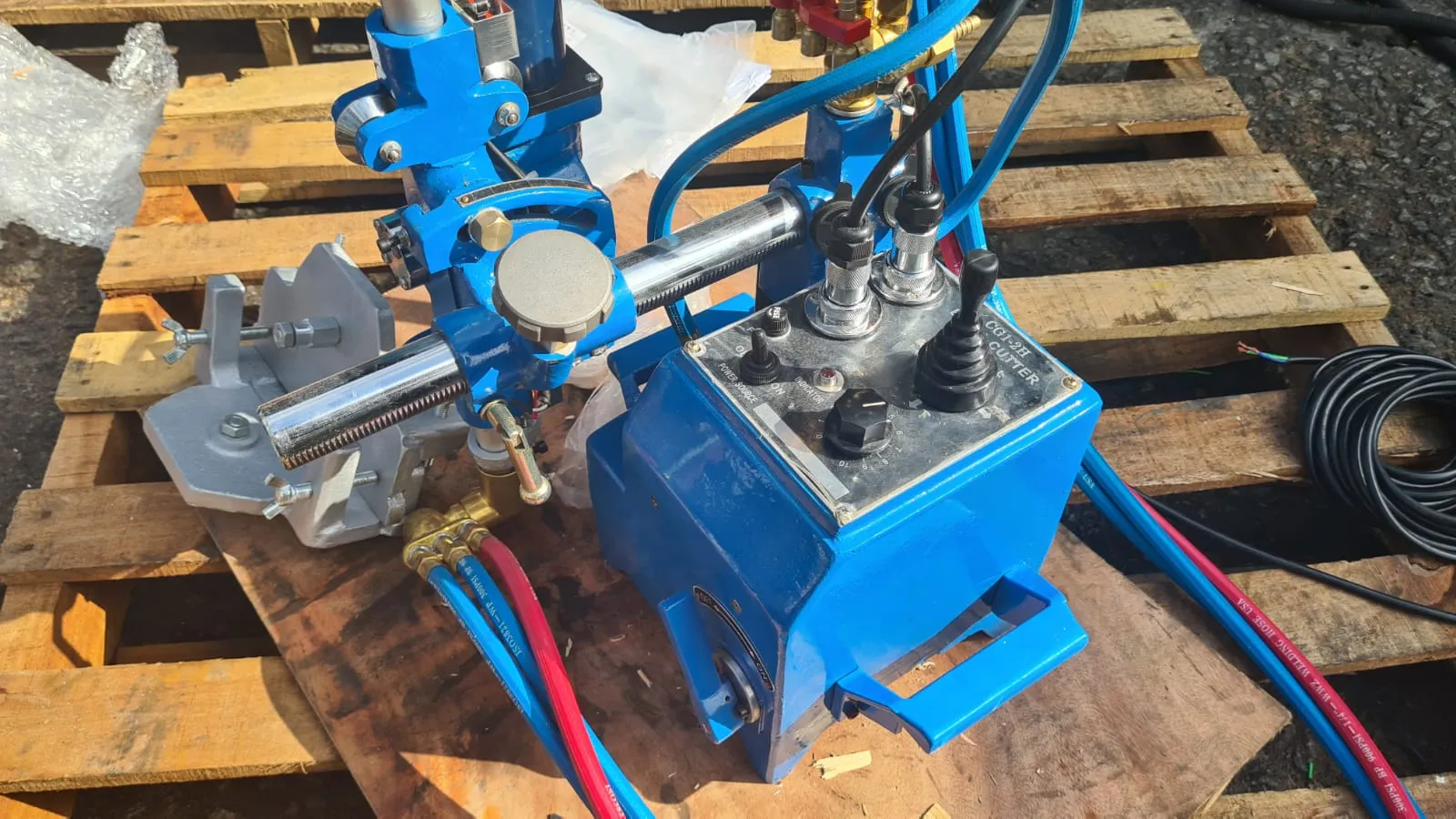

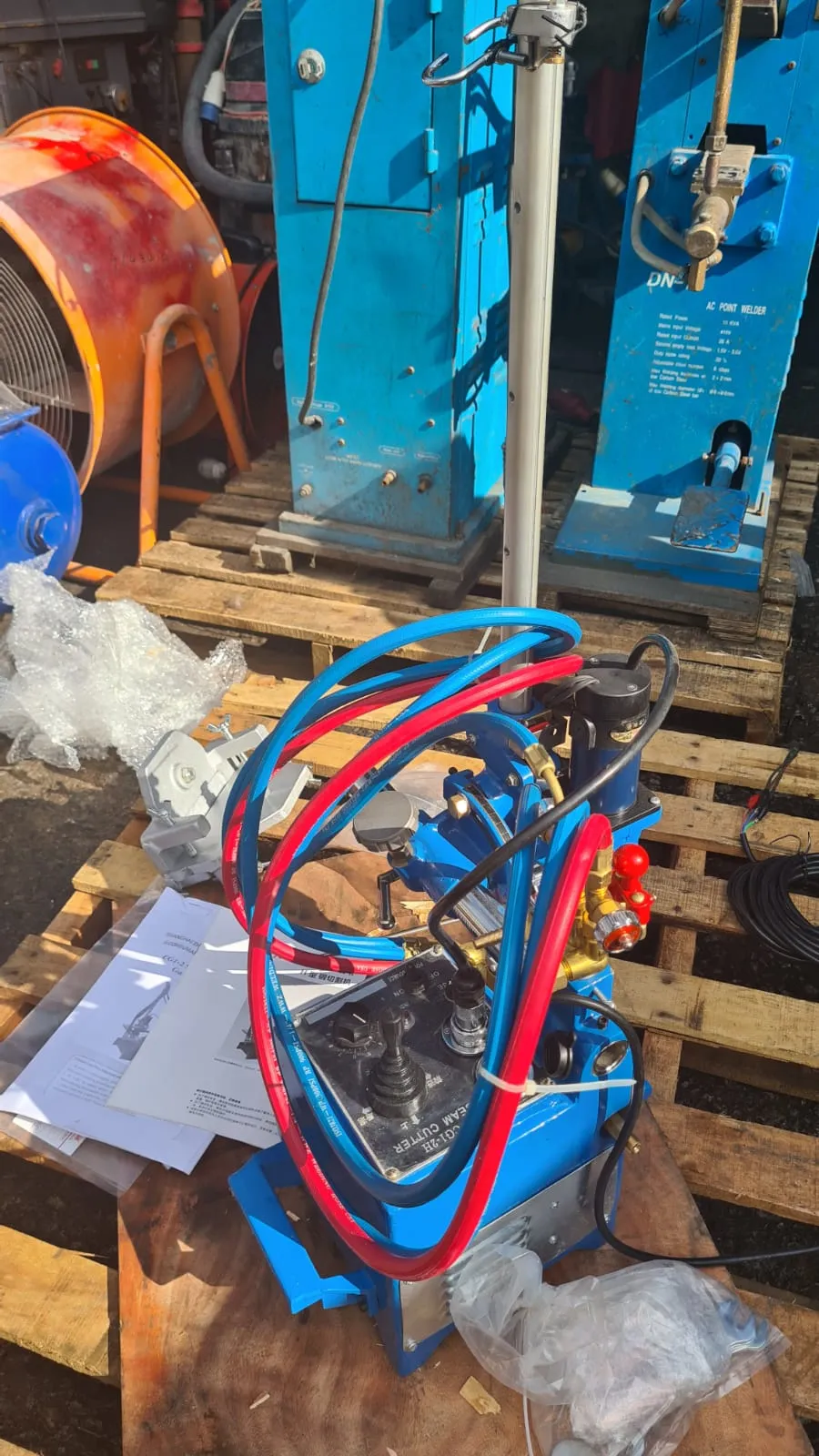

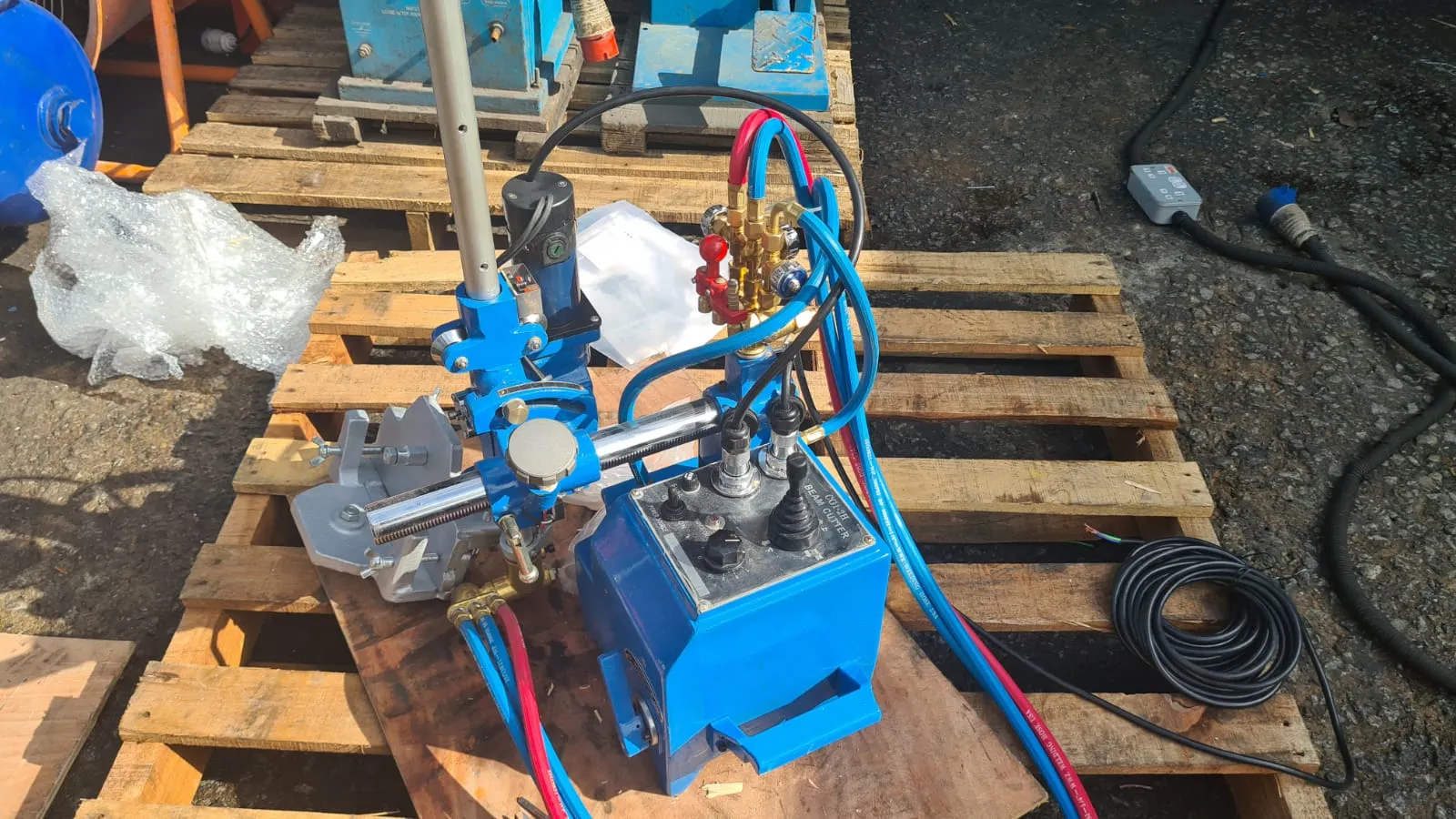

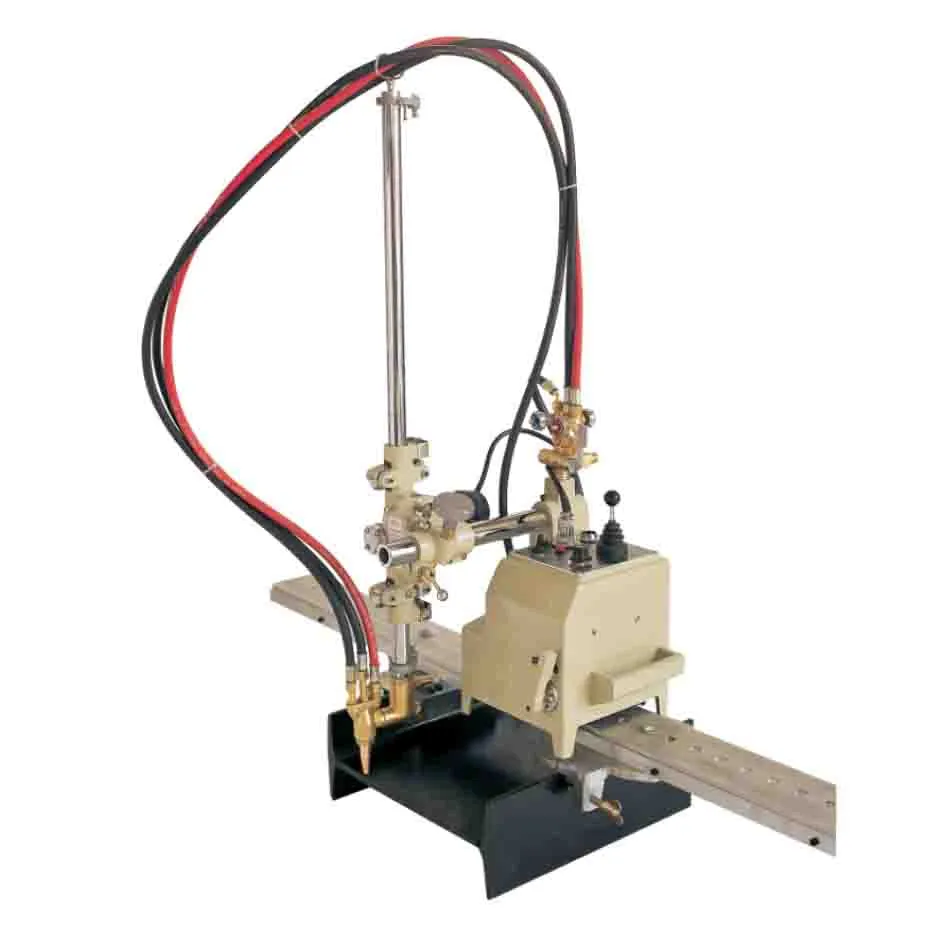

Aiko H Beam Cutter Machine | Model : CG1-2

Features :

• Torch
• Gas hose: connected between torch and gas distributor to deliver gas .
• Adjusting pilot wheel for transverse: It is to control torch transverse movement.
• Track
• Vertical moving bar
• Reduce speed motor of web plate cutting equipment
• Quick distributor: Flame is adjusted only once and not adjusted again.
• Handle: It is to move machine

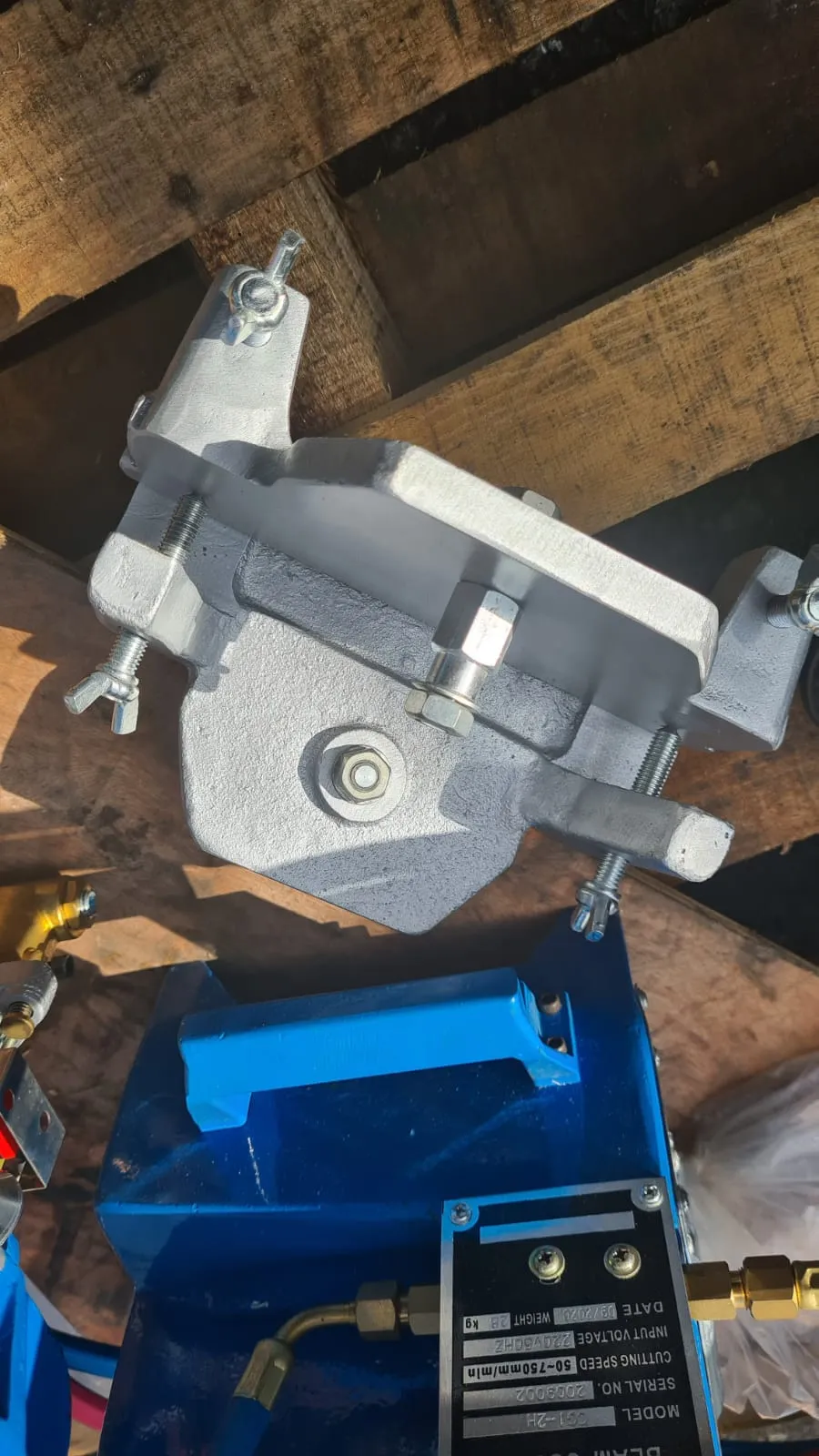

• Track pressure plate: Locate machine on the H structural section
• Clutch knob: Pulling knob on the left side is off. pulling knob on the right side is on.

Specification :

• Model : CG1-2
• Weight : 21.5(Kg)
• Accessory (Track sections) : 15.5(Kg)
• Machine Dimension
• Body : 400x340x440(Mm)
• Track : 270x220x2200(Mm)

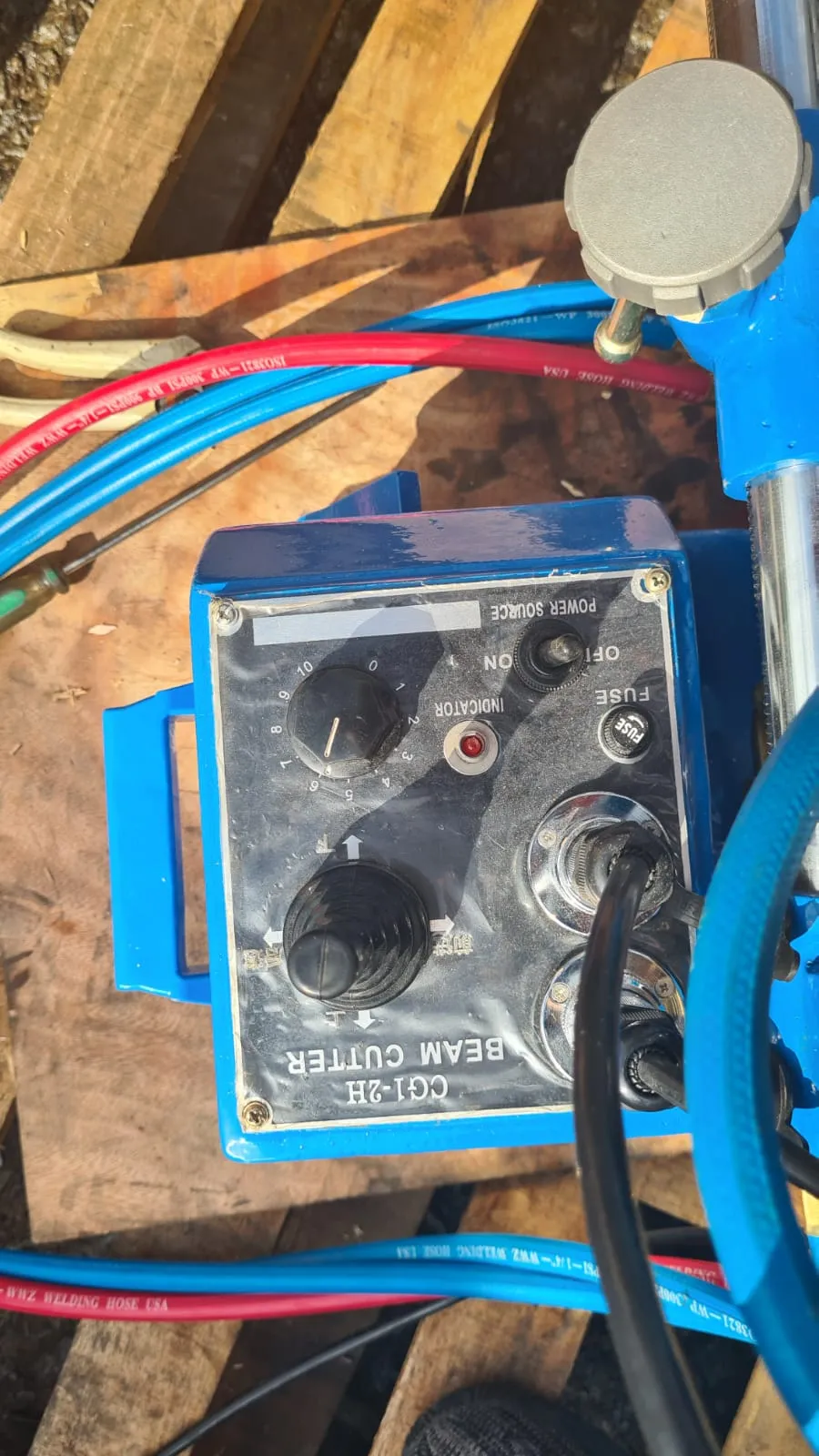

• Speed Control : SCR Control
• Power Source : AC 220V 10%
• Cutting Speed : 50~750(Mm/Min)
• Cutting Thickness : 5-50(Mm)
• Bevel Angle : 0~30 (Wing Plate ; Web Plate)
• Maximum fly past of web plate cutting : A=1600(Mm)
• Maximum fly past of wing plate cutting : B=800(Mm)
• Maximum angle of wing plate slanting cutting
• 30
• Maximum height of slanting cutting 690(Mm)
• Maximum angle of web plate slanting cutting
• 35
• Maximum length of slanting cutting 1300(Mm)
• Tip
• G02(For Acetylene)
• G03(For Propane)
• Motor
• Web Plate Motor : 110V . 30W . 50HZ
• Rotational Speed : 3600(Rpm)
• Wing Plate Motor : 110V . 40W . 50HZ
• Rotational Speed : 2200(Rpm)
