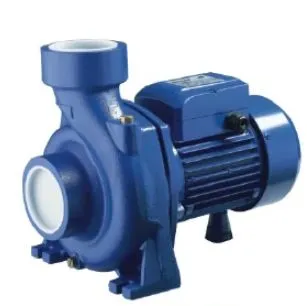

Aiko HFM-85Centrifugal Water Pump 3 X 3 2HP | Model : WP-HFM. Type : Normal or Auto

Features:

• Agricultural Water Application
  Centrifugal single impeller low head water pumps for flow irrigation systems with high flow rate.
  Suitable to pump clean water or non-aggressive liquid charged with small solid impurity.
  To be used in flow irrigation systems in gardening. agriculture and industrial fittings.

• Operating conditions
• Liquid temperature up to 60
  Ambient temperature up to 40
  Total suction lift up to 9mt
  Continuous duty
• Motor
• Two-pole induction motor(n=2850r. P. M)
  Insulation Class B
  Protection IP44
• Material
• Pump body: Cast iron
  Motor support: Cast iron
  Motor housing: Aluminum
  Impeller: BrassShaft with rotor: 45#steel
  Mechanical seal: Carbon/Ceramic

  Single phase 220V-240V/50Hz


Specifications:

• HFM - 85
• Power : 2 (HP)
• Max.Flow : 1100 (L/min)
• Max.Head : 18 (M)
• Inlet/Outlet : 3*3
• Max.Suct : 9 (M)
• N.W : 28 (KG)
• Packing Dimension : 445*265*340
