Product Details
＋

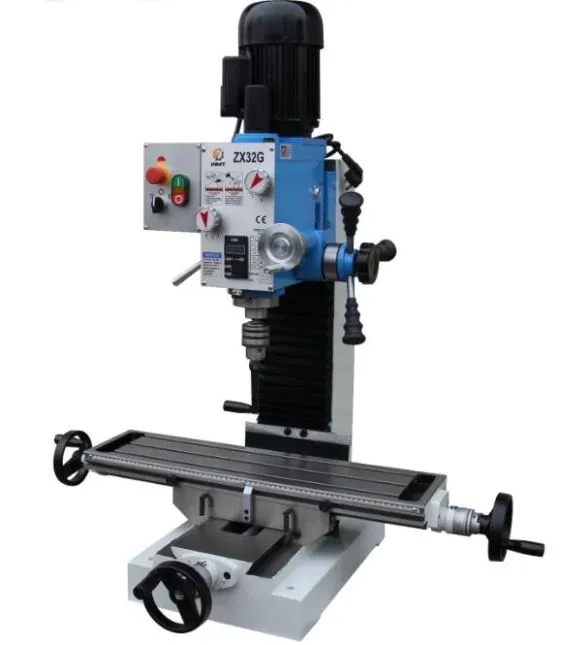

Aiko Milling Drilling Machine | Model : ZX32G
Features :
- Milling and drilling machine.
- CE high precision Drilling and Milling machine.
- High strength column.
- Good strength gear gridding .low nose.
- Head stock tilts left and right.
- Wide electrical box. easy operation.
- High presion manual feeder.
- Depth ruler. easy operation and read.
Specifications :
| Specification | ZX32G |
| Max drilling capacity | 32mm |
| Max tapping capacity | 16mm |
| Max face milling capacity | 63mm |
| Table size | 700*180mm |
| Spindle taper | MT3/R8 |
| X-axis travel | 410mm |
| Y-axis travel | 205mm |
| Z-axis travel | 310mm |
| Spindle travel | 85mm |
| T-slot size | 12mm |
| Spindle speed range | 95-1420rpm |
| Headstock tilt left and right | 90 degree |
| Column size | 150130690mm |
| Base size | 550340mm |
| Max. distance from spindle center to column | 203mm |
| Max. distance from spindle center to table | 336mm |
| Motor power | 750w |
| N.W/G.W | 170/200kgs |
