Product Details
＋
Design for high quality cutting users only :
- Using the most advanced IGBT technology design. easy arc. fast cutting speed. smooth cut. the power supply is designed with high rated duty cycle. over 50% when temp. is 40'c;
- Certified to EU(CE) and China Compulsory Certification (CCC)

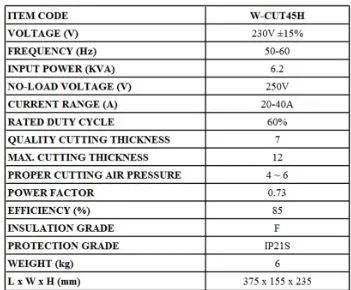

Specifications
- Voltage(V) : 230V
- Frequency(Hz) : 50-60
- Input Power(KVA) : 6.2
- No-Load voltage(V) : 250V
- Current range(A) : 20-40A
- Rated duty cycle : 60%
- Quality cutting thickness : 7
- Max. cutting thickness : 12
- Proper cutting air pressure : 4~6
- Power factor : 0.73
- Efficiency(%) : 85
- Insulation grade : F
- Protection grade : IP21S
- Weight(kg) : 6
- L x W x H(mm) : 375 x 155 x 235
