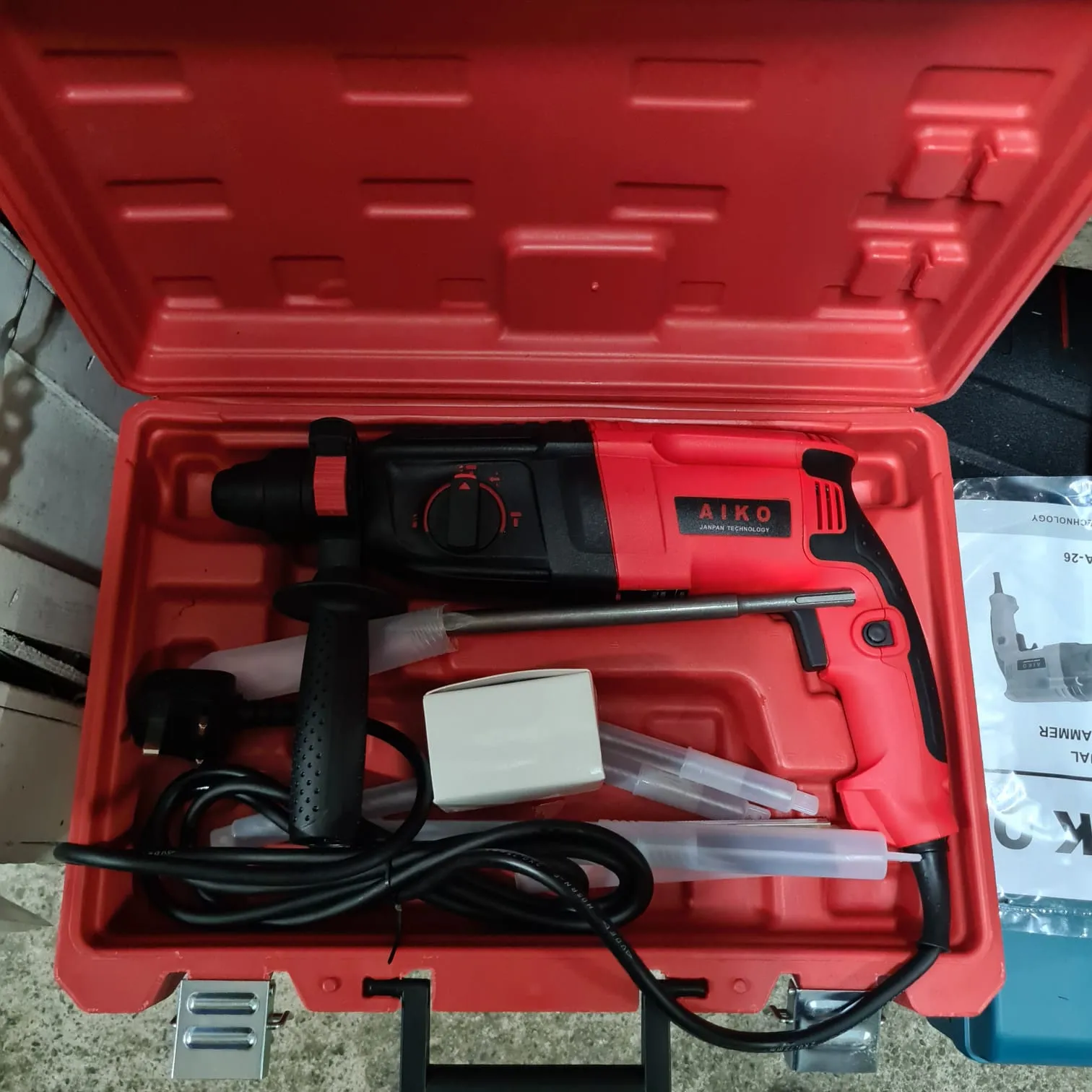

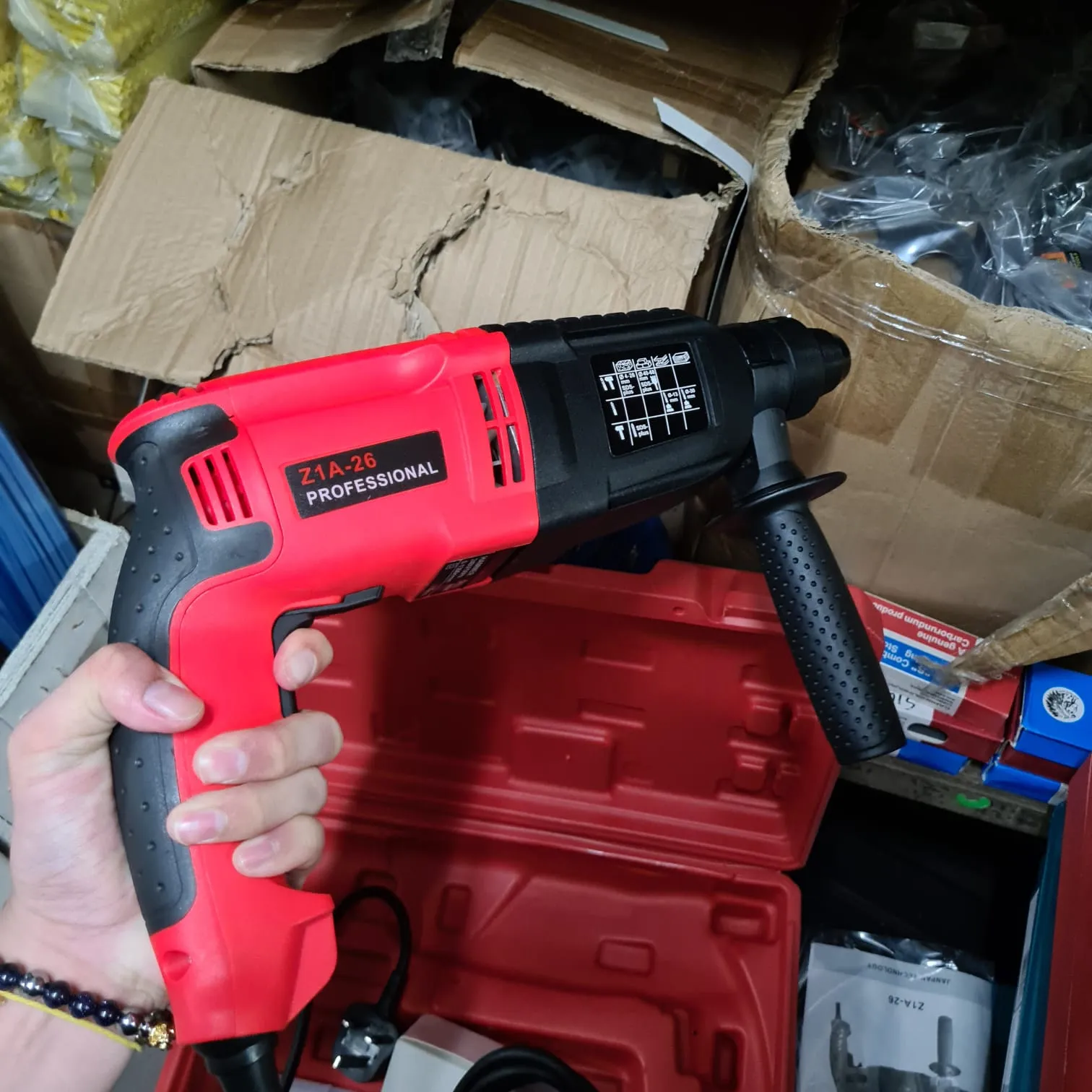

Aiko Rotary Drill | Model : Z1A-HB-2614SRE (No Warranty)

Features :

• Intended Use
• These machines are intended for hammer drilling in concrete. brick and stone. They are likewise suitable for drilling without impact in wood. metal. ceramic and plastic. Machines with electronic control and right/left rotation are also suitable for screw driving and thread cutting.
• Product Elements
• SDS - Plus quick change drill chuck

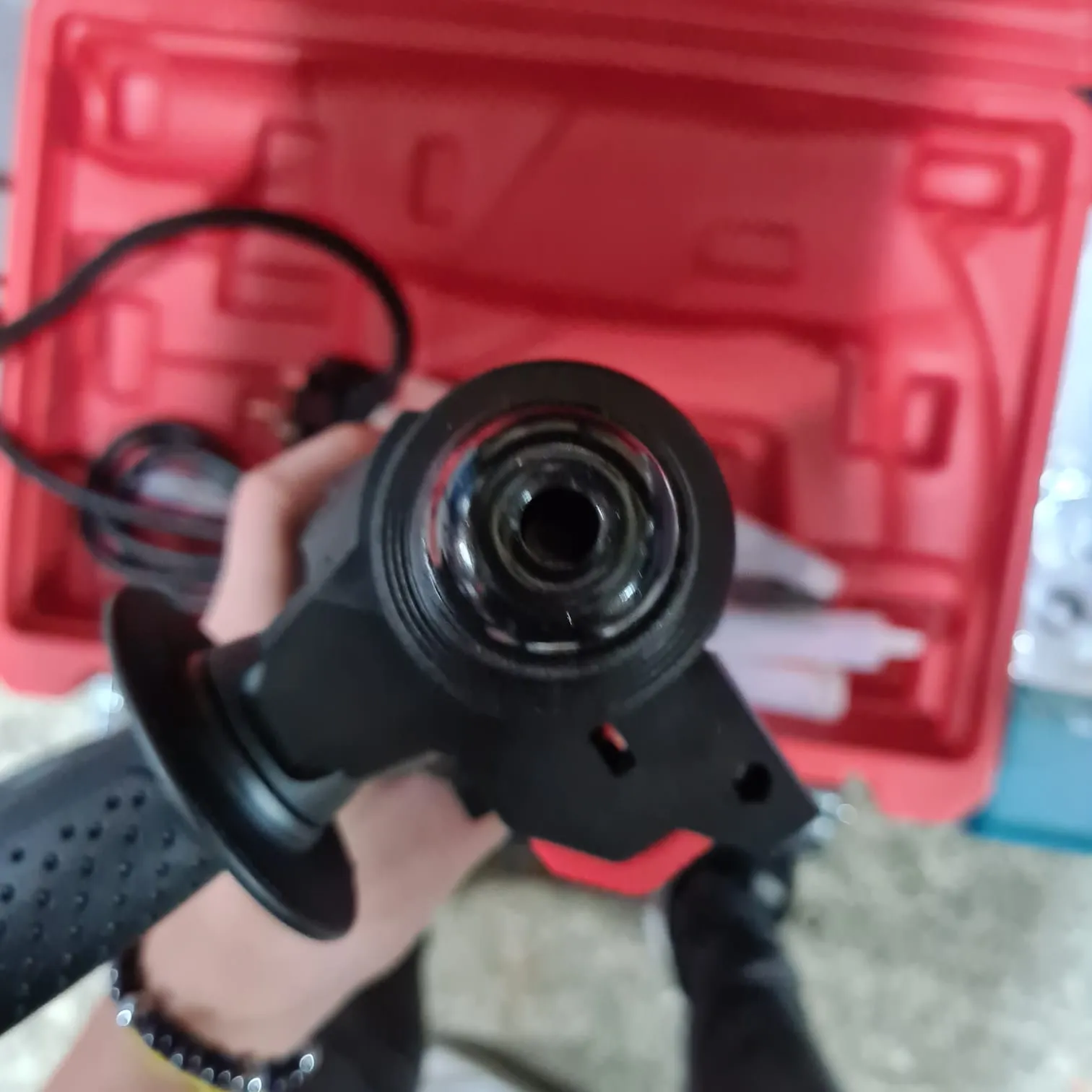

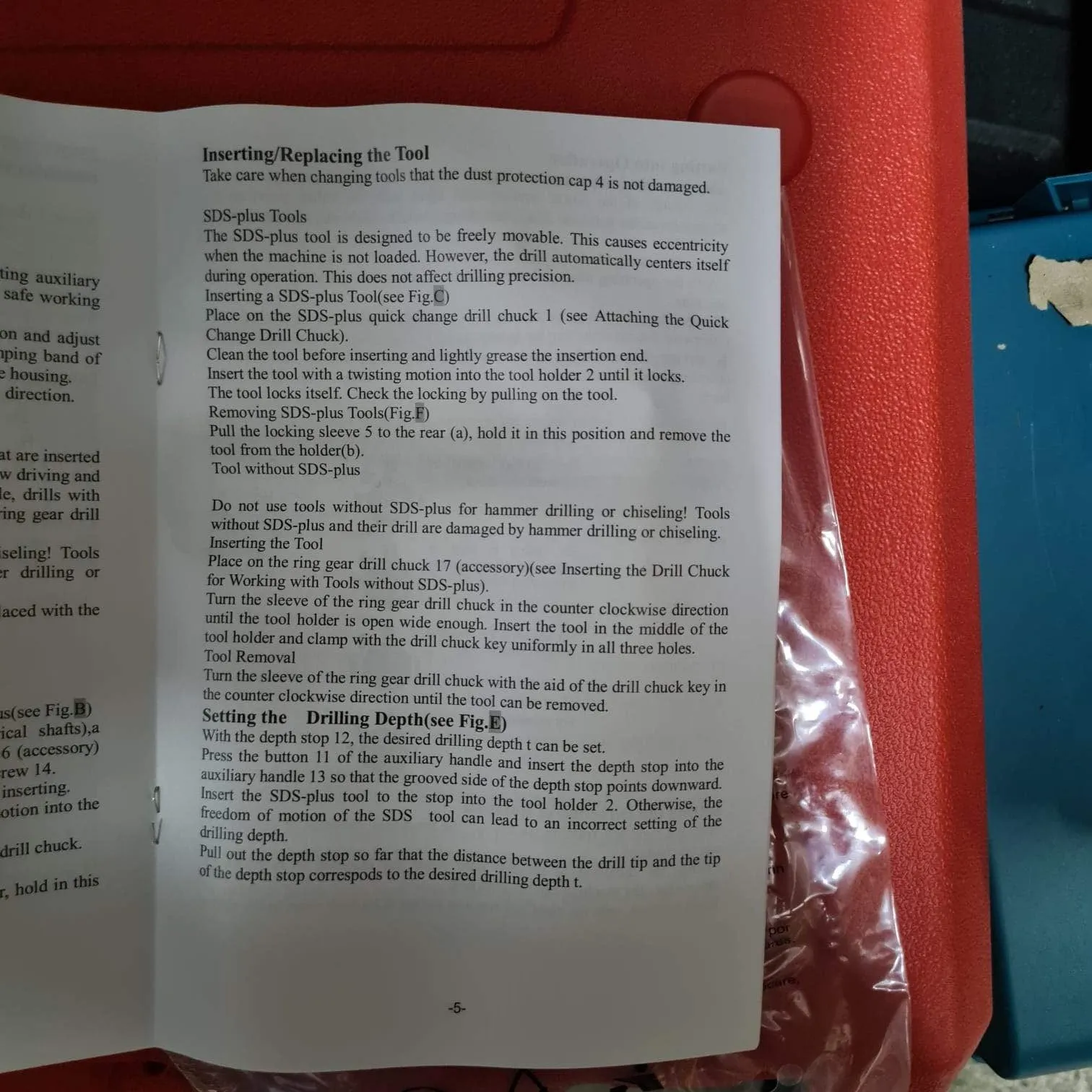

• Tool holder (SDS-plus)
• Dust protection cap
• Locking Sleeve
• Quick change drill chuck locking ring
• Right/Left rotation switch
• Locking button

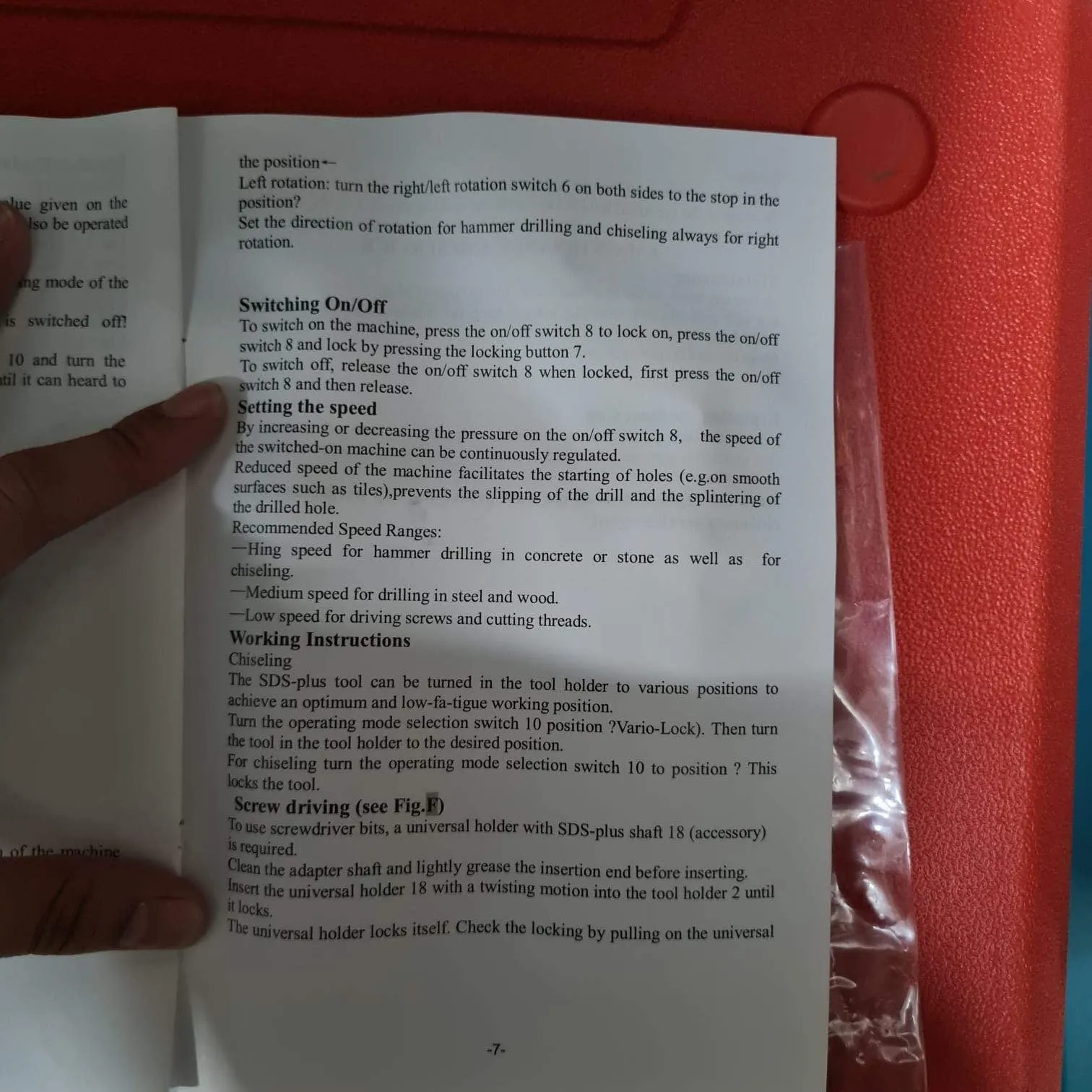

• On/Off switch with speed control function
• Unlocking button

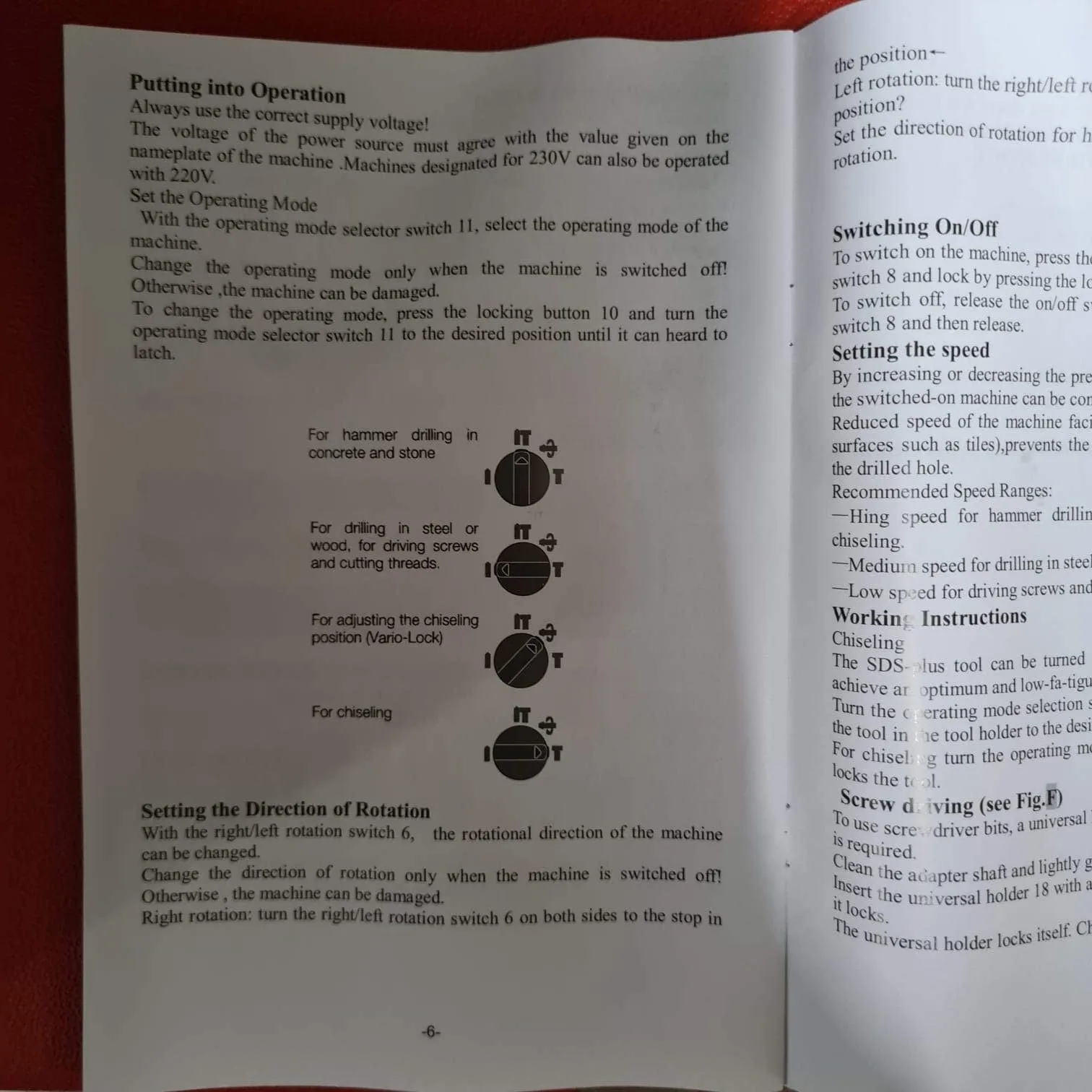

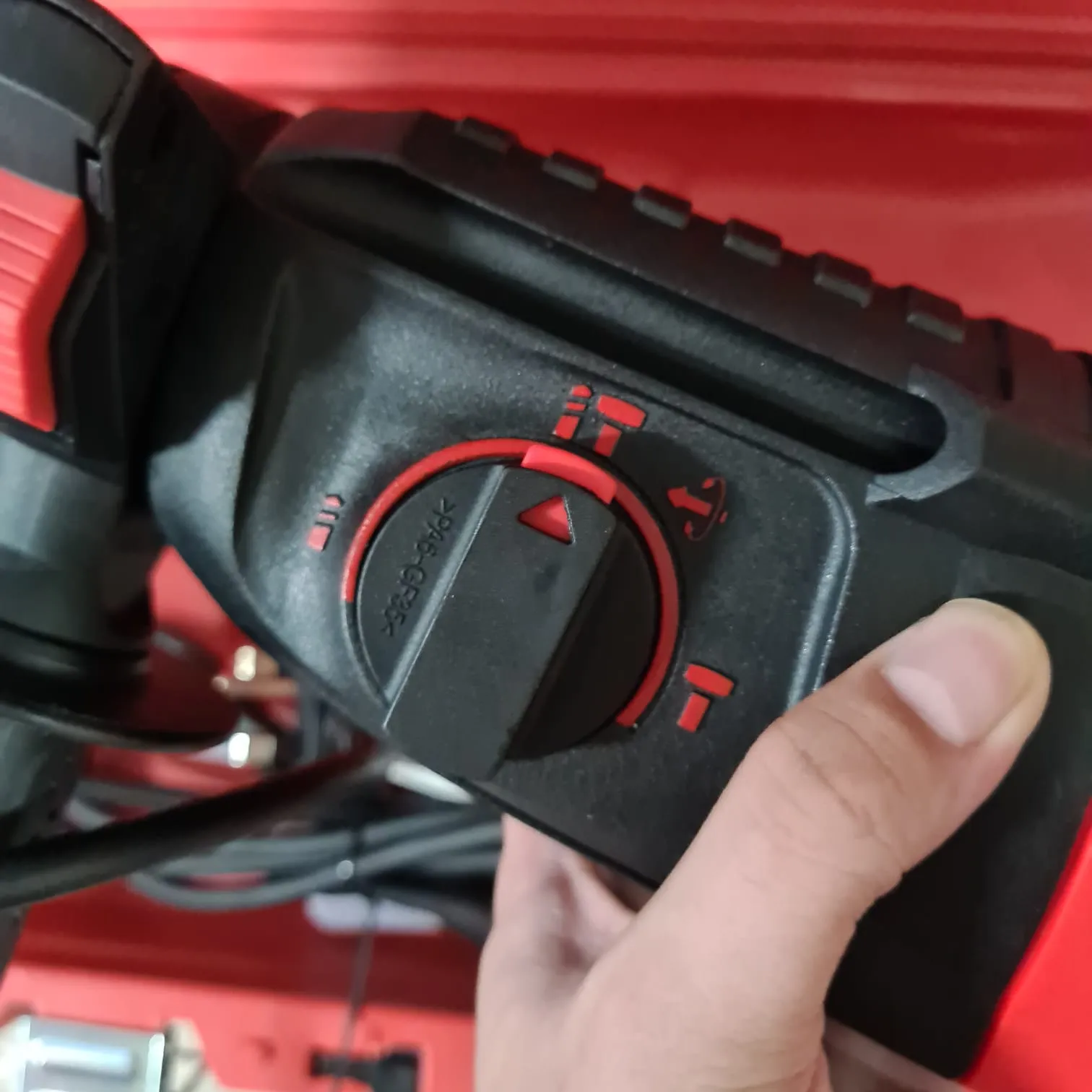

• Operational mode selection switch
• Button on the auxiliary handle
• Depth Stop

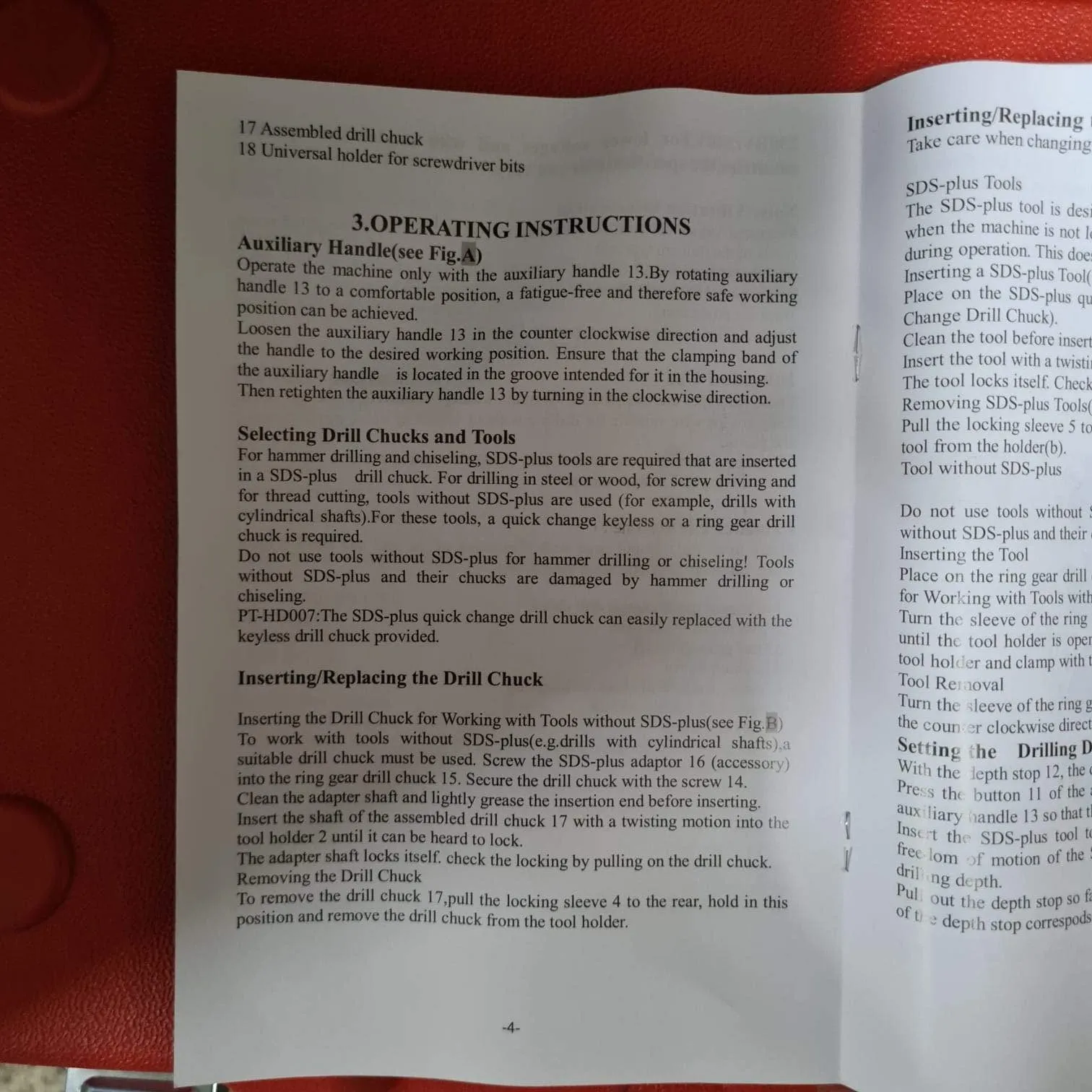

• Auxiliary Handle
• Screw For Drill Chuck

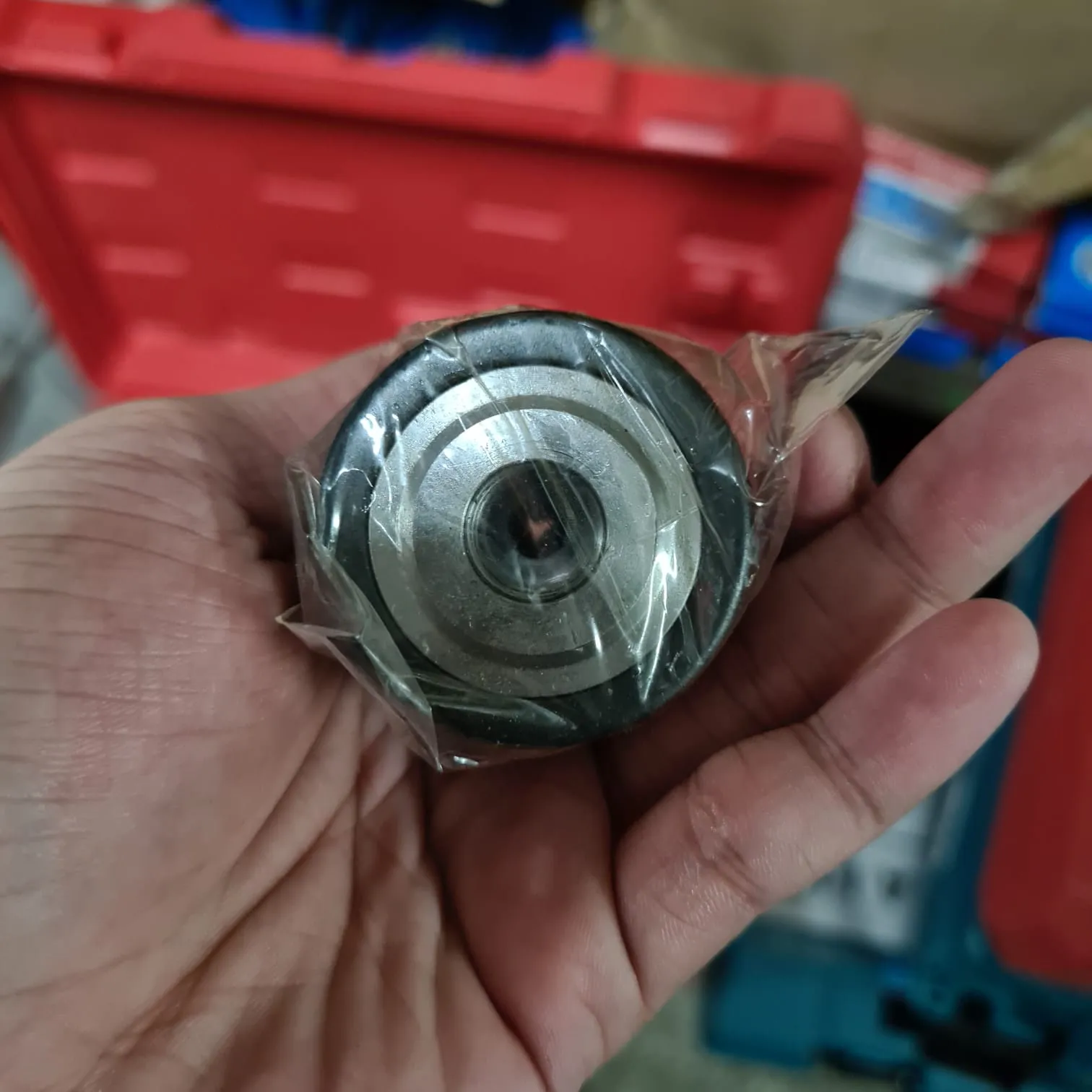

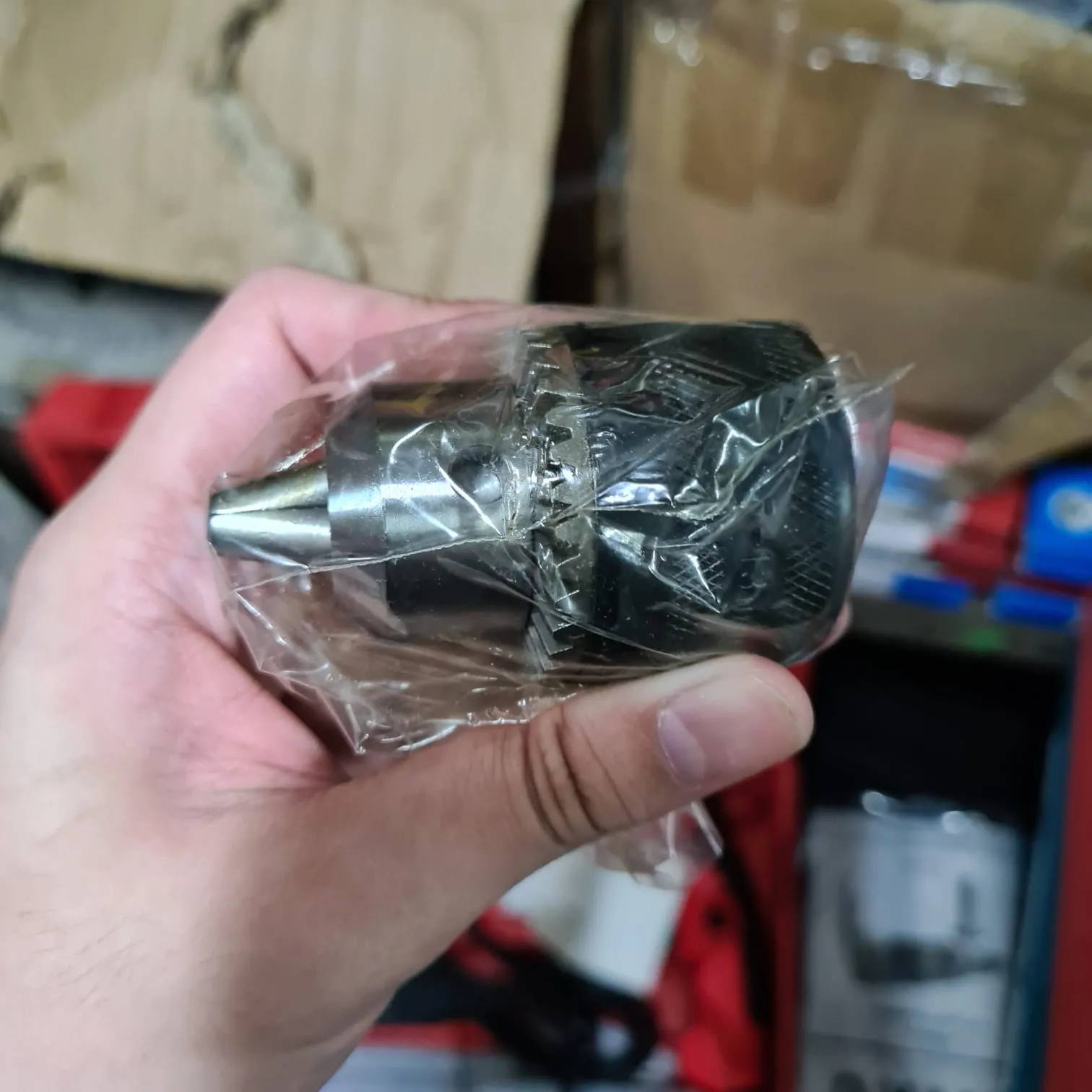

• Drill Chuck

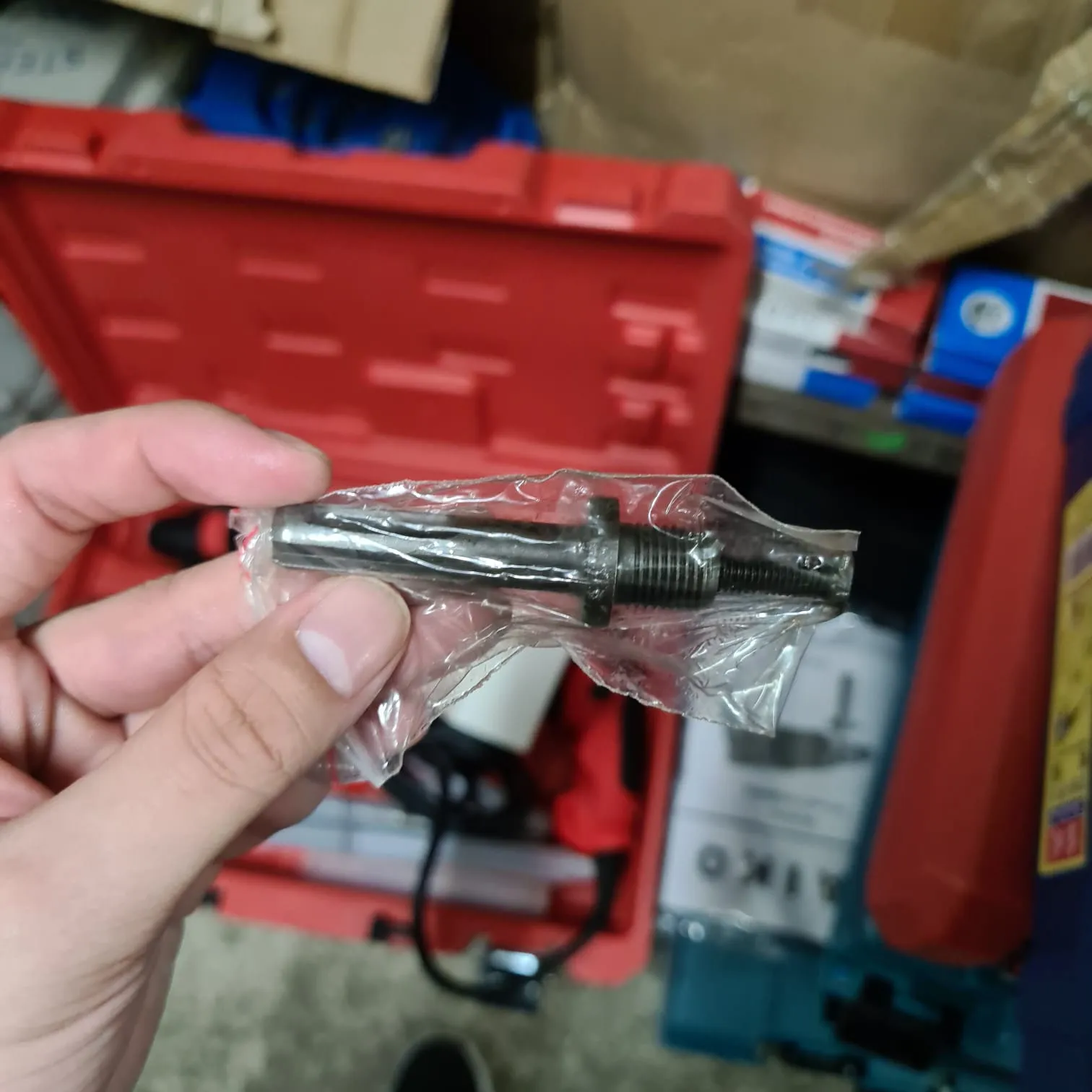

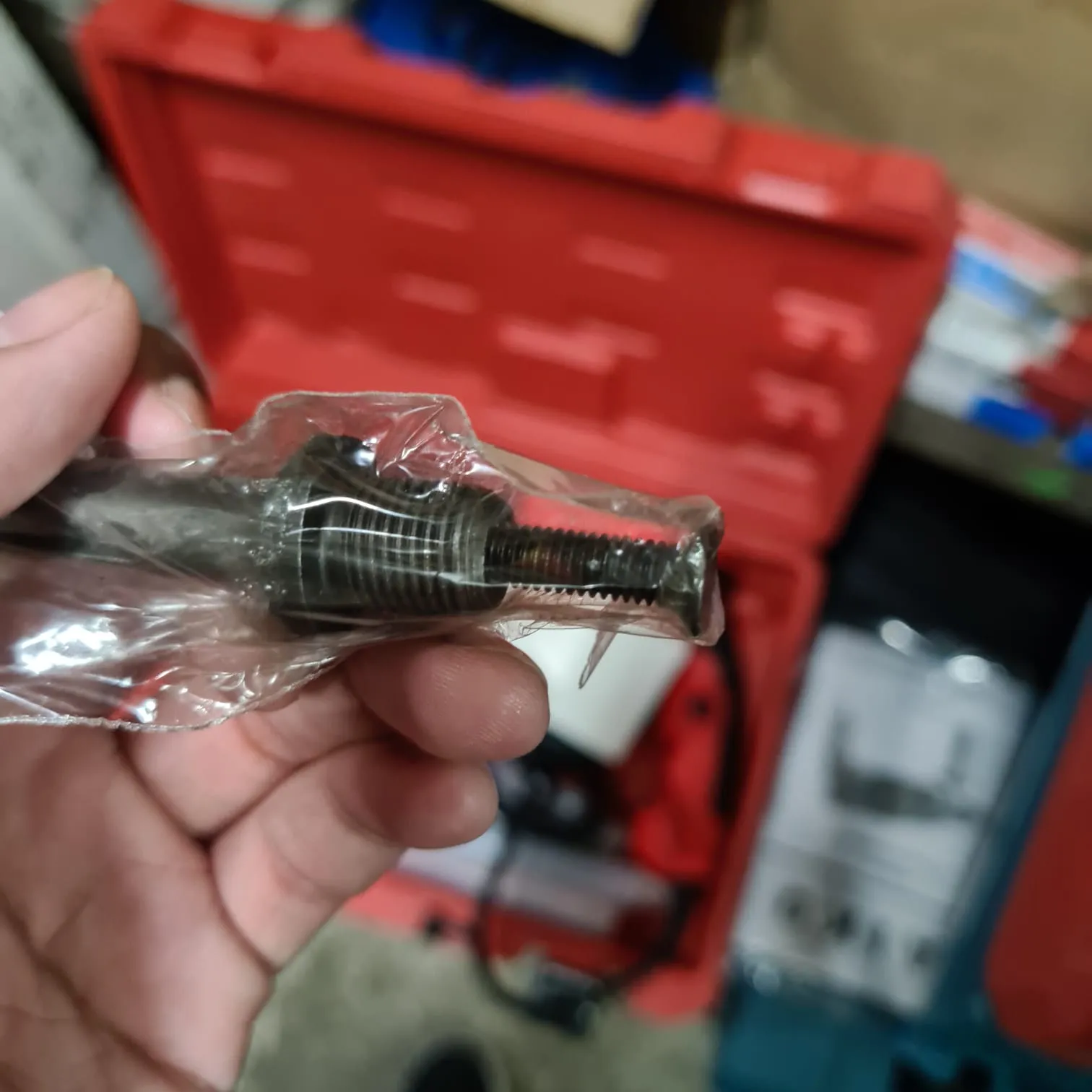

• SDS-plus adaptor for drill chuck

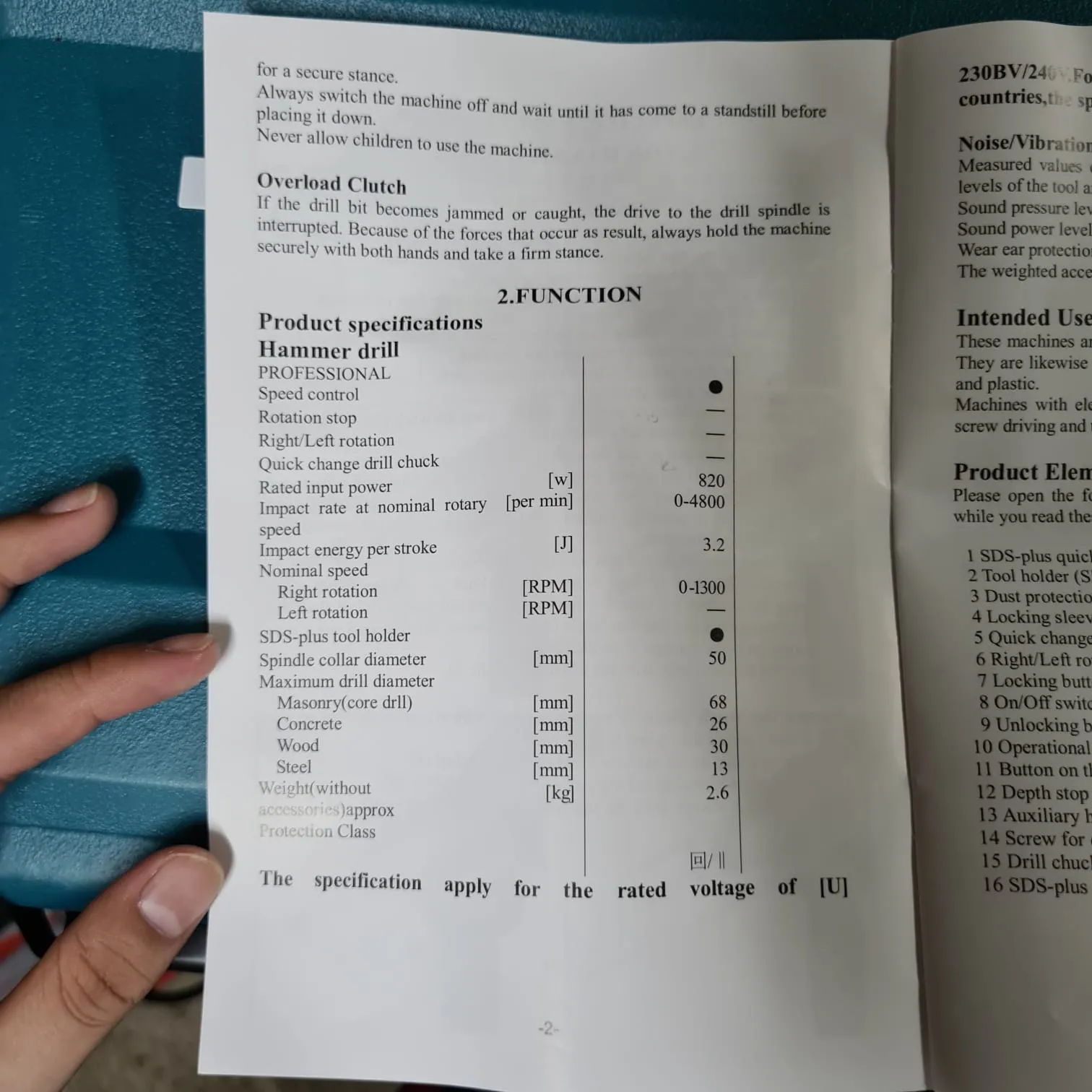

Specifications :

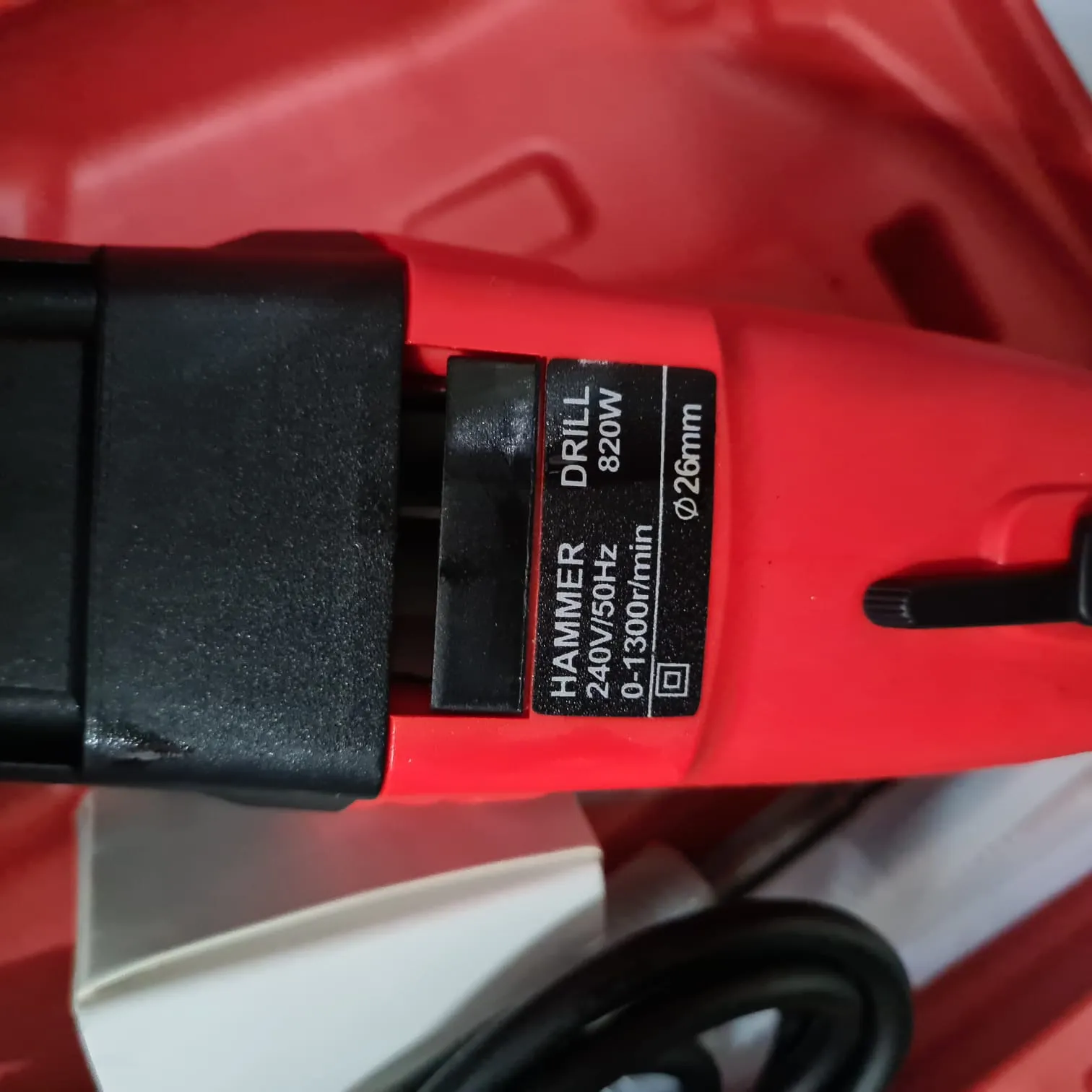

• Model : HB-2614SRE
• Rated Input Power : 820 W
• Rated Voltage : 230 BV / 240 V
• Impact Rate At Nominal Rotary Speed : 0 - 4800 per/min
• Impact Energy Per Stroke : 3.2 J
• Nominal Speed
• Right Rotation : 0 - 1300 RPM
• Left Rotation : - RPM
• Spindle Collar Diameter : 50 mm
• Maximum Drill Diameter
• Masonry ( Core Drill ) : 68 mm
• Concrete : 26 mm
• Wood : 30 mm
• Steel : 13 mm
• Weight (without accessories) Approx Protection Class : 2.6 kg

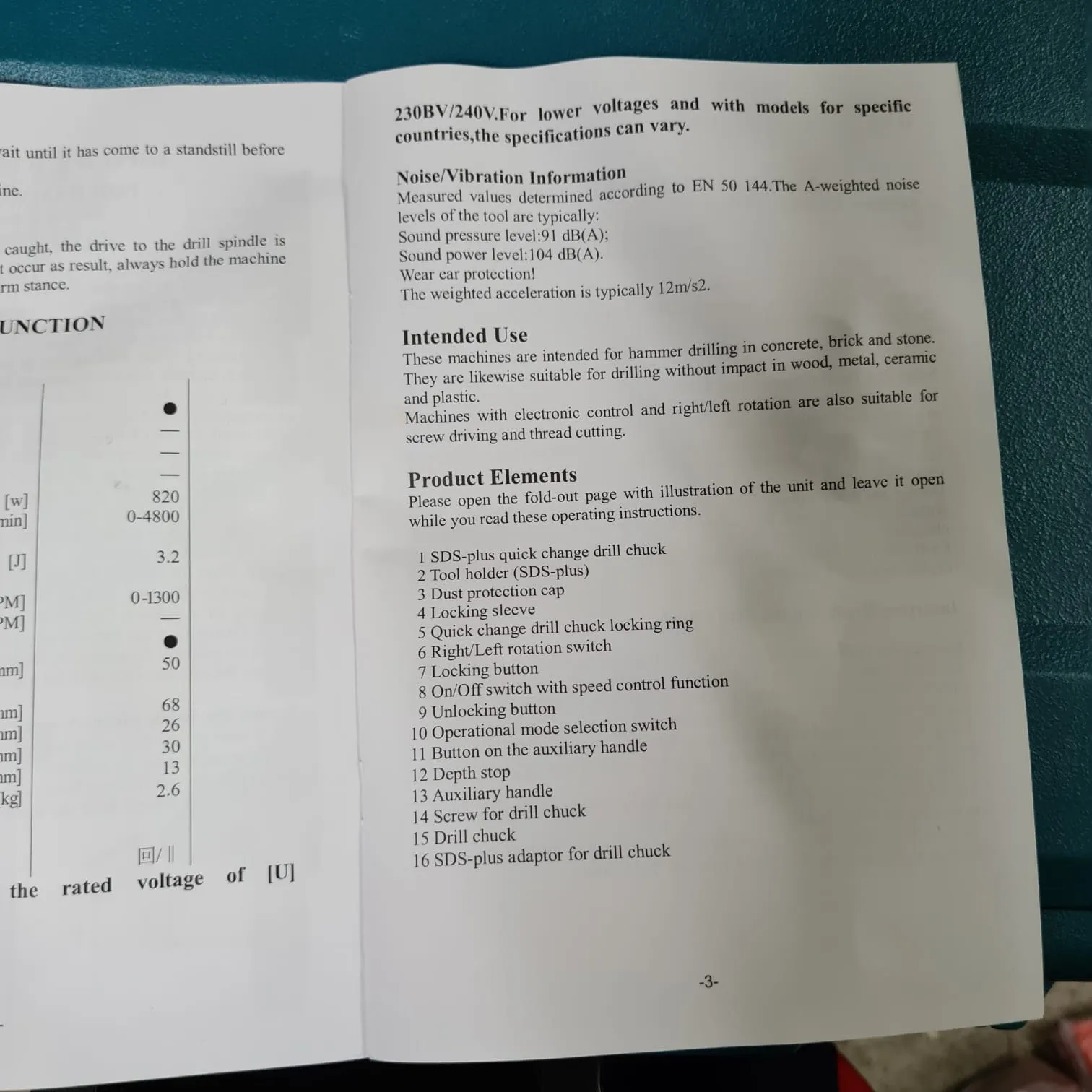

• Noise / Vibration Information
• Measured values determined according to EN 50 144. The A-weighted noise levels of the tool are typically:
• Sound Pressure Level : 91 dB(A);
• Sound Power Level : 104 dB(A);
• Wear ear protection
• The weighted acceleration is typically 12m/s2
