Product Details
＋

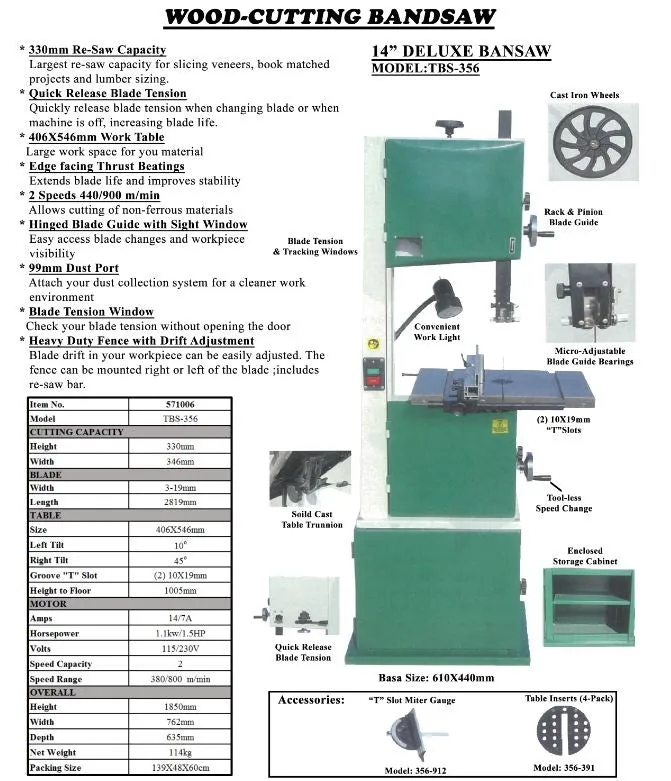

Features:
- 330Mm Re-Saw Capacity
- Largest re-saw capacity for slicing veneers. book matched projects and lumber sizing
- Quick Release blade tension
- Quickly release blade tension when changing blade or when machine is off. increasing blade life
- 406X546Mm Work Table
- Large work space for you material
- Edge facing thrust beatings
- Extends blade life and improves stability
- 2 Speeds 440/900 m/min
- Allows cutting of non-ferrous materials

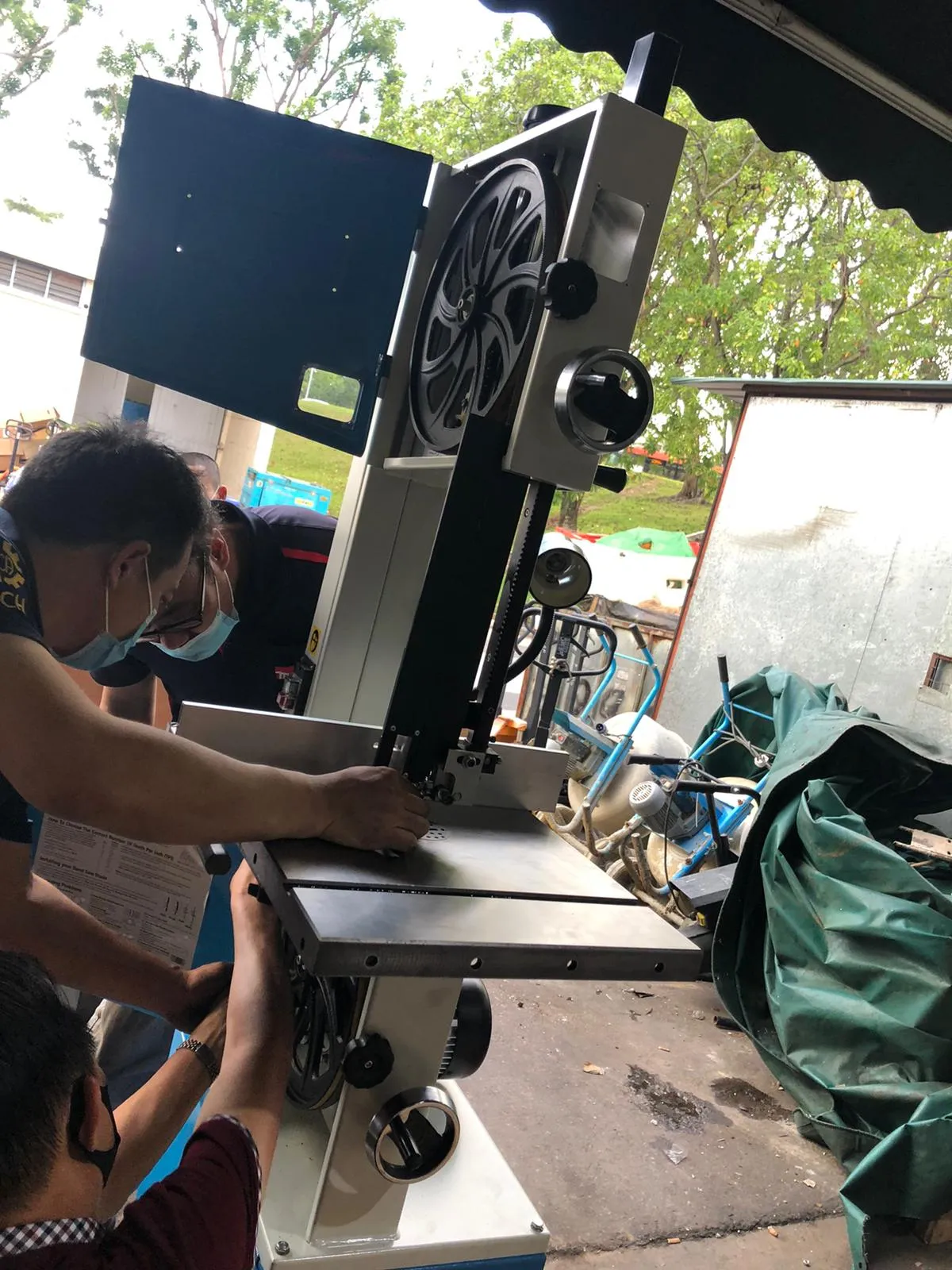

- Hinged blade guide with sight window
- Easy access blade changes and workpiece visibility
- 99Mm Dust Port
- Attach your dust collection system for a cleaner work environment
- Blade Tension Window
- Check your blade tension without opening the door
- Heavy Duty Fence with Drift Adjustment
- Blade drift in your workpiece can be easily adjusted. The fence can be mounted right or left of the blade ; includes re-saw bar
Specifications:

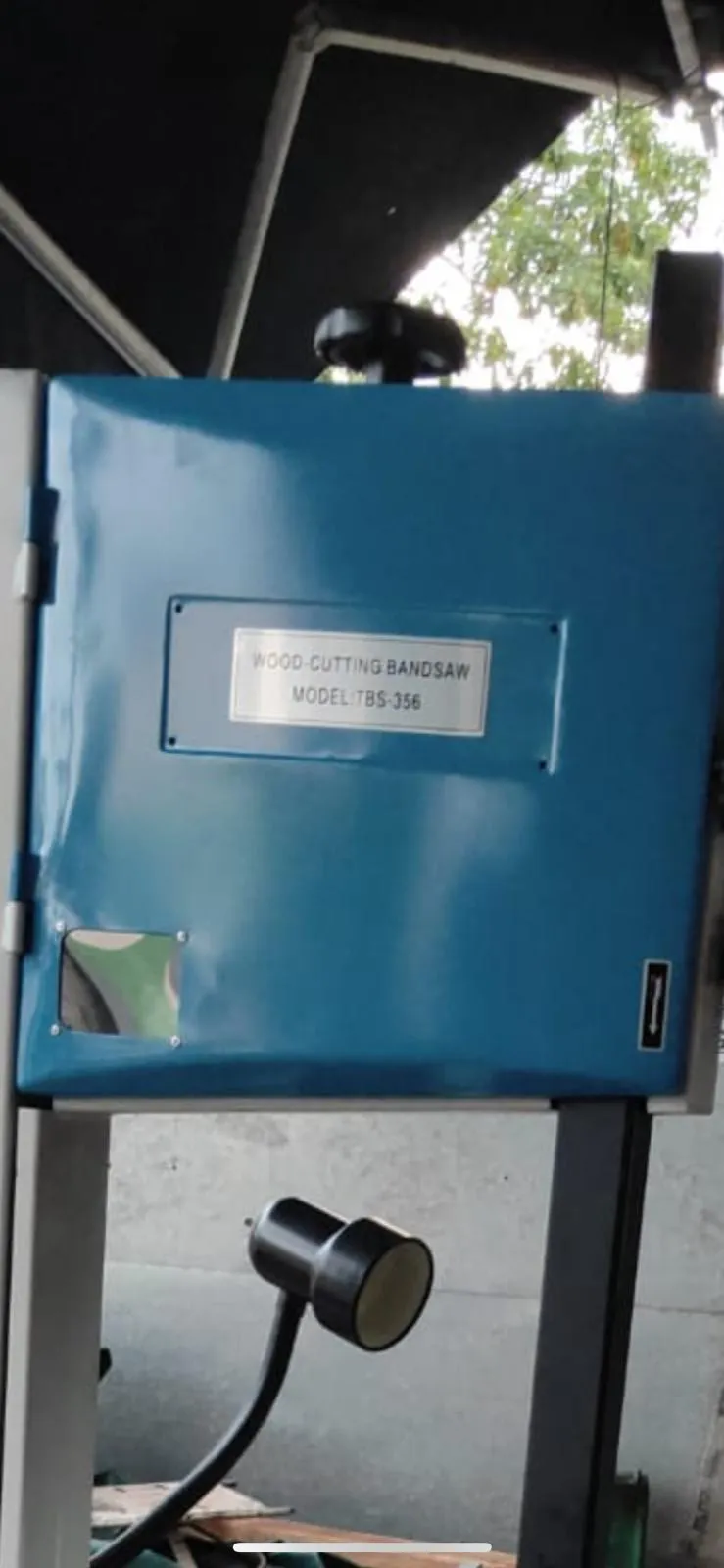

- Model: TBS-356
- Cutting Capacity
- Hight : 330(Mm)
- Width : 346(Mm)
- Blade
- Width : 3-19(Mm)
- Length : 2819(Mm)
- Table
- Size : 406x546(Mm)
- Left Tilt : 10
- Right Tilt : 45
- Groove T Slot : (2) 10x19(Mm)
- Height to Floor : 1005(Mm)
- Motor
- Amps : 14/7A
- Horsepower : 1.1Kw/1.5HP
- Volts : 115/230V
- Speed Capacity : 2
- Speed Range : 380/800 (M/min)
- Overall
- Hight : 1850(Mm)
- Width : 762(Mm)
- Depth : 635(Mm)
- Net Weight : 114(Kg)
- Packing Size: 139x48x60(Cm)
