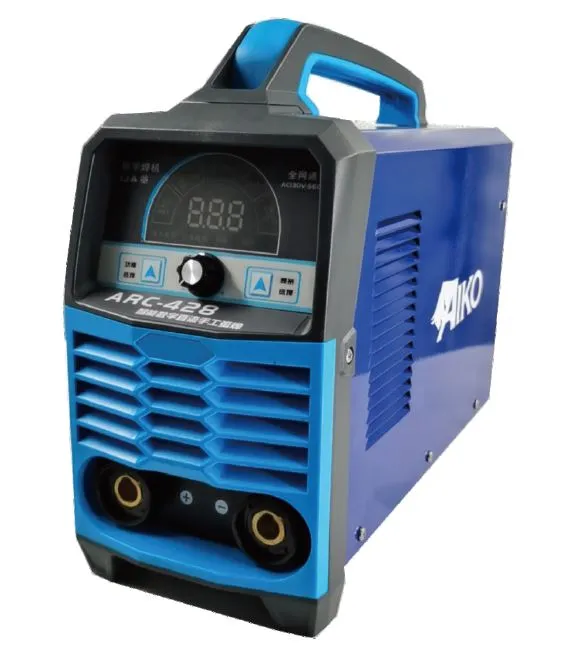

Aiko Welding Machine C/W Cable (Dual Voltage) 220V/380V | Model : W-ARC428

Features :

• Multi - Voltage input single phase AC240V or 380V
• Super power. maximum output current 250 Amp
• Build - in hot start. excellent arc striking
• Build - in Anti - stick. flexibility and stability welding performance

Specifications :

• Model : ARC428
• Rated input : IP AC220/380V 15%
• Frequency : 50 / 60 Hz
• Input Power : 8.5 KVA
• No- Load Voltage : 78 V
• Output Current Range : 20 - 260 A
• Rated output Voltage : 22 V
• Duty Cycle : 60 %
• No-Load Loss : 45 W
• Efficiency : 78 V
• Power Factor : 0.85
• Insulation Grade : F
• Protection Grade : IP21S
• Weight : 9.5 Kg
• Dimension : 445 x 255 x 325 mm
