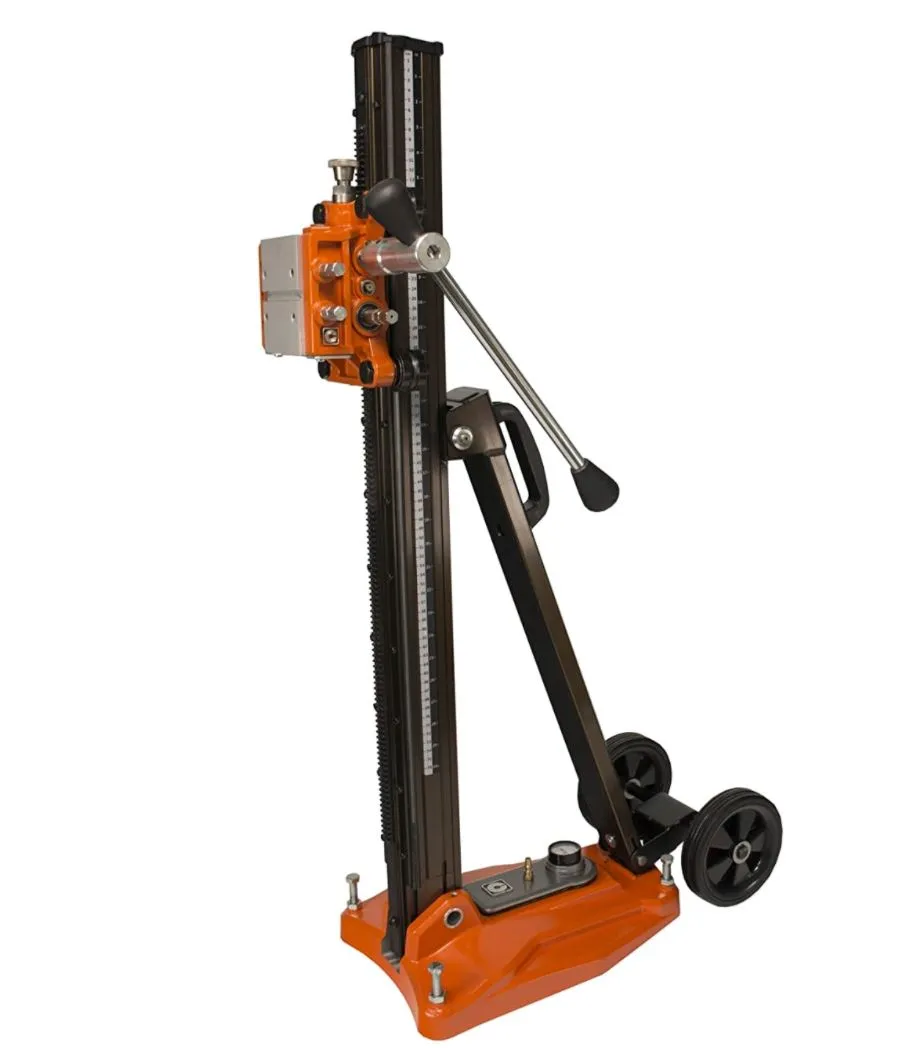

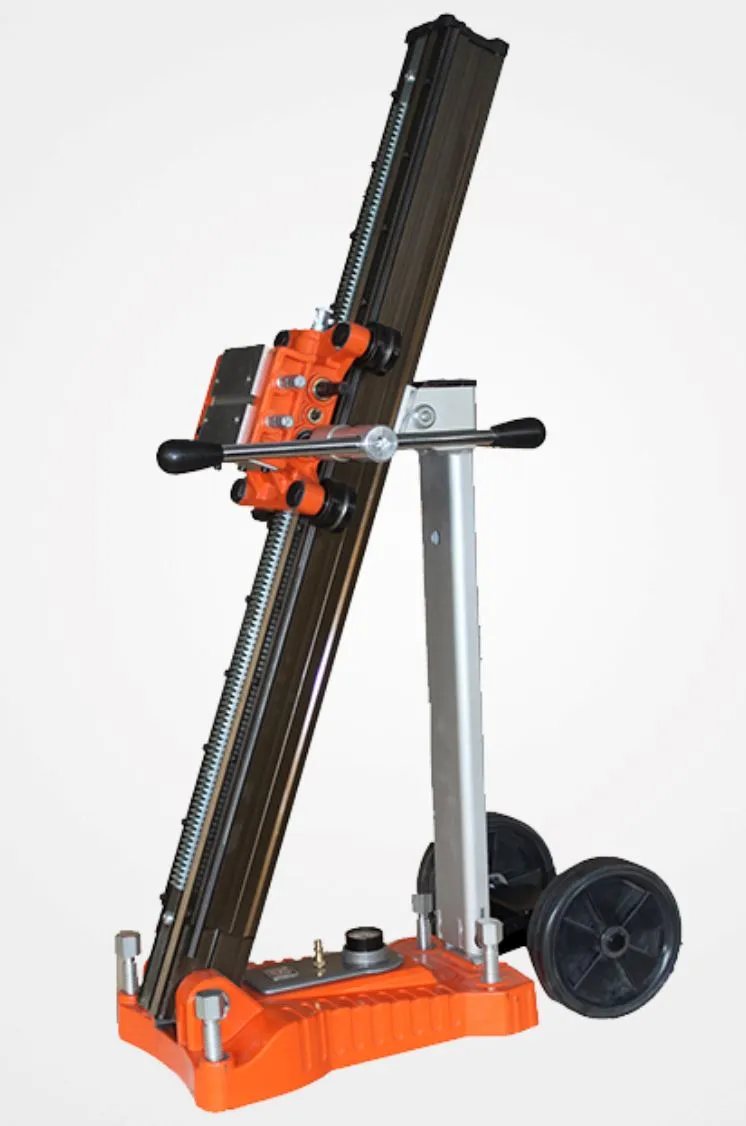

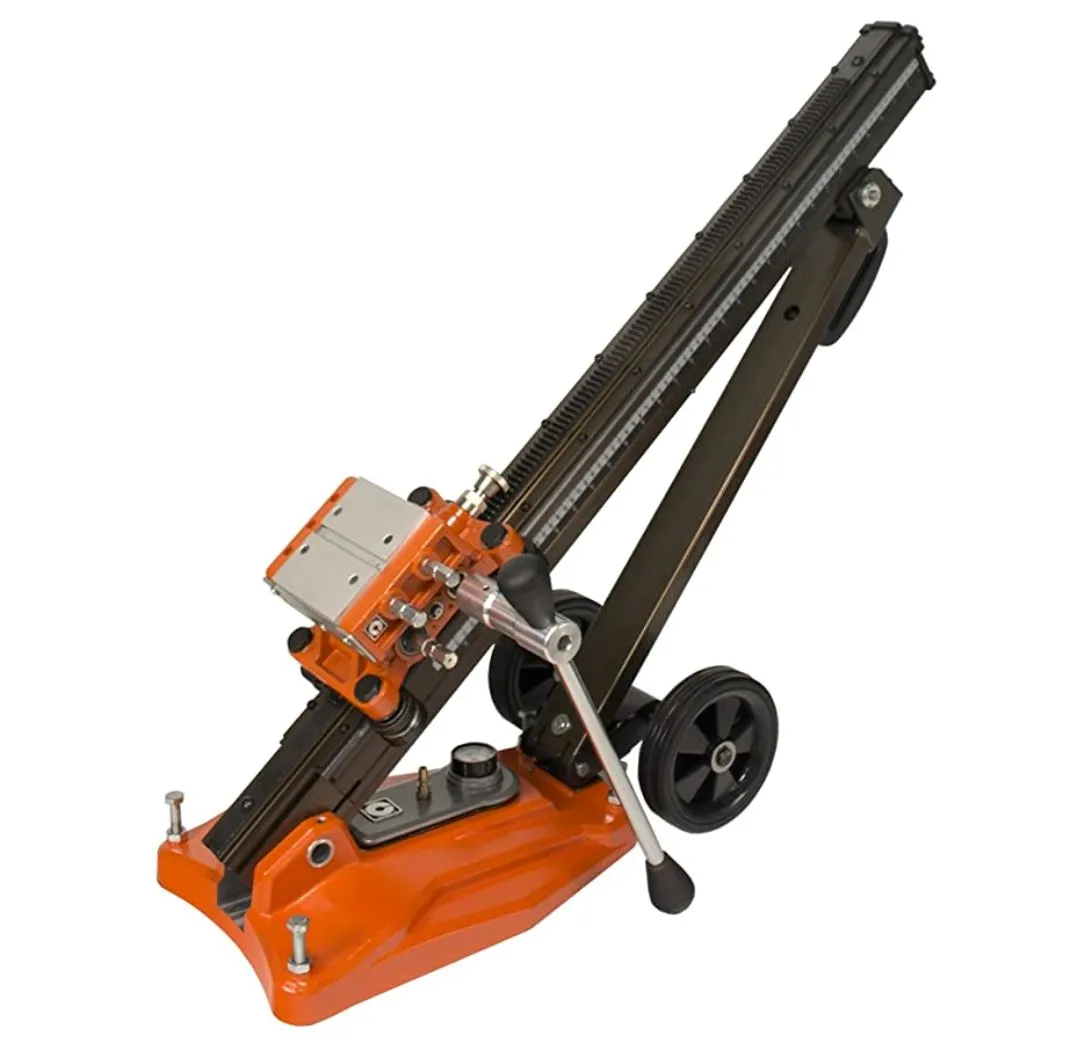

Cayken 600mm Vacuum Suction Stand for Coring Machine (Drill) | Model : KCY-580F

Features :

• Base with vacuum suction type Angle adjustable alloy frame. can be used for drilling inclined hole at 0-45
• Vacuum suction type
• Light. Strengthened. easy to transport and install drill frame tight and equipped with wheels.
• Frame with general fast connecting block. quick installation and is suitable for the majority of products on the market.
• Adjustable Aluminium stand for drilling at 0 to 60 degrees.
• Base mounts with anchor bolts or vacuum plate.
• Built-in leveling bubble.
• Four (4) adjustable slide bearings.
• Larger mast designed to accommodate large-diameter bits and withstand high torque.
• Angle/vertical position locks.
• Four (4) leveling bolts on base.
• Reversible slide handle for dual-side operation.
• Top and rear handles.
• Includes wrench set.

Specifications :

• Product Model : KCY-580F
• Applicable Model : 480mm
• Borehole Depth : 600mm
• Net Weight : 20kg
• Gross Weight : 24kg
• Packing Size : 1020 x 300 x 500mm
