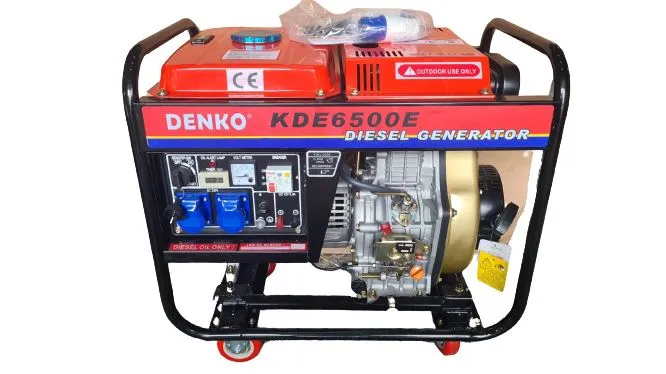

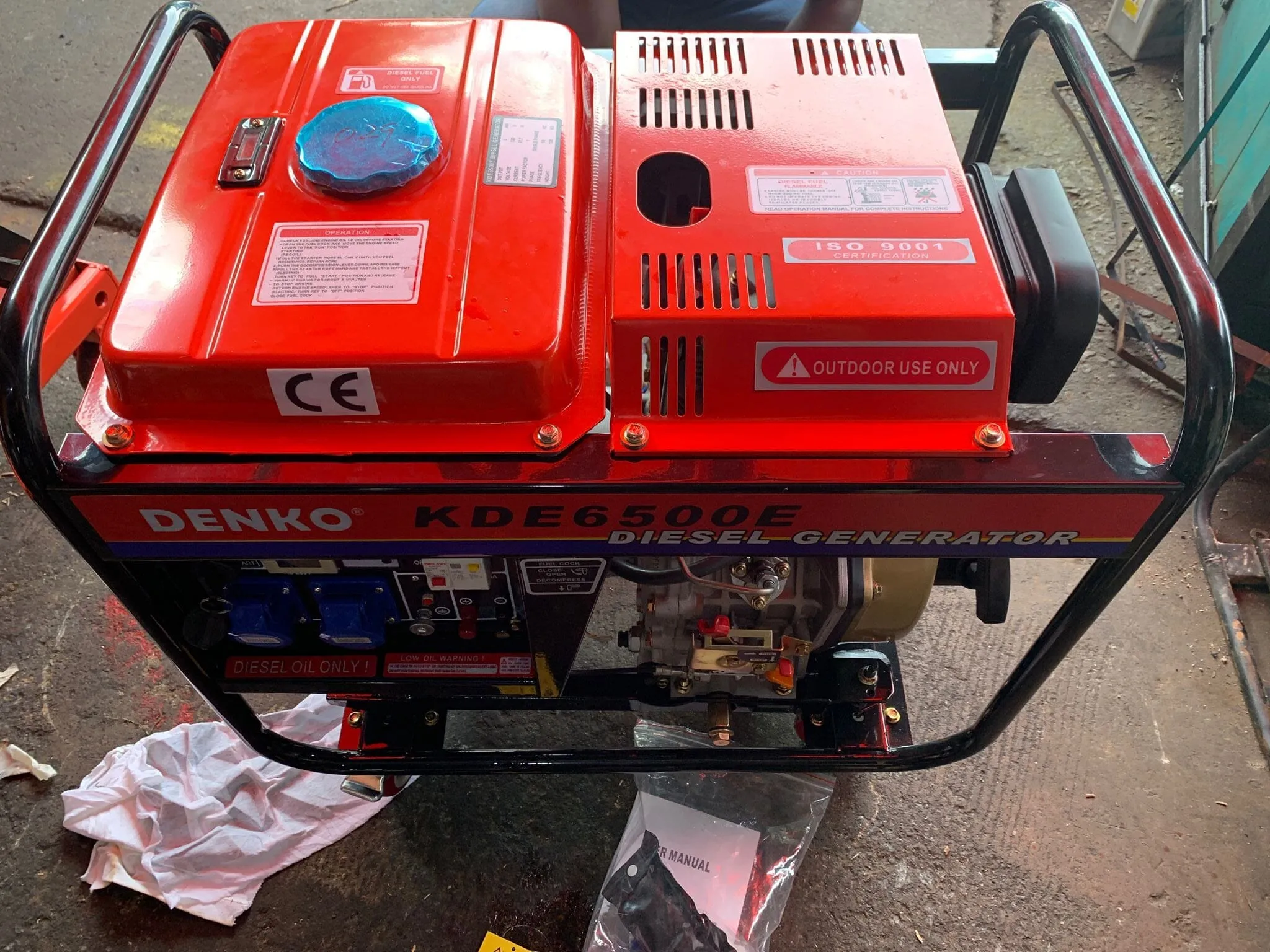

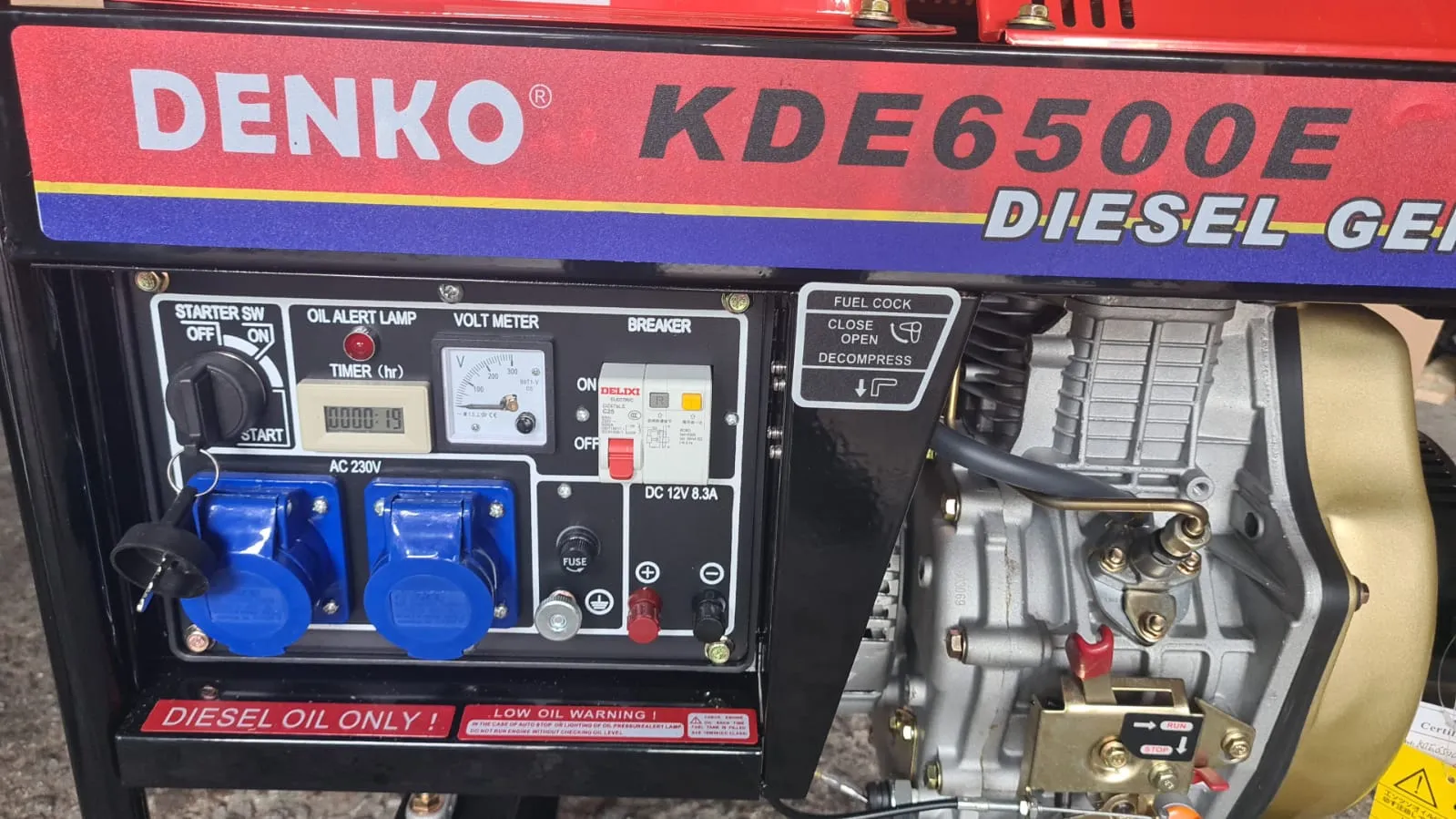

Denko 5.0 kW Diesel Generator with NS40 Battery | Model : KDE6500E-DENKO

Features :

• Automatic Voltage Regulator :
• Provides low fluctuations power output for operation of sensitive electronic equipment
• Oil Alert Function :
• Stops the engine when oil drops to a specified low level
• Large Fuel Tank :
• Allows long continuous operation hours
• Fuel Gauge :
• Easy monitor of fuel level
• DC output :
• Enable charging of batteries

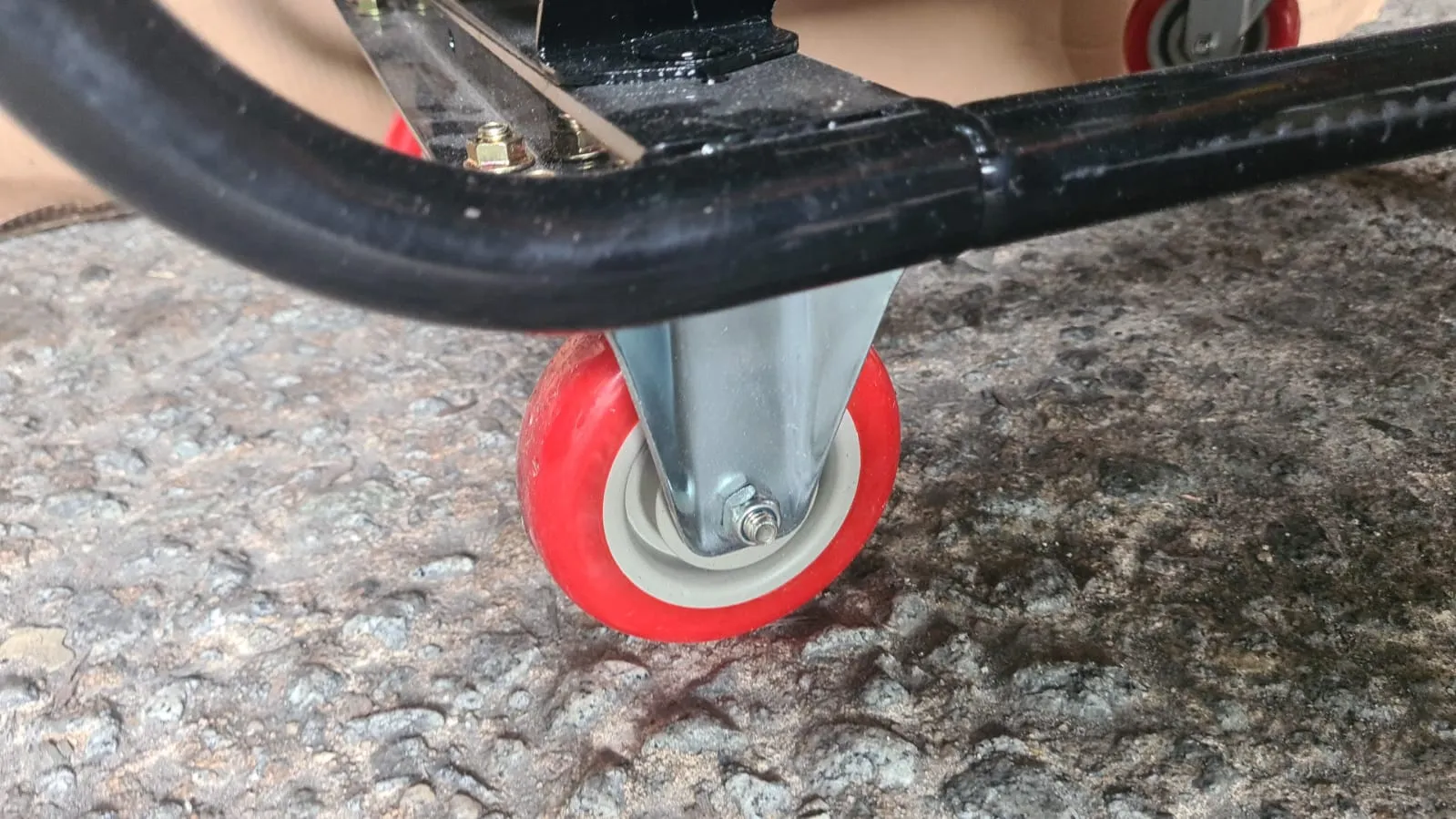

• Rugged Full Frame :
• Protect generator from rough handling and damage

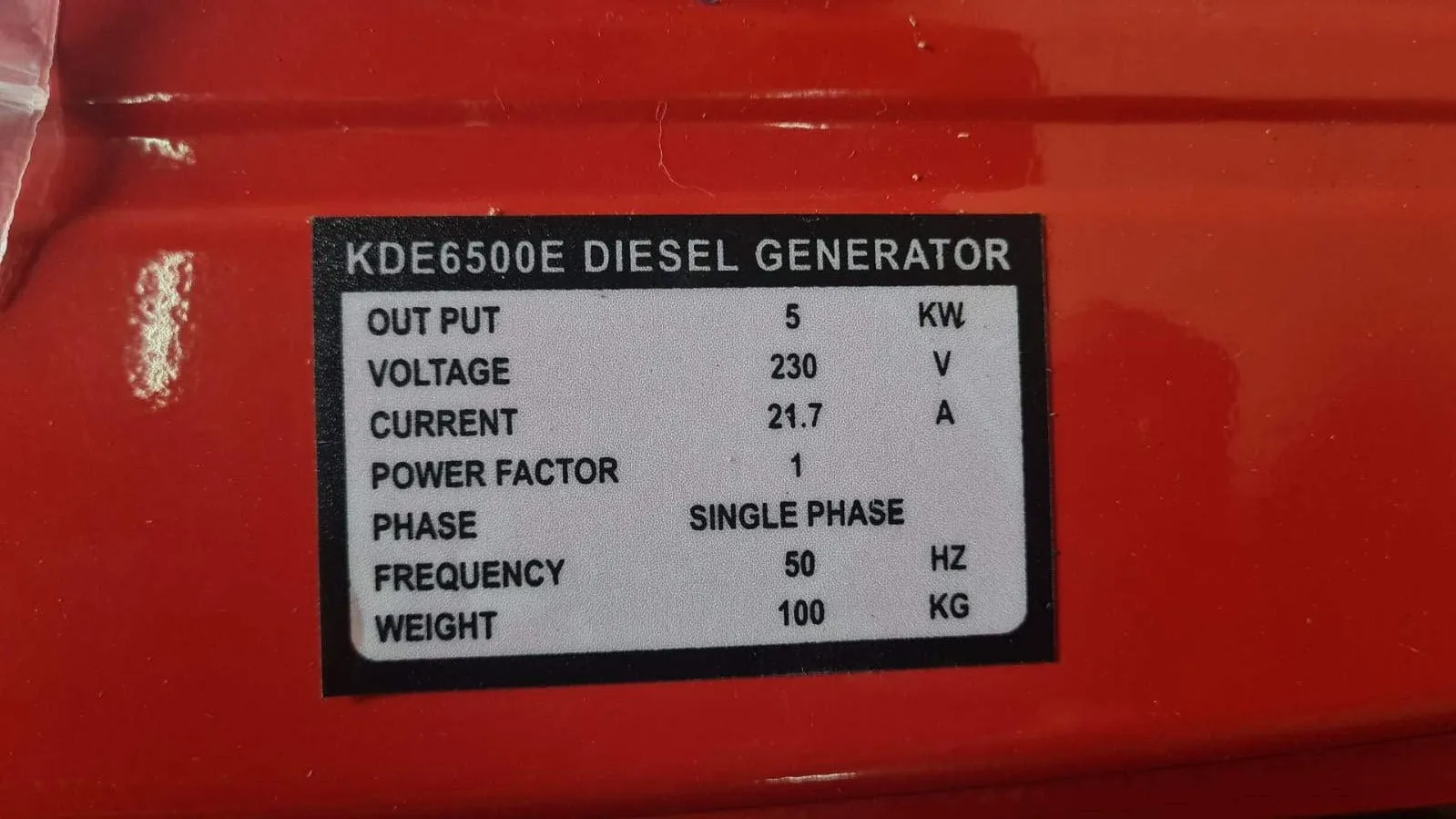

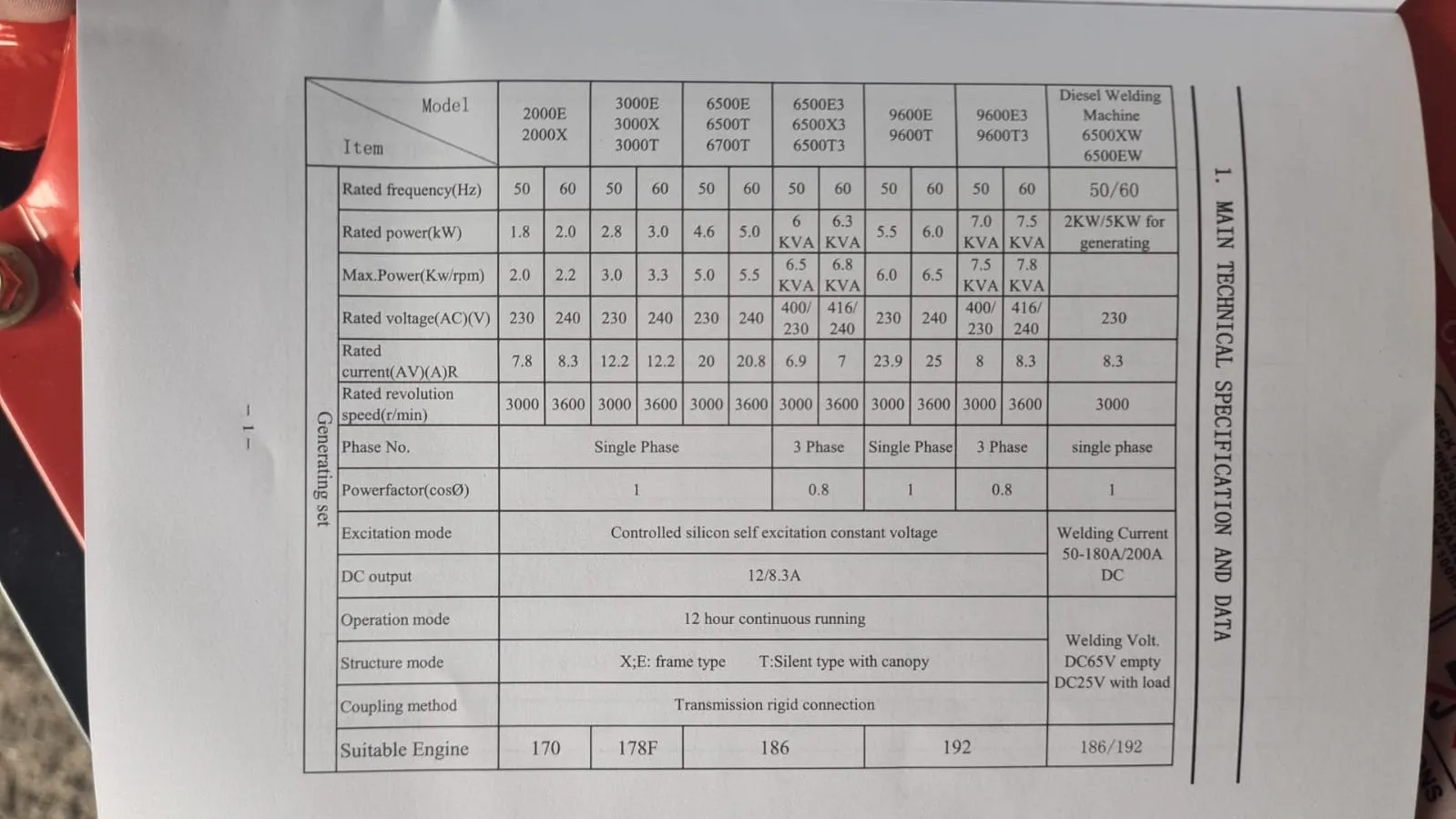

Specifications :

• Model : KDE6500E

• Rated Frequency : 50 Hz
• Rated power : 4.6 kW
• Max. Power : 5.0 rpm
• Phase : Single Phase
• Rated Voltage : 230 V
• Rated Current : 20 A
• Rated Revolution Speed : 3000 r/min
• Power factor : 1 cos
• Excitation mode : Controlled silicon self excitation constant voltage
• DC output : 12 A
• Operation mode : 12 hour continuous running
• Structure mode : X:E frame type . T : silent type with canopy
• Coupling method : Transmission rigid connection
• Weight : 70 kg
• Fuel Tank Capacity : 15 Liters

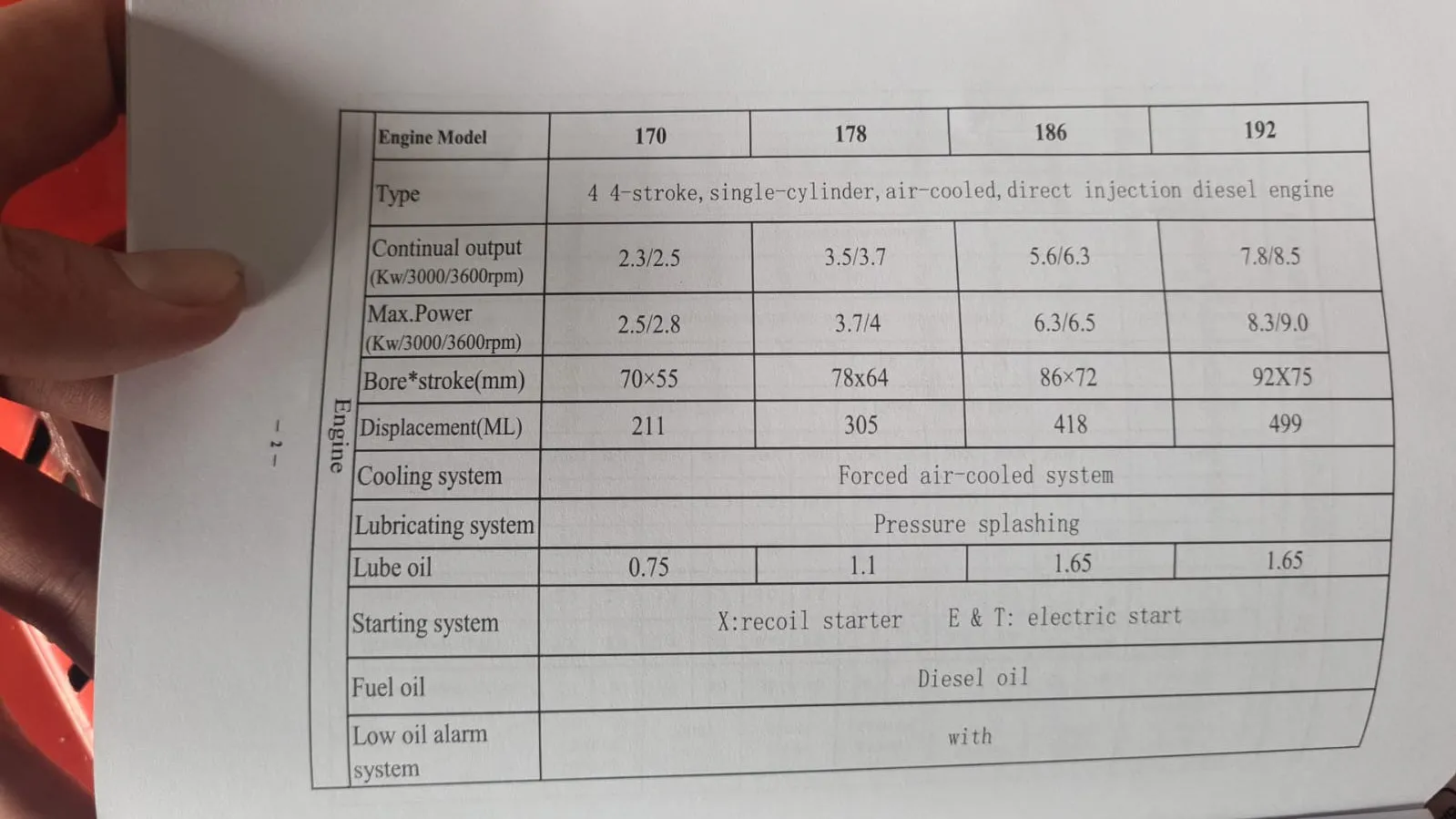

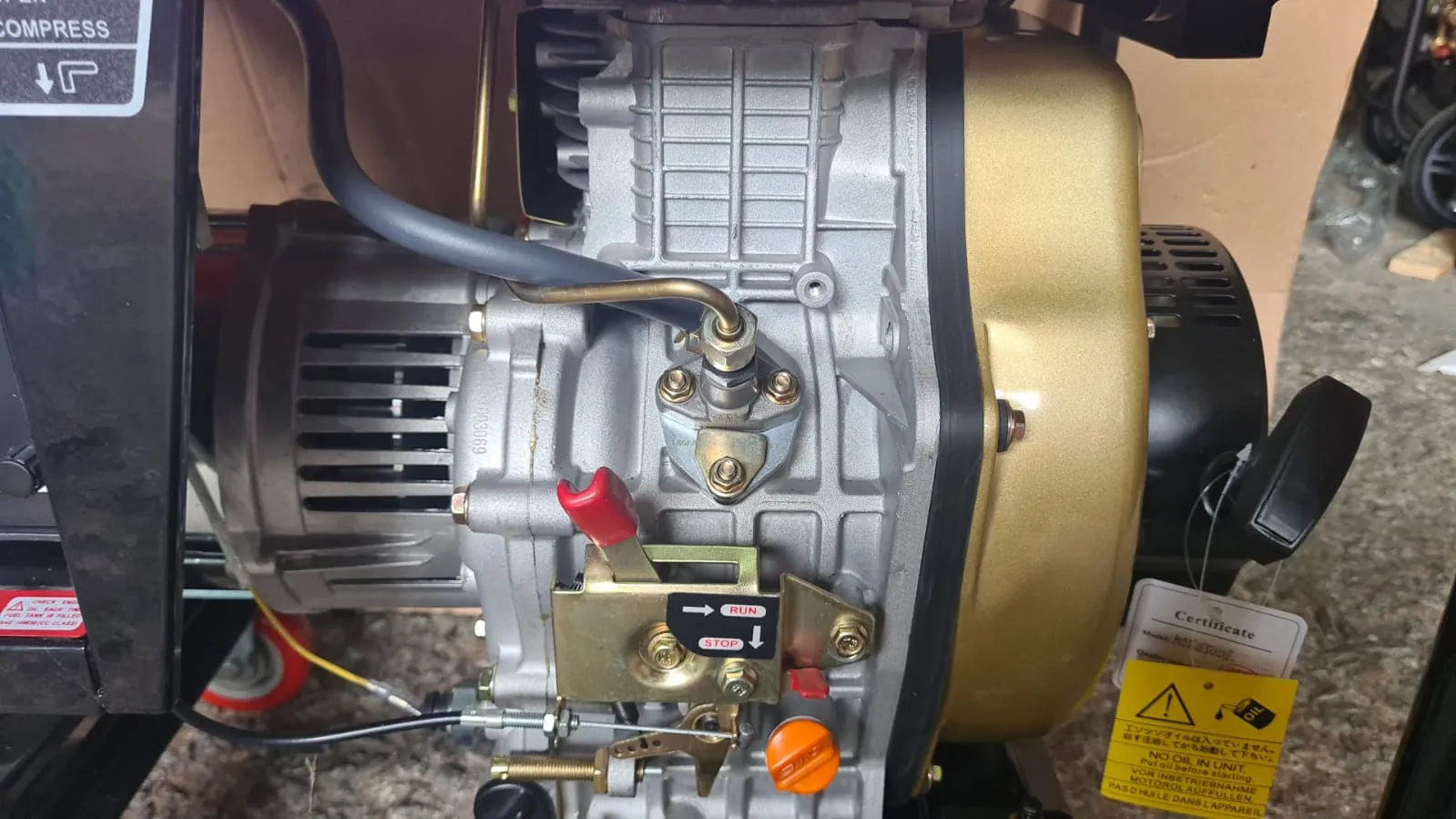

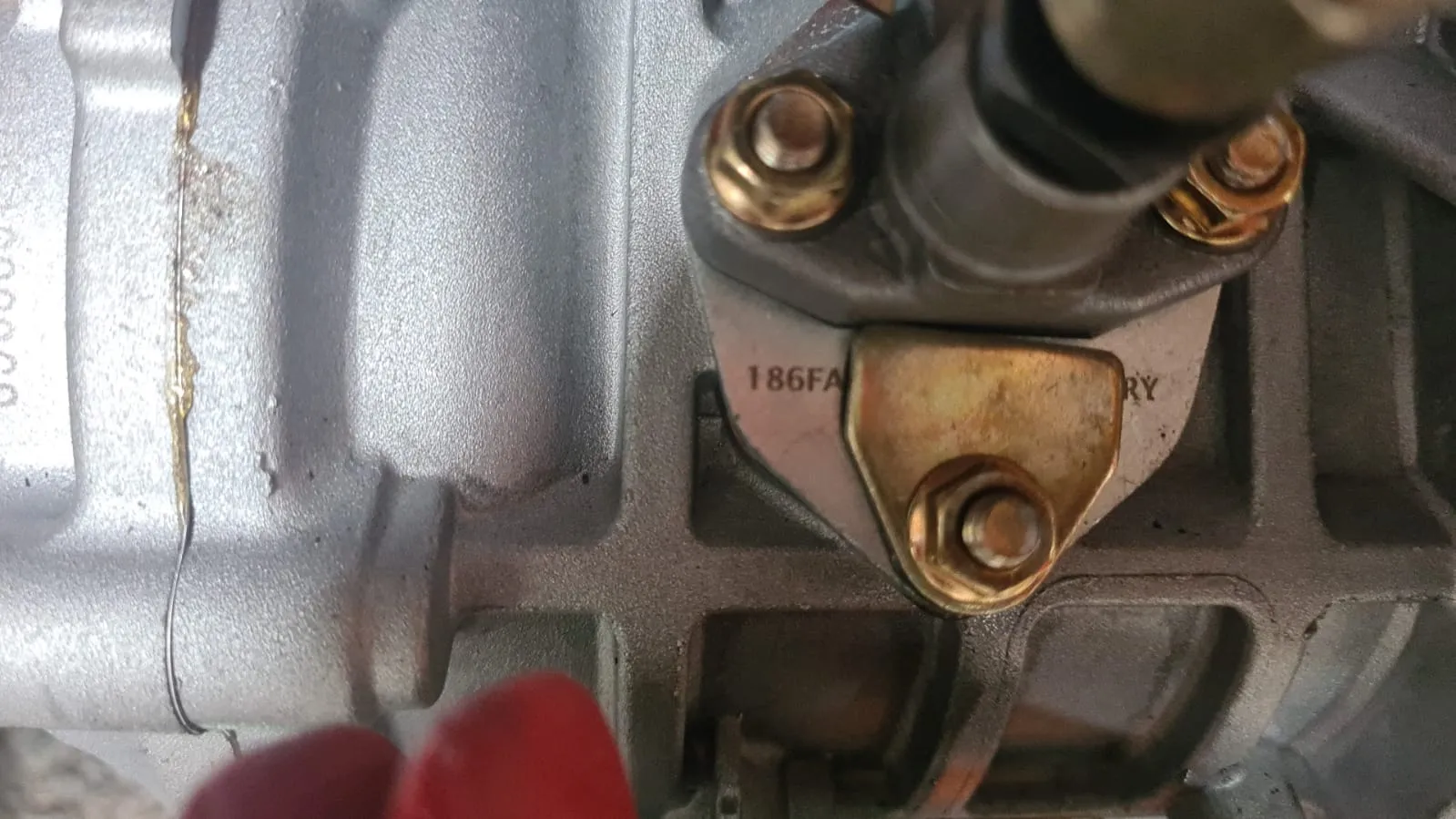

• Engine Model : 186

• Type : 4 stroke . single - cylinder . air - cooled . direct injection diesel engine
• Continual output : 5.6 kW
• Max power : 6.3 kW
• Bore*stoke : 86 x 72 mm
• Displacement : 418 ml
• Cooling system : Forced air cooled system
• Lubricating system : pressure Splashing
• Lube oil : 1.65

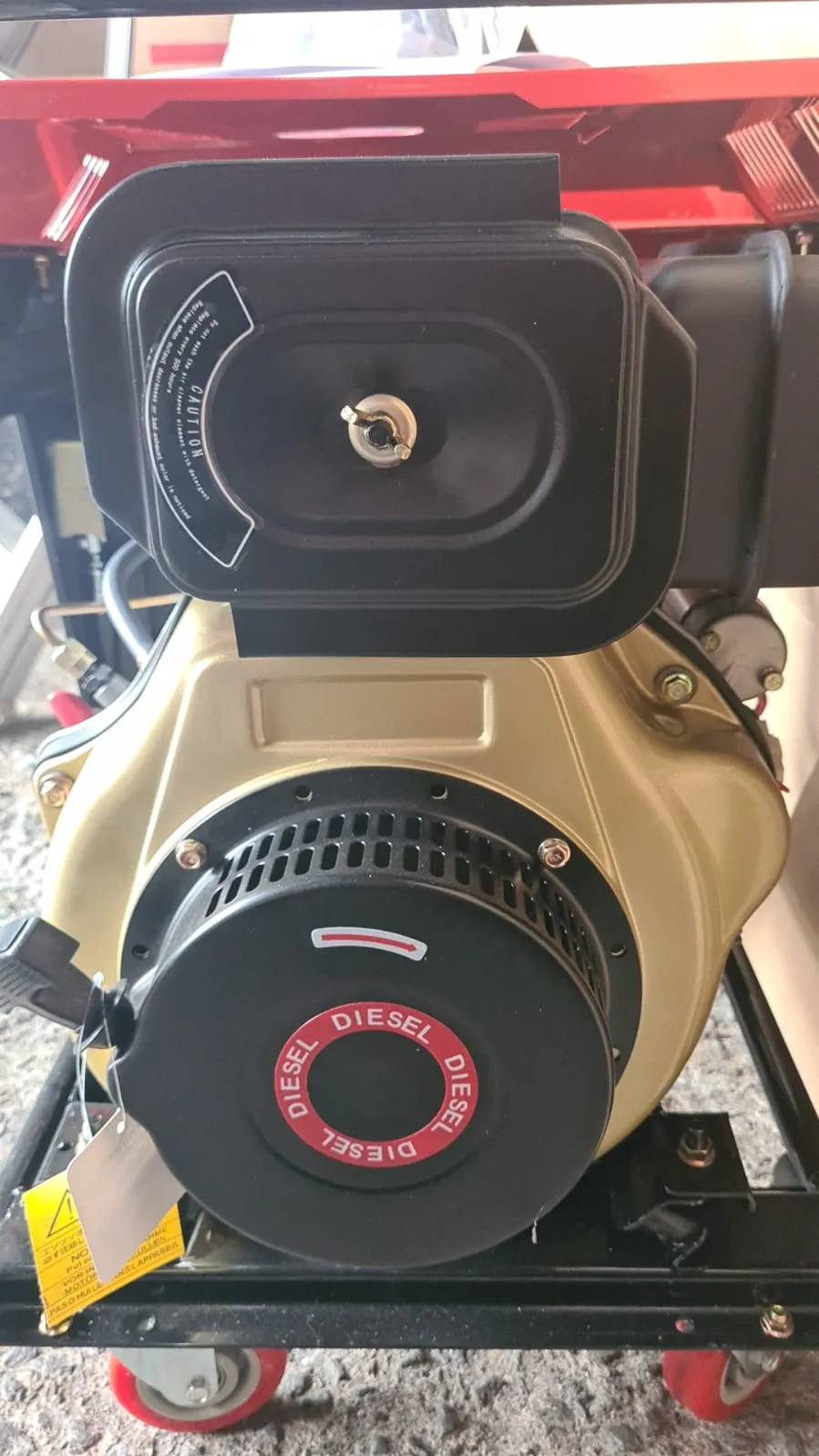

• Starting system : X : recoil starter . E & T electric start
• Fuel oil : Diesel oil
• Low oil alarm system : With
