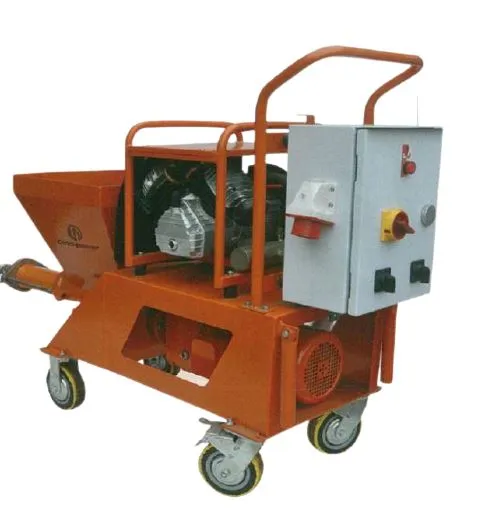

Dino-Power Grout Pump And Cement Sprayer N2 | Model : AS-DP-N2

Features :

• Control Box : The Core of the machine. to driver the motor. and air pump
• 4 KW motor & retarder: To drives the twister for material transportation
• 2.2 KW twin-piston air compressor with aluminum housing: offer enough air pressure. also the air for the atomization of spray gun
• 50 L material hopper : for material storage
• Spinning from twister & D6 - 3 screw pump: the material will be transport to the outlet by the screw pump after the quick and even mixing by twister
• 33.5 cm lead screw : fix the screw pump for easy working
• Mortar pipe connector; very easy to connect with the machine
• Cart with four wheels; with high load bearing resist pressure. solid drag link. multidirectional wheels. easy transportation
• Can be usedepoxy pressure grouting
• Lamp : it will be available to work during the nights
• Quick snap : easy to fix the material hopper and the cart

Specifications :

• Voltage : 380V
• Motor Power : 4KW
• Delivery Pressure : 30Bar
• Delivery Height : 10M
• Delivery Distance : 1-50M
• Nozzle Size : 10.12.14MM
• Capacity : 50L (13.21GPM)
• Net Weight : 212Kg /466.4lbs
• Gross Weight : 238Kg / 523.6lbs
• This model is a small size dry mixed mortar transfer pump. which is suitable for materials less than 3 mm
