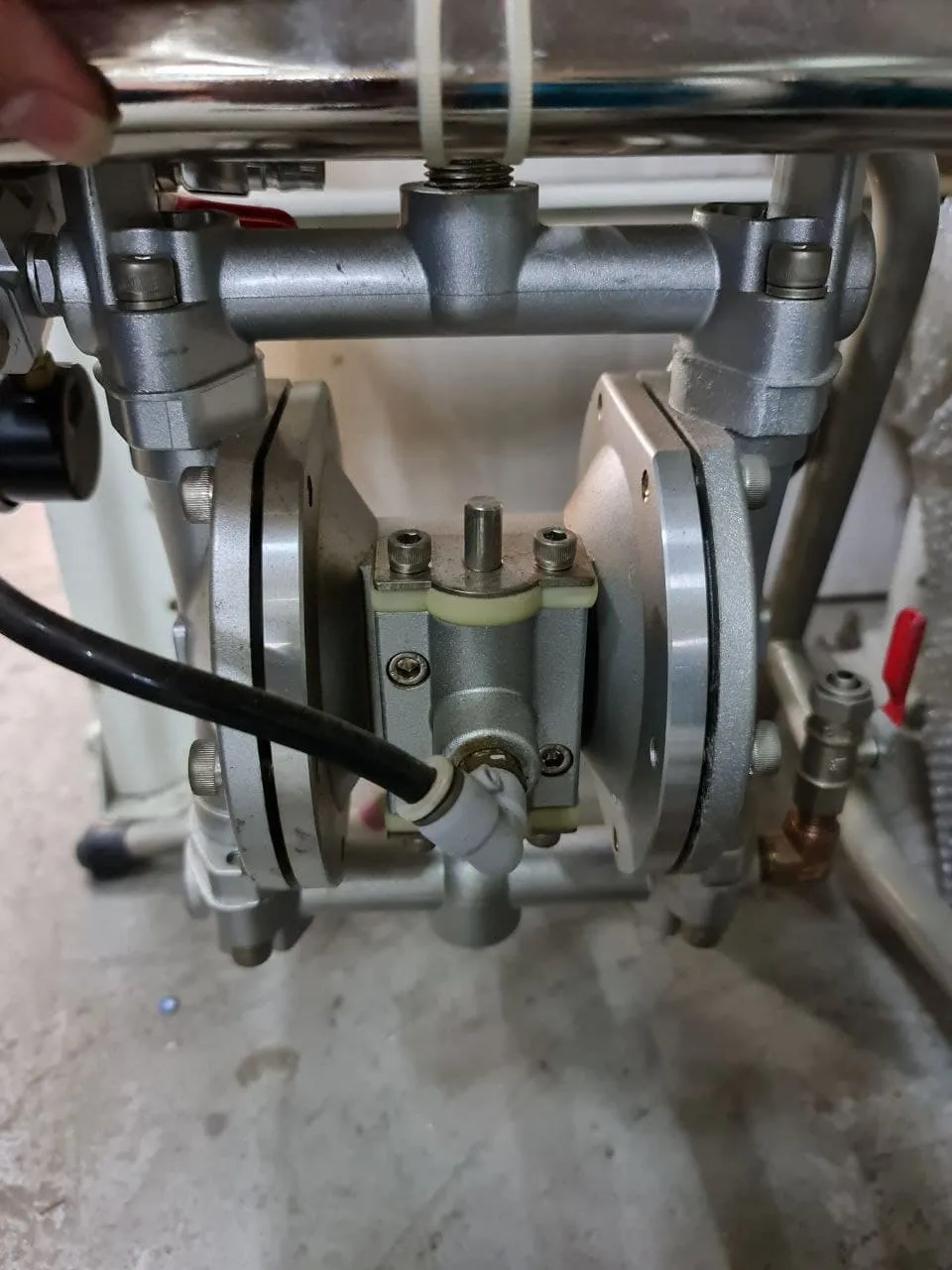

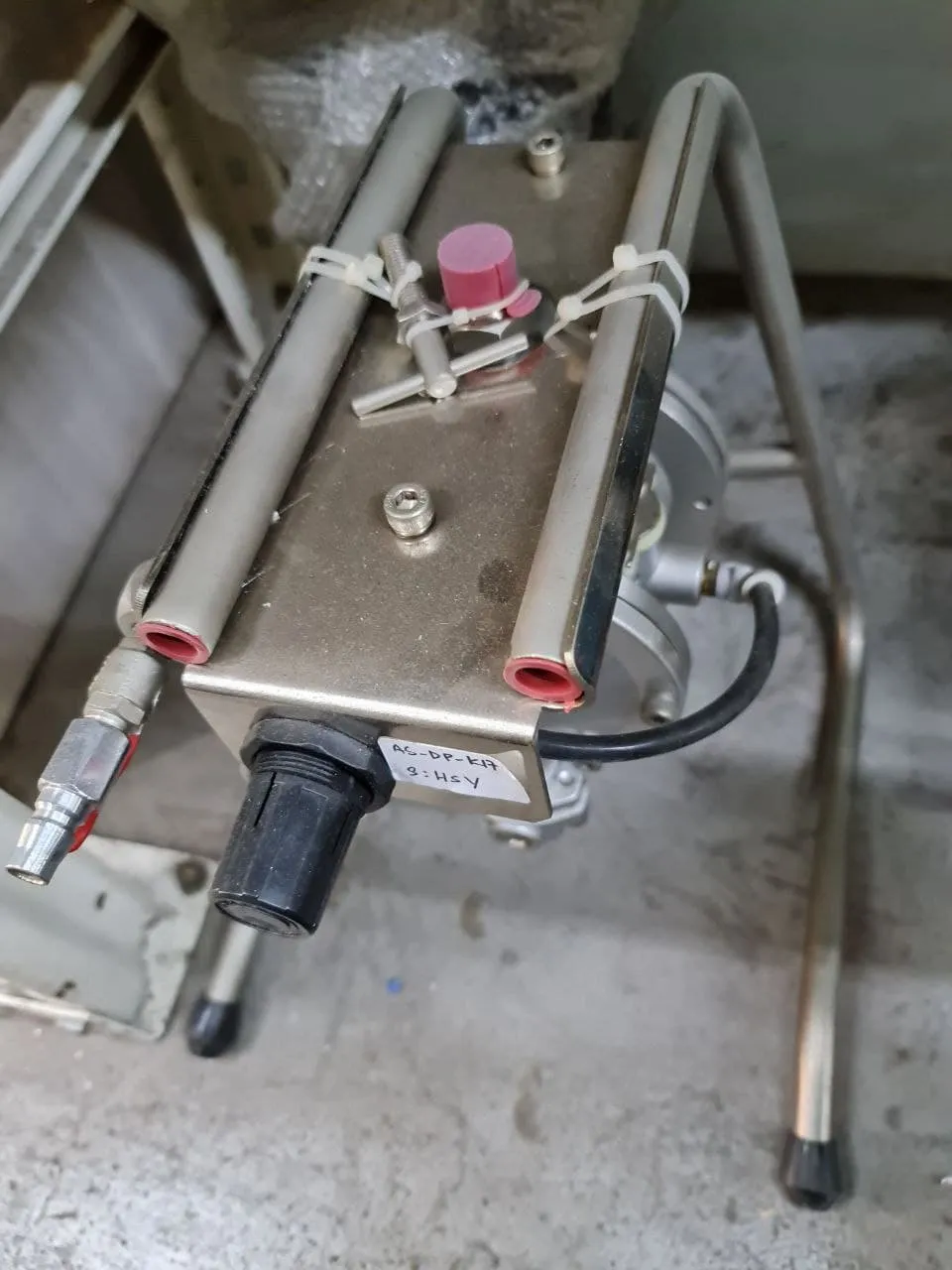

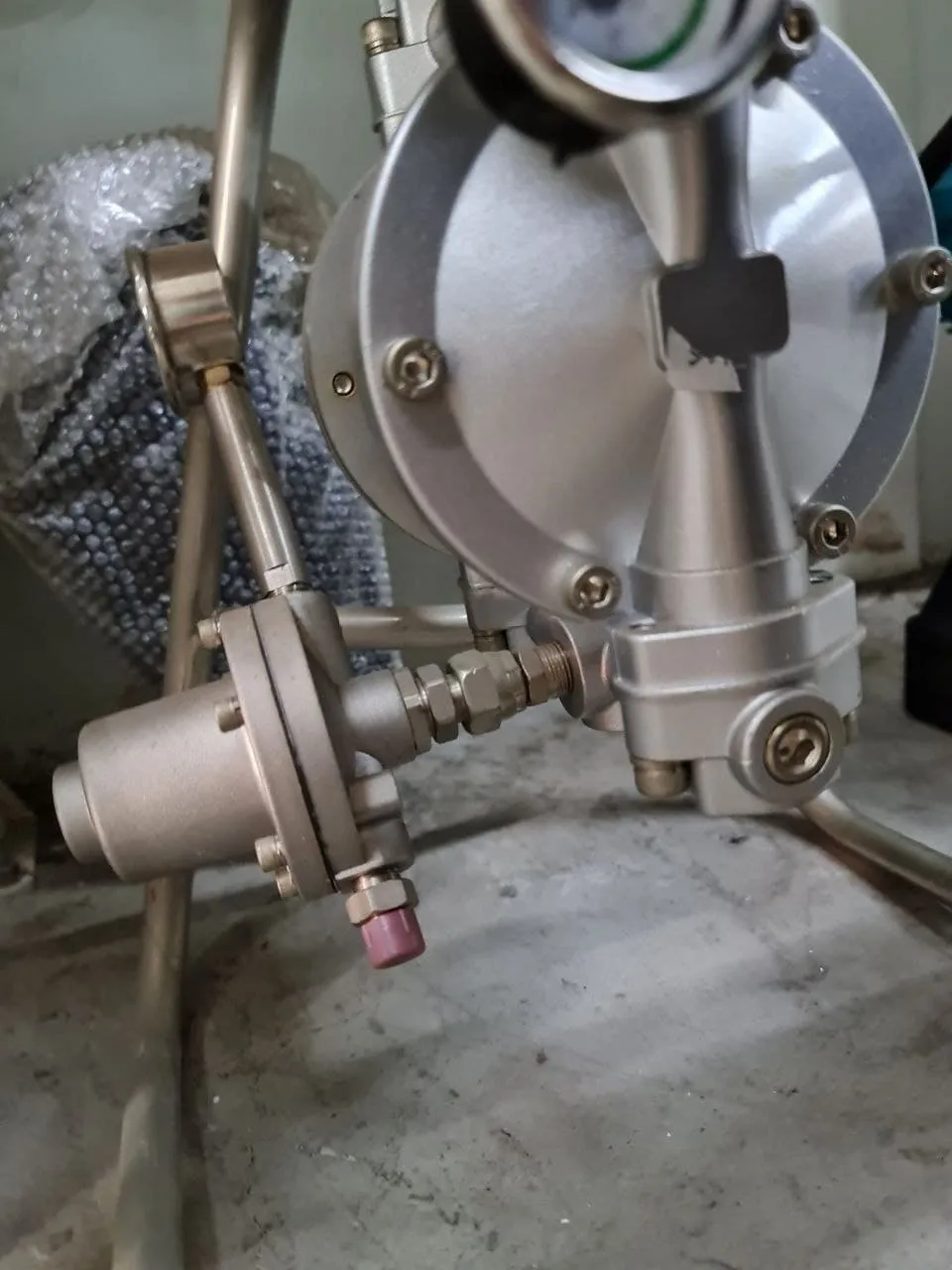

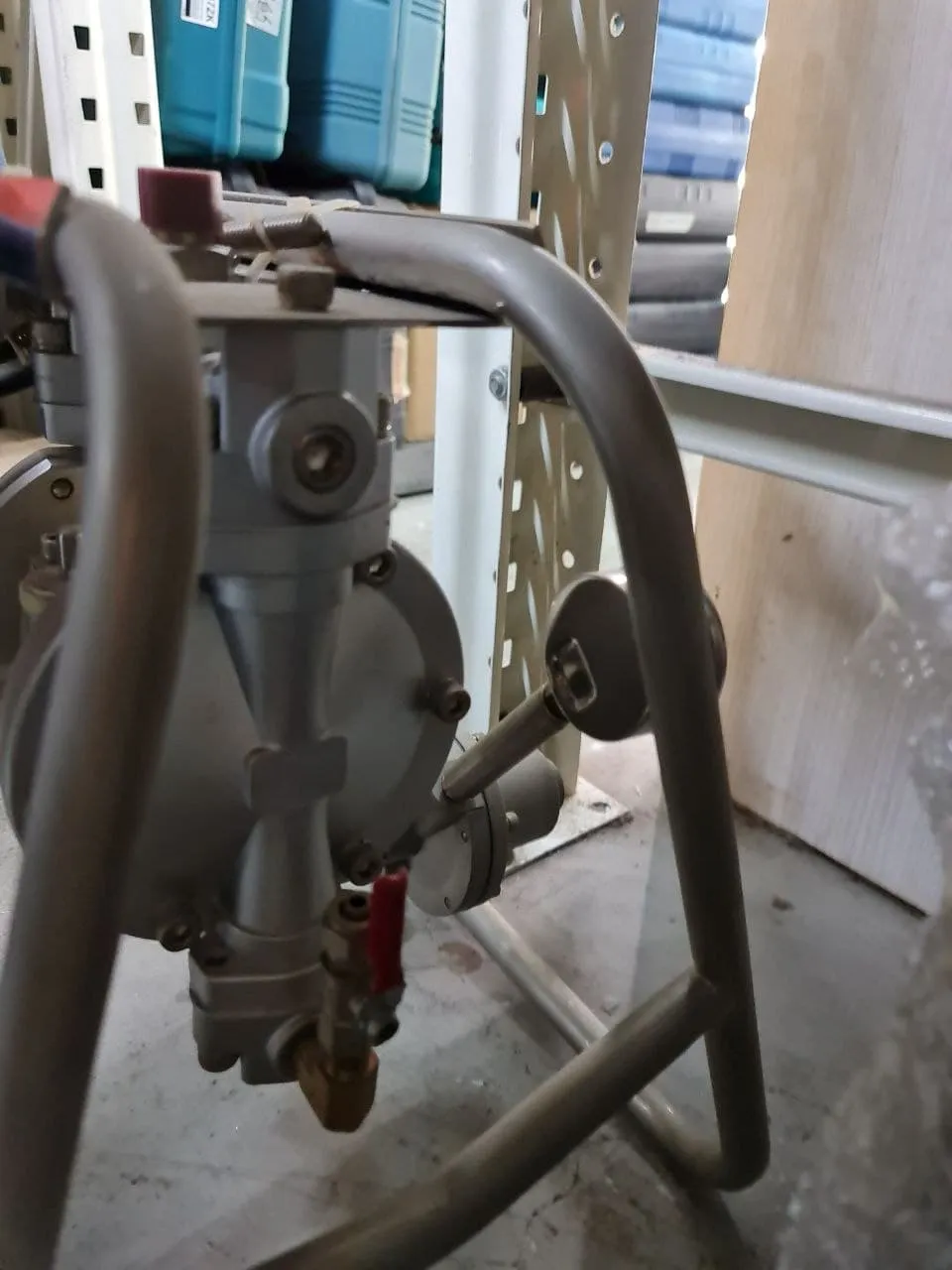

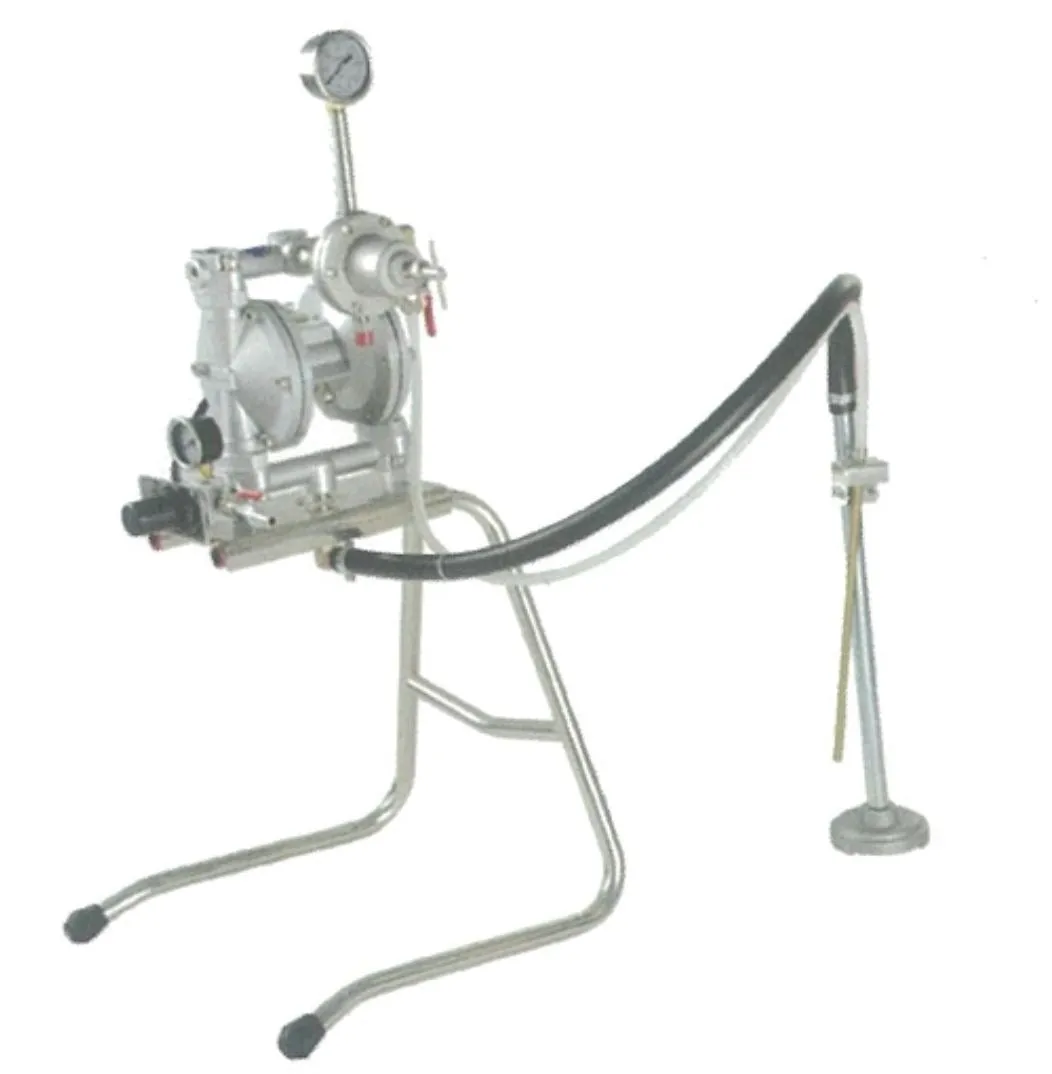

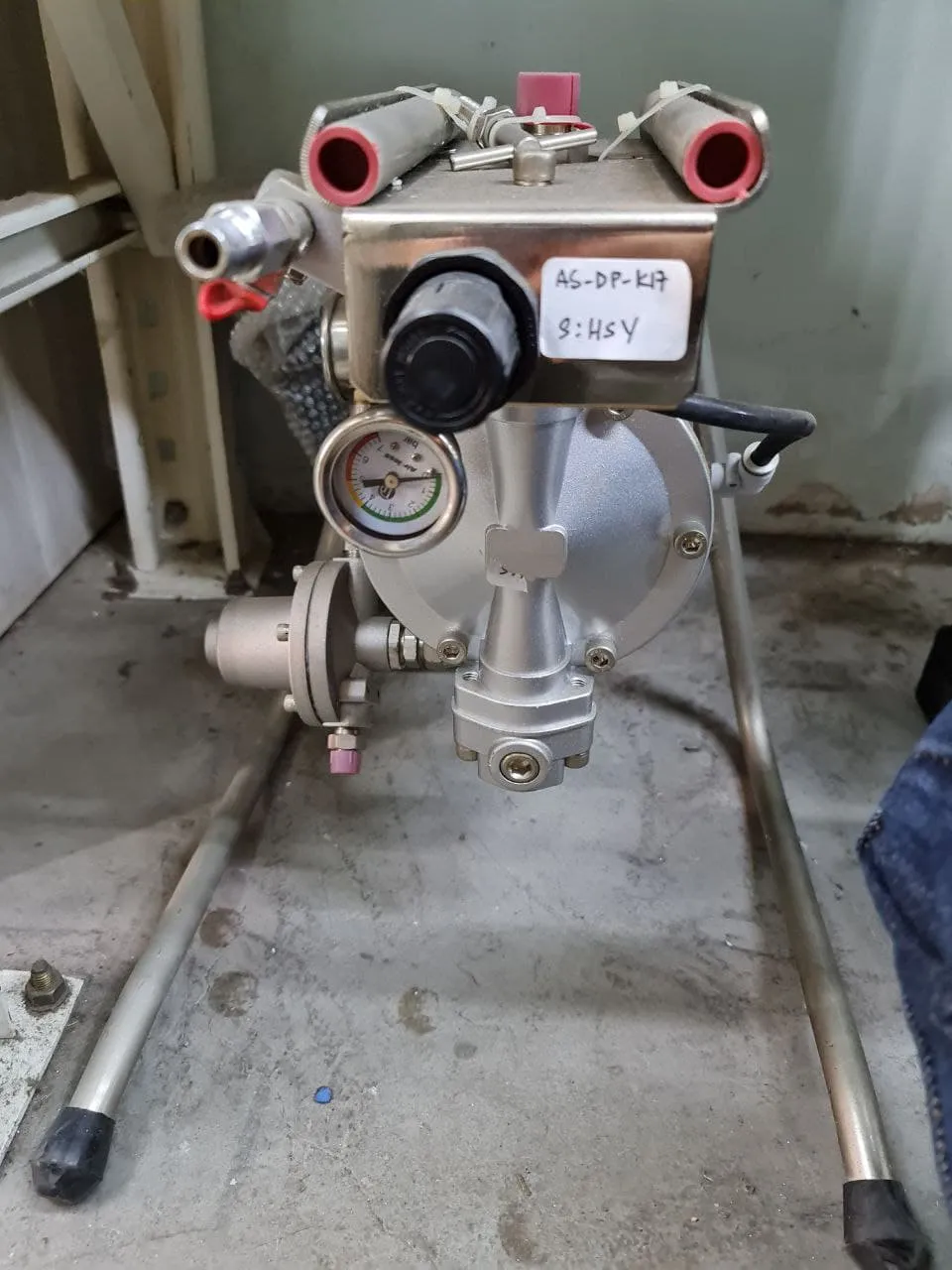

Dino-Power K17 Air Diaphragm Paint Sprayer with Pump | Model : AS-DP-K17

Must use with air compressor

Comes with :

• W101 GUN
• 5M TWIN HOSE
• PRESSURE REGULATOR

Features :

• During spraying. the paint comes very fast
• Less likely to jam which increases the efficiency of painting compared to traditional airless paint sprayers
• Ability to use this with those 20L paint tins without having to transfer to smaller 5L tins.
• High Capacity and compact size
• High Quality PTFE membrane in larger diameter which generates bigger volume output and has a longer life span
• Air Valve with double spool
• Uses a precision paint pressure regulator & output regulator
• Low and high manifold with inner diameter enlarged easily for cleaning and inspection
• Can be used for paint. chemical. oil and fluid transfer. etc.

Specifications :

• Fluid Input Size : 3/8
• Max. Pressure : 7 Bar/ 101.5 psi
• Air Input Size : 1/4 NPT
• Starting Pressure :
• Planar Valve : 1.6 Bar
• Low-pressure Valve : 0.5 Bar
• Max. Pressure amount : 18L/min
• Max. Air Consumption Capacity : 150NL/min
• Particle Maximum Diameter : 2mm
• Net Weight : 9 kg
• Carton Box Size : 38 x 37 x 47 cm
