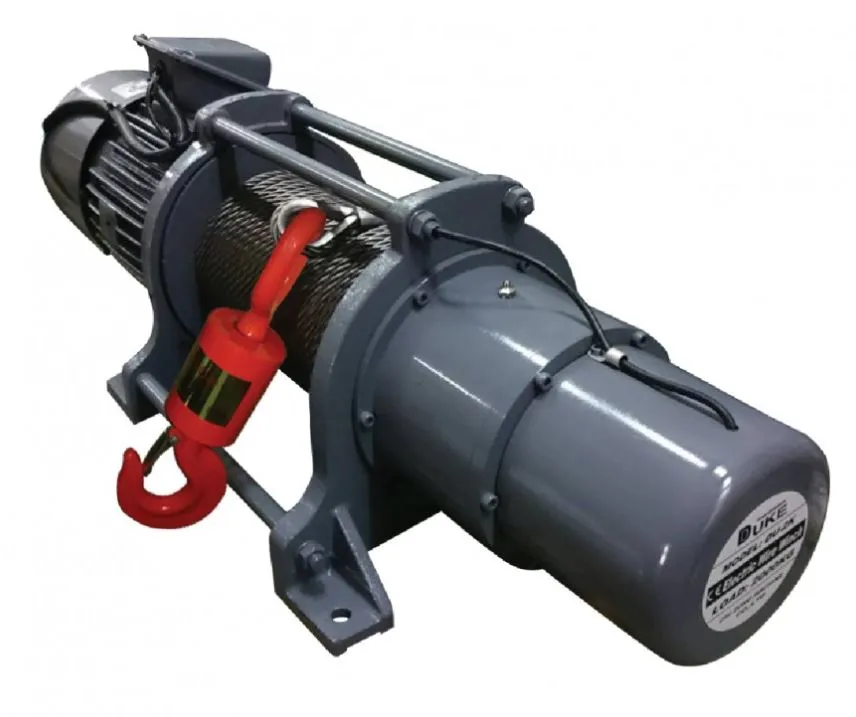

Duke Winch 415V. 1 Ton Electric Wire Rope Winch | Model : WIN-DU212

Features :

• Fit for various workplace applications. such as general factories. warehouse. construction. plumbing. and agriculture industries.
• Traditional table winch. high durability for both lifting and pulling applications.

• Induction motor provides high duty work and quiet running volume.

• Heavy duty high efficiency ball bearing on all running surfaces.

• Fabricated steel drum.

• Planetary gearing design guarantees a powerful loanability and durable lifetime usage.

• Enclosed drum flange to prevent rope from trapped between drum and support castings.

• 2000kg - 5000kg winches are equipped with double-brake system to guarantee high safety factor.

• 2000kg - 5000kg winches are equipped with electromagnetic control box with 10mtr pendant control cable.

Specifications :

• Capacity : 1000 Kg
• Voltage : 415V
• Phase : 3
• Electric Control : Direct
• Speed : 12 m/min
• Motor :
• 3 hp
• Type : Induction
• Wire Rope : 10 mm
• Wire Rope Lift : 68 m
• Brake : Disc
• � : 40%
• IP : 54
• FEM : 2m

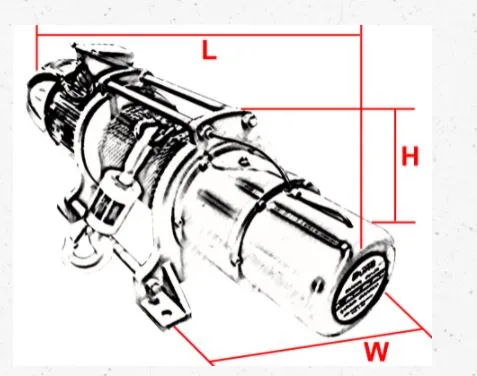

• Winch Body : 1120 x 385 x 340 mm
• Package Box : 1160 x 450 x 400 mm
• Net Weight : 152 kg
• Gross Weight : 175 kg
