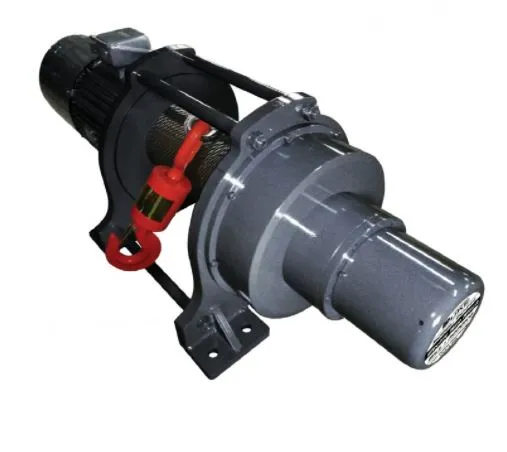

Duke Winch 415V . 2 Ton Electric Wire Rope Winch | Model : WIN-DU213

Features :

• Fit for various workplace applications. such as general factories. warehouse. construction. plumbing. and agriculture industries.
• Traditional table winch. high durability for both lifting and pulling applications.

• Induction motor provides high duty work and quiet running volume.

• Heavy duty high efficiency ball bearing on all running surfaces.

• Fabricated steel drum.

• Planetary gearing design guarantees a powerful loanabilityand durable lifetime usage.

• Enclosed drum flange to prevent rope from trapped between drum and support castings.

• 2000kg - 5000kg winches are equipped with double-brake system to guarantee high safety factor.

• 2000kg - 5000kg winches are equipped with electromagnetic control box with 10mtr pendant control cable.

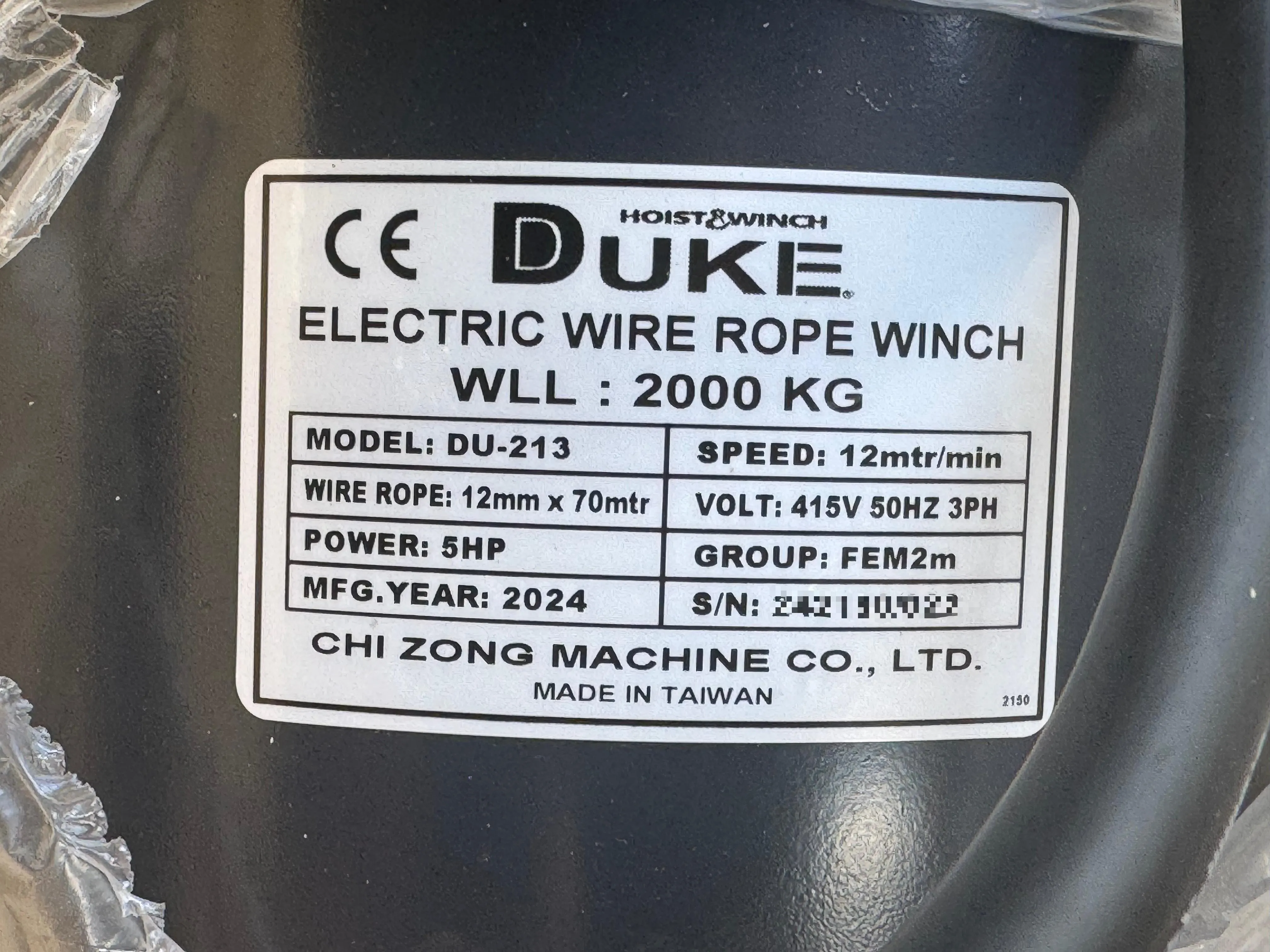

Specifications :

• Capacity : 2000 kg
• Power : 415V
• Phase : 3
• Speed : 12-15 m/min
• Motor :
• 5 hp
• Type : Induction
• Wire Rope : 12 mm
• Wire Rope Lift : 70 m
• Brake : Disc
• � : 40%
• IP : 54
• FEM : 2m

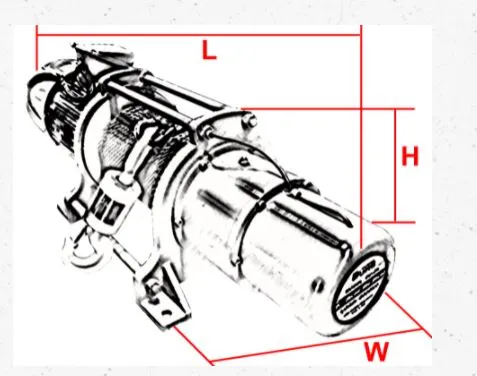

• Winch body : 1290 x 590 x 520 mm
• Package Box : 1350 x 610 x 690 mm
• Net Weight:364Kgs
• Gross Weight:392Kgs
