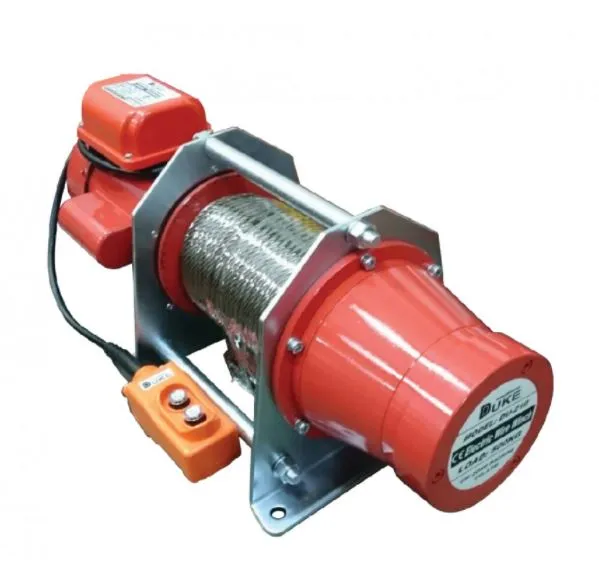

Duke Winch 415V. 500kg. 8mm x 60m Electric Wire Rope Winch 4 Wires | Model : WIN-DU210-3

Features :

• Fit for various workplace applications. such as general factories. warehouse. construction. plumbing. and agriculture industries.
• Traditional table winch. high durability for both lifting and pulling applications.

• Induction motor provides high duty work and quiet running volume.

• Heavy duty high efficiency ball bearing on all running surfaces.

• Fabricated steel drum.

• Planetary gearing design guarantees a powerful loanabilityand durable lifetime usage.

• Enclosed drum flange to prevent rope from trapped between drum and support castings.

• 200kg - 500kg winches are eligible to install with an upper hanger for overhung
• applications.

Specifications :

• Capacity : 500 Kg
• Power (V) : 415V
• Phase : 3
• Electric Control : Direct
• Speed : 21 M/min
• Motor : 2 Hp
• Brake : Disc
• � : 40%
• IP : 51
• FEM : 2m
• Wire Rope :
• Size : 8mm
• HOL : 60 m
• Gross Weight : 81 kg
• Net Weight : 76 kg

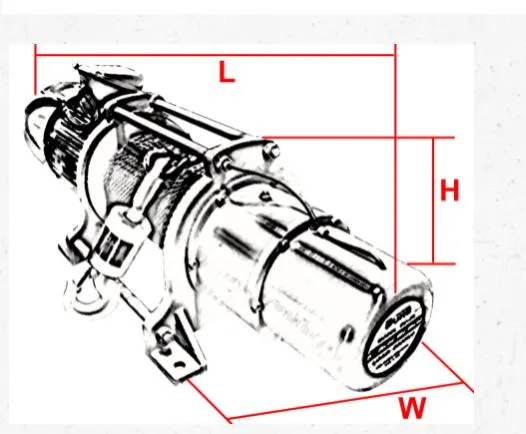

• Winch Box : 710 x 310 x 285 mm
• Package Box : 800 x 400 x 480 mm
