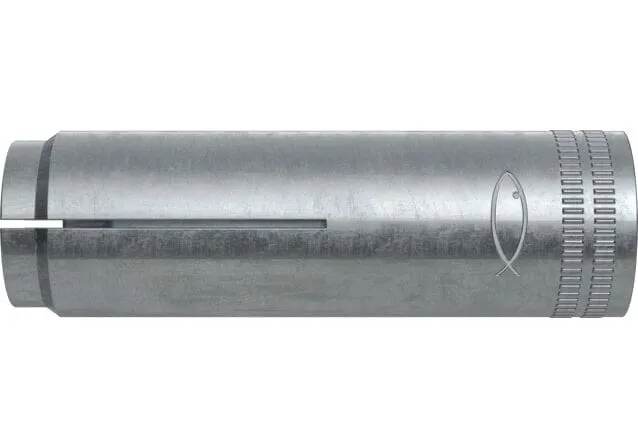

Fischer 1/2X50 Drop In Anchor (48106)(50pc/Box) | Model: DIA-F0450

Specification:

Applications:

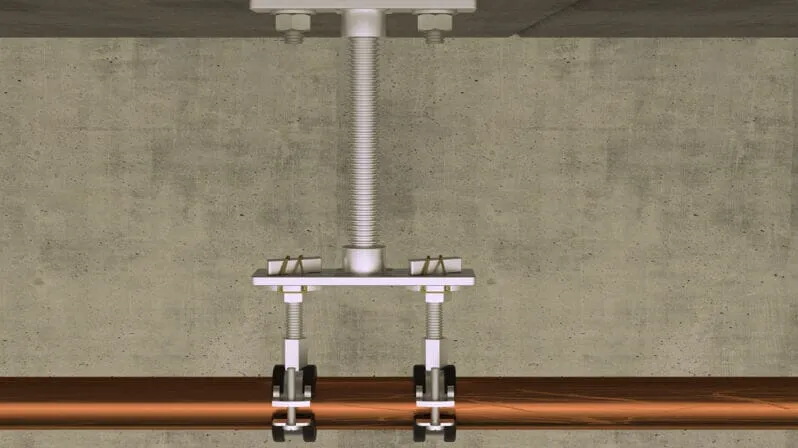

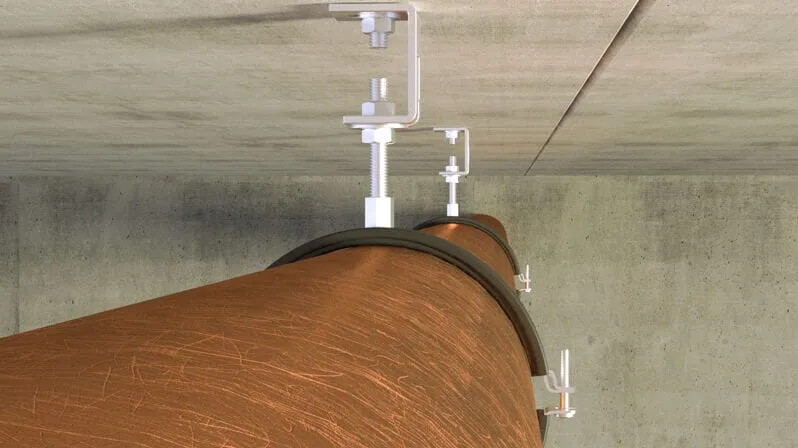

• Pipelines and ventilation ducts

• Sprinkler systems

• Steel constructions

• Consoles

Functionality:

• The EA N is suitable for pre-positioned installation.

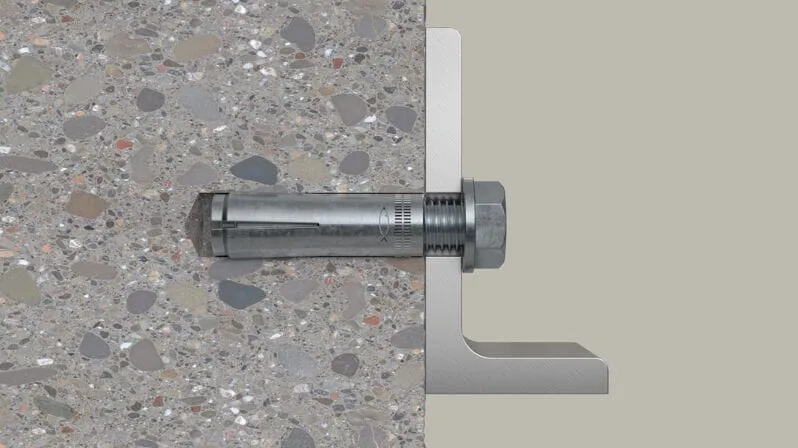

• Position the hammerset anchor in the drill hole and drive in flush to the surface of the base material using the hammer.

• The setting tool EA-ST is then used to expand the sleeve against the drill hole wall by driving in the internal pin.

• The setting tools must sit on the edge of the anchor to ensure correct expansion.

Advantages:

• Simple hammerset installation
• The imperial internal thread allows for the use of standard screws or threaded rods for ideal adaptation in line with the intended application.

• The hand setting tool EA-ST facilitates fast installation.
