Fischer Wedge Anchor M12X84 (HSA)(45272)(20pc/Box) | Model: WA-F1284

Specification:

Applications:

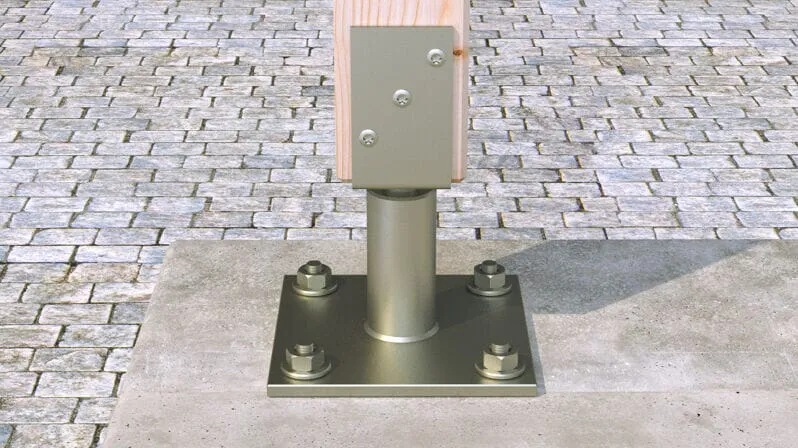

• Steel constructions
• Guard rails
• Consoles
• Ladders
• Cable trays
• Machines
• Staircases
• Gates
• Faades

Functionality:

• The FBN II is suitable for pre-positioned and push-through installation; also suitable for stand-off installation under certain conditions.
• Prior to installation. place the hexagon nut in the optimal position (the drive-in pin projects by approx. 3 mm out of the hexagon nut).
• When applying the torque. the cone bolt is pulled into the expansion clip and expands it against the drill hole wall.
• The head embossing offers a simple control of the anchoring.
• In the case of series installation. we recommend using the FABS bolt anchor setting tool.

Advantages:

• The standard anchorage depth achieves high load-bearing capacities. This means that fewer fixing points and smaller anchor plates are required.
• The reduced anchorage depth reduces the drill hole depth. This minimises the amount of time needed for installation whilst increasing flexibility.
• The long thread balances component tolerances and allows for stand-off installations. thus increasing flexibility.
• Few hammer blows and the minimal torque slippage allow for a noticeably simpler installation.
• The drive-in pin protects the thread from damage. and thus ensures a faster installation and dismantling of the attachment.
