Product Details
＋

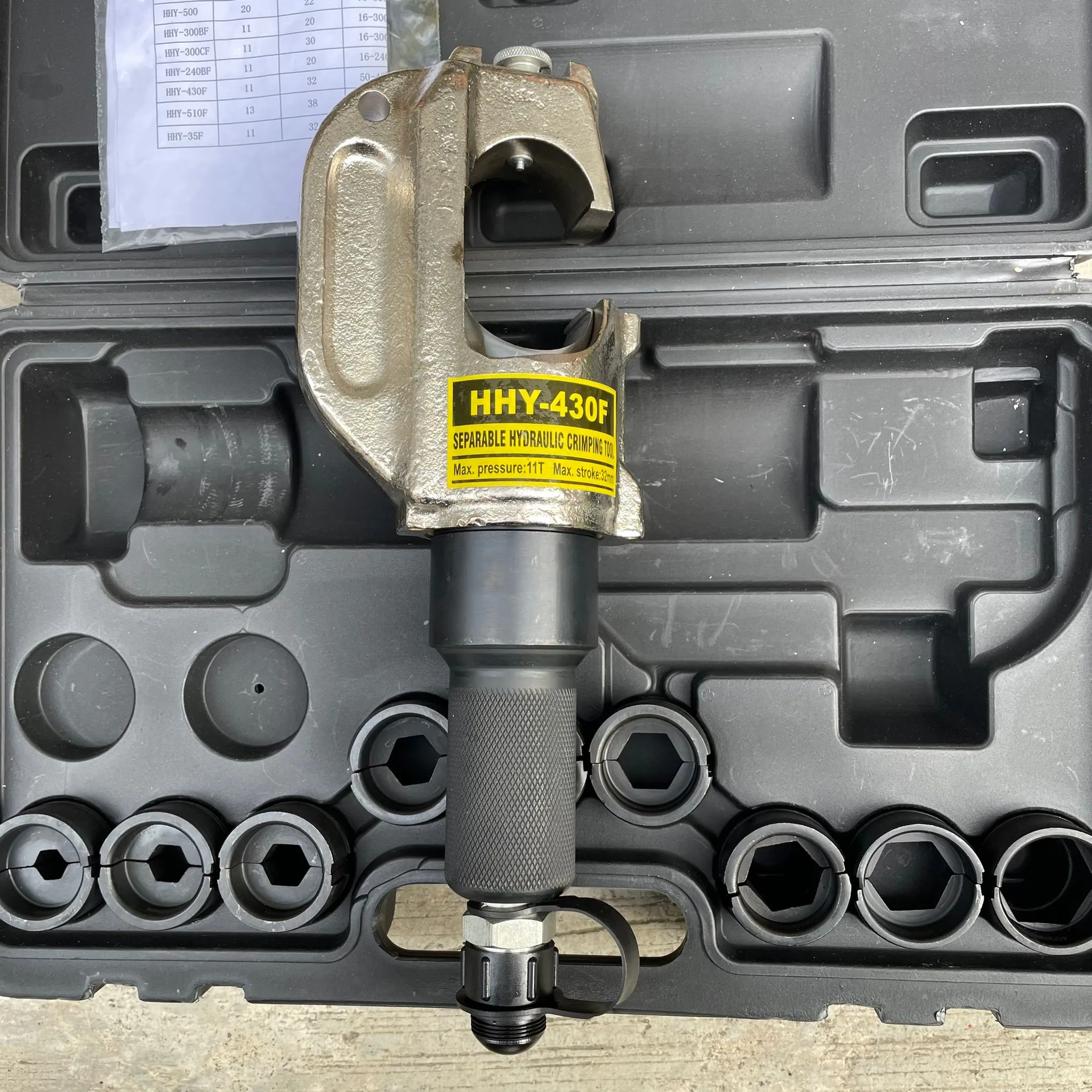

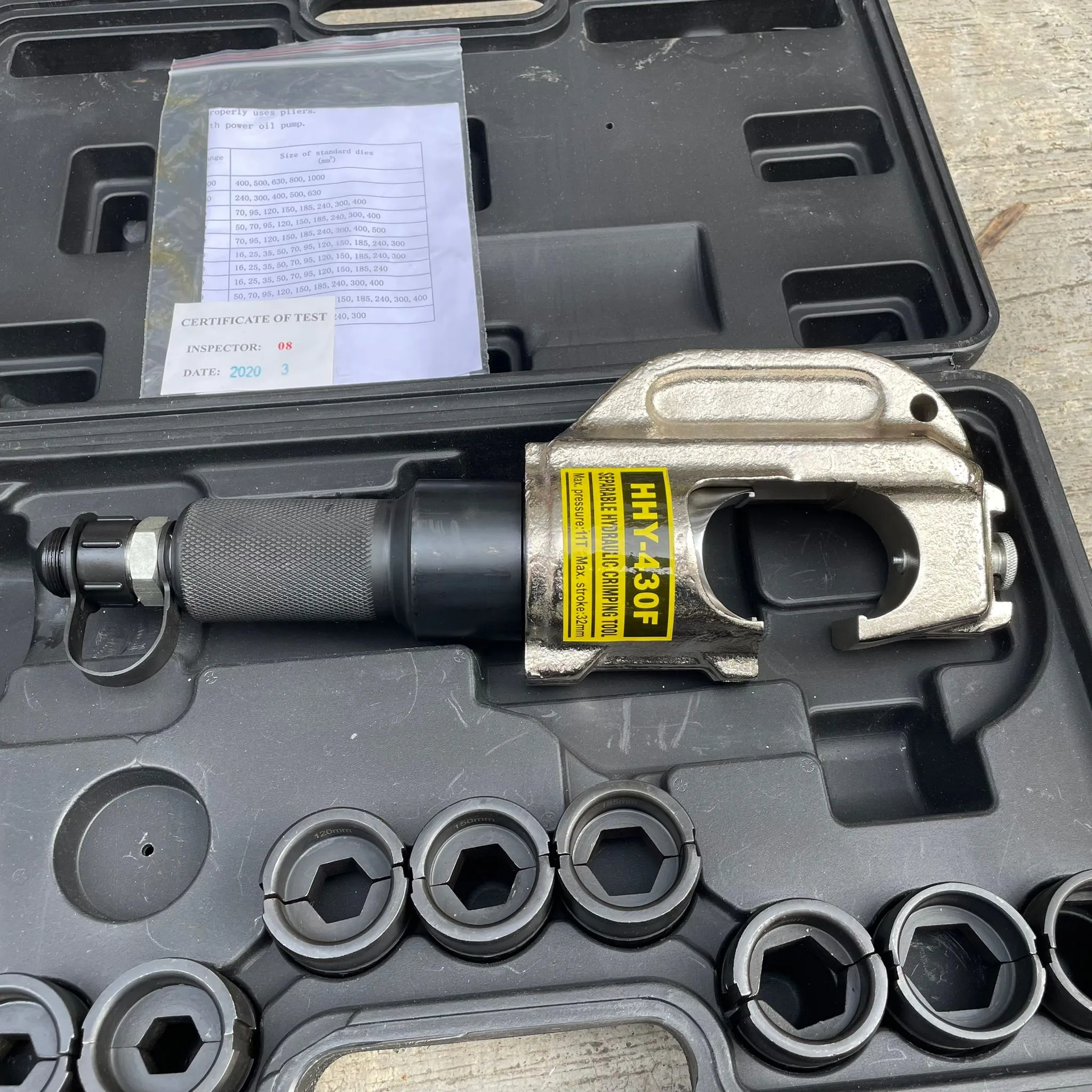

Hydralic Clamping Tool Hhy-430f 50-400mm2 | Model : HHY-430F
Features :
- Wide open C crimping head. rotatable.
- Large crimping area up to 400 mm2.
- For connecting to hydraulic pumps with 700 bar operating pressure.

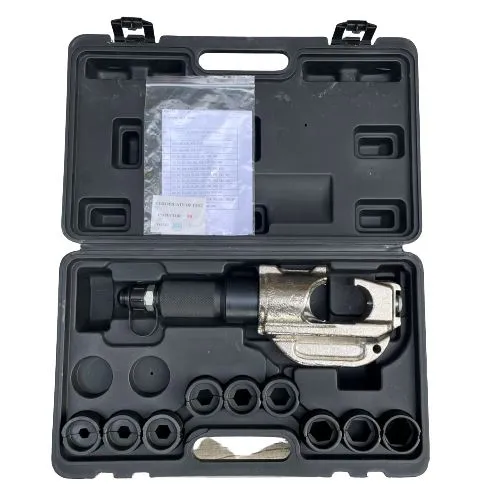

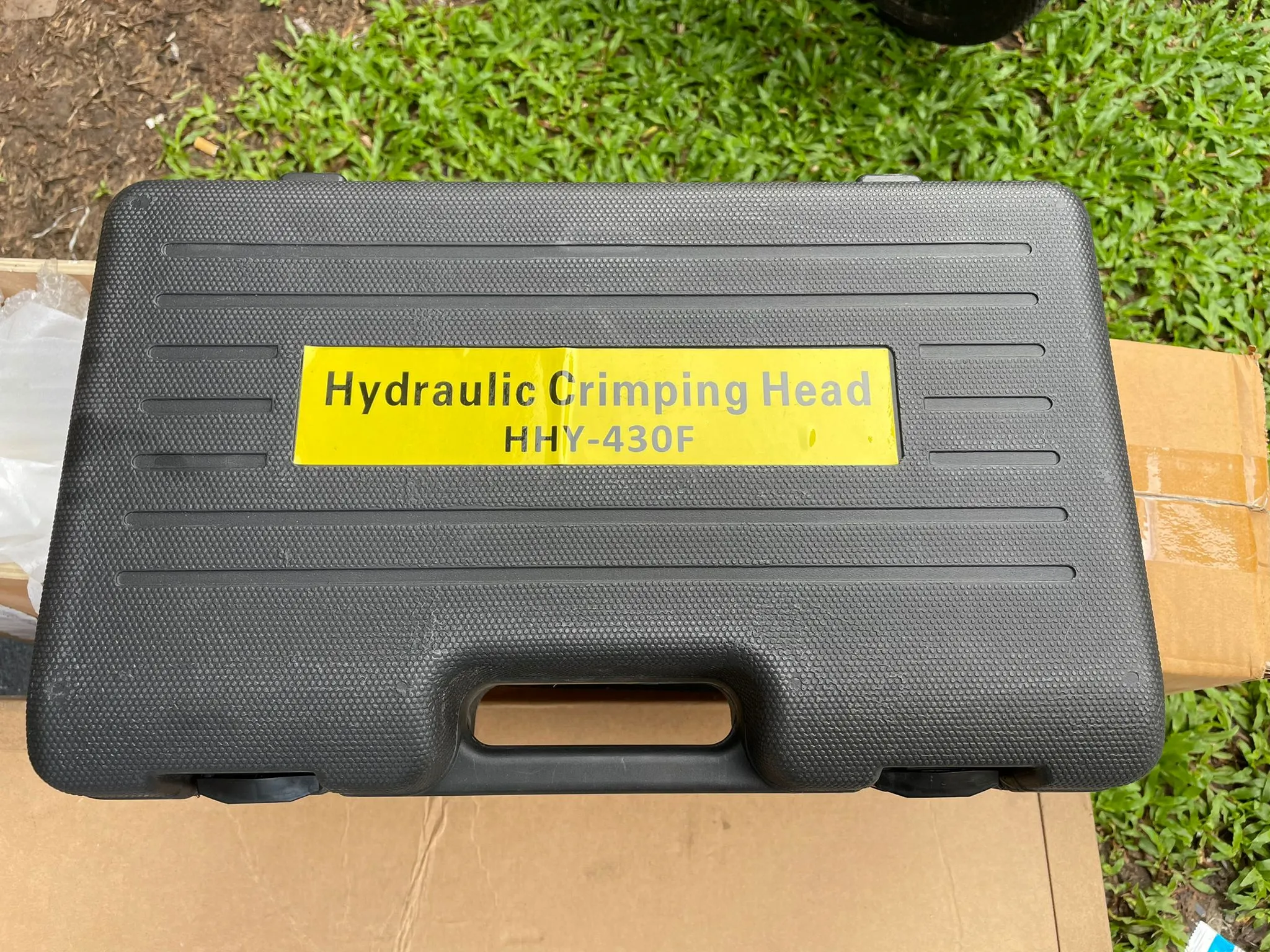

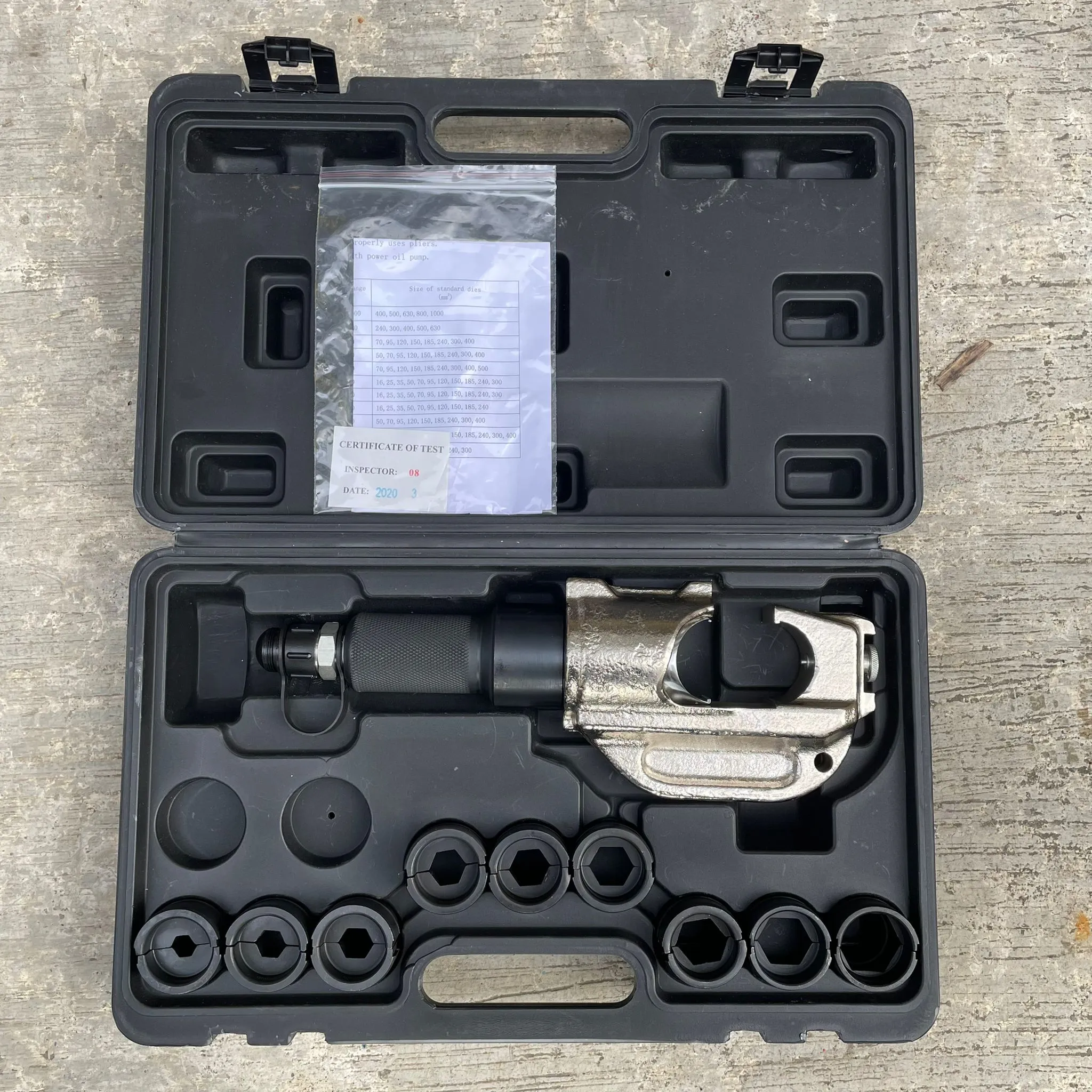

- Steel storage box.
Specifications :
- Model : HHY-430F
- Crimp Pattern : Hexagonal Type

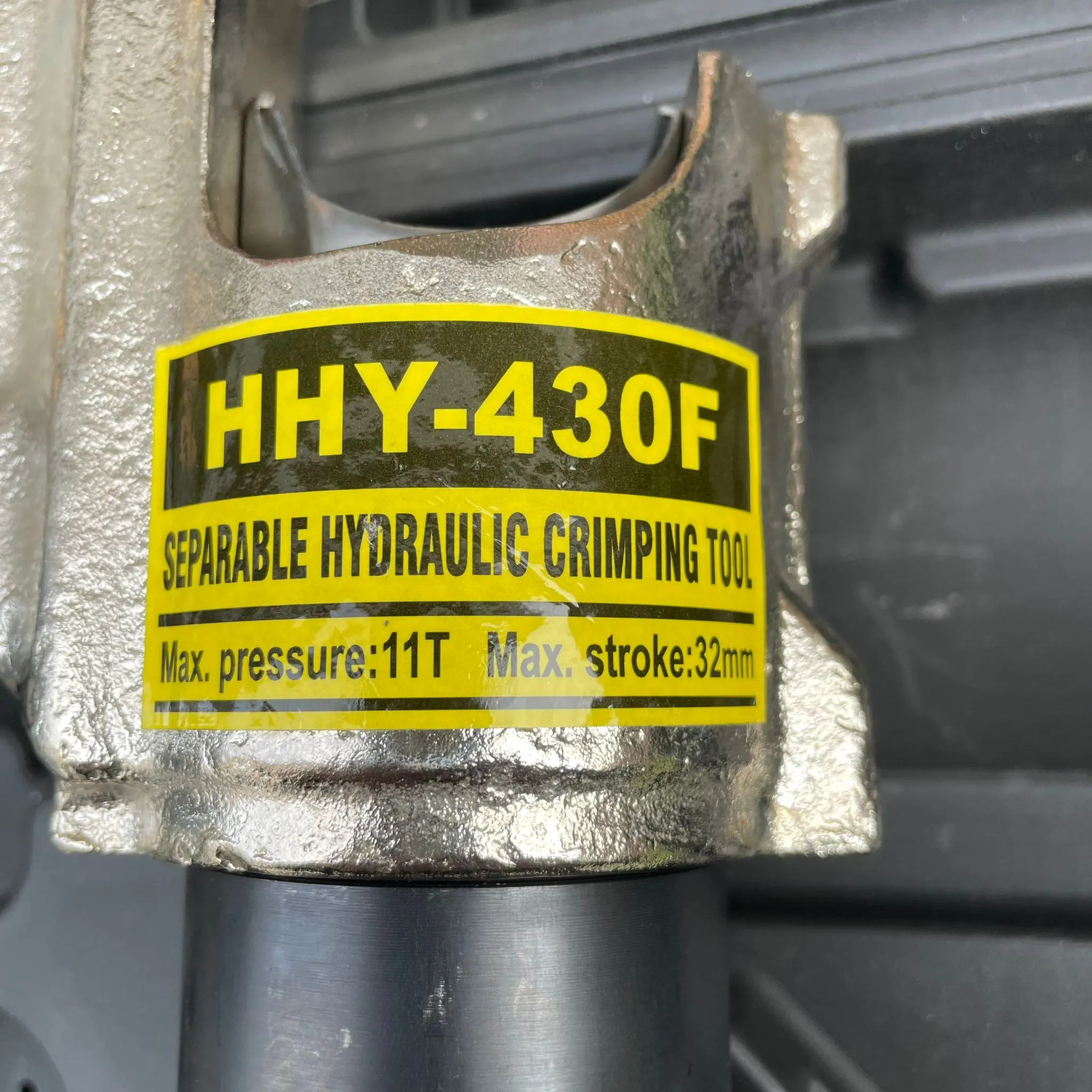

- Max pressure : 11 T
- Max Stroke : 32 mm
- Crimp range : 50 -400 mm2

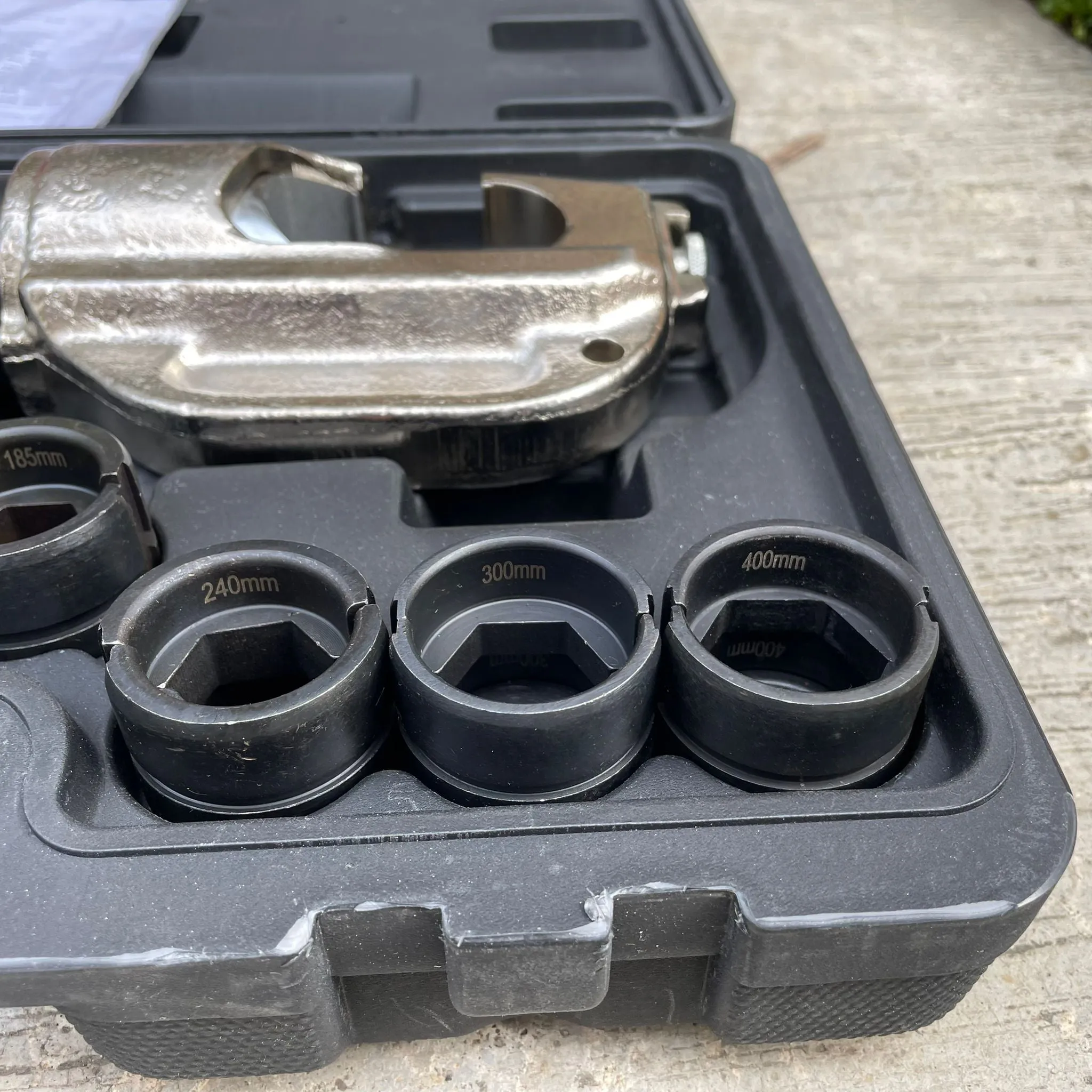

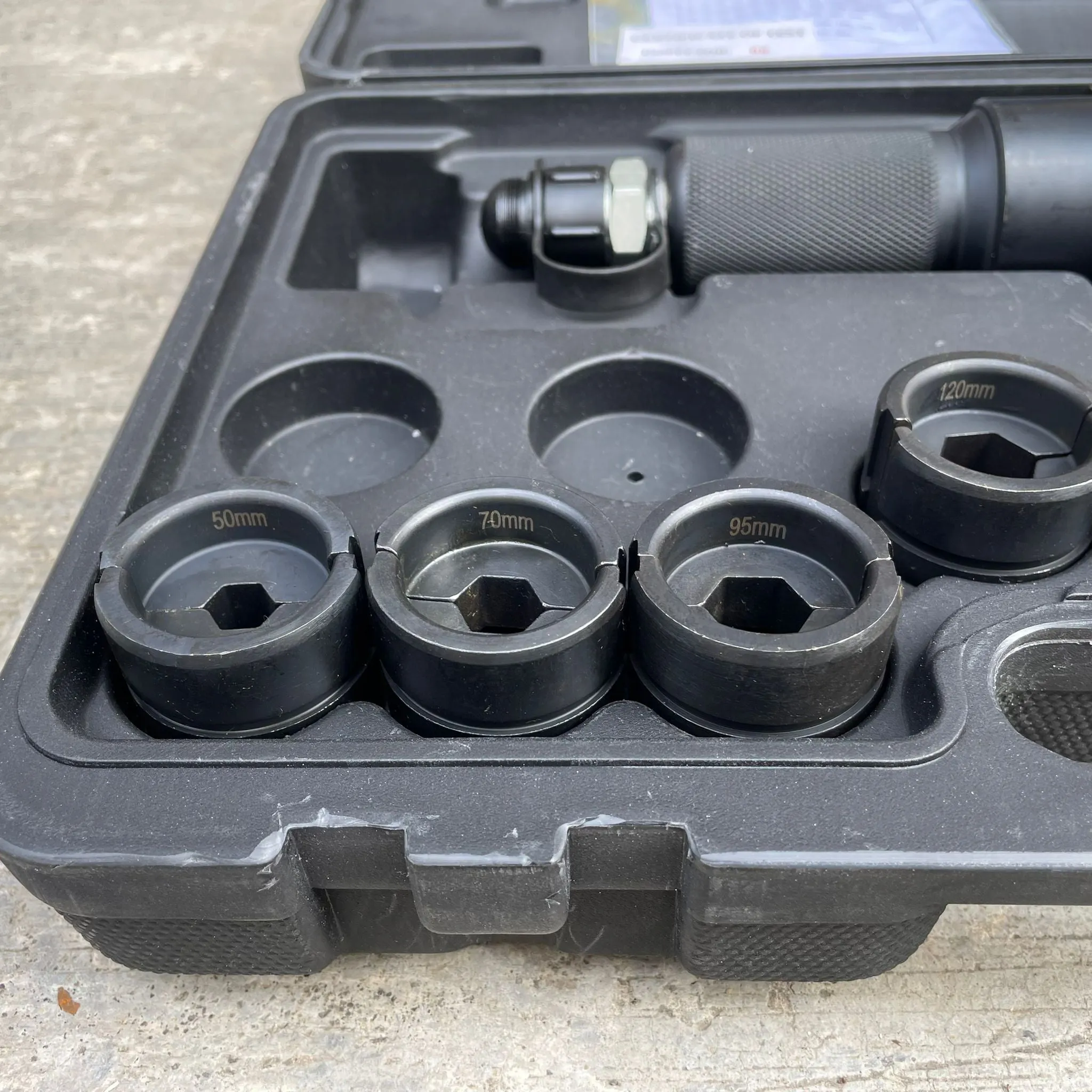

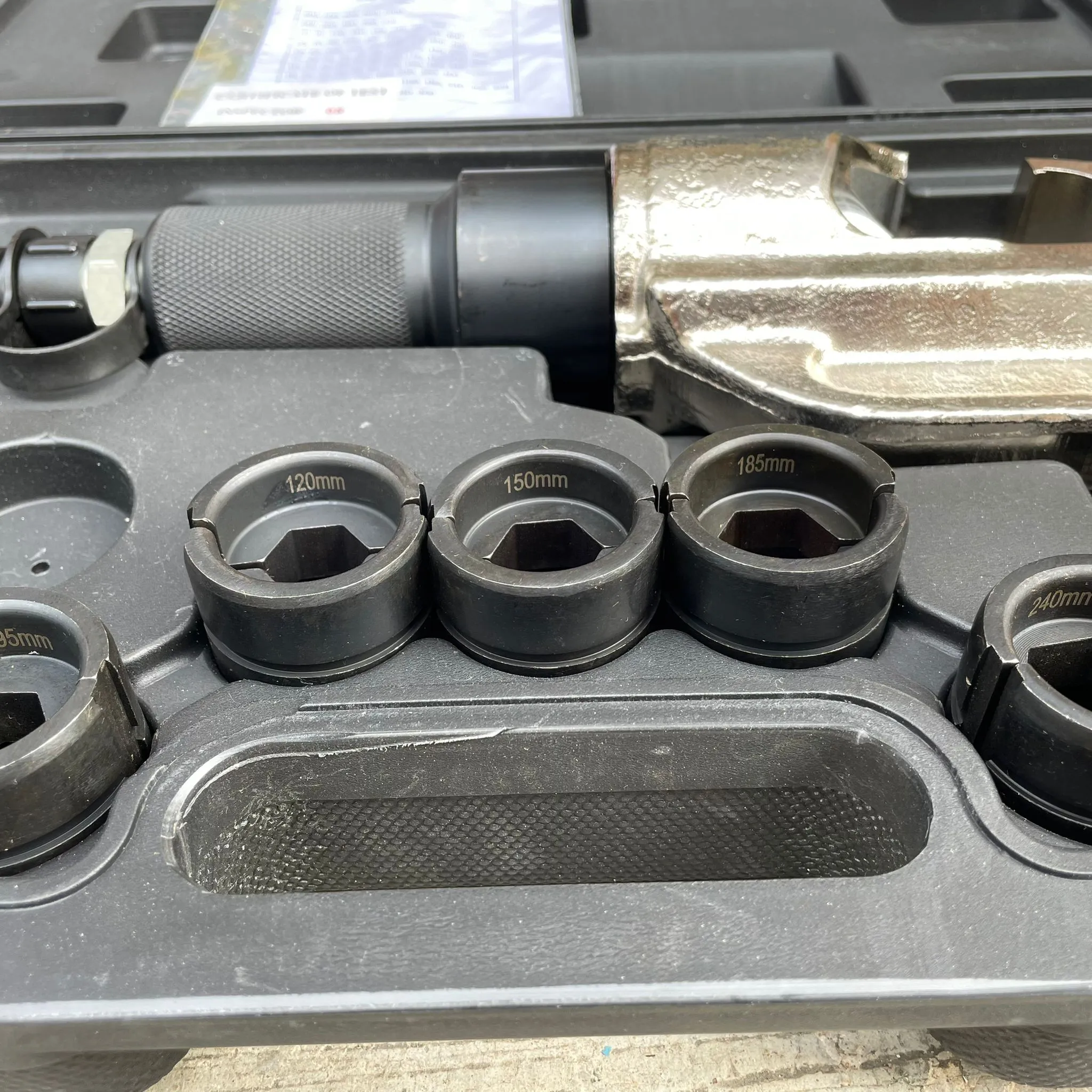

- Size of standard die :
- 50 mm2
- 70 mm2
- 95 mm2
- 120 mm2
- 150 mm2
- 185 mm2
- 240 mm2
- 300 mm2
- 400 mm2
- G.W : 8.9 kg
- Packing Size : 350 x 190 x120 mm
