Product Details
＋

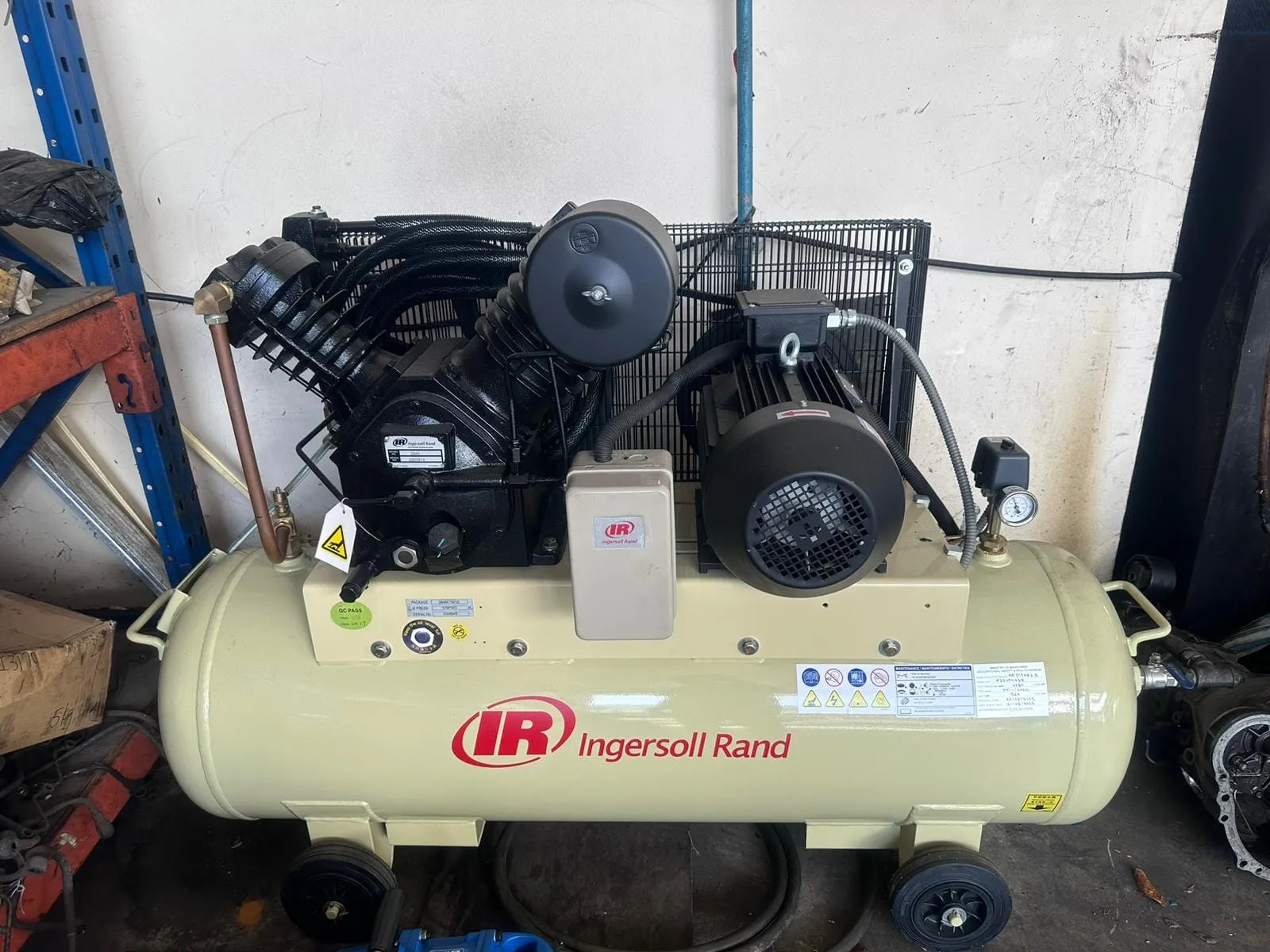

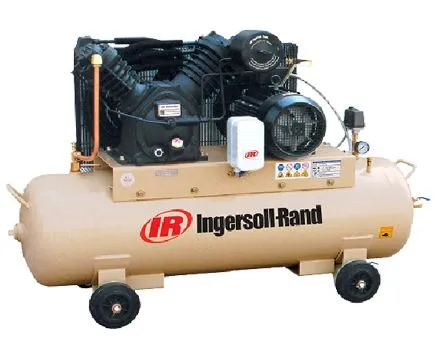

Ingersoll-Rand 10HP 230L 415V 2 Stage Air Compressor | Model : 2545C10/12
Description :
- The 2545C10/12-SD air compressor consists of a heavy duty fabricated steel compressor unit mounted on a Singapore MOM approved receiver tank.
- This 415V Belt driven unit operates at 10hp and 175 psi pressure; true industrial use compressors and delivers 34cfm.
- The drive is V-Belt type with provision for easy adjustment of Belt slack. An easily removed. totally enclosed wire Belt guard. Precision balanced low-pressure aluminium and high pressure cast iron pistons provide smooth operation.
- Ingersoll Rand's Type 30 inNOvative two-stage design allows for cooler operating temperatures and overall better power performance. Built with robust cast iron cylinders. the 415V Belt-driven units are a quality investment.
Specification :
| Free Air Delivery | 34.2cfm/968lpm |
| Pump | 2545 Cast iron |
| NO. of Cylinders | 2 |
| Compression Stages | 2 |
| Free Speed (rpm)1020 | 1020 |
| Auto Condense DrainNO | No |
| Motor Size | 7.5kw/10hp |
| Power Type | 415v 50Hz electric |
| Drive TypeBelt | Belt |
| Working Pressure | 175psi/1200kpa |
| Starter | Star Delta Starter |
| Constant/ Dual Controls | STANDARD |
| Centrifugal Unloader | STANDARD |
| Air Tank Capacity (L) | 230L |
| Weight (kgs) | 374 |
| Dimensions Lxlxh (mm) | 1740x620x1130 |
| NOise Level dB(A)@1m | 83 |
