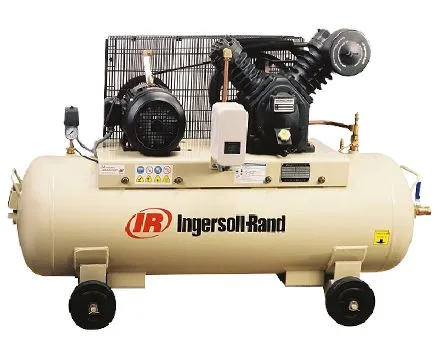

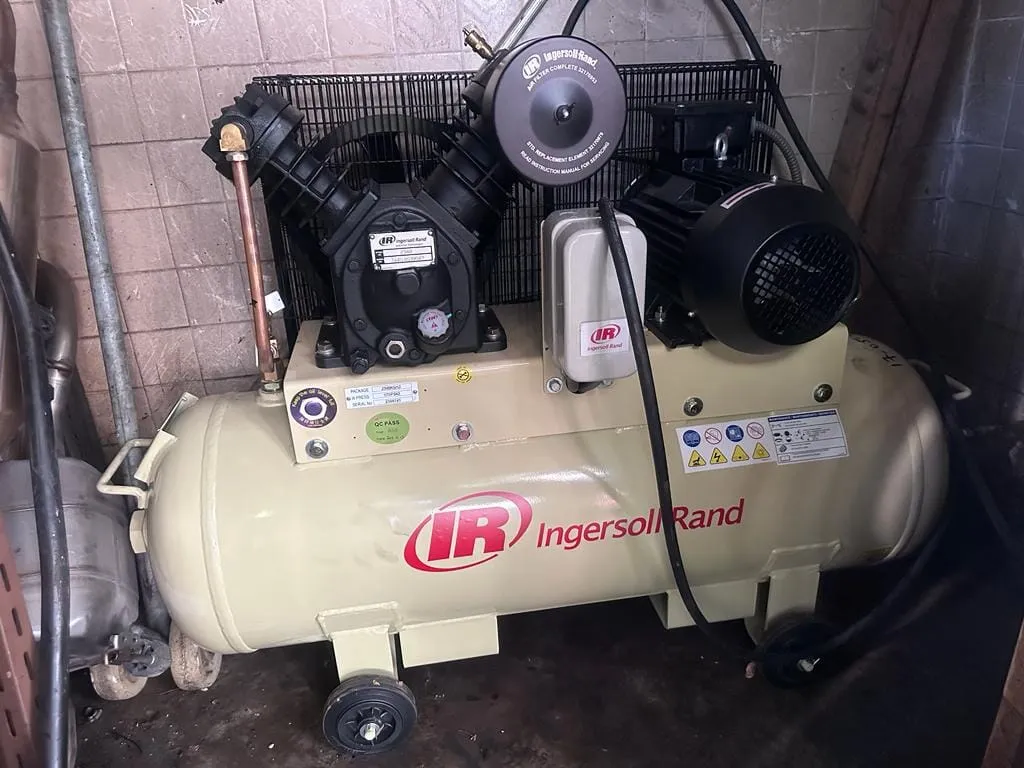

Ingersoll-Rand 3HP 150L 415V 2 Stage Air Compressor | Model : 2340K3/12
Description :
- The 2340K3/12 air compressor consists of a heavy duty fabricated steel compressor unit mounted on a Australian approved receiver tank.
- This 415V Belt driven unit operates at 3.0hp and 175 psi pressure; true industrial use compressors and delivers 9.6cfm.
- The drive is V-Belt type with provision for easy adjustment of Belt slack. An easily removed. totally enclosed wire Belt guard. Precision balanced low-pressure aluminium and high pressure cast iron pistons provide smooth operation.
- Ingersoll Rand's Type 30 inNOvative two-stage design allows for cooler operating temperatures and overall better power performance. Built with robust cast iron cylinders. the 415V Belt-driven units are a quality investment.
Specification :
| Model | 2475K5/12 |
| Free Air Delivery | 17.4cfm/492lpm |
| Pump | 2475 cast iron |
| NO. of Cylinders | 2 |
| Compression Stages | 2 |
| Free Speed (rpm)1020 | 1340 |
| Auto Condense DrainNO | No |
| Motor Size | 4.4kw/5.5hp |
| Power Type | 415v 50Hz electric |
| Drive TypeBelt | Belt |
| Working Pressure | 175psi/1200kpa |
| Starter | DOL |
| Constant/ Dual Controls | N/A |
| Centrifugal Unloader | N/A |
| Air Tank Capacity (L) | 150L |
| Weight (kgs) | 245 |
| Dimensions Lxlxh (mm) | 1440x540x1000 |
| NOise Level dB(A)@1m | 79.4 |
