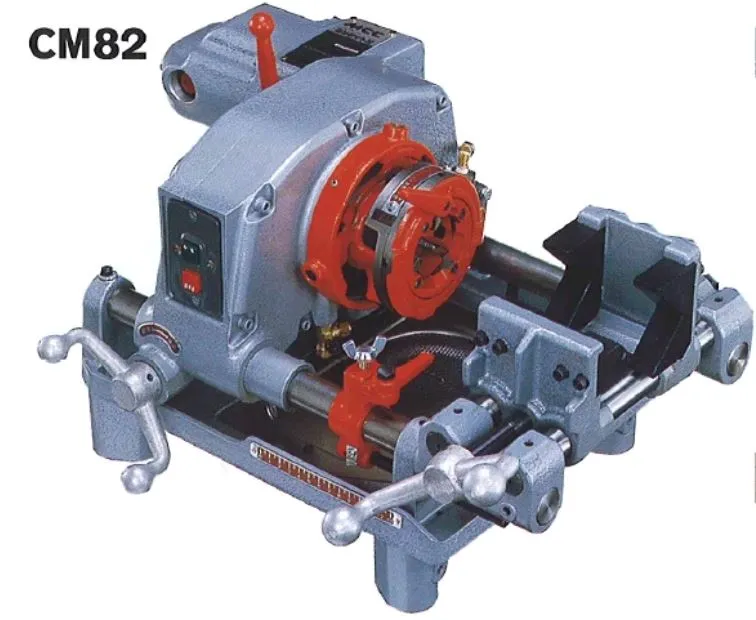

MCC 1/2 - 3 Conduit Pipe Threading Machine | Model : MCC-CM-82

Features :

• Die Head rotating in forward only
• One touch changeable die head and easy setting dies
• High speed and high efficiency
• Automatic oiling directly to the dies and pipe through die head during threading operation
• Die head opens automatically when a desired length of thread is preset
• This machine is specially designed to thread conduit pipes

Specifications :

• Capacity : 15 - 75 mm (JIS conduit). 1/2 - 3 (BSPP)
• Motor : Single phase 750 W (50/60Hz)
• Rotation Speed (no load):
• Fast speed : 110 rpm
• Slow speed : 40 rpm
• Weight : 40 kg
• Dimensions ( L x W x H) : 460 x 350 x 280 (mm)

Standard Accessories :

• CM Die Head A type : 15 - 51mm (1/2 - 1-1/2)
• CM Die Head B type : 63 - 75mm ( 2 - 3)
• Dies :
• 19 - 31 mm . 39mm - 51mm. 63mm - 75mm : each 1 set
• 1/2 - 3/4. 1 - 1-1/2. 2 - 3 : each 1 set

• 4 litre Threading Oil - 1 bottle
• Chip Scraper - 1 pc
• Spanner for die head - 1 pc
• Release bar for die head - 1 pc
• Hex Key (3.4.5.6mm) - 1 each
• Carbon brush - 1 set
• Machine cover - 1 pc
• Tool box - 1 pc
• Legs - 1 set
