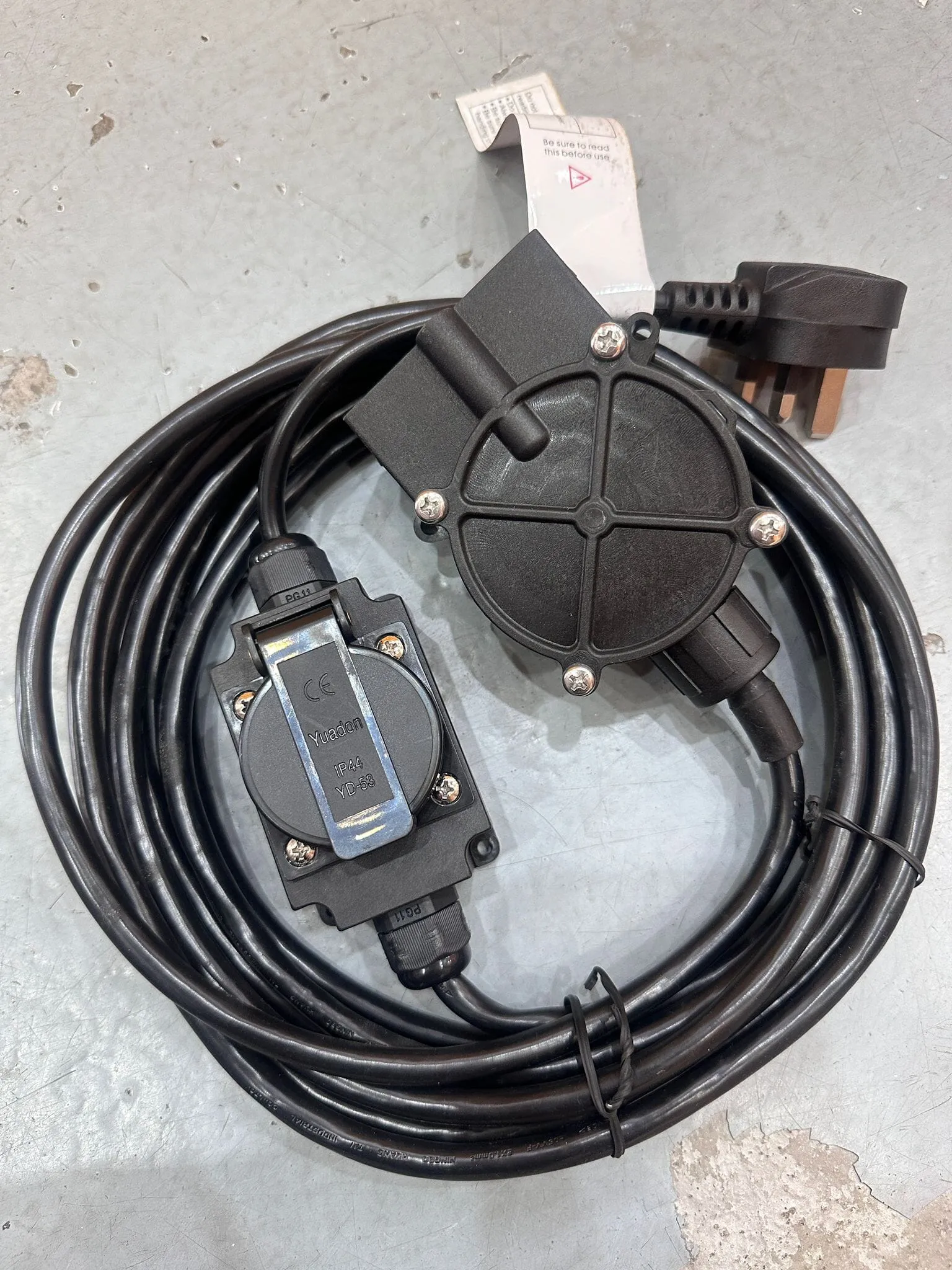

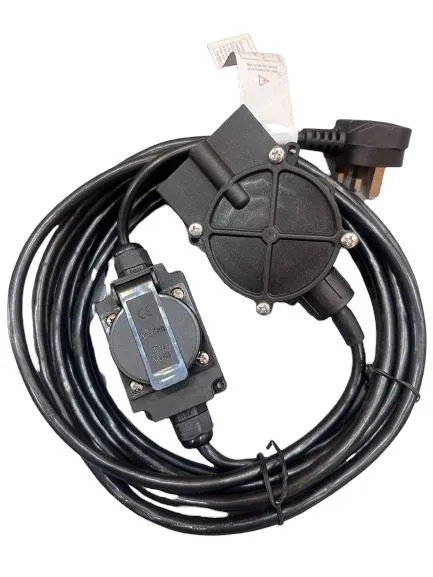

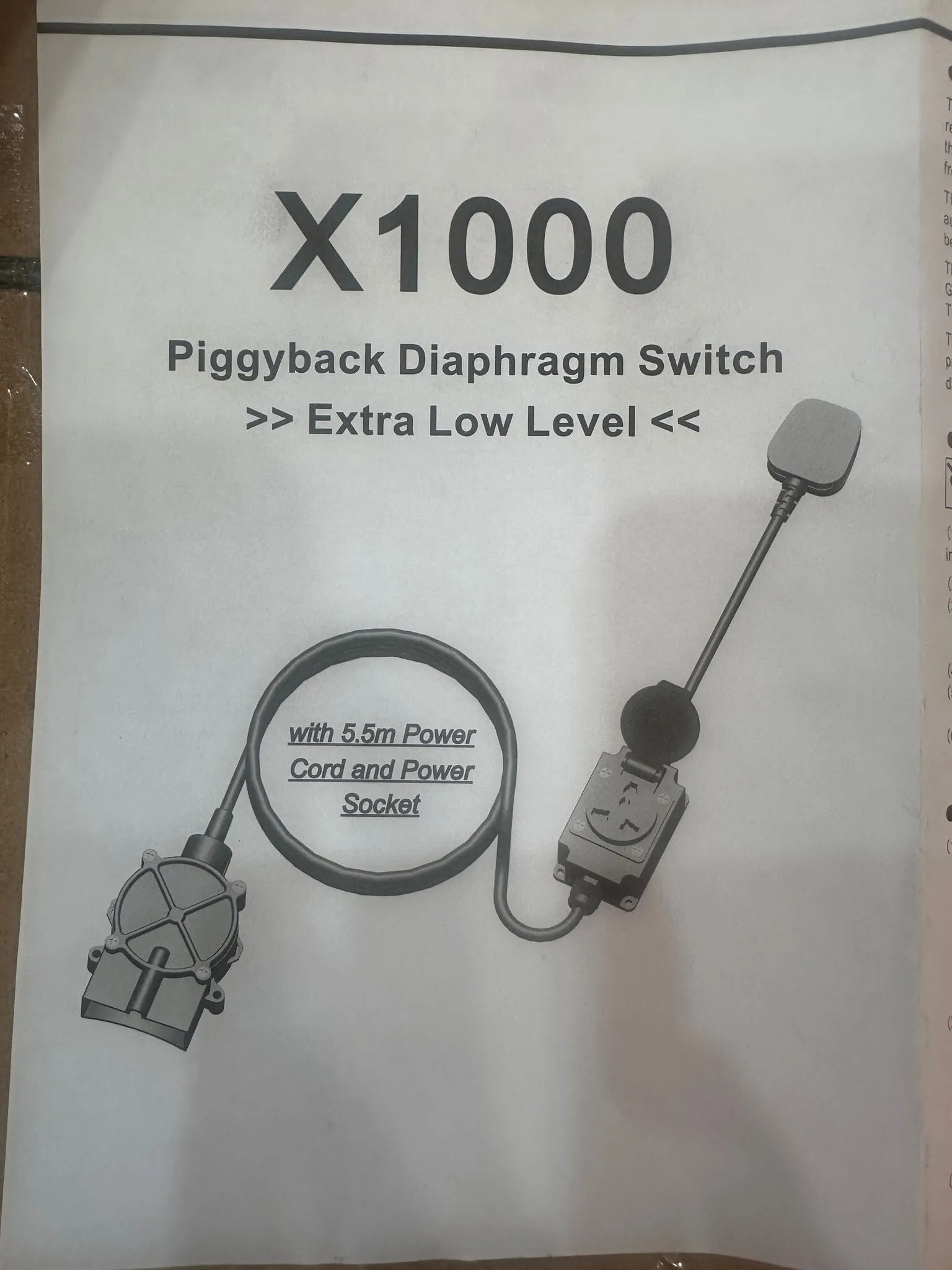

Mepcato Piggyback Diaphragm Switch (Extra Low Level) | Model : WP*X1000

The remote switch X1000 for submersible pumps can be used either by attaching it to Little Giant 5-MPS pump or used separately with other pumps to control on-off operation of the pump. The switch is activated by pressure to a diaphragm which activates a switch providing power to the pump.

Features :

• Converts any manual pump to automatic operation. up through 1 HP
• Easy Installation. with Quick Piggy-Back Plugs and Power Socket
• When the water drops too low. the switch turns the pump off; when the water level comes back up the switch turns the pump back on
• Match with Little Giant 5-MSP.start level 5cm-7.6cm.off level 1.27cm-3.8cm

Specifications :

• Type : Diaphragm
• Max. Amps Running : 10A
• Voltage : 115V/230V
• PVC Cord Length : 5.5m connect cord & 0.25m power cable
• Max. temperature : 50C
• Dimensions : Switch - 148x86x42mm. Socket - 130x55x52mm

Installation :

• For installation on the Little Giant 5-MSP. 6-CIM-R or 6-CBM-R pumps
• For installation onM-100. HOME. CSS-250. 50PSpumps

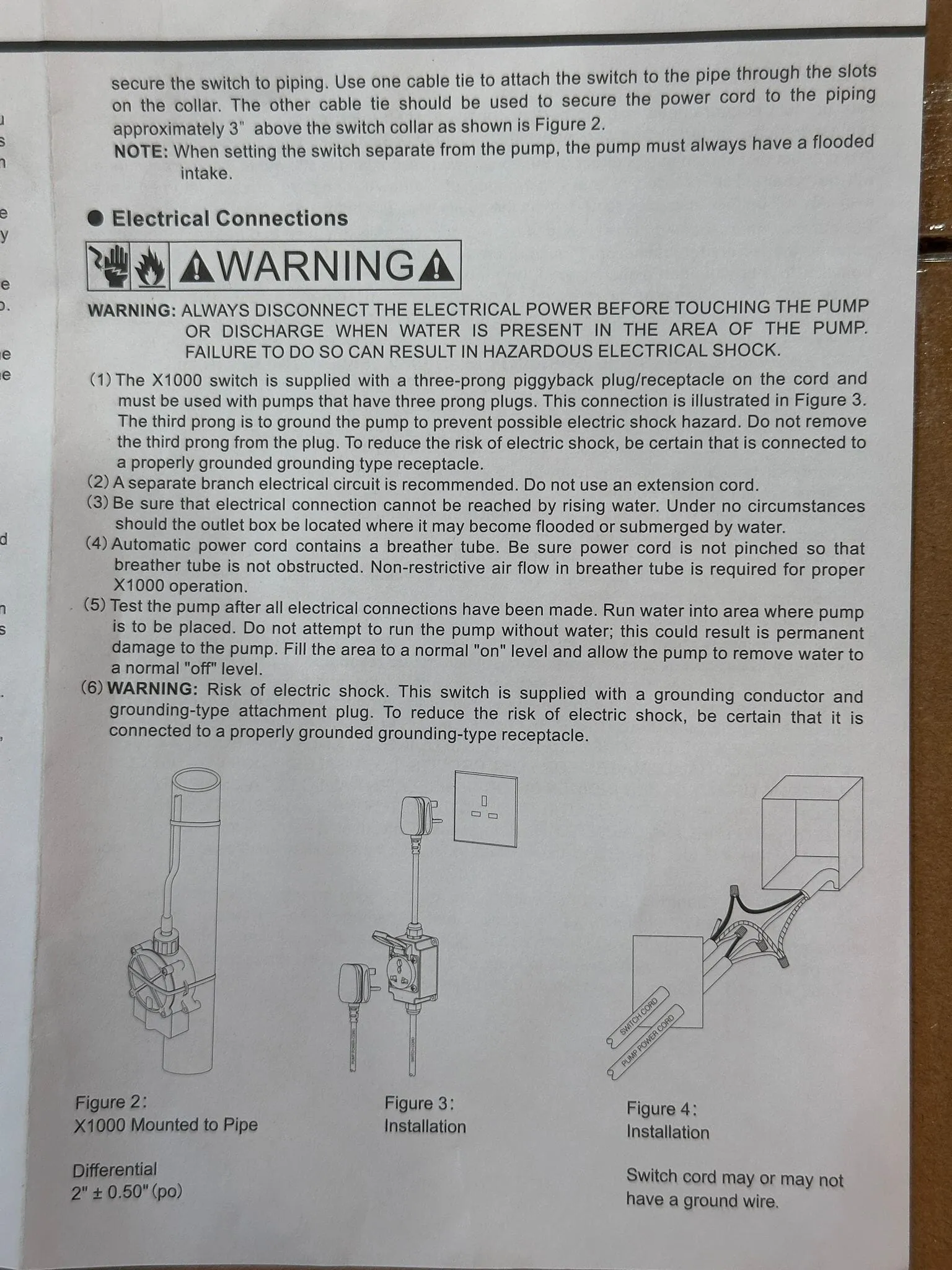

• For universal installation. X-1000 can be attached to a pipe with the cable ties provided
• Automatic power cord contains a breather tube. Be sure power cord is not pinched so that breather tube is obstructed. Non-restrictive air flow in breather tube is required for proper operation
• Test the pump after all electrical connections have been made. Do not attempt to run the pump without water; this could result in permanent damage to the pump
