Product Details
＋

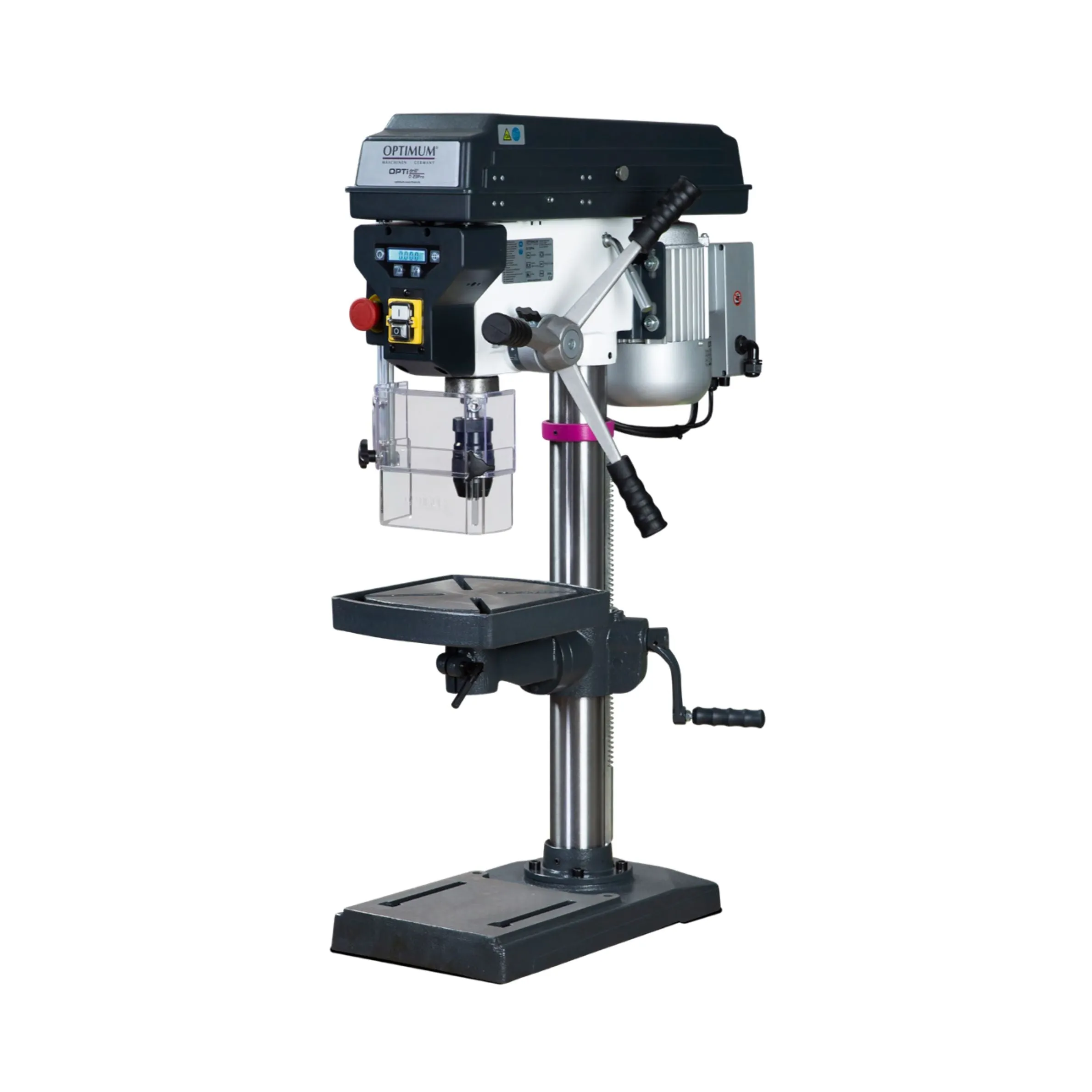

Optimum Bench Drill 230V D23PRO 230Volts Single Phase Max Drill 25mm | Model: D23PRO
Specification:
| Model | D 23Pro |
| Total power | 750 W |
| Electrical connection | 230 V/1 Ph or 400 V/3 Ph |
| Drilling performance in steel | 25 mm |
| Continuous drilling performance steel | 20 mm |
| Sleeve diameter | 47 mm |
| Spindle stroke | 80 mm |
| Spindle taper | MT 2 |
| Throat | 180 mm |
| Spindle speeds | 200-2440 rpm |
| Number of steps | 12 steps |
| Work surface table | 280 x 245 mm |
| T-slot size | 12 mm. diagonal |
| Drilling table slewable / turnable | 45 / 360 |
| Distance spindle - table (max.) | 425 mm |
| Work surface stand | 240 x 250 mm |
| Distance spindle - stand (max.) | 618 mm |
| Column diameter | 73 mm |
| Dimensions | 654x330x1012 mm |
| Total weight | 66 kg |
