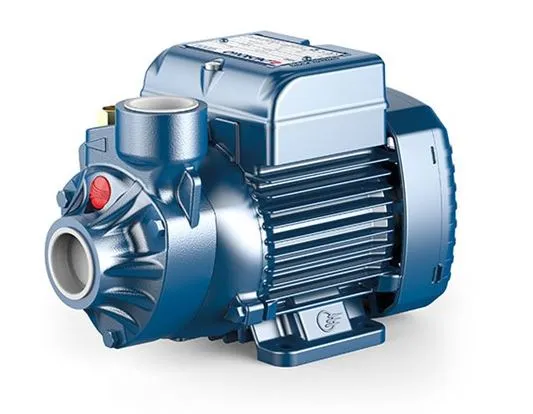

Pedrollo 1 x 1 240V 40m maxH Water Pump | Model : WP-P-PKM60

Features :

• • Temperature of the liquid from -10 C to 60 C
  • Ambient temperature up to 40 C ( 50 C for PK 60)
  • Manometric suction lift up to 8 m
  • Max. working pressure:
  6 bar for PK 60. PK 60-MD. PK 65
  7 bar for PK 70. PK 80
  10 bar for PK 90. PK 100. PK 200. PK 300

  • Continuous service S1
• Uses:domestic
• Applications:water supply systems. pressure systems. irrigation pumps
• typology:surface
• Family:peripheral
• Liquid Type : Clean Water

Specifications :

• Model :WP-P-PKM60
• Phase : Mono - Phase
• Voltage : 240 V / 50 Hz
• Power :
• 0.50 Hp
• 0.37 kW

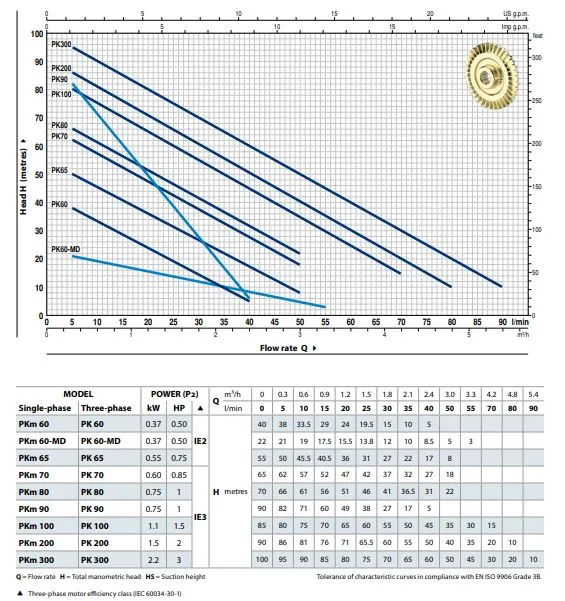

• Performance :
• Flow rate (Q) =
• at 5m height = 40 l/min
• at 24m height = 20 l/min
• at 38m height = 5 l/min
• at 40m height = 0 l/min
• Max head = 40m
• min head = 5m

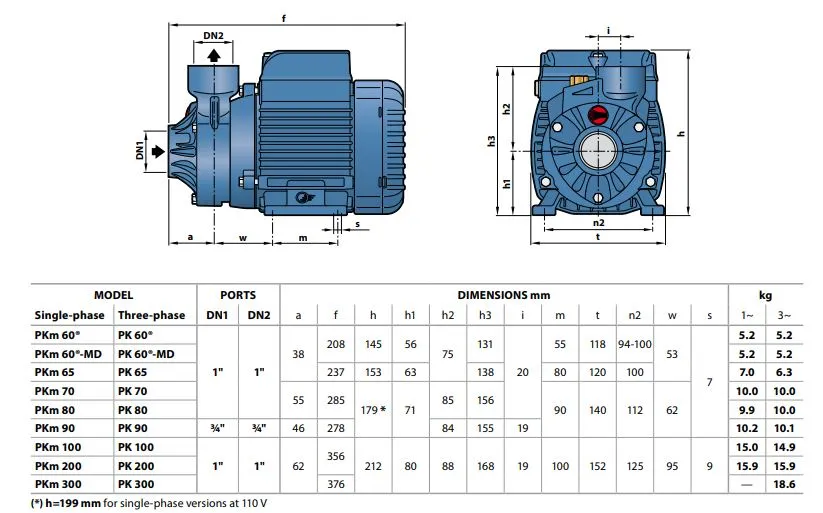

• Inlet & outlet : 1 x 1
