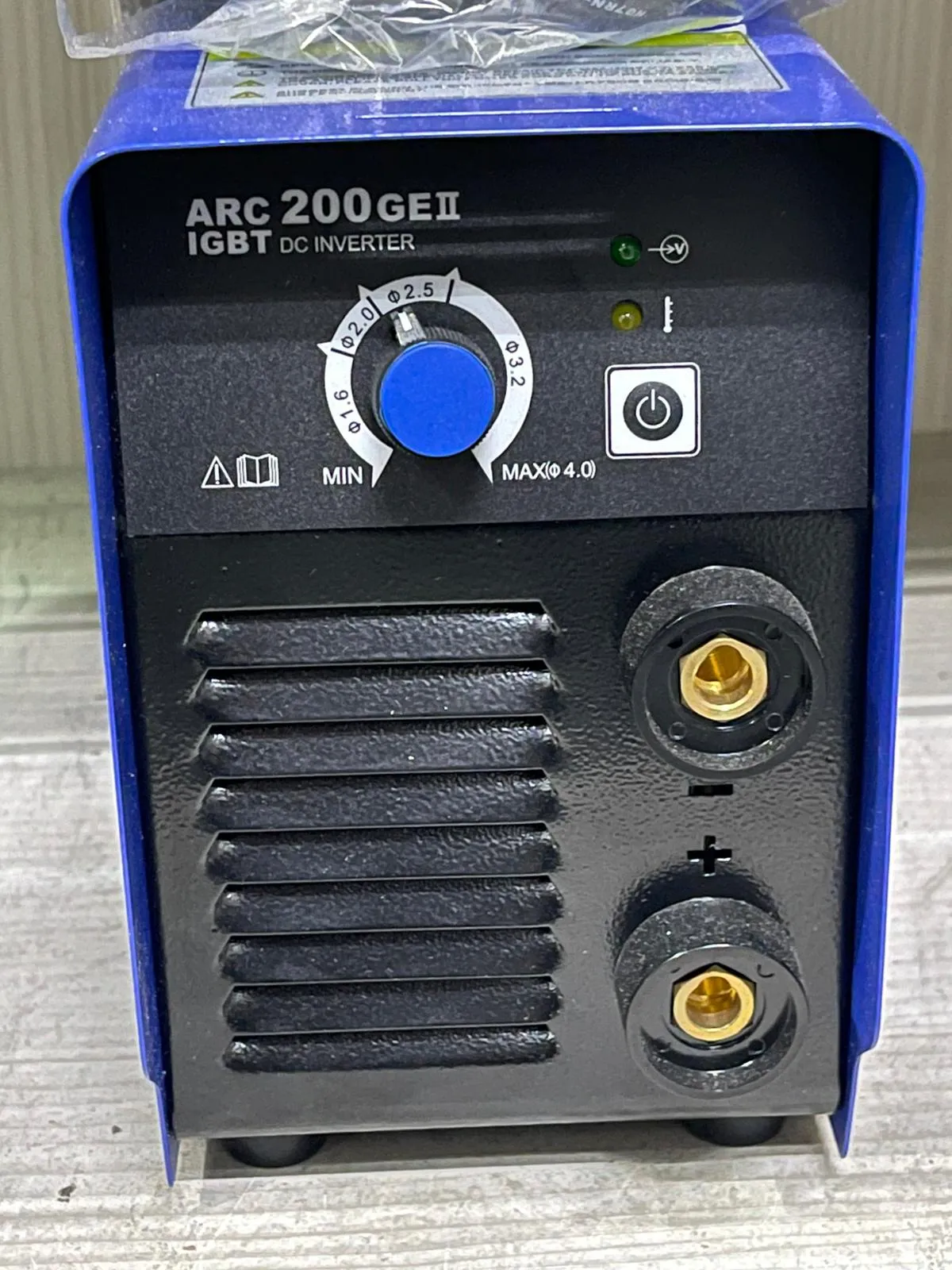

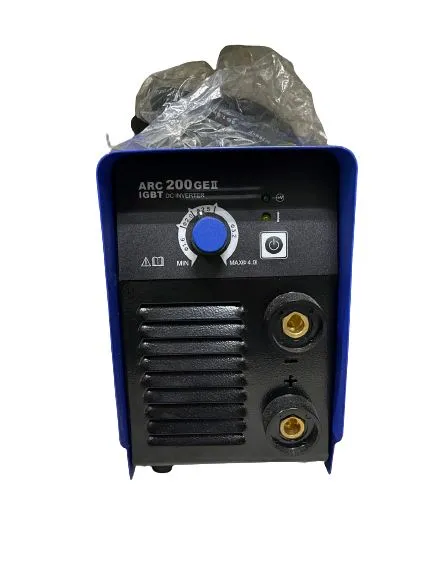

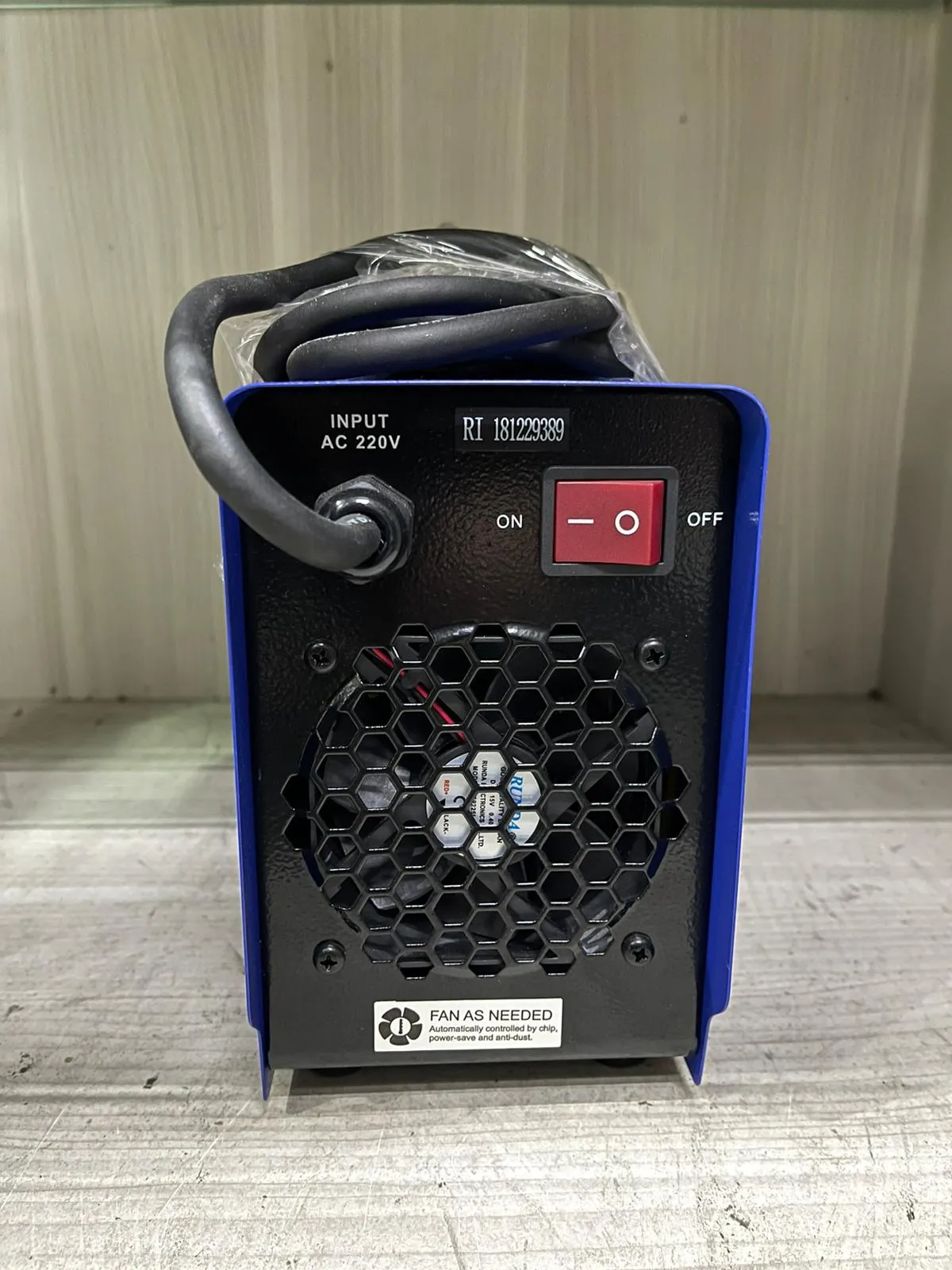

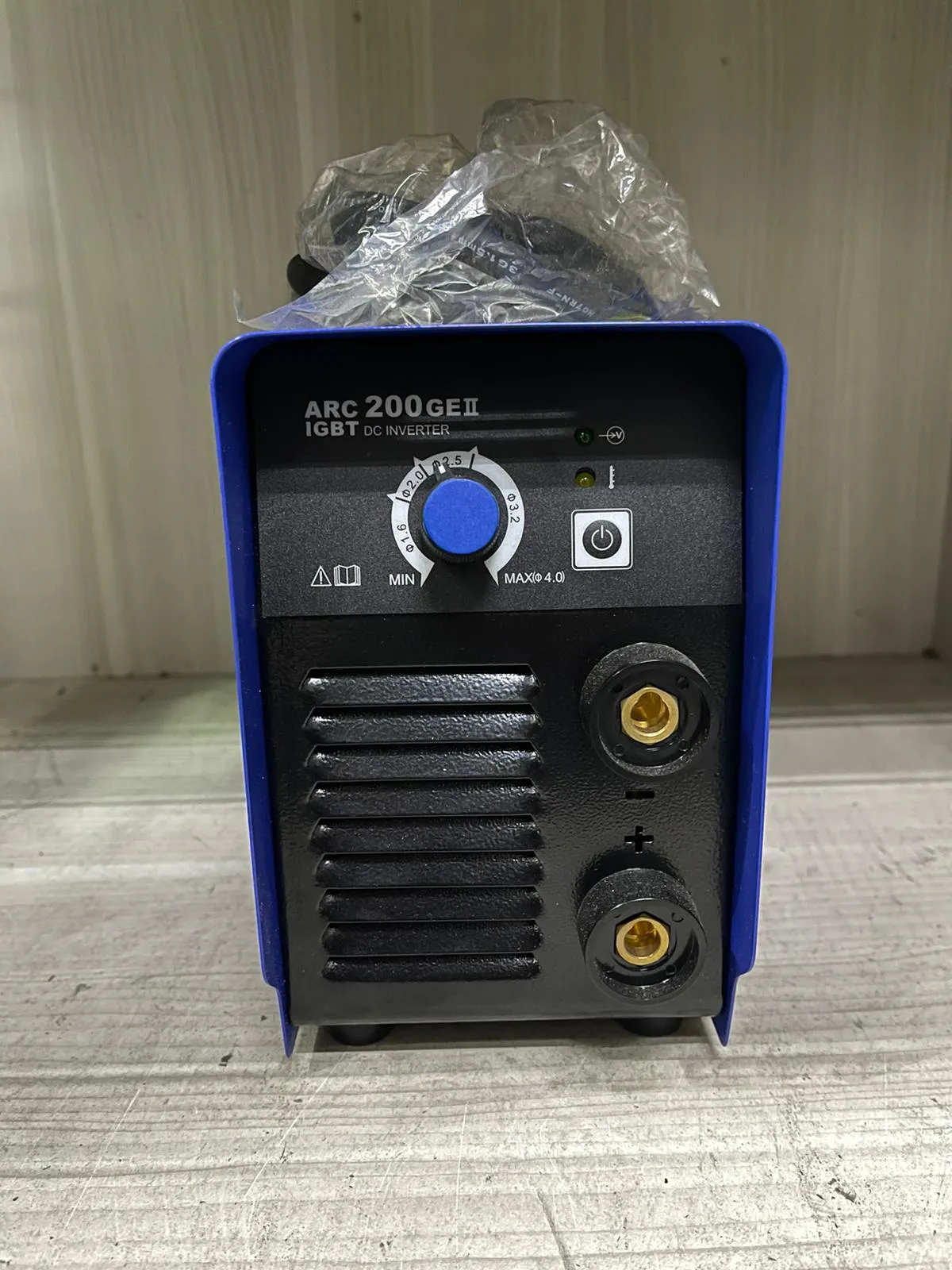

Riland 220V Inverter Welding Machine | Model : W-ARC200GEII

Features :

• Built In Microprocessor
• Use the latest high grade IGBT Inverter Technology
• Wide range input voltage: 1P 220V
• Can be used with matching generator
• VRD adjustable by press the stand by button for about 5s.
• Anti sticking. Arc force and Hot Start Function Built In. providing excellent experience in welding
• Non-stop welding for 2.5mm(3/32) and 3.2mm(1/8) diameter electrode
• Intelligent protection for over-loading. over-voltage and over-heating
• Widely used in acid and basic electrode welding.
• Compact and portable (3.4kg) with handle
• Suitable for maintenance. installation. etc. indoor and outdoor requirements.

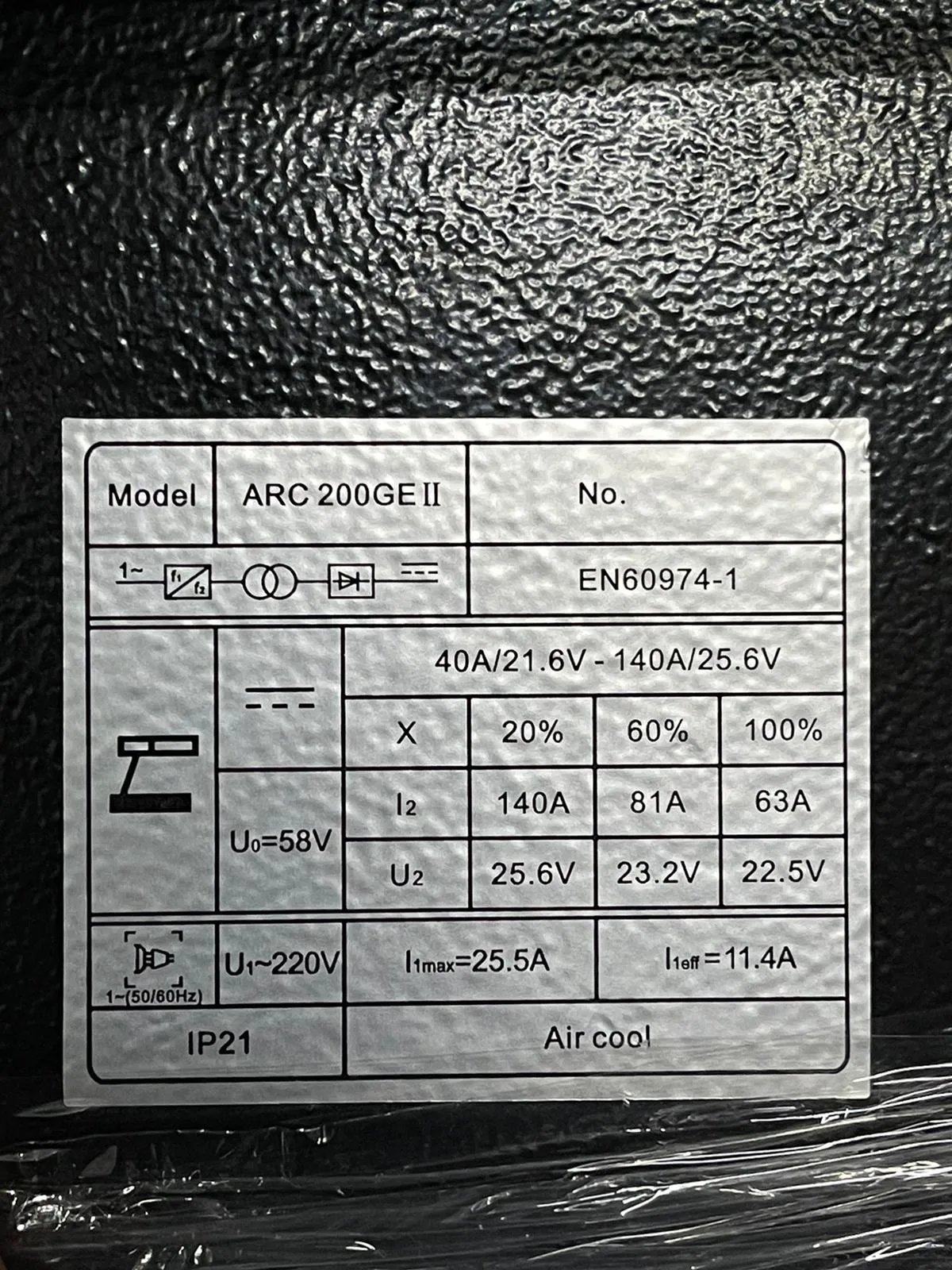

Specifications :

• Model : ARC200GEII
• Power voltage : 1 Phase 220 V - 15
• AMP : 200 Amp
• Frequency : 50 /60 Hz
• Rated Input Current : 25.5 A
• Output Current Adjustment : 40 - 140 A
• Output Voltage : 21.6 - 25.6 V
• No - load Voltage : 58 V
• Duty Cycle (40C) : 20 %
• Power Factor : 0.65
• Efficiency : 86 %
• Insulation Grade : F
• Housing protection grade : IP21
• Weight: 3.4 KG
