Product Details
＋

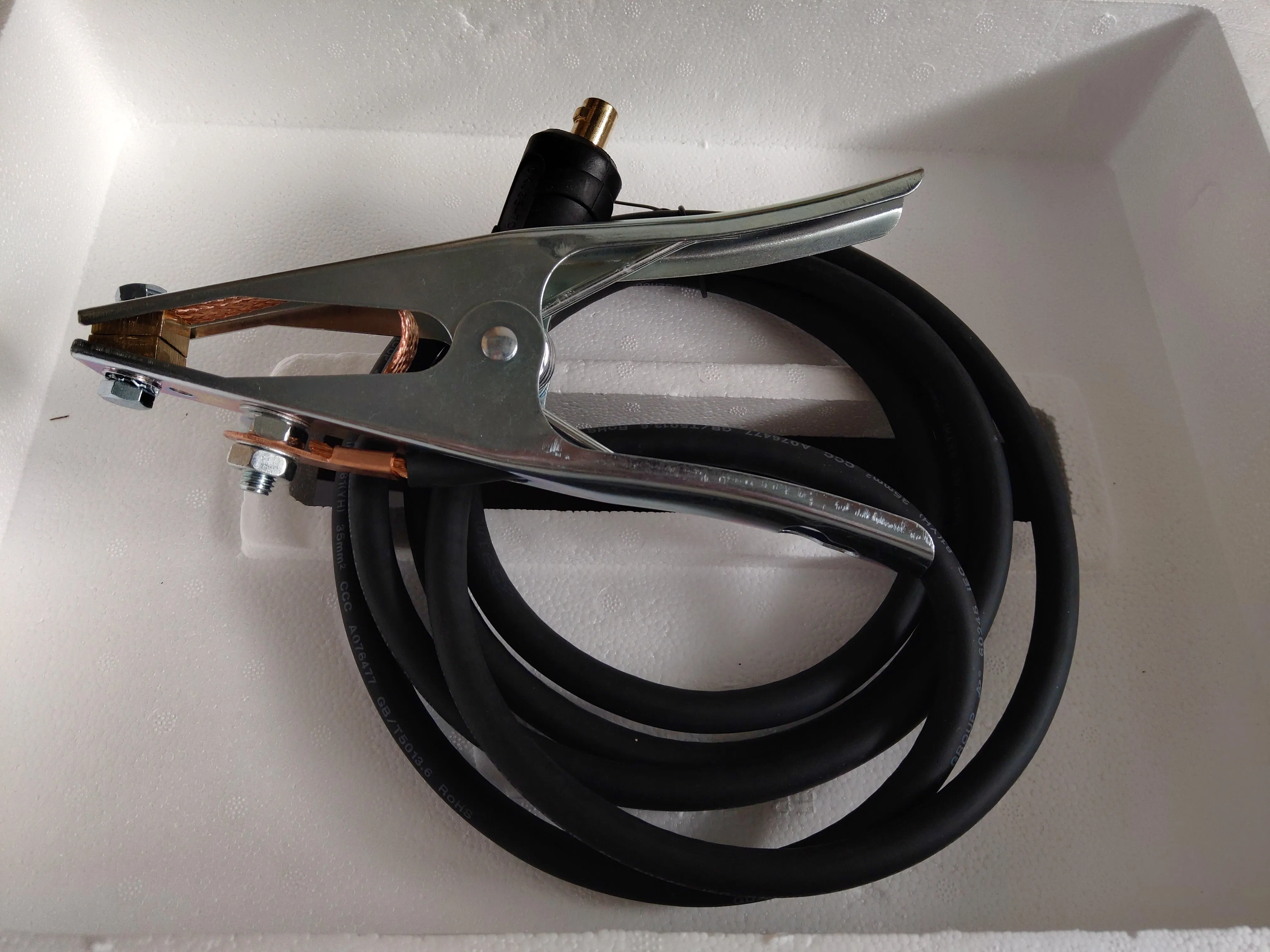

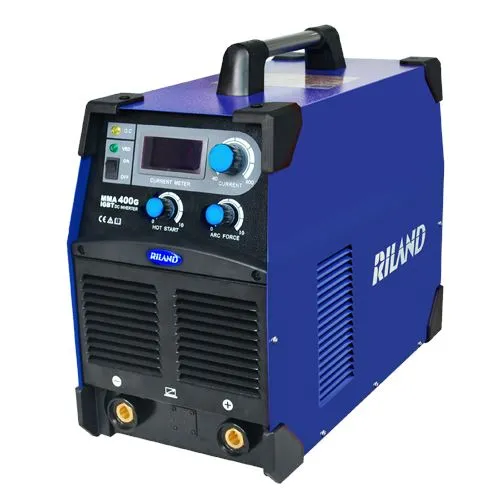

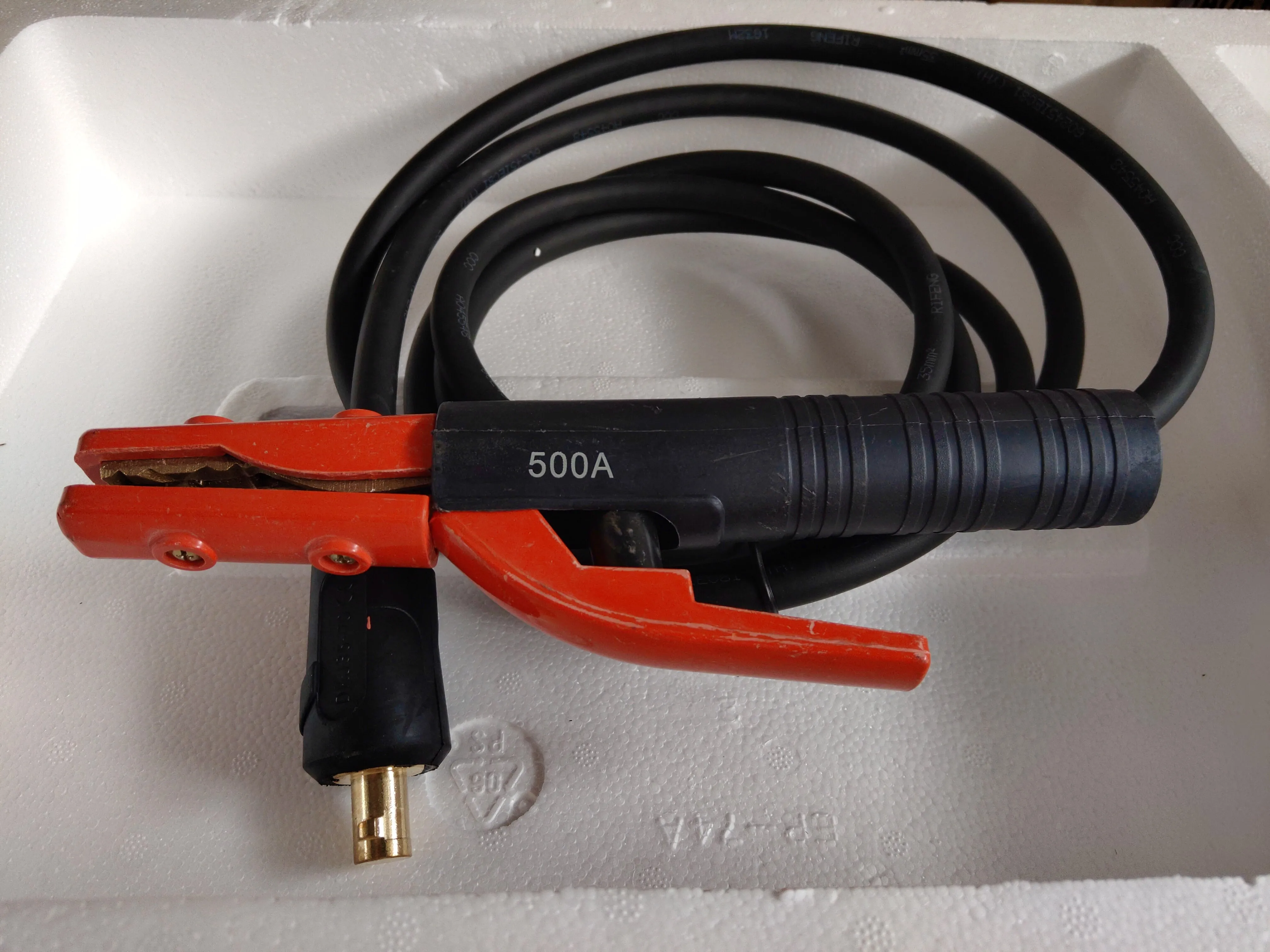

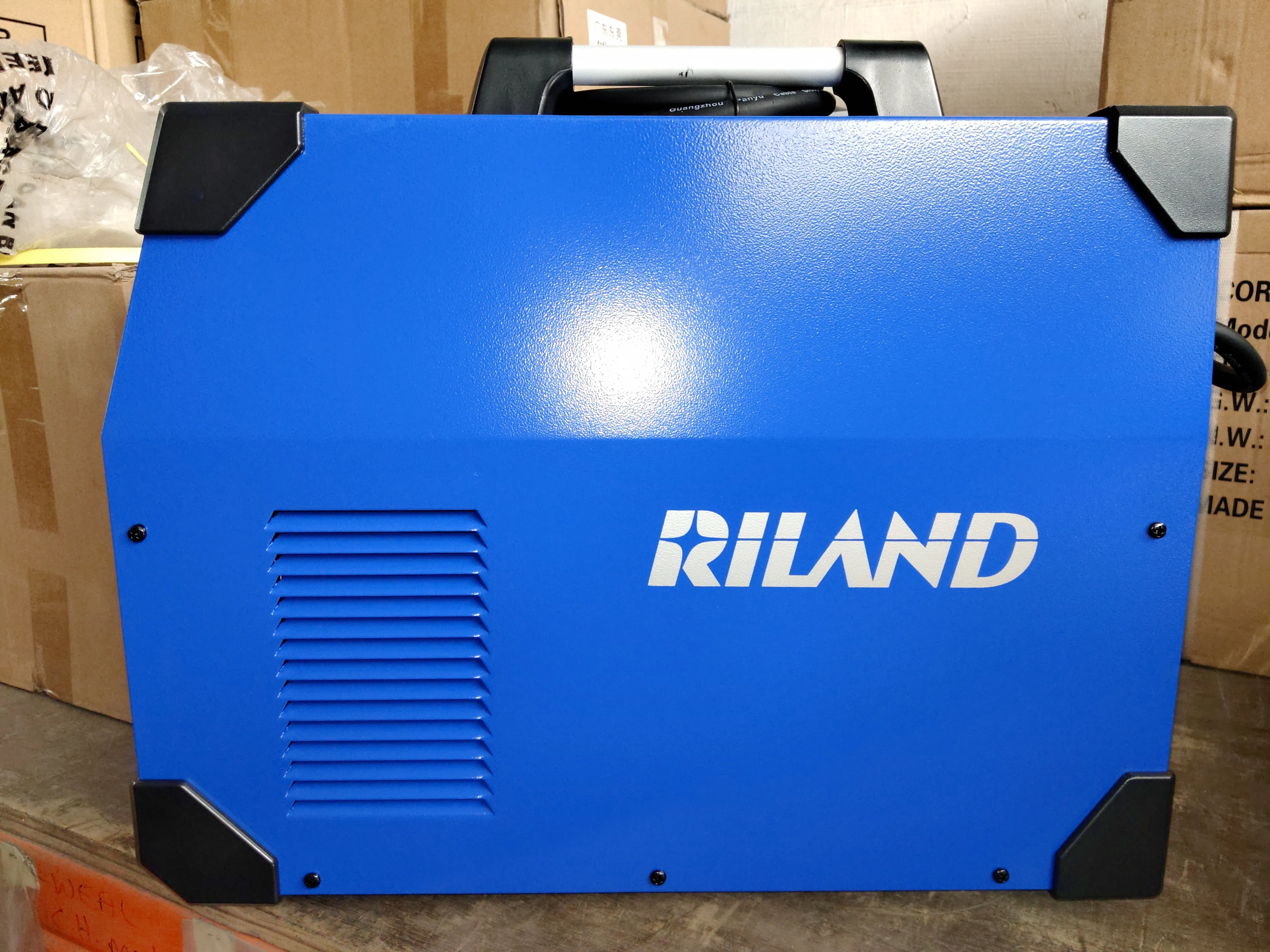

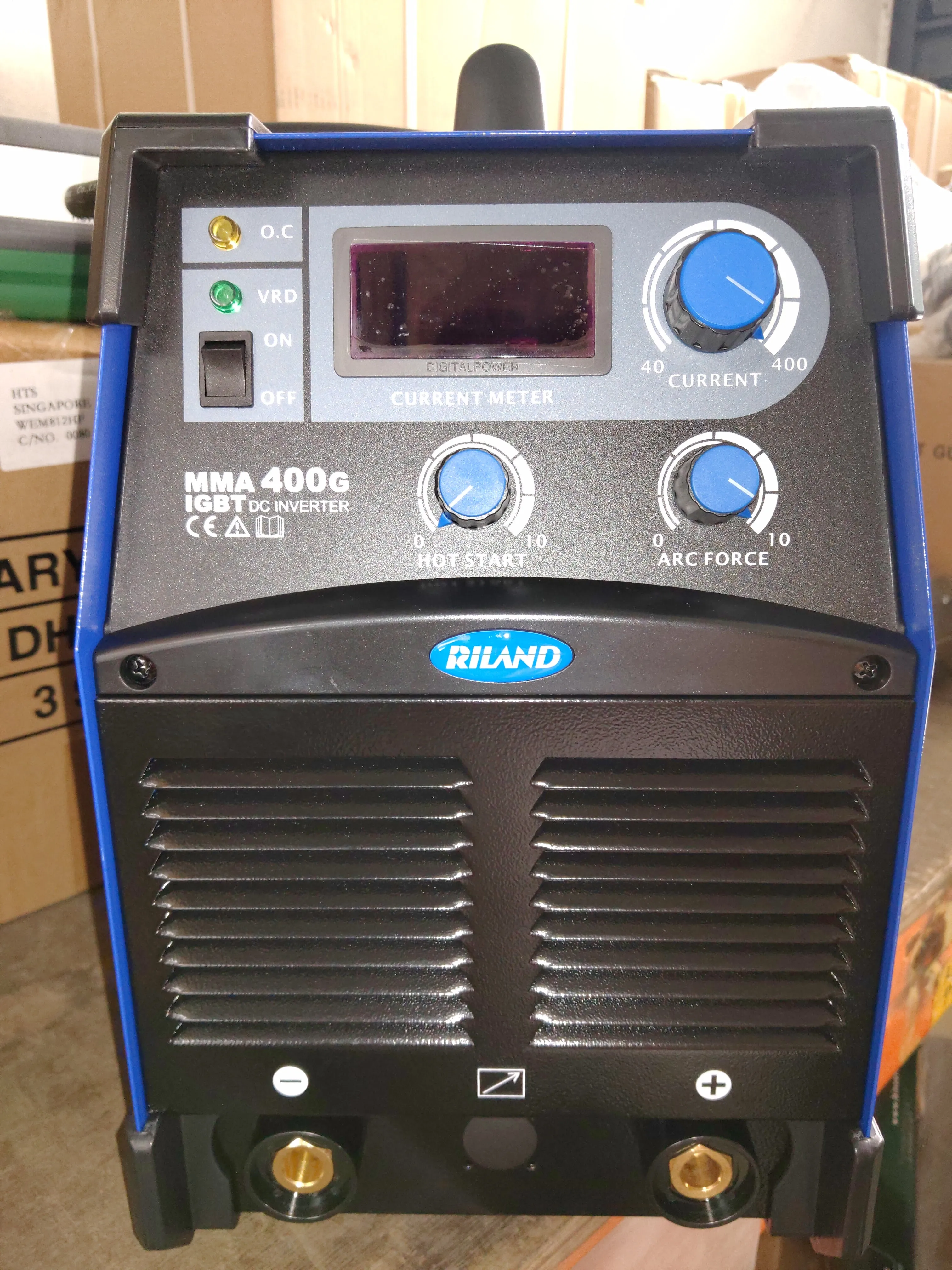

RILAND 415V MMA400G (IGBT) Welding Set (ARC) come with 3M Welding Cable Set | Model : W-MMA400G
Features :
- The Riland MMA400G isa dependable and highly economical machine which provides for thebasic industrial stick welding needs. It is able to run on a power supply from a generator which makes increases its portability.

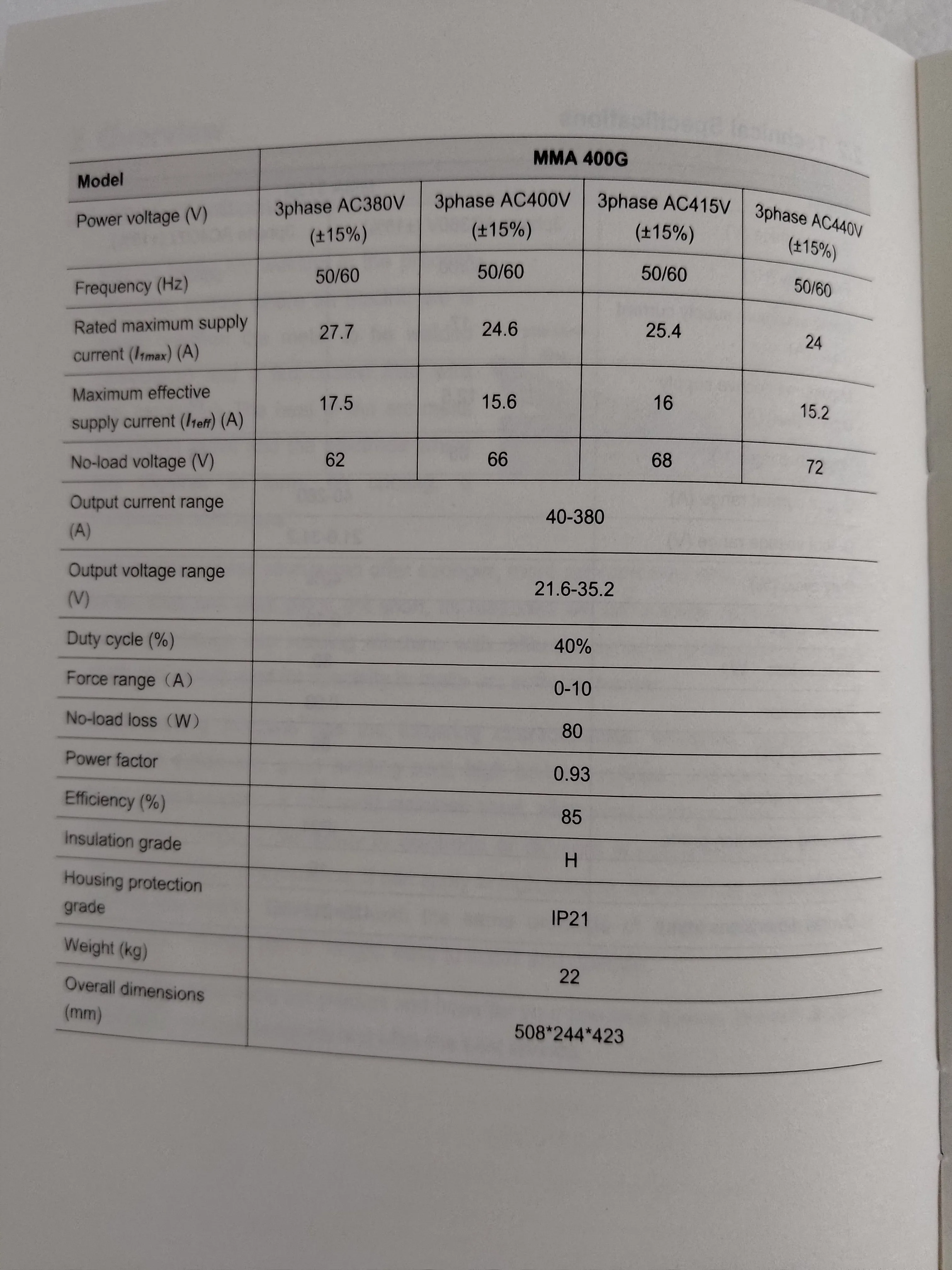

Specifications:
Model | MMA 400G | |||

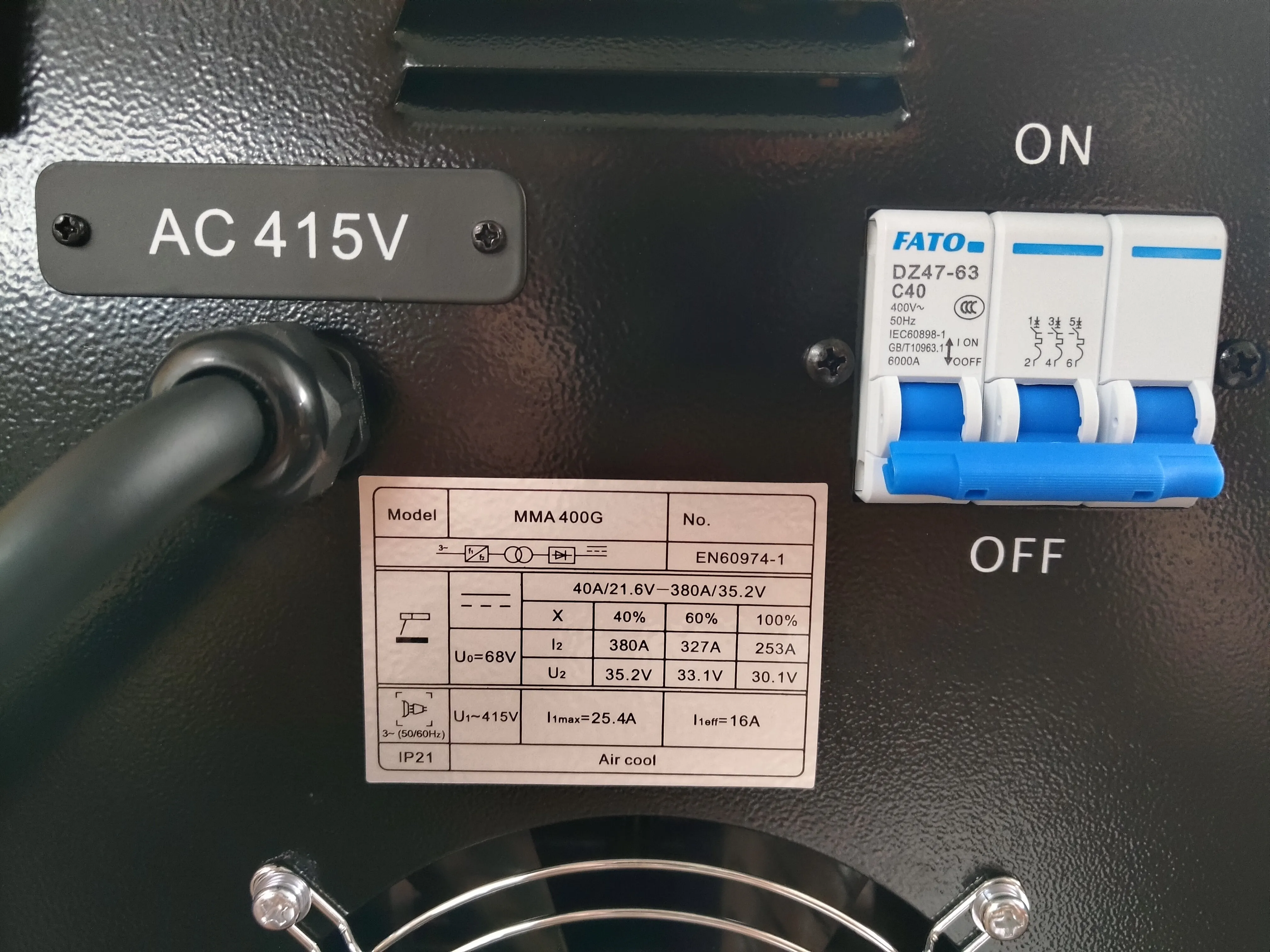

Power voltage (V) | 3 phase AC380V (15%) | 3 phase AC400V (15%) | 3 phase AC415V (15%) | 3 phase AV440V (15%) |
Frequency (Hz) | 50/50 | 50/60 | 50/60 | 50/60 |
Rated maximum supply current (1max) (A) | 27.7 | 24.6 | 25.4 | 24 |
Maximum effective supply current (1max) (A) | 17.5 | 15.6 | 16 | 15.2 |
No-load voltage (V) | 62 | 66 | 68 | 72 |
Output current range (A) | 40-380 | |||
Output voltage range (V) | 21.6-35.2 | |||
Duty cycle (%) | 40% | |||
Force range (A) | 0-10 | |||
No-load loss (W) | 80 | |||
Power factor | 0.93 | |||
Efficiency (%) | 85 | |||
Insulation grade | H | |||
Housing protection grade | IP21 | |||
Weight (kg) | 22 | |||
Overall dimensions (mm) | 508*244*423 | |||
