Product Details
＋

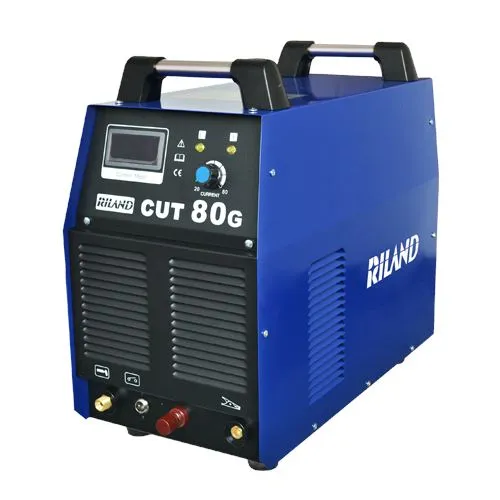

Riland 80A Plasma Cutting Machine (cutter) | Model : CUT80
Features :
- Untouch Start System Smooth Arc-Striking with HF Control.
- Continuous adjustment of cutting current.
- Rapid Arc Restrike Quality narrow cutting and excellent travel speed.
- Function Post Gas for effective cooling of the cutting torch.
- Competitive Cutting Thickness(Carbon Steel) - Recommended thickness: 40mm.
- Cool Operation. Long Consumable LifeCutting accessories with competitive price and performance.
- Engine Drive Compatible Wide range for input voltage.Select a suitable Engine Drive in remote locations.
- Auto-Protection against Low air pressure. over-voltage. over-current and over-heated.
- Energy Saving - Compared with the traditional cutting machine more efficient.
Specifications :
| Parameters | Specification |
| Rated Input Voltage(V) | AC380V15% 3P |
| Input Frequency (HZ) | 50/60 |
| Rated Input Power(KVA) | 11.3 |
| Rated Input Current(A) | 18 |
| Open Circuit Voltage(V) | 268 |
| Current Range(A) | 20-80 |
| Rated Output Voltage(V) | 112 |
| Duty cycle at maximum current | 60%@40 |
| Efficiency(%) | 85 |
| Power Factor | 0.93 |
| Protection Grade | IP21 |
| Arc-Initiating | H-F.Untouch |
| Air Pressure(MPa) | 0.4-0.5 |
| Recommend Cutting Thickness(mm) | 20 |
| Weight(kg) | 28.7 |
| Dimension(mm) | 515*262*468 |
