Product Details
＋
Riland ARC400G Welding Machine 380V C/W 3m Ground And Welding Cable | Model : W-ARC400G
Features :
- Advanced IGBT inverter technology.
- Wide range for input voltage: 380V15%.Matching generator can be used.
- Digital meter to preset and display welding current.
- Dust-Free Cooling System with Upgraded Duty Cycle.
- ARC force and Hot start adjustable. easy to striking the arc.
- VRD function. it safe for welders.
- Auto-Protection against over-voltage. over-current and over-heated.
- In this series. each machine is fitted with 8 pcs plastic corner protectors. which can well protect the machine and make it looks more elegant.
- Energy Saving - Compared with the traditional SAW machine more efficient
Specification :
| Input voltage (V) | 3P -38015% |
| Frequency(HZ) | 50/60 |
| Rated input current(A) | 17 |
| Rated input power (KVA) | 12 |
| Output current (A) | 40-300 |
| Hot start current (A) | 0-150 |
| Arc force current (A) | 0-90 |
| Duty cycle (40) | 300A@100% |
| Power factor | 0.93 |
| Efficiency | 85% |
| Housing protection grade | IP21 |
| Weight (kg) | 13.5 |
| Dimensions (mm) | 466212371 |
Accessories Included :

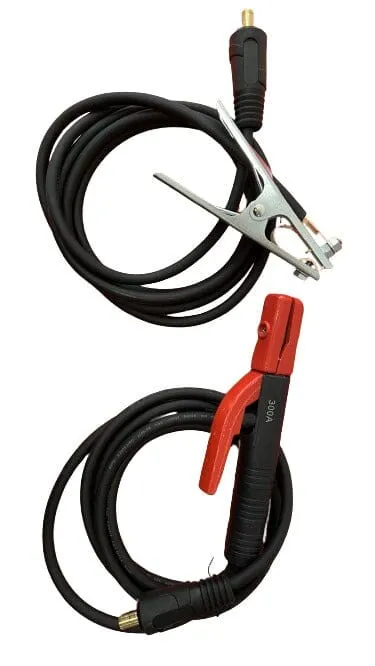

Stick electrode holder.3m cable with Euro plug
Earth clamp.3m cable with Euro plug
