Product Details
＋

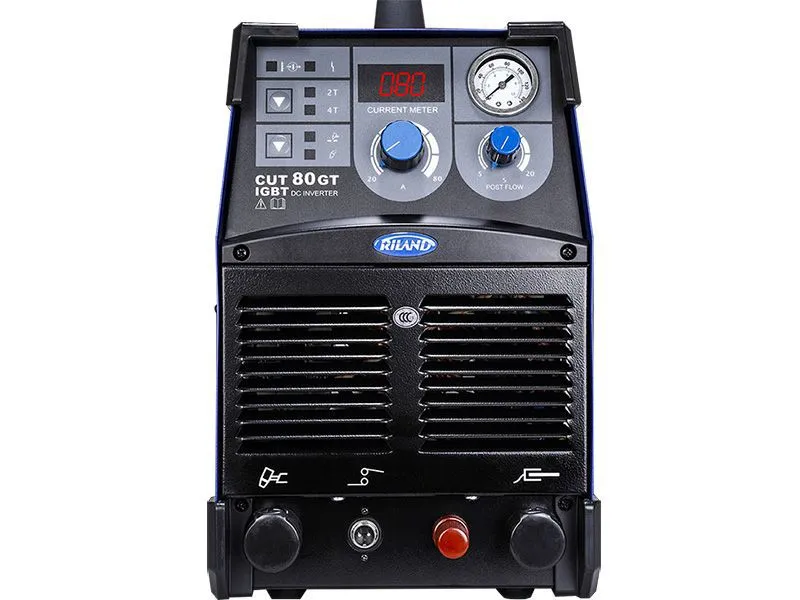

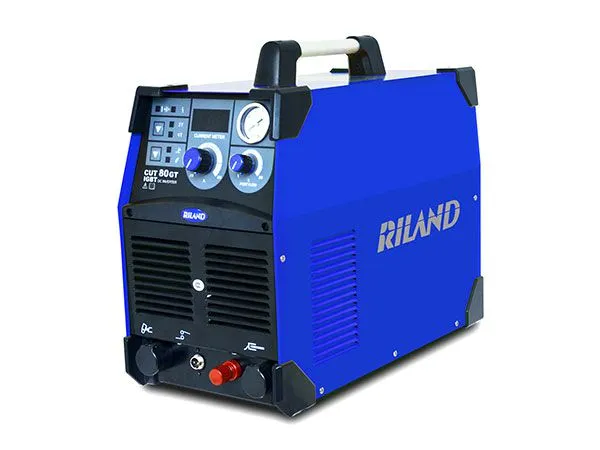

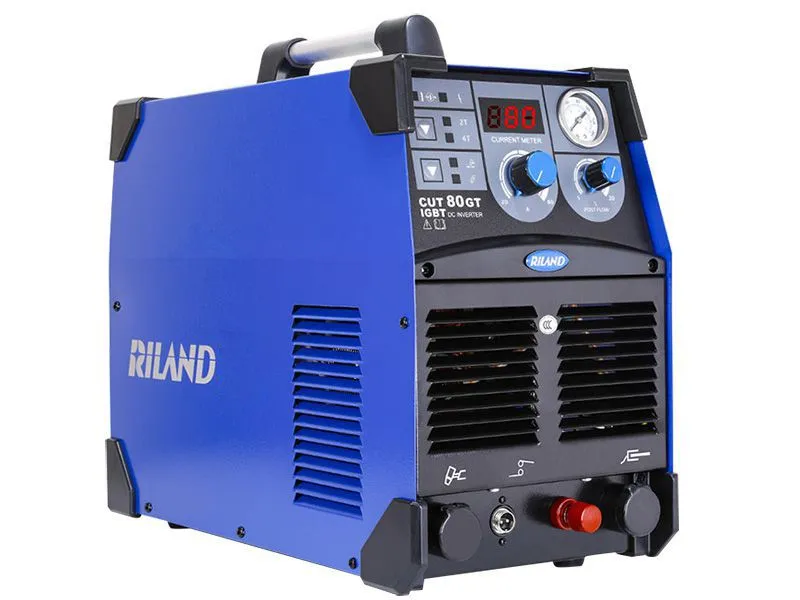

Riland CUT-80GT Plasma Cutter Cutting Machine 415V C/W 5m P80 Torch & 3m Welding Cable Set | Model : W-CUT80GT-R
Features :
- IGBT inverter technology. high frequency arc starting. ensuring easy arc initiation;
- Configured with CNC interface. suitable for both CNC plasma cutting and manual plasma cutting operations by connecting the right torch;

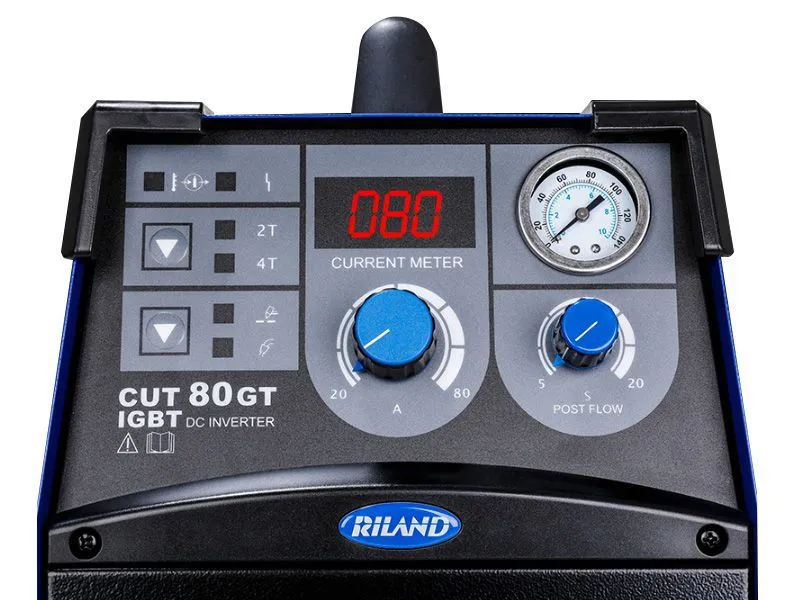

- Front air pressure gauge. 2T/4T function. air pressure switch. adjustable post-flow time;
- Work well with 10m cutting torch. satisfying wide operating range;
- Able to work for long period. ideally suited to industrial cutting applications;
- CUT 80GT plasma cutter can rapidly cut steel plates of 15mm in thickness. with cutting speed of 500mm/min;
Specification :
| Input voltage (V) | 3P/ AC415V15% | |
| Frequency (Hz) | 50/60 | |
| Rated input current (A) | 17.6 | |
| Rated power (kVA) | 11.6 | |
| No-load voltage (V) | 300 | |
| Duty cycle (40) | 40% | |
| Output current adjusting range (A) | 20-80 | |
| Rated output voltage (V) | 112 | |
| Post-flow time (s) | 5-20 | |
| Efficiency (%) | 85 | |
| Power factor | 0.9 | |
| Electromagnetic Compatibility (EMC) | A | |
| Insulation class | Class H | |
| Protection grade | IP21 | |
| Arc starting | High frequency arc ignition | |
| Pressure of air compressor (kgf/cm2) | 4-5.5 | |
| Limited cutting thickness (mm) | 40 | |
| Recommended cutting thickness (mm) | 1-25 | |
| Net weight (kg) | 21.5 | |
| Dimensions (LWH) (mm) | 508244423 | |
