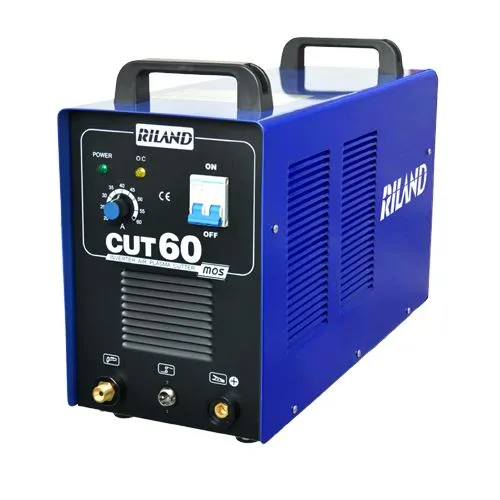

Riland 220V Plasma Cutting Machine | Model : W-CUT60-R

Features :

• Touch Start System (Untouch start modle optional) Smooth Arc-Striking with HF Control.

• Continuous adjustment of cutting current.

• Rapid Arc Restrike Quality narrow cutting and excellent travel speed.

• Competitive Cutting Thickness(Carbon Steel) - Recommended thickness:15mm.

• Automatic post-flow stop for rapid re-striking.

• Cool Operation. Long Consumable Life Cutting accessories with competitive price and performance.
• Engine Drive Compatible Wide range for input voltage.Select a suitable Engine Drive in
• remote locations.

• Compact dimensions.

• Auto-Protection against over-voltage. over-current and over-heated.

• Energy Saving - Compared with the traditional cutting machine more efficient.

Specifications :

• Model : W-CUT60-R
• Rated Input Voltage(V)AC220V15% 1P

• Efficiency : 80 %

• Input Frequency : 50/60 Hz

• Power Factor0.73

• Rated Input Power : 9.9 KVA

• Protection GradeIP21

• Rated Input Current : 45 A

• Arc-InitiatingH-F.Touch

• Open Circuit Voltage(V)240 V

• Air Pressure(MPa)0.4-0.5 Mpa

• Current Range(A)20-60 A

• Recommend Cutting Thickness 20 mm

• Rated Output Voltage : 104 V

• Weight19 kg

• Duty cycle at maximum current60%@25

• Dimension(mm)480*203* 375

• Weight (KG): 19.000
