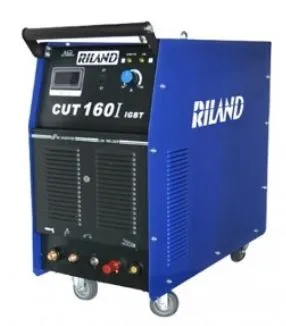

Riland Plasma Cutting Machine with 320 V | Model : W-CUT160-R

Features :

• Adopt Advanced IGBT Module technology of the core inverter device.
• Untouch Start System Smooth Arc-Striking with HF Control.
• Continuous adjustment of cutting current.
• Rapid Arc Restrike Quality narrow cutting and excellent travel speed.
• Function Post Gas for effective cooling of the cutting torch.
• Competitive Cutting Thickness(Carbon Steel) - Recommended thickness: 40mm.
• Cool Operation. Long Consumable LifeCutting accessories with competitive price and performance.
• Engine Drive Compatible Wide range for input voltage.Select a suitable Engine Drive in remote locations.
• Auto-Protection against Low air pressure. over-voltage. over-current and over-heated.
• Energy Saving - Compared with the traditional cutting machine more efficient.

Specifications :

• Rated Input VoltageAC380V15% 3P
• Efficiency85 %
• Input Frequency50/60 Hz
• Power Factor0.93
• Rated Input Power29 KVA
• Protection Grade: IP21
• Rated Input Current44 A
• Arc-InitiatingH-F.Untouched
• Open Circuit Voltage320 V
• Air Pressure0.4-0.5 MPa
• Current Range20-160 A
• Recommend Cutting Thickness50 mm
• Rated Output Voltage144 V
• Weight60 kg
• Duty cycle at maximum current60%@40
• Dimension670*320*640 mm
