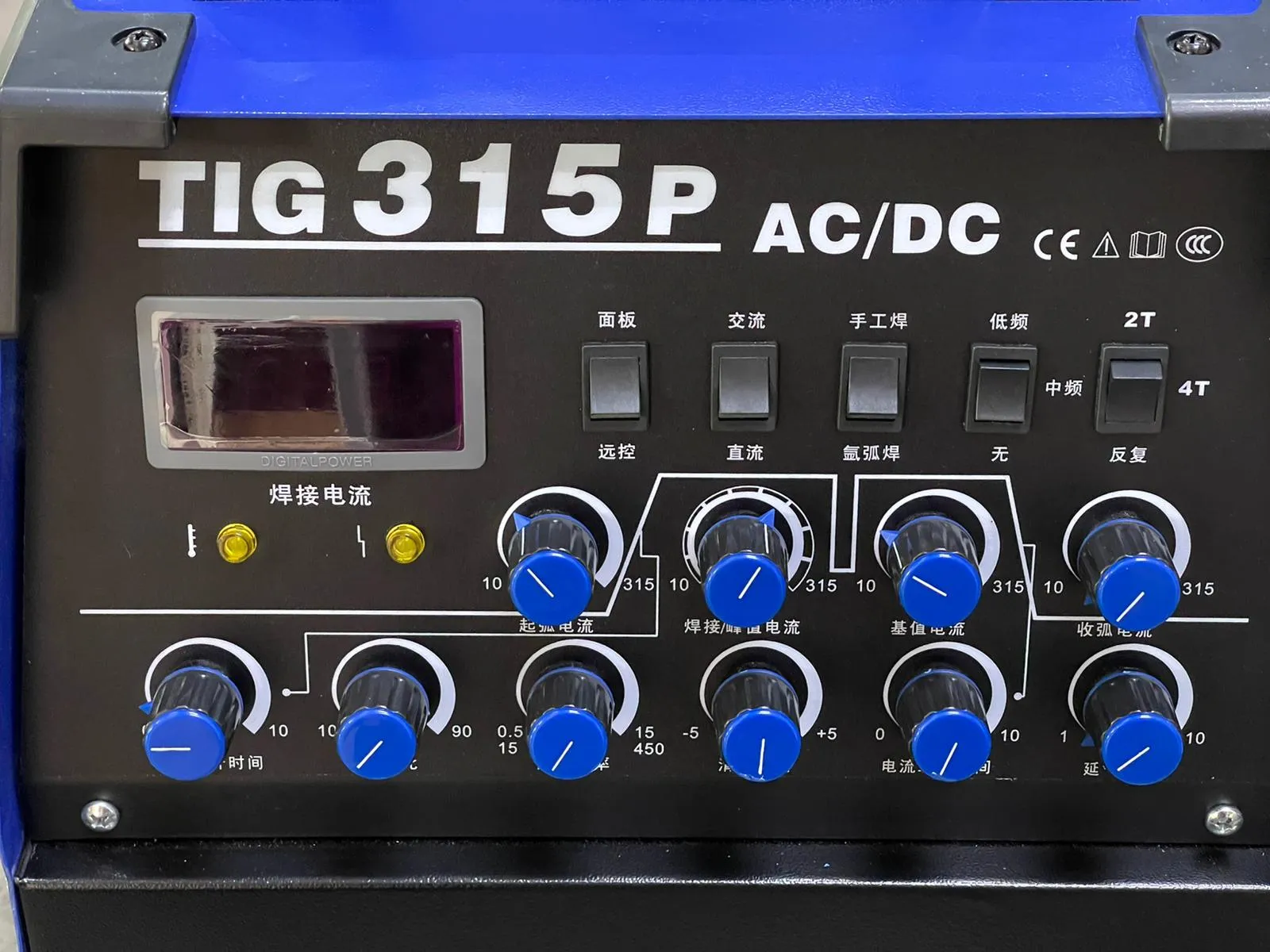

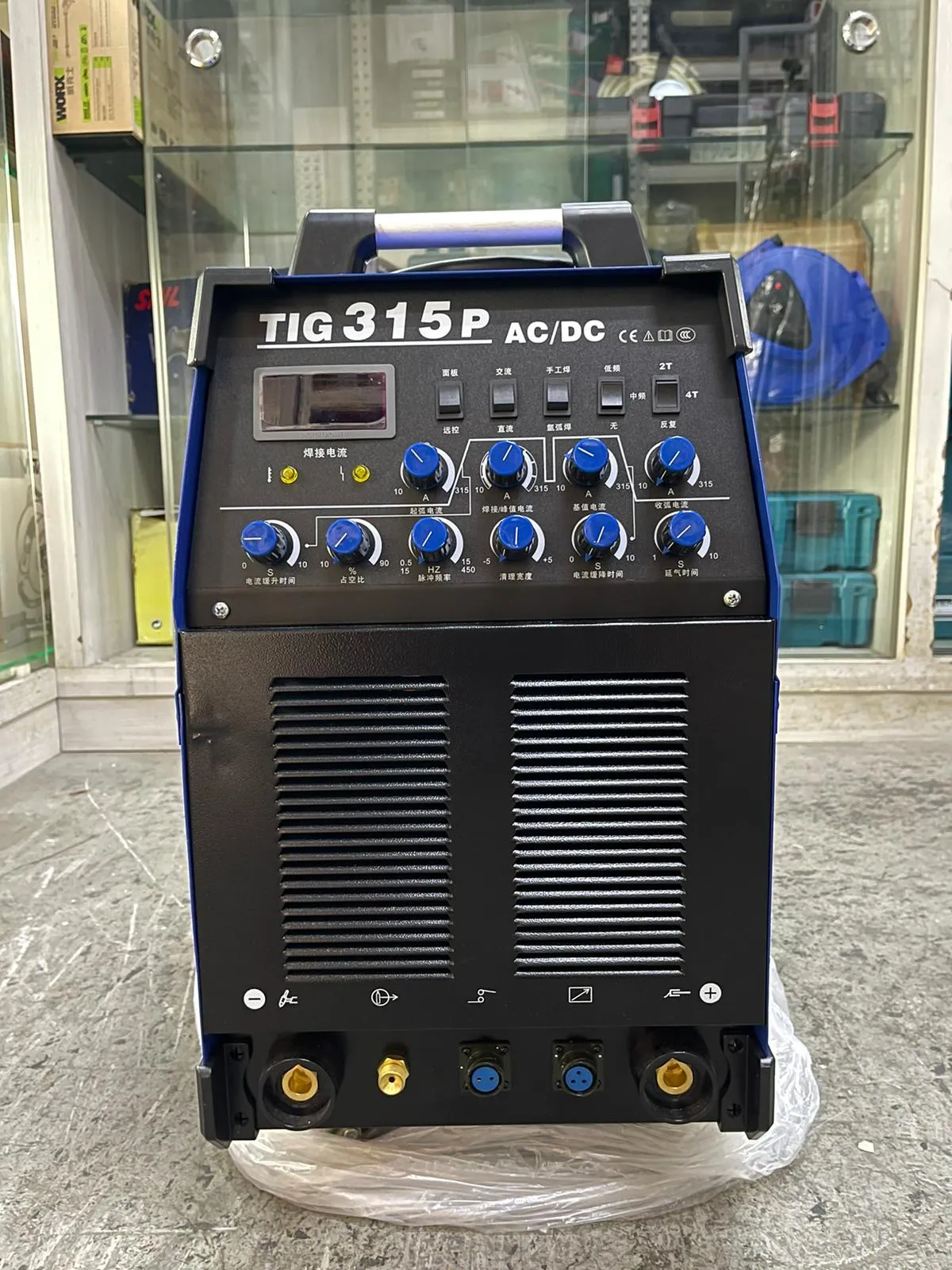

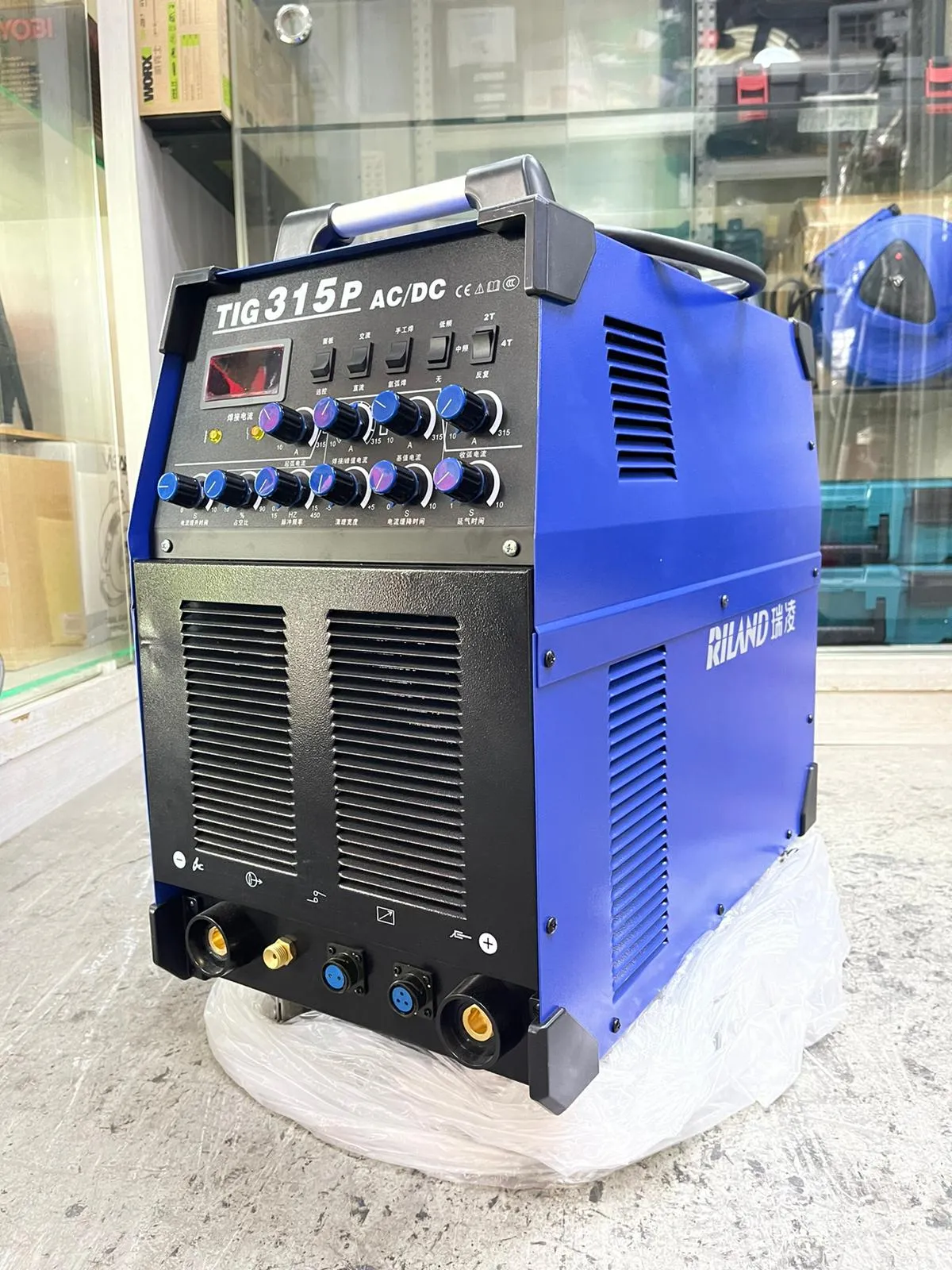

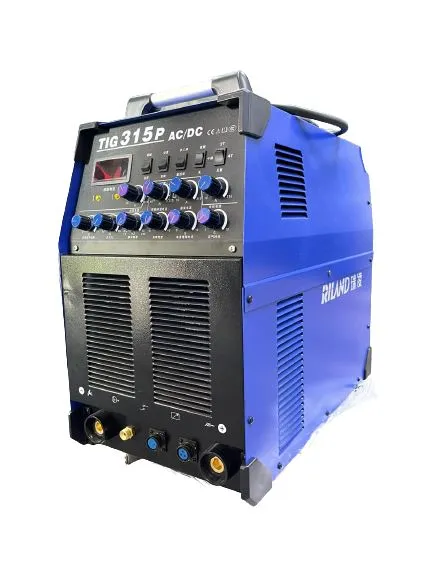

Riland TIG AC/DC 3 Phase 315A Welding Machine | Model : TIG315BP

Processes :

• AC / DC TIG
• Pulsed
• Stick

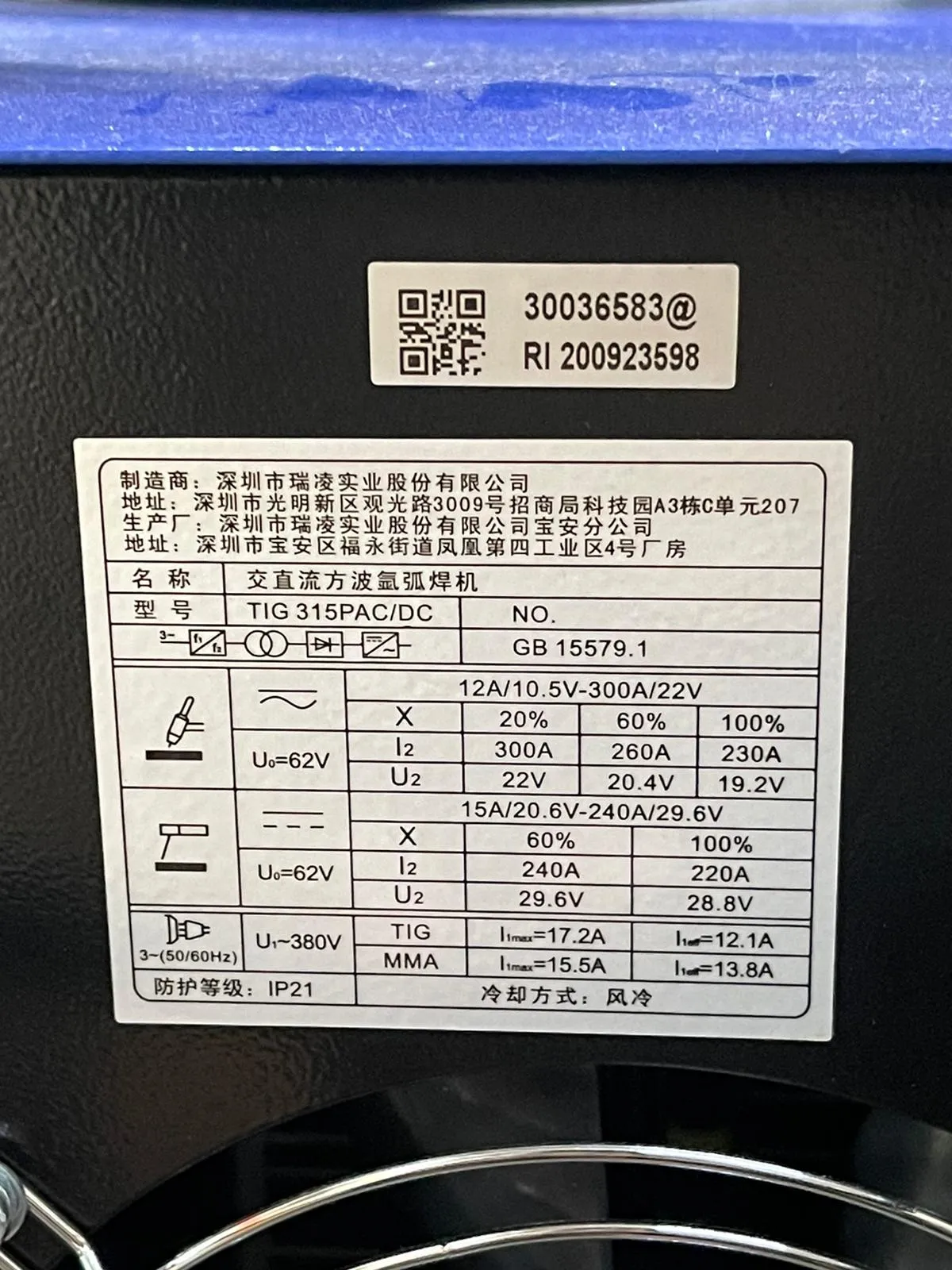

Specifications :

• Common Specs :
• Input Voltage / Phase / Frequency :
• 380V / 3P / 50 - 60 Hz
• Dimensions :
• 616 x 326 x 620 (mm)
• Weight :
• 39kg
• TIG Mode :
• Output Current / Voltage / Duty Cycle :
• 315A/ 22.6V / 60% @ 25 Degree C
• 245A/ 19.8V / 100% @ 25 Degree C
• Amps Input at Rated Output :
• 15A @ 315A
• Output Range / OCV :
• 10 - 315A / 56V
• MMA Mode :
• Output Current / Voltage / Duty Cycle :
• 250A / 30V / 60% @ 25 Degree C
• 195A / 27.8V / 100% @25 Degree C
• Amps Input at Rated Output :
• 14A @ 250A
• Output Range / OCV :
• 30 - 250A / 56V

Accessories :

• 4m TIG 26 Torch and cable assembly
• 300A stick electrode holder
• 3m cable with Plug
• 3m work cable and 300A clamp with plug
• 3m input cable without plug
