Product Details
＋

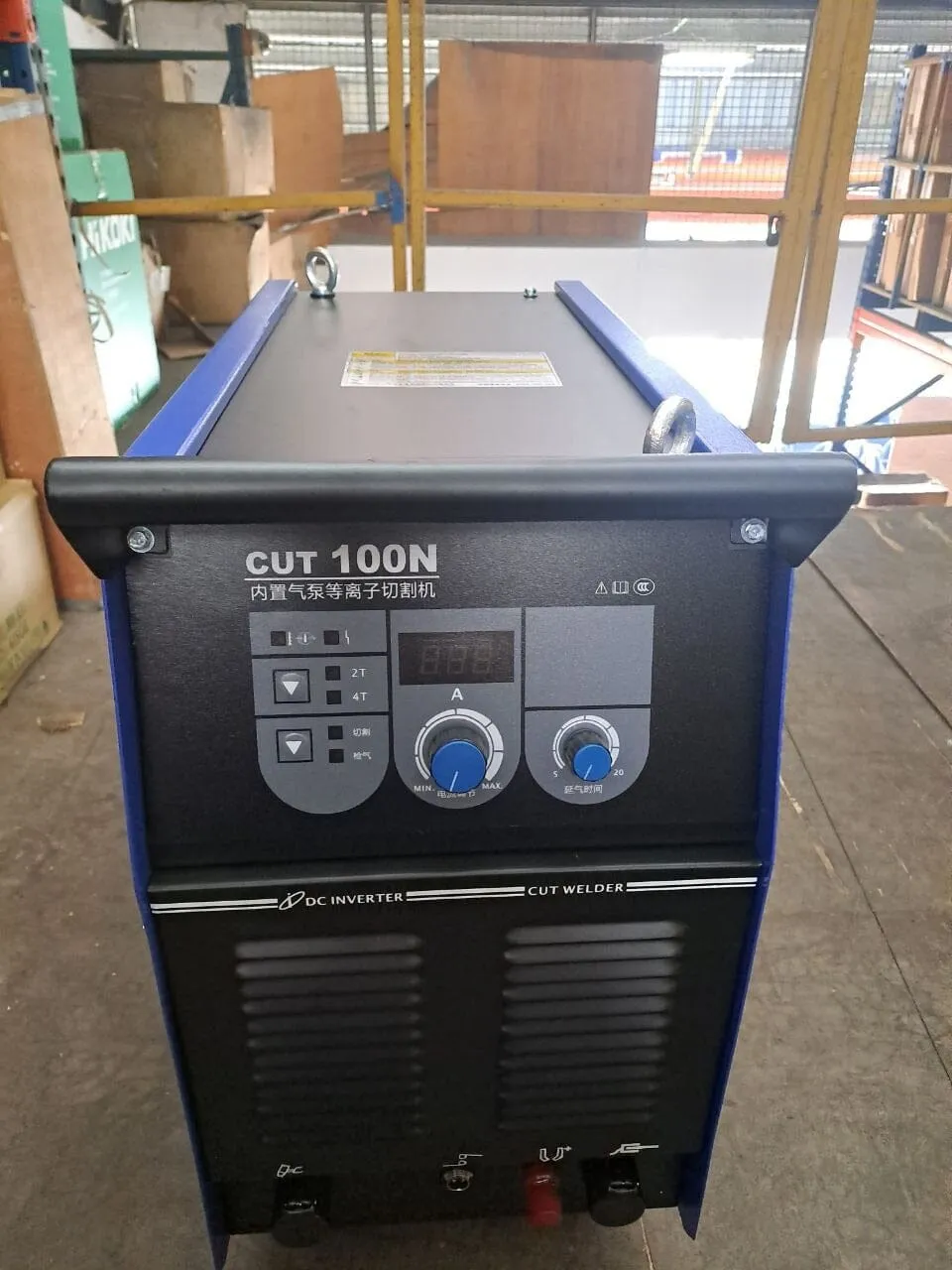

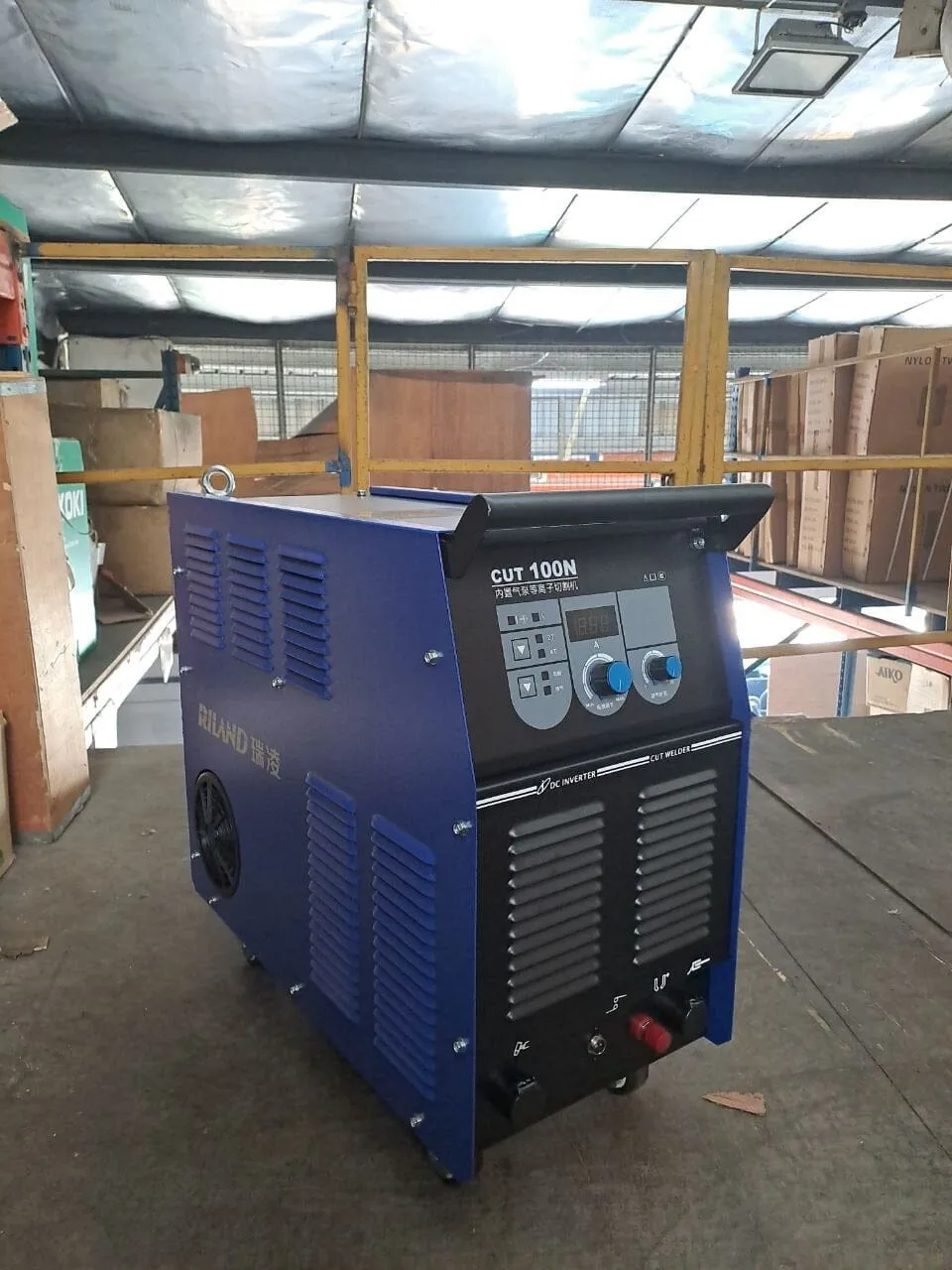

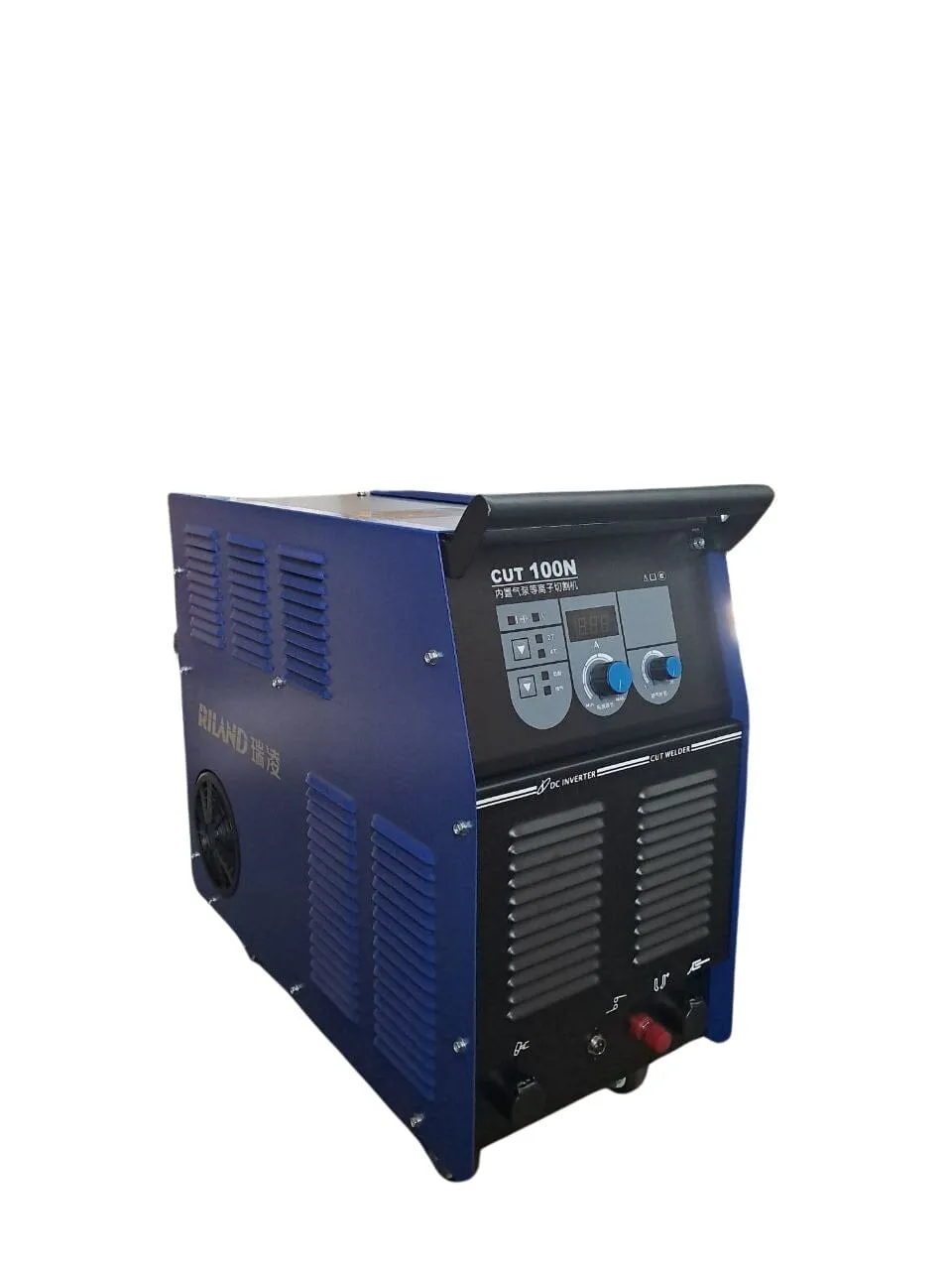

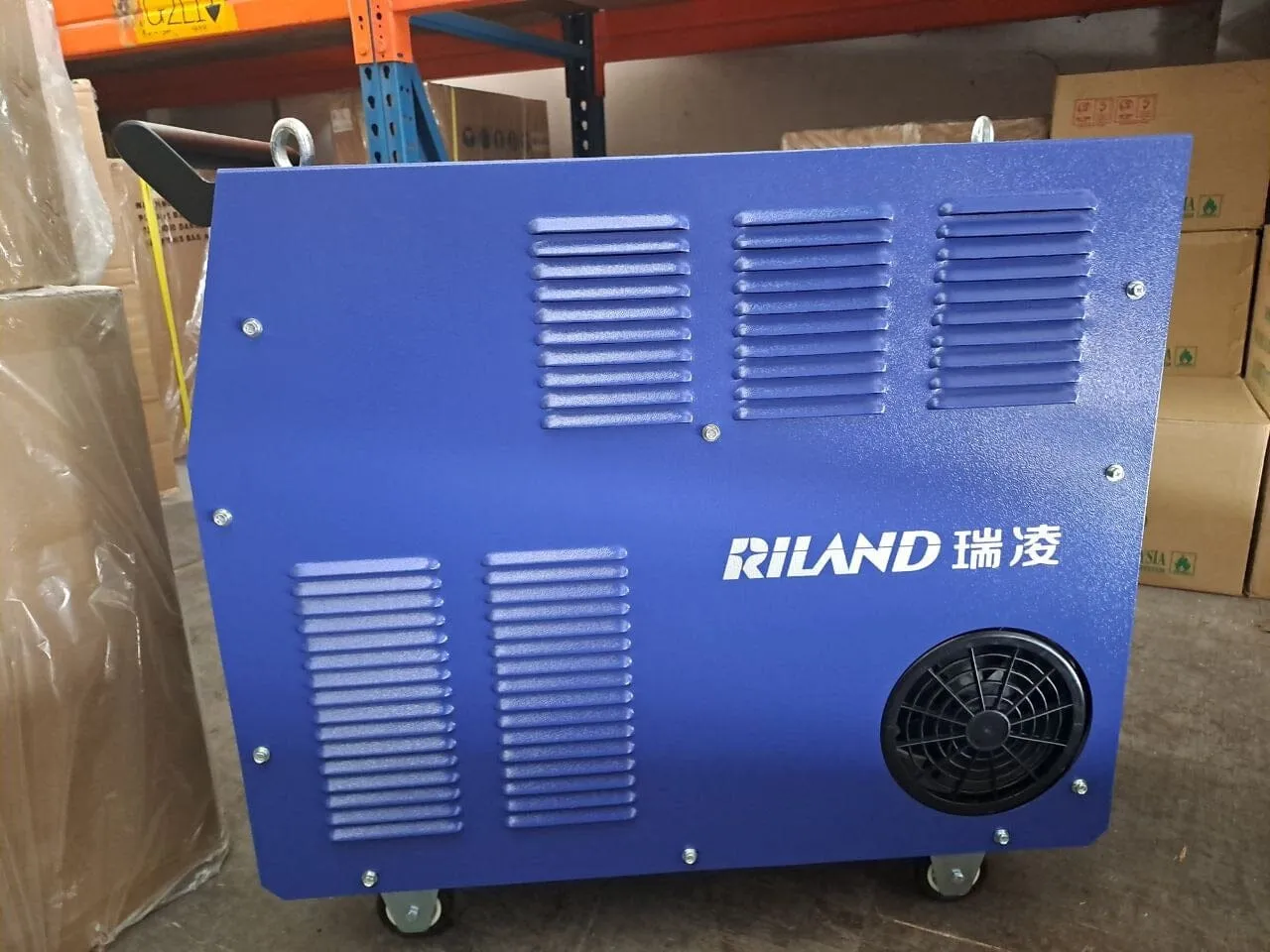

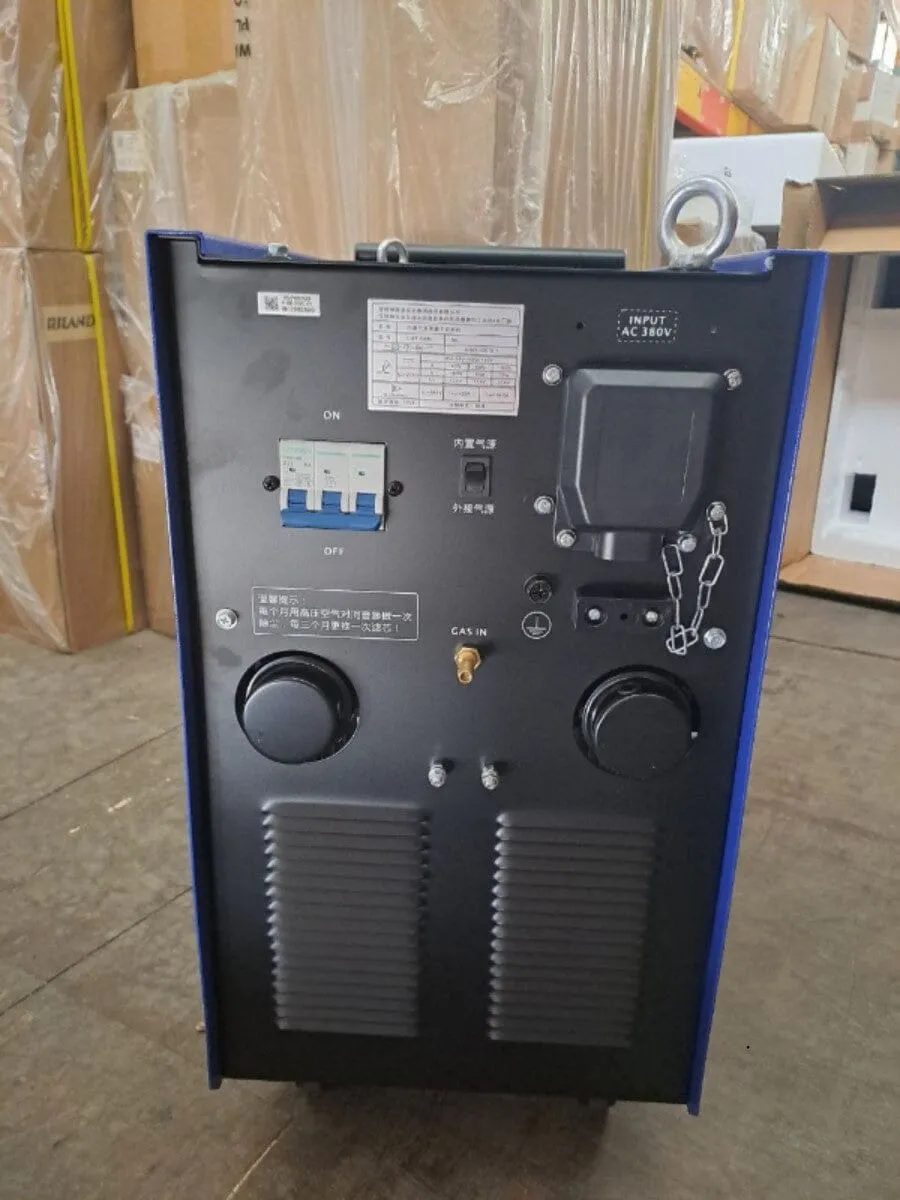

Riland Welding Machine CUT100N 380V come with Air Compressor. 10M P80 & 3M Earth Cable | Model: W-CUT100N-R
Specifications :
| Input Voltage (V) | 3P/AC380V(15%) |
| Frequency (Hz) | 50/60 |
| Rated input current (A) | 23 |
| Rated input power (kVA) | 15.1 |
| No-load voltage (V) | 270 |
| Duty cycle (40) | 40% |
| Output current adjusting range (A) | 20-100 |
| Output voltage range (V) | 88-120 |
| Post-flow time (s) | 5-20 |
| Efficiency (%) | 85% |
| Power factor | 0.9 |
| Electromagnetic Compatibility (EMC) | A |
| Insulation class | Class F |
| Protection grade | IP21 |
| Arc starting | Non-contact arc ignition |
| Pressure of air compressor (kgf/cm2) | 4-5.5 |
| Limited cutting thickness (mm) | 45 |
| Recommended cutting thickness (mm) | 1-30 |
| Net weight (kg) | 50.5 |
