Product Details
＋

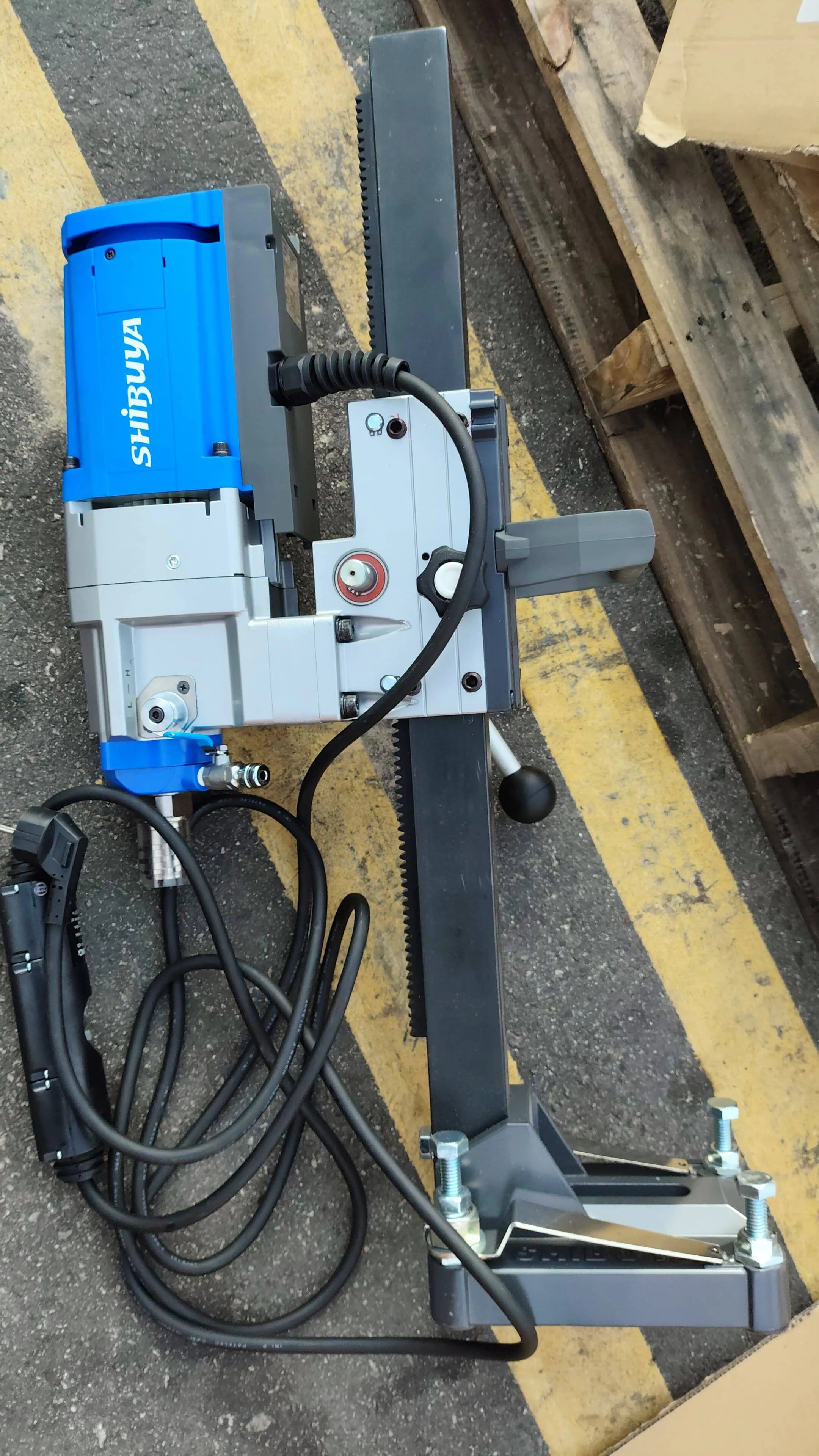

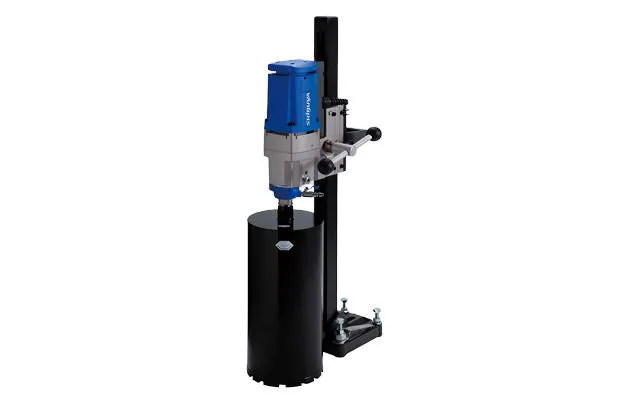

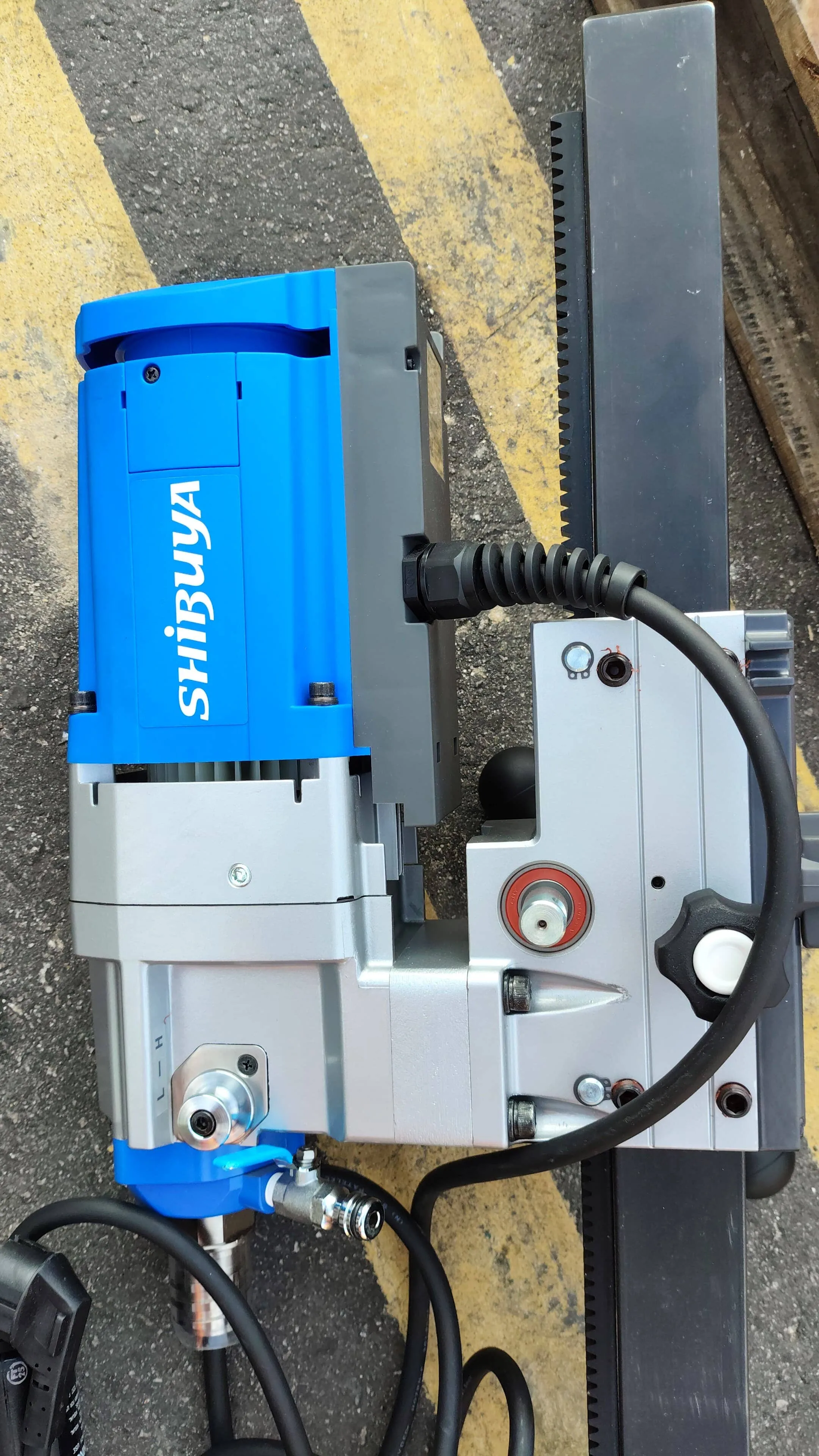

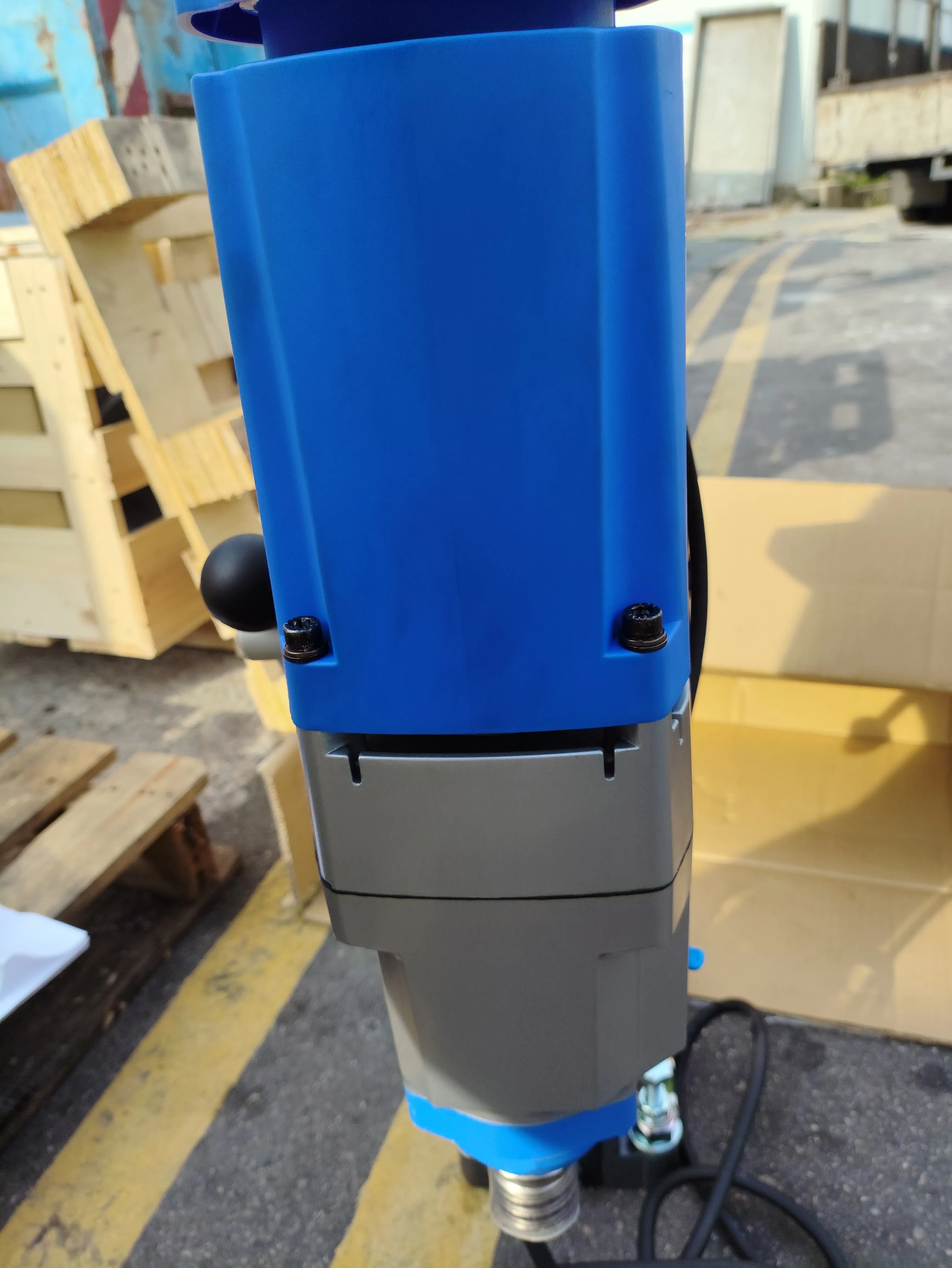

SHIBUYA Coring Machine 10 3450W 240V (Made in Japan) C/w Drill Stand | Model : CM1-TS-255
Applications and Features
- The most powerful medium-sized SHIBUYA core drilling machine.

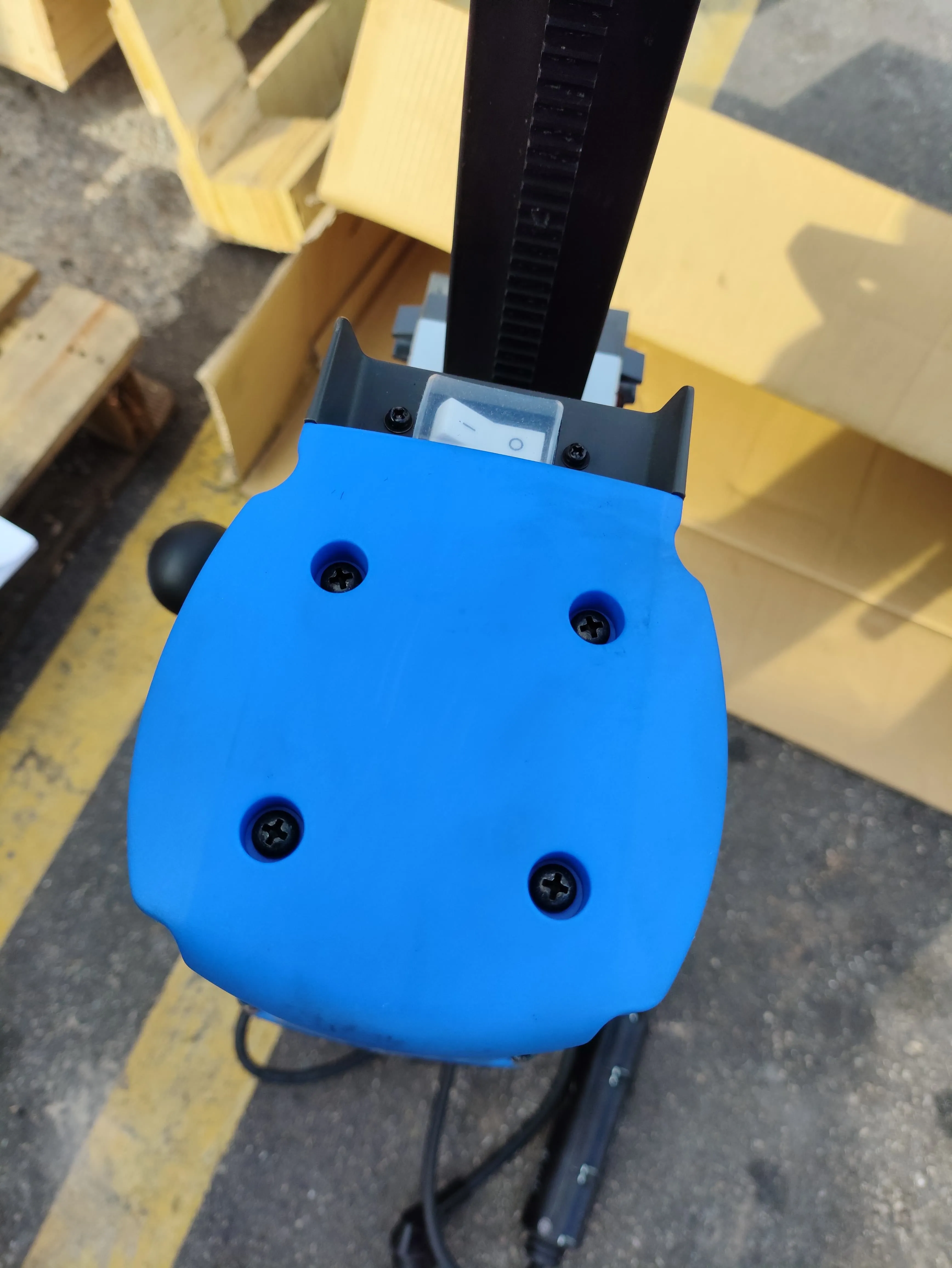

- Built-in on/off switch with motor overload protection.
- Ideal machine for middle size jobs.

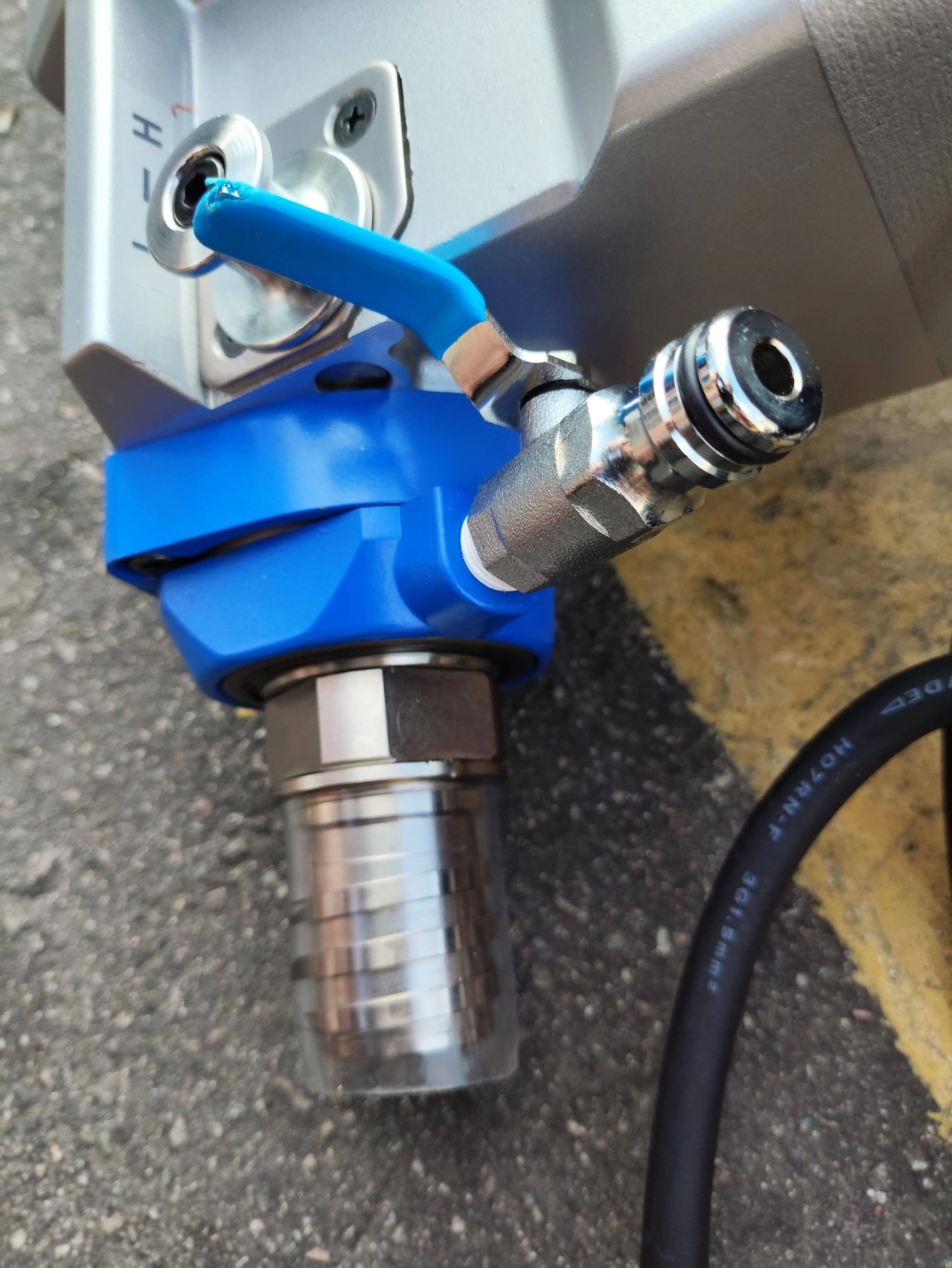

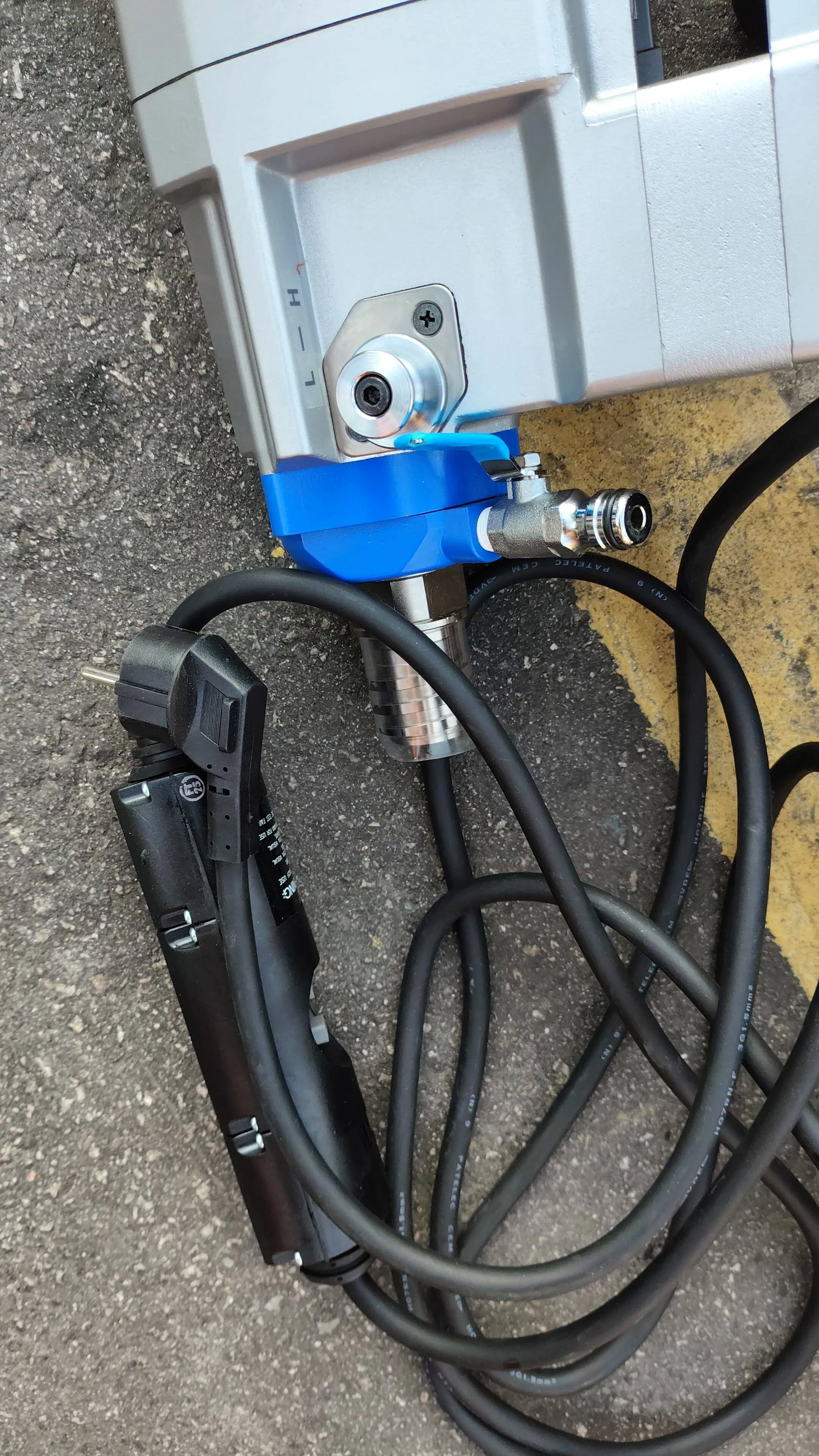

- Multi-position water swivel inlet for convenience.

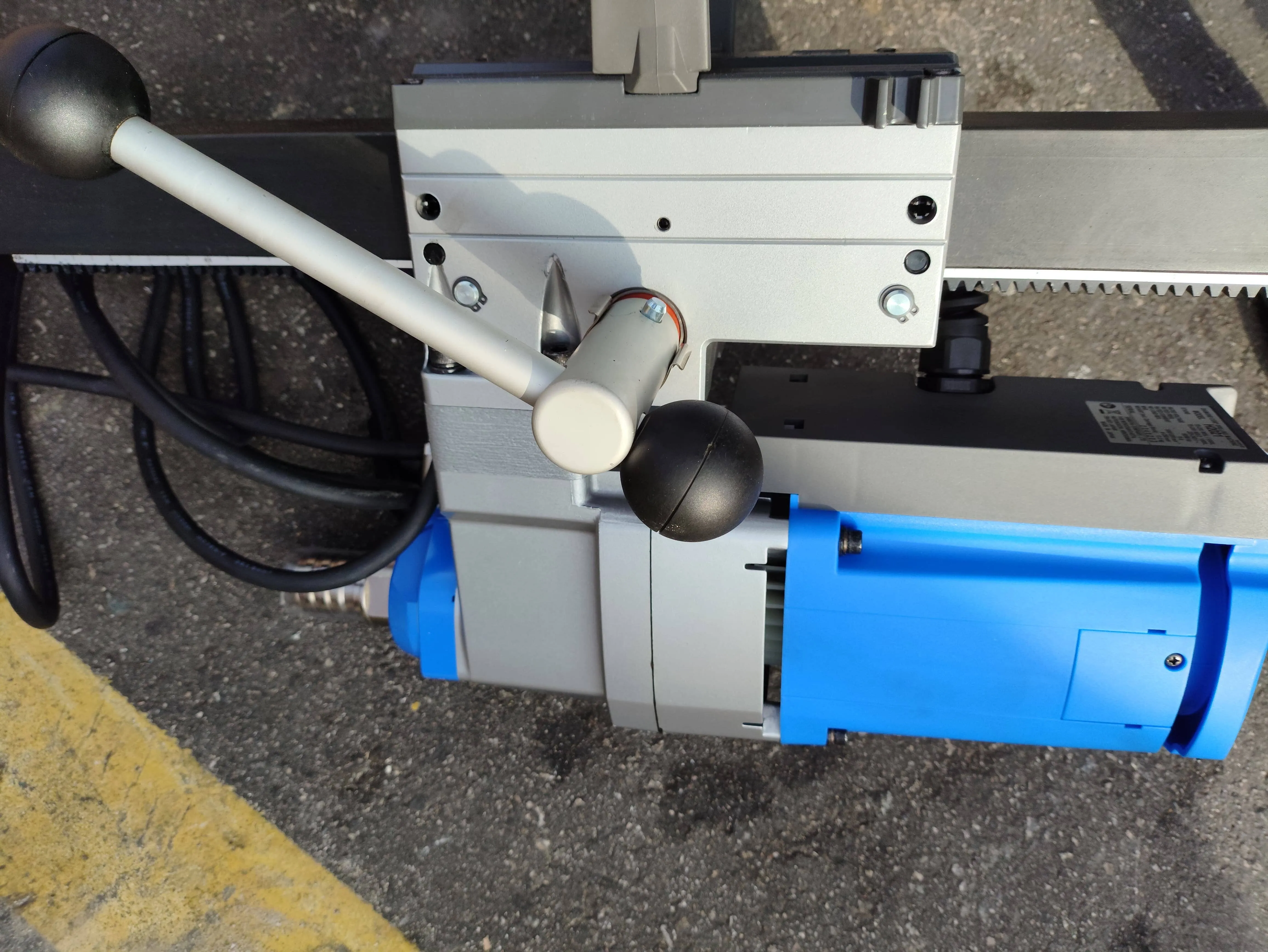

- Right and left hand feed handle positions.

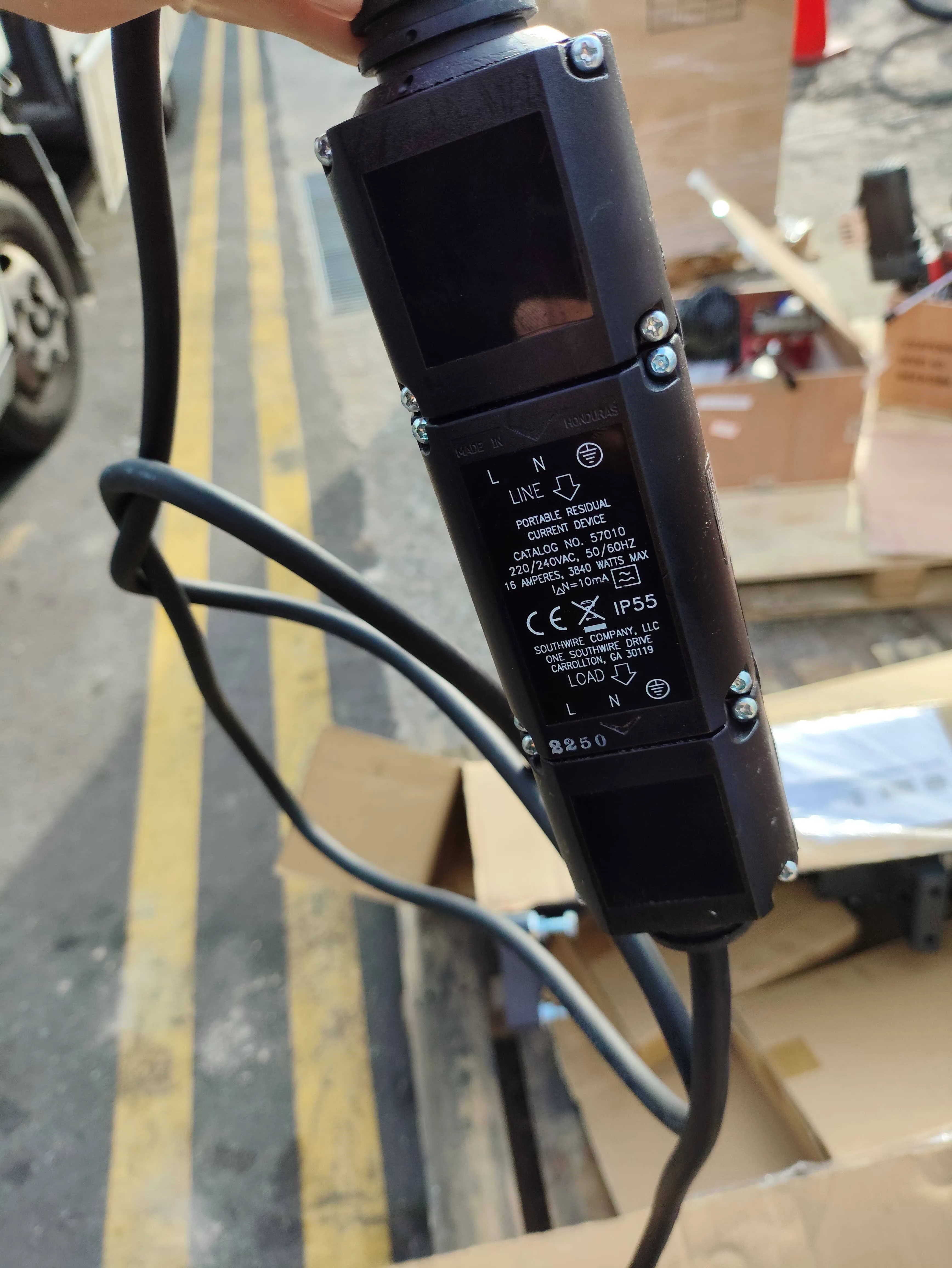

- Portable Residual Current Device (P.R.C.D.) automatically shuts off electricity in the event of electric leakage. (220-240 V only)

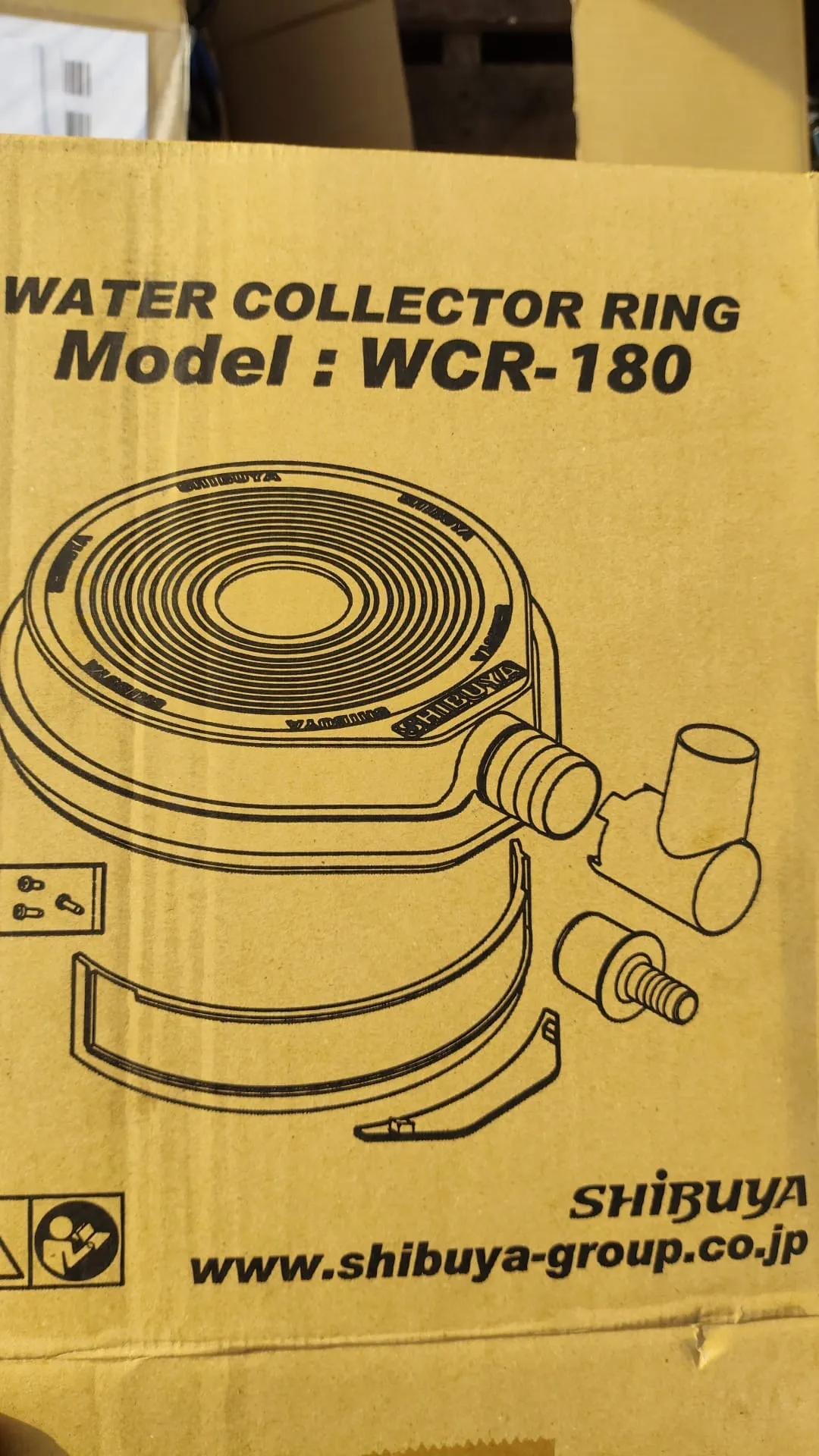

- Includes a water collector ring.

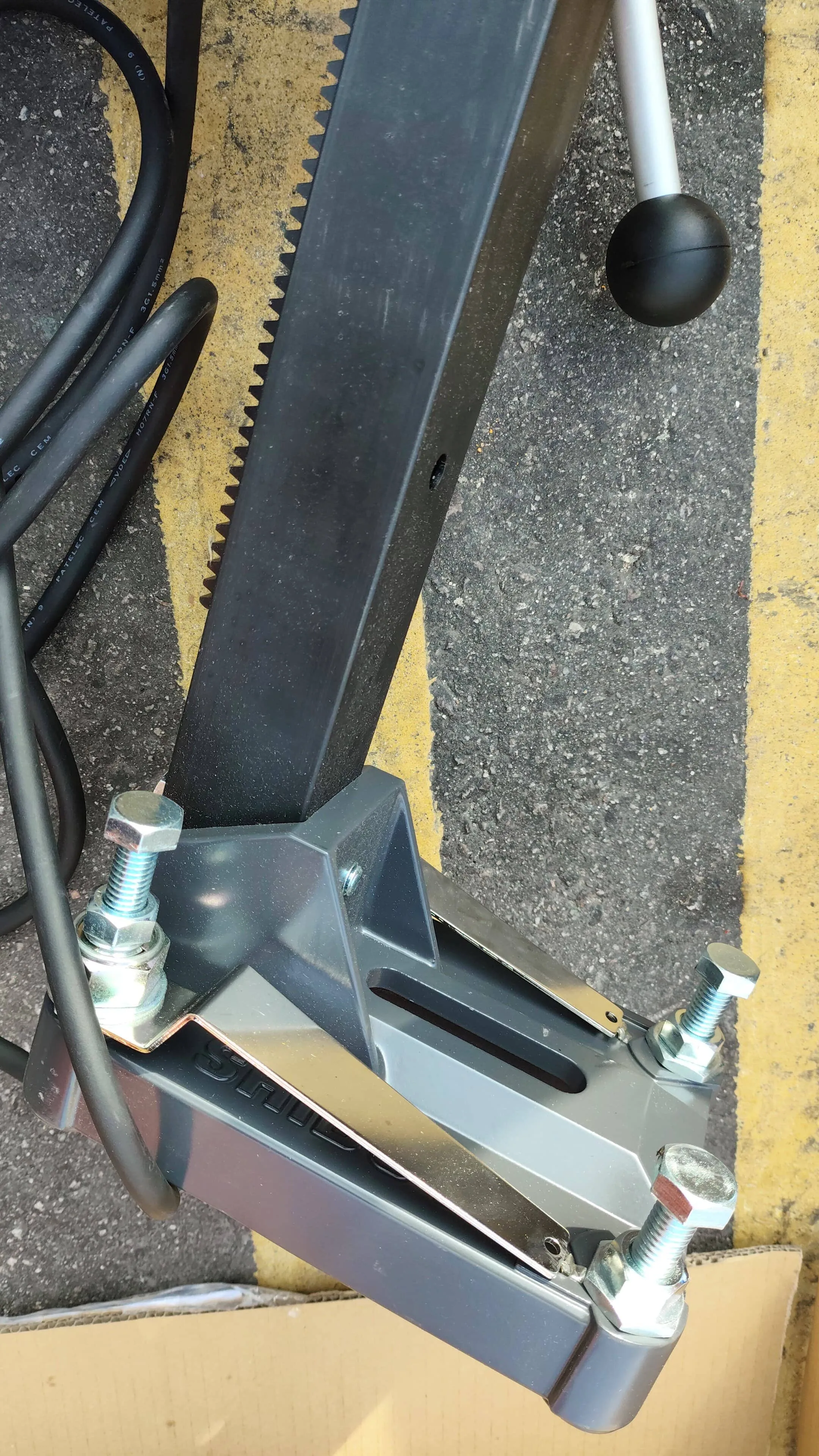

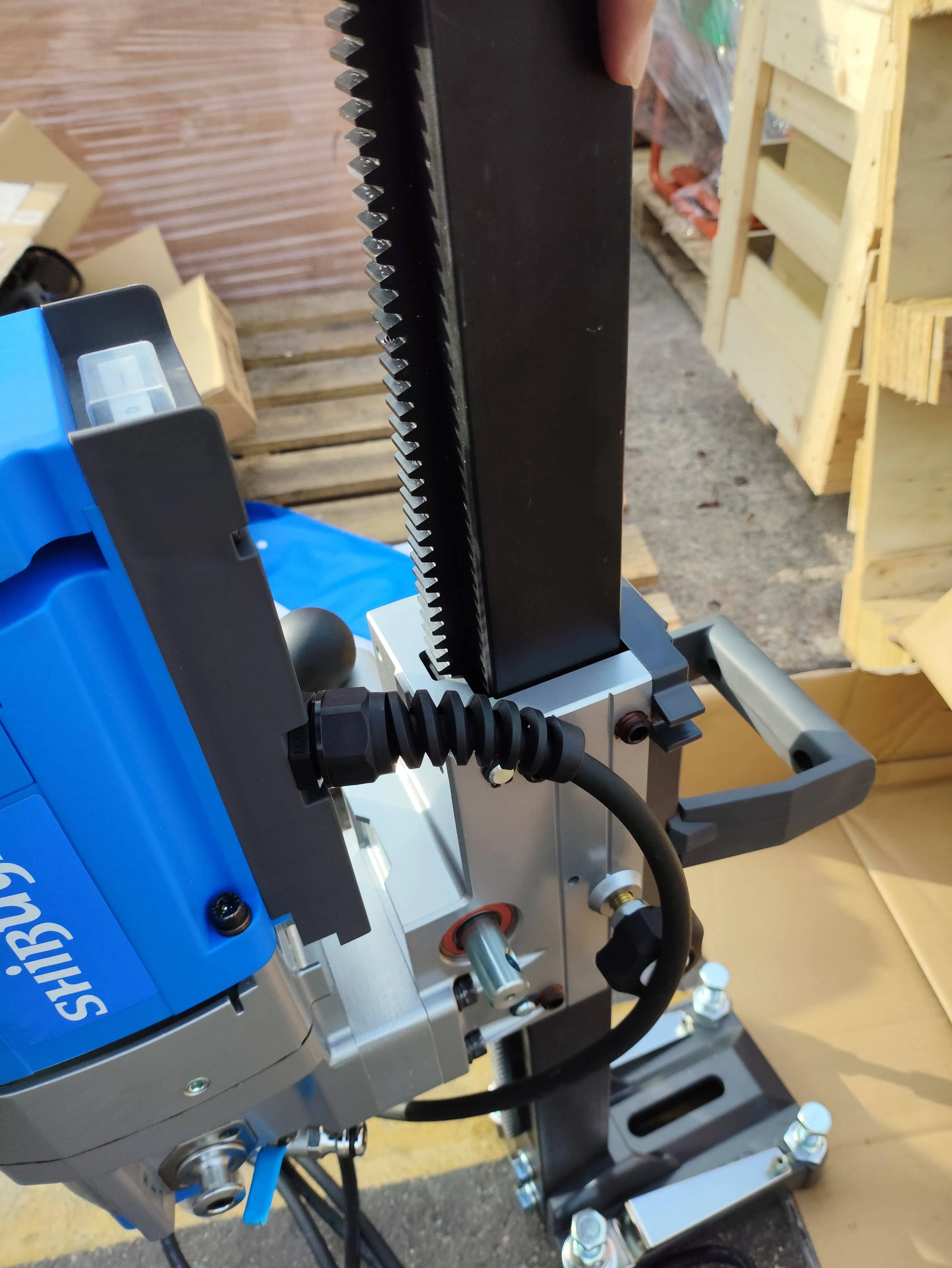

- Normal Stand Column: 803 mm (31) with 493 mm (19) stroke.
- Long Column: 1003 mm (39) with 693 mm(27) stroke.
- AB52 Column: 1011 mm (40) with 680 mm (27) stroke.
- 50 mm (2) square column.
- Tool kit including wrenches and allen keys.

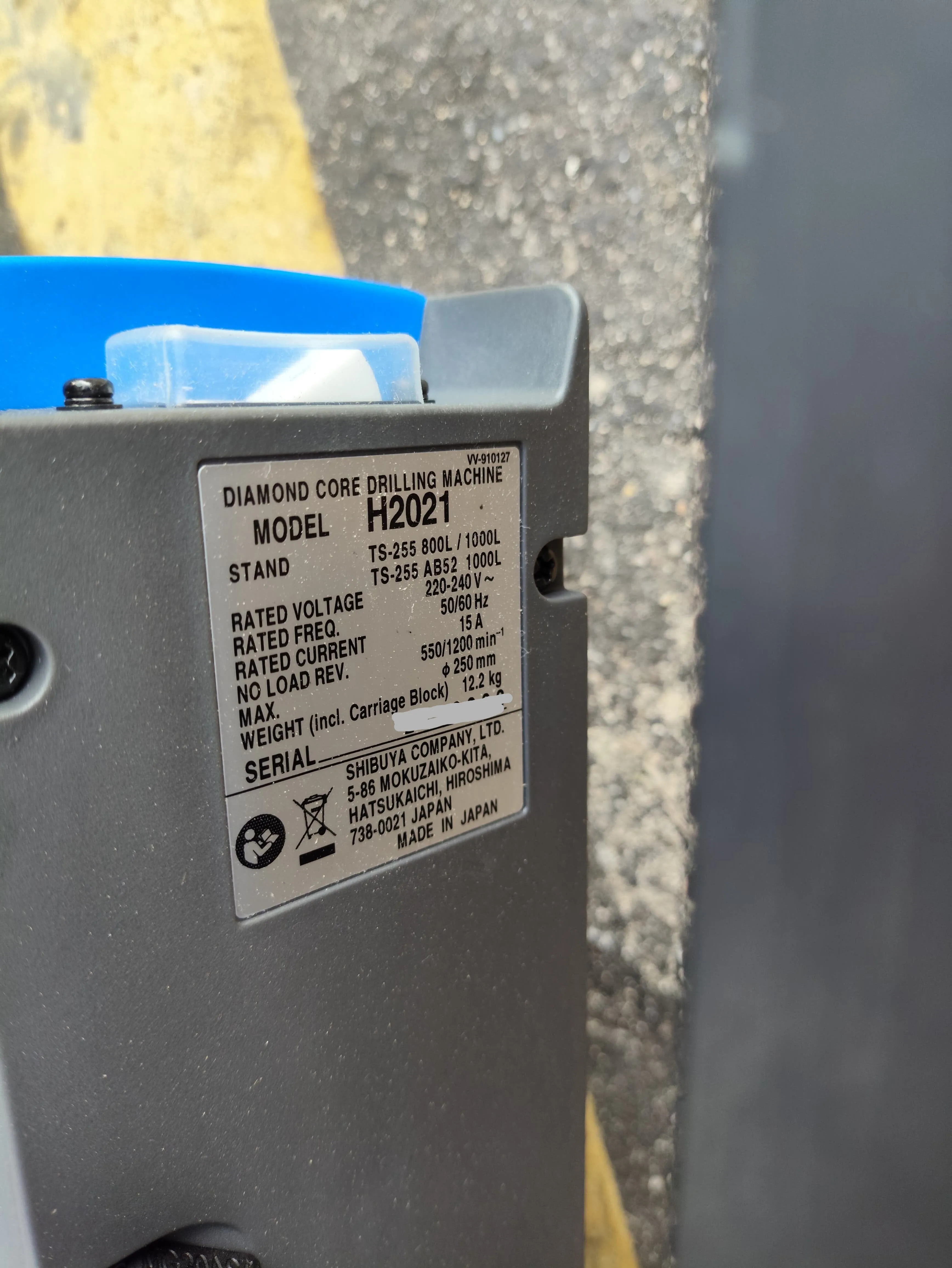

Specifications
| Rated Input | 3.450 W (220-240V) |
| Voltage | 220-240V. 50 Hz |
| Speed | 2 |
| Spindle Revolutions at No Load | 550/1.200 rpm (H2021 220-240V) |
| Spindle Revolutions at Rated Load | 300/730 rpm (H2021 220-240V) |
| Spindle Thread | UNC 1 -1/4A-Rod |
| Weight | H2021 w carriage block: 12.2 kgTS-255(800L): 6.6 kgTS-255(1000L): 7.5 kgTS-255(AB52): 7.2 kg |
| Height | 803 mm1003 mm1011 mm (AB52) |
| Base Size | 158 x 217 mm146 x 205 mm (AB52) |
| Available Stroke | 493 mm 693 mm (1003L) 680 mm (AB52) |

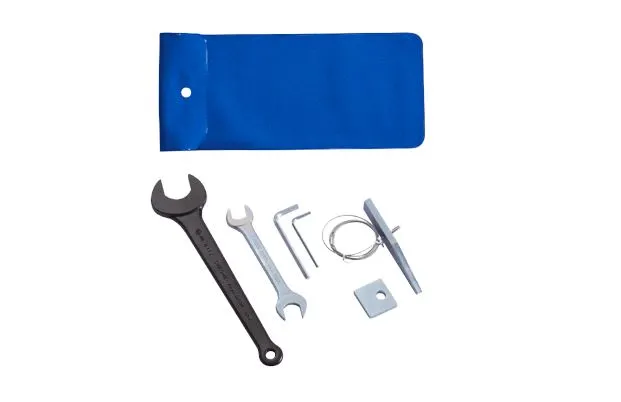

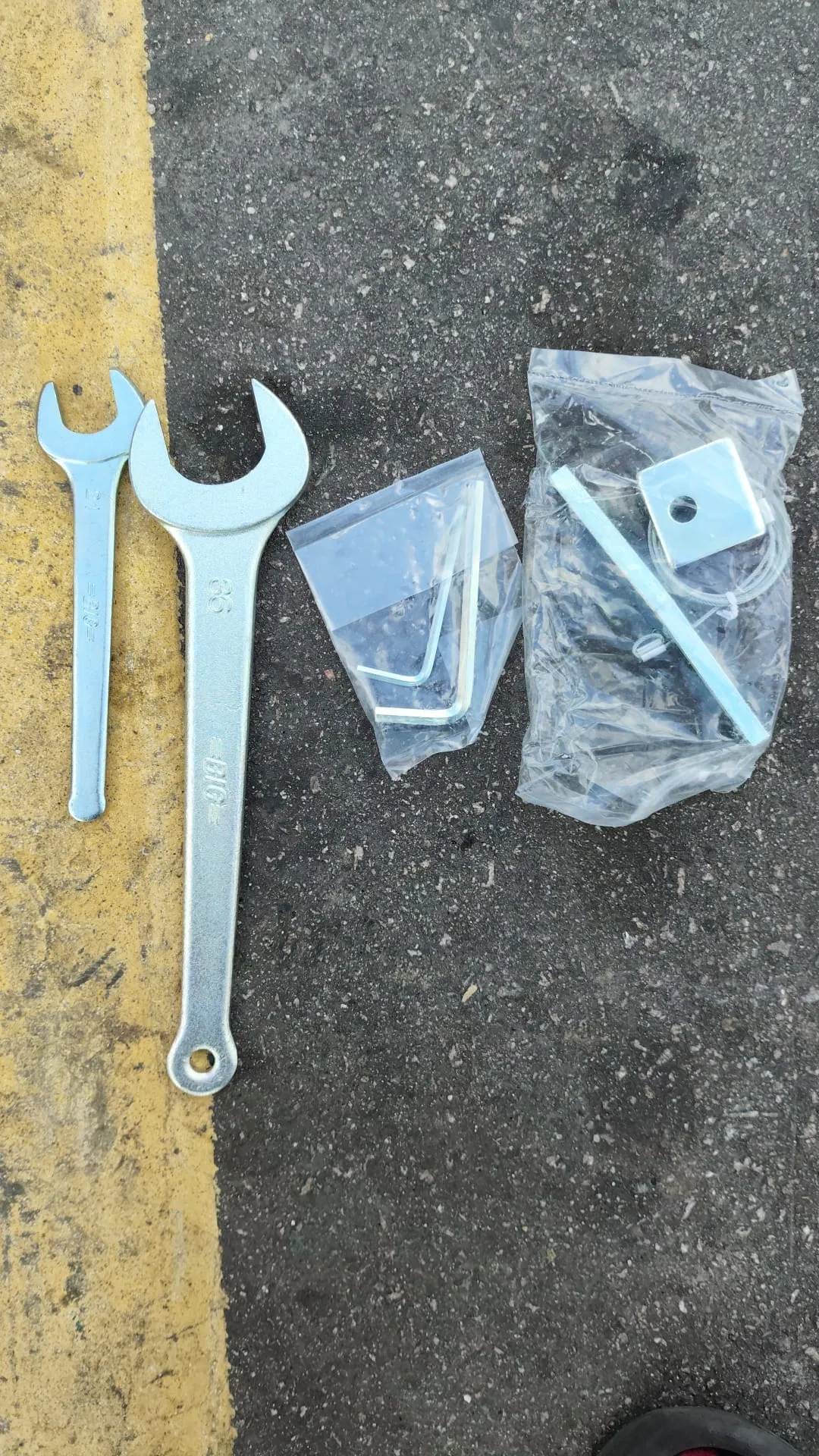

Standard Tool Kit
- Allen Key 4 and 6 mm
- Double-End Spanner 17 x 19 mm(AB52)
- Single-End Spanner 21 mm (Fixed version) and 36 mm
- Core Removal Wedge Lasso
- 3/8 Square Washer
Maximum Bit Capacity: 250 mm ( 10) with 30 mm Spacer
