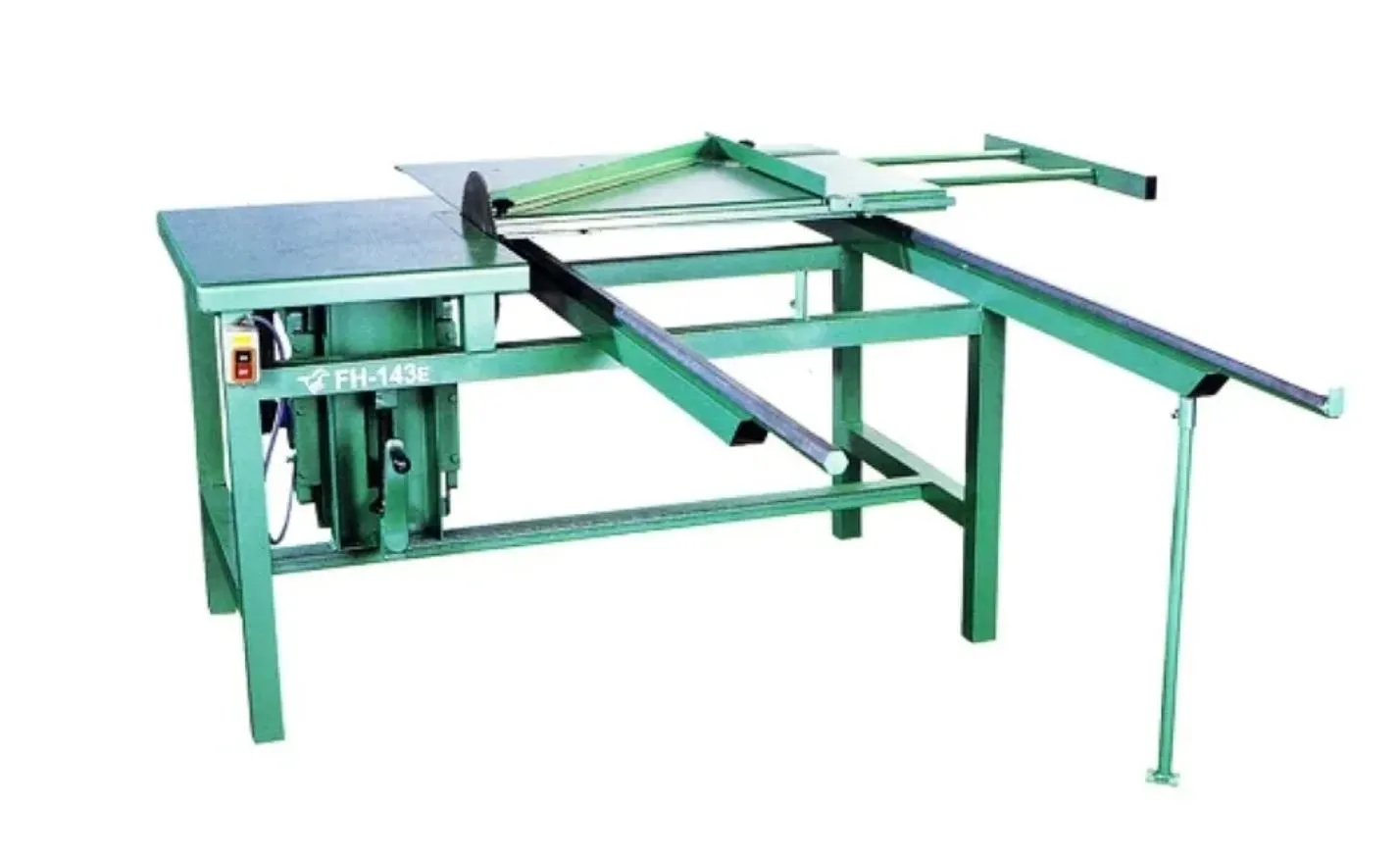

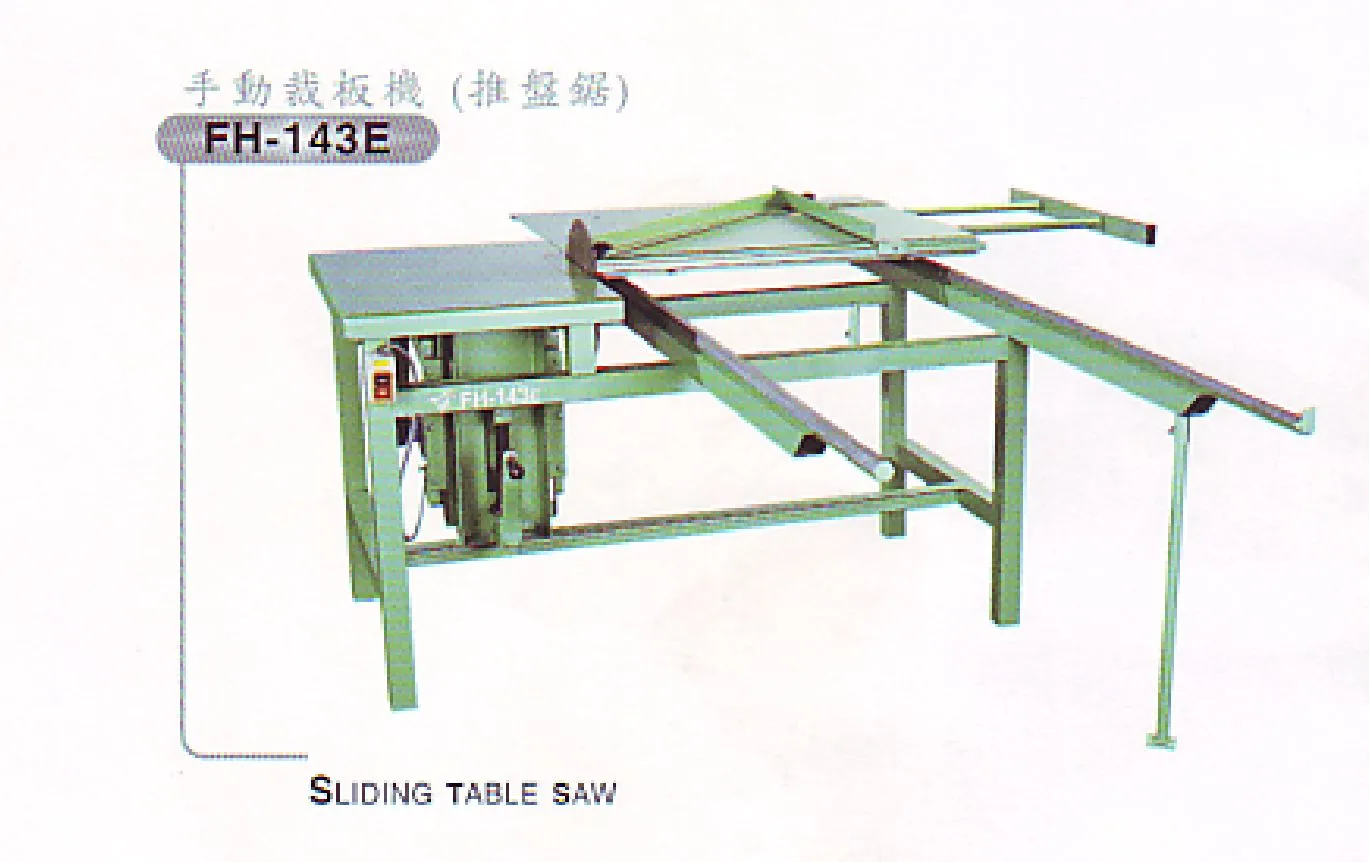

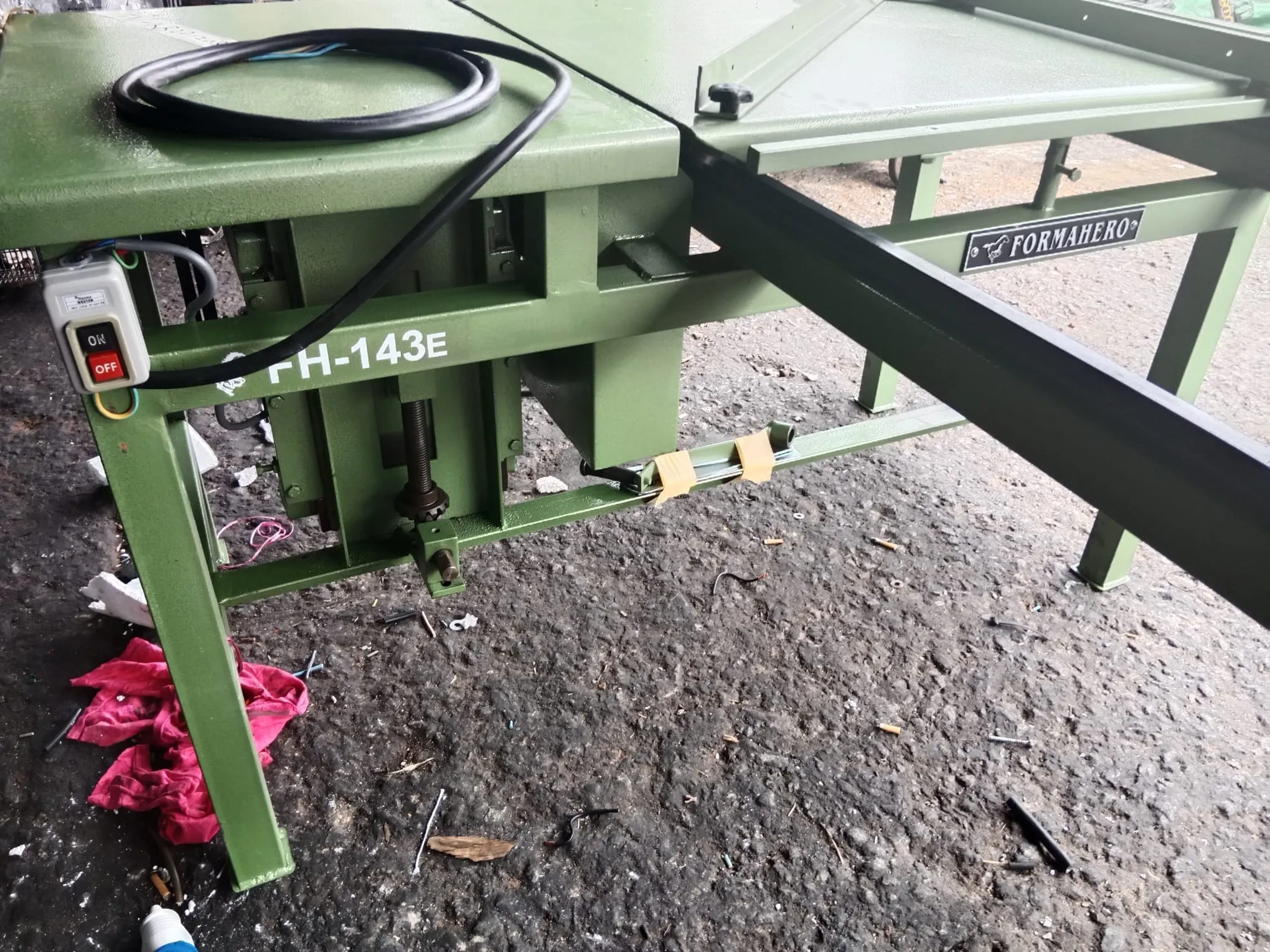

Sliding Table Saw With Hood | Model: FH143E

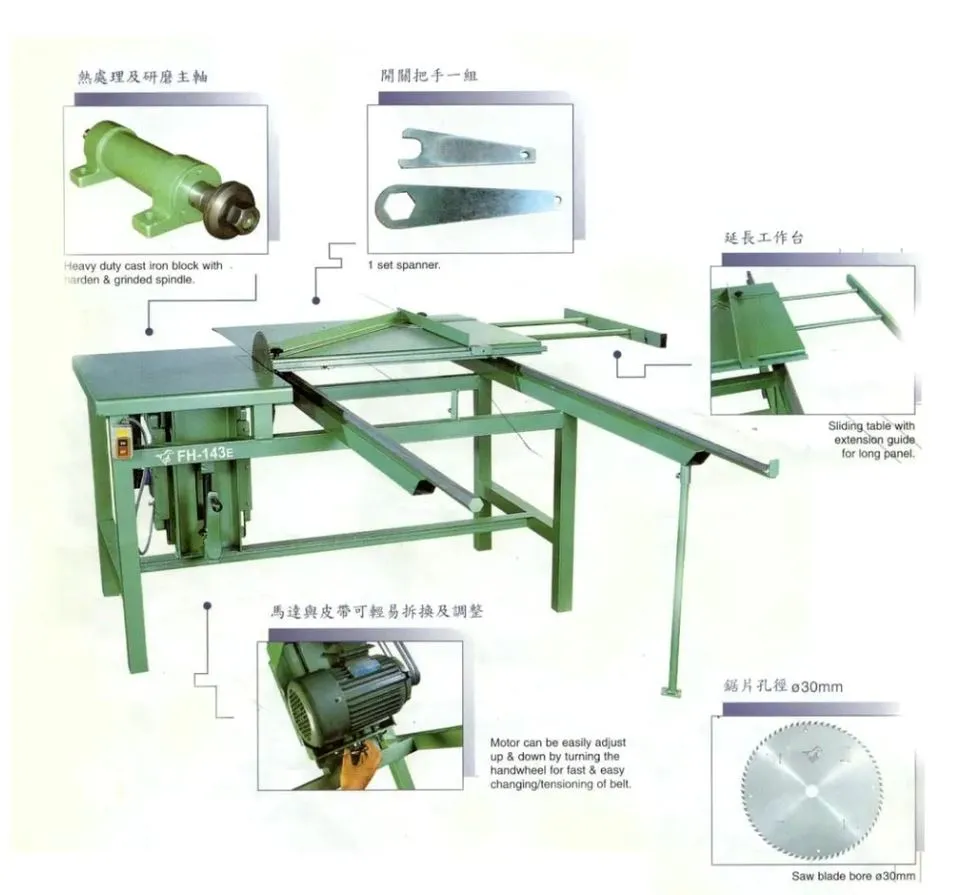

Features:

• Powerful 2Hp / 3Hp (Optional)

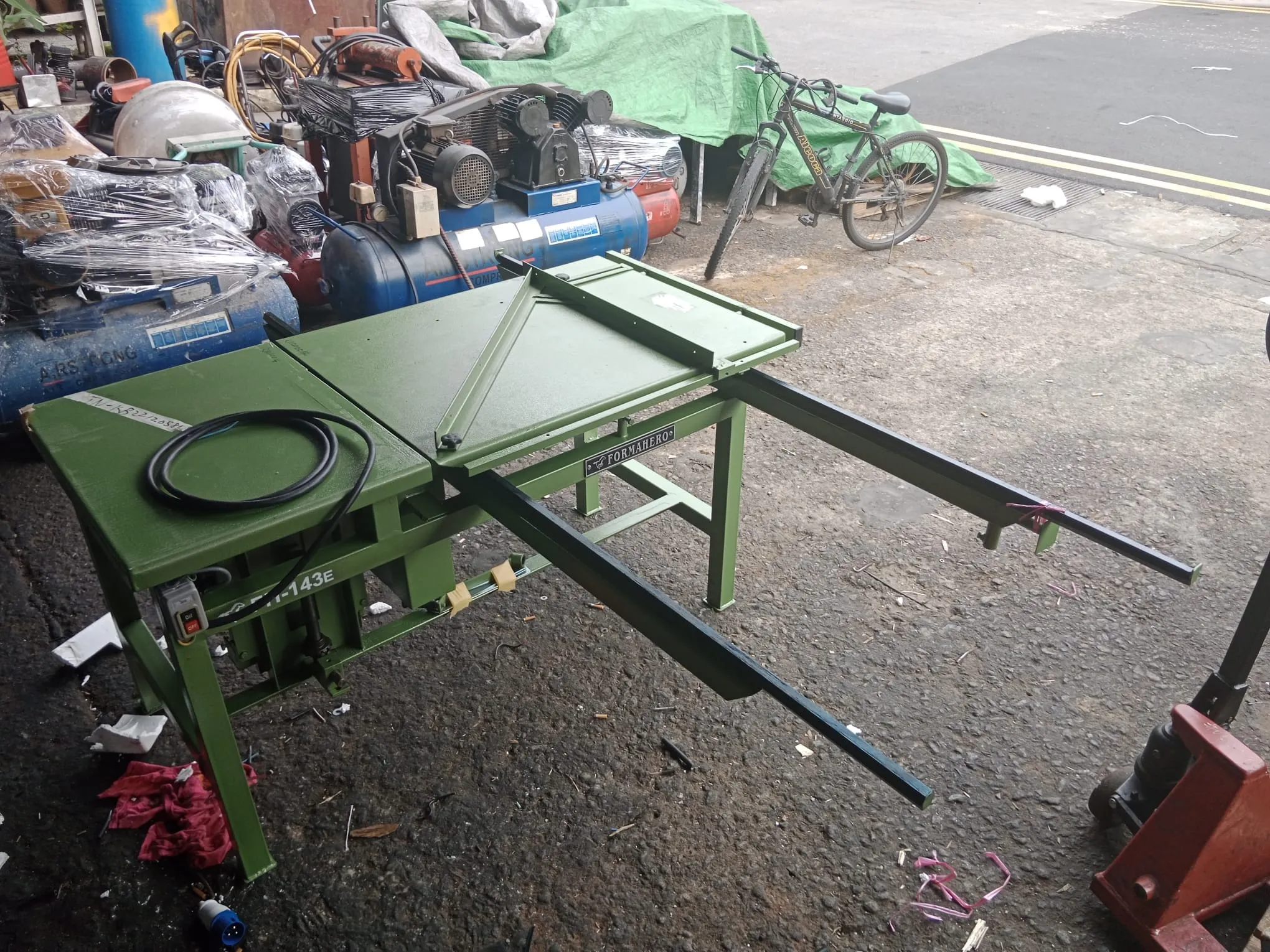

• Complete with extension guide for long panel
• Simple operation. minimum training required
• Precision guides for easy sliding

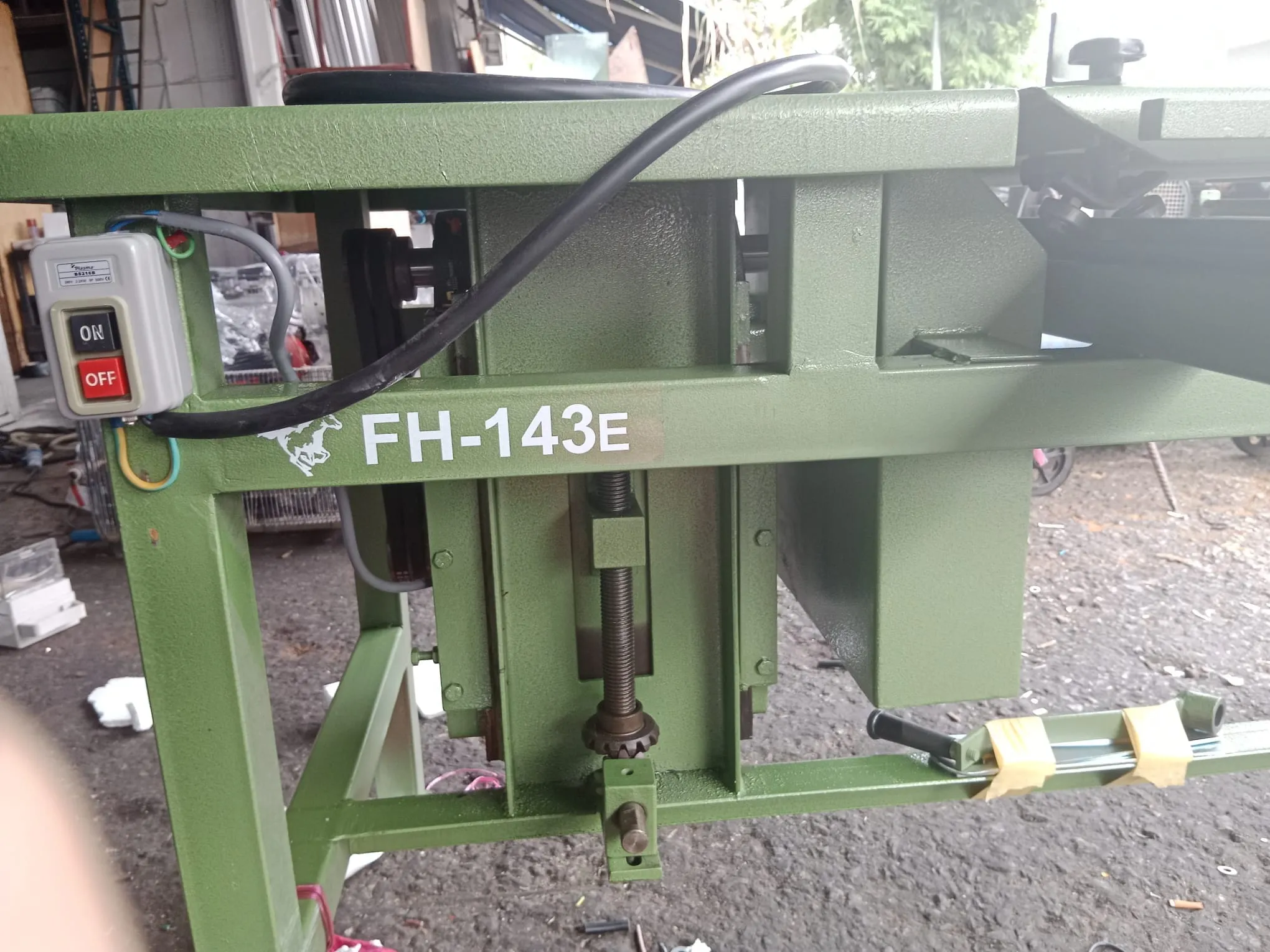

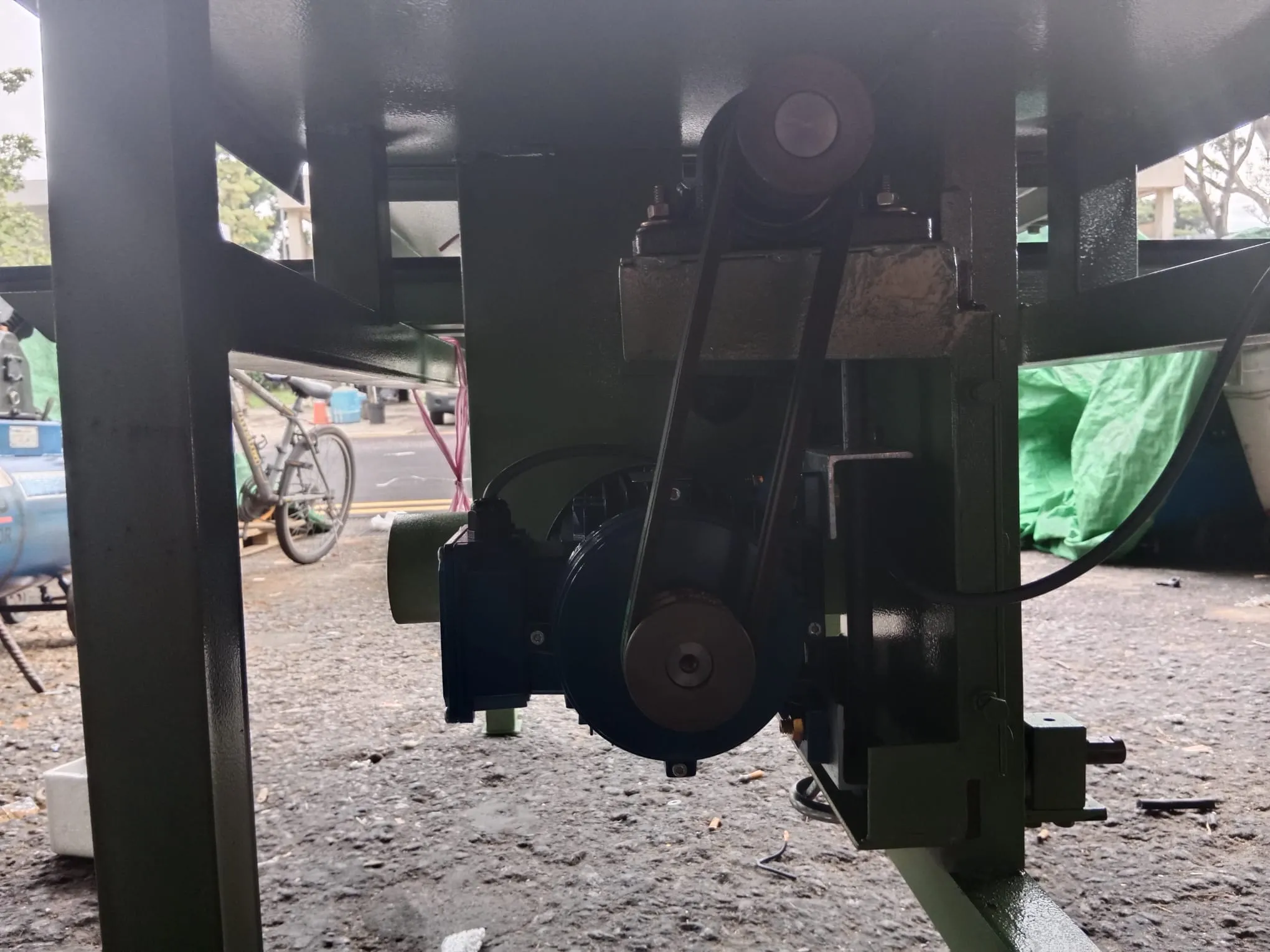

• Motor can be easily adjusted by handwheel for fast and easy changing and tensioning of belts

Specifications:

• Fixed Table Dimension (L x W): 740mm x 505mm

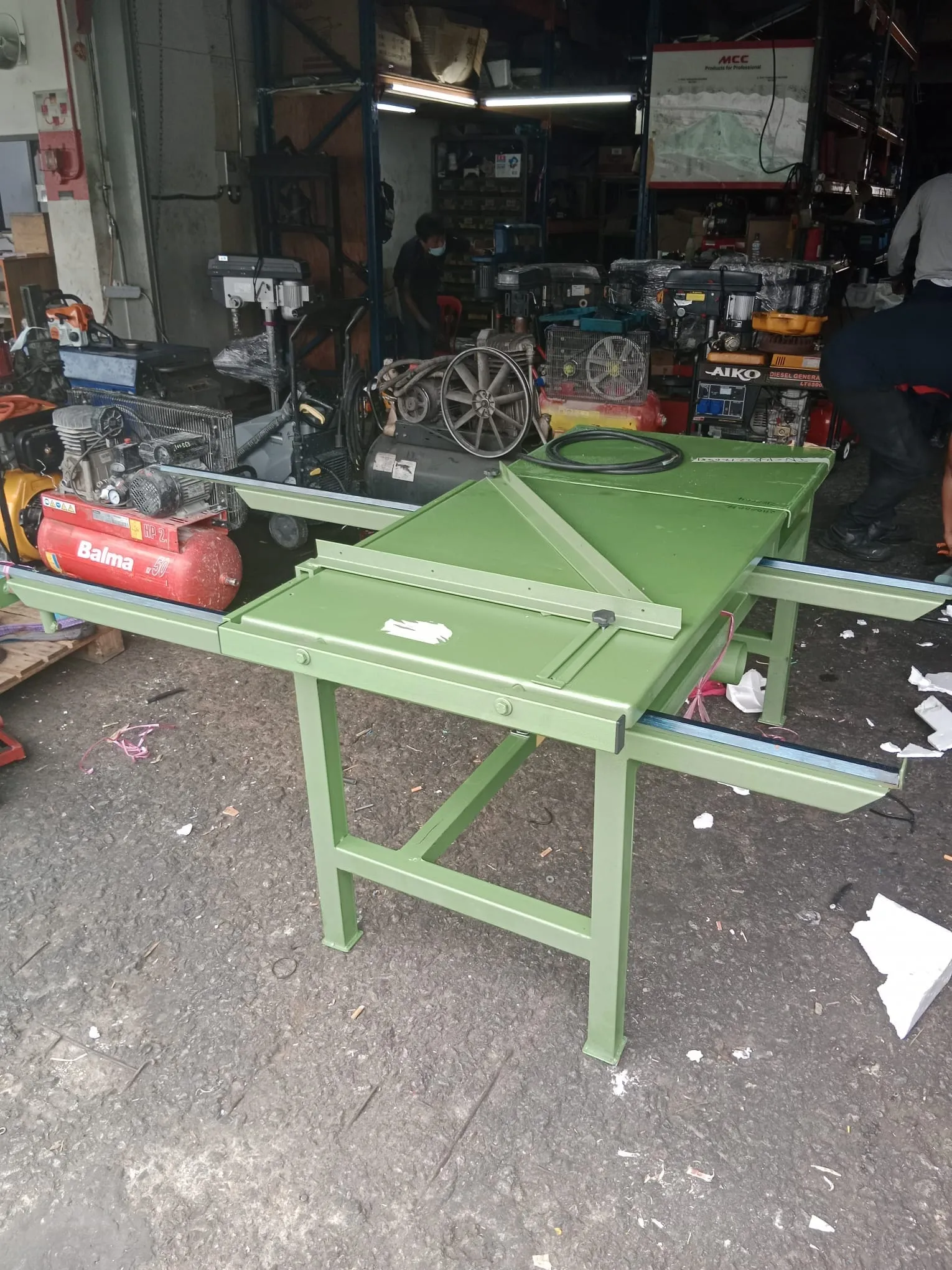

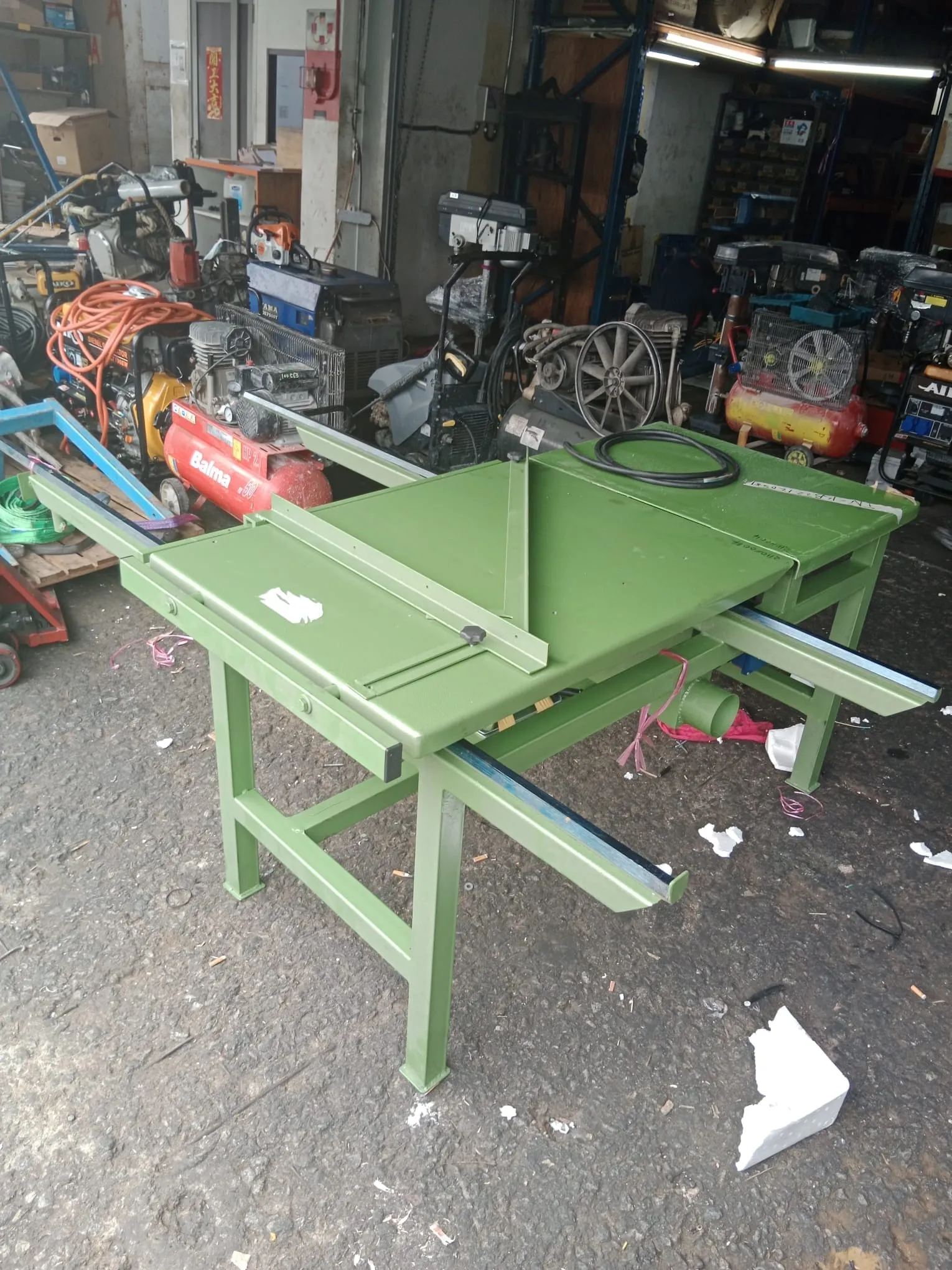

• Sliding Table Dimension (L x W): 740mm x 915mm
• Sliding Table With Extension Guide: 740mm x 1370mm
• Table Height: 760mm
• Length of Hex. Bar: 2030mm x 2pcs
• Sliding Capacity: 1220mm
• Maximum Cutting Height: 95mm
• Sawblade Diameter: 305mm
• Sawblade Speed: 3000rpm

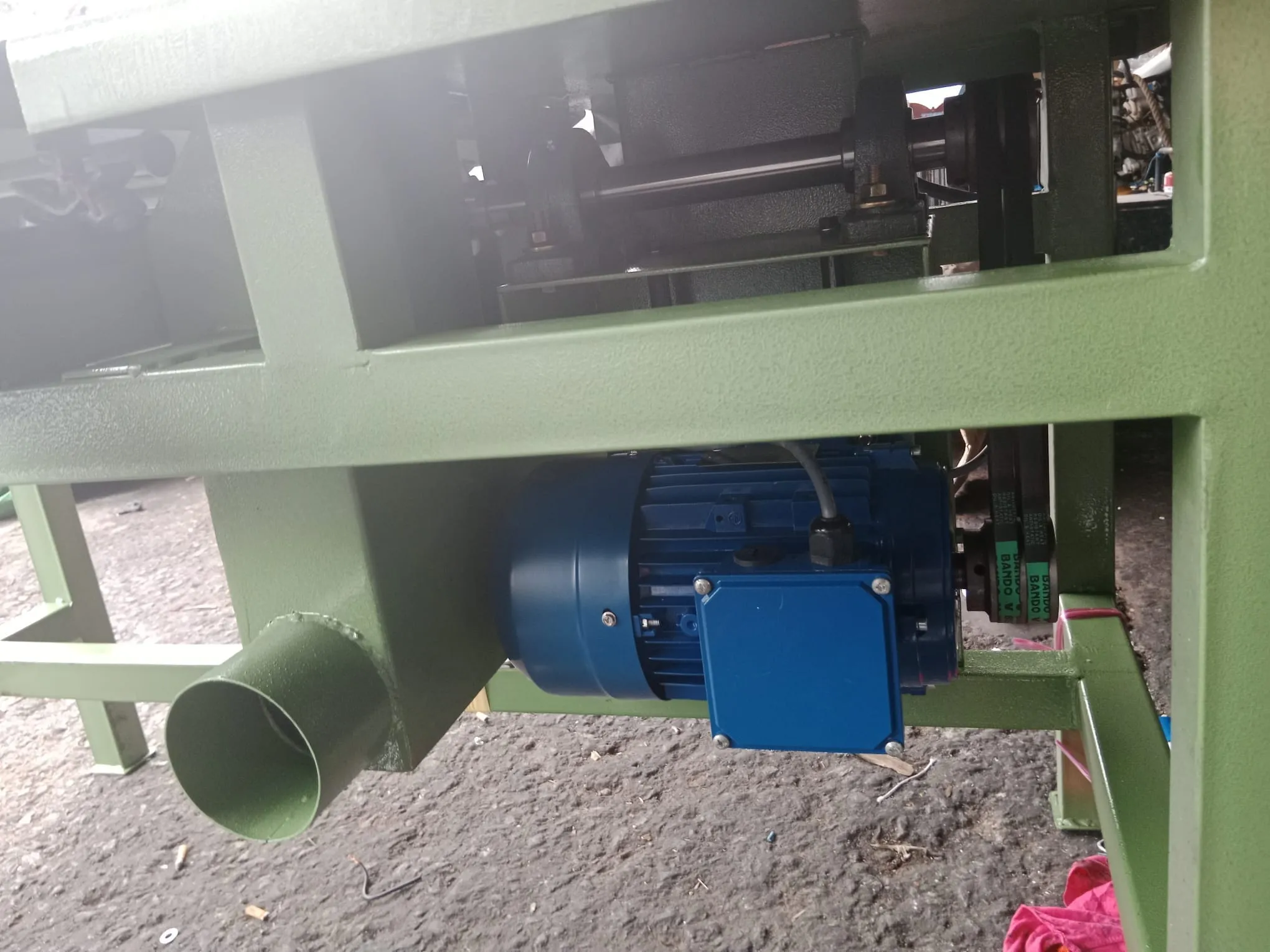

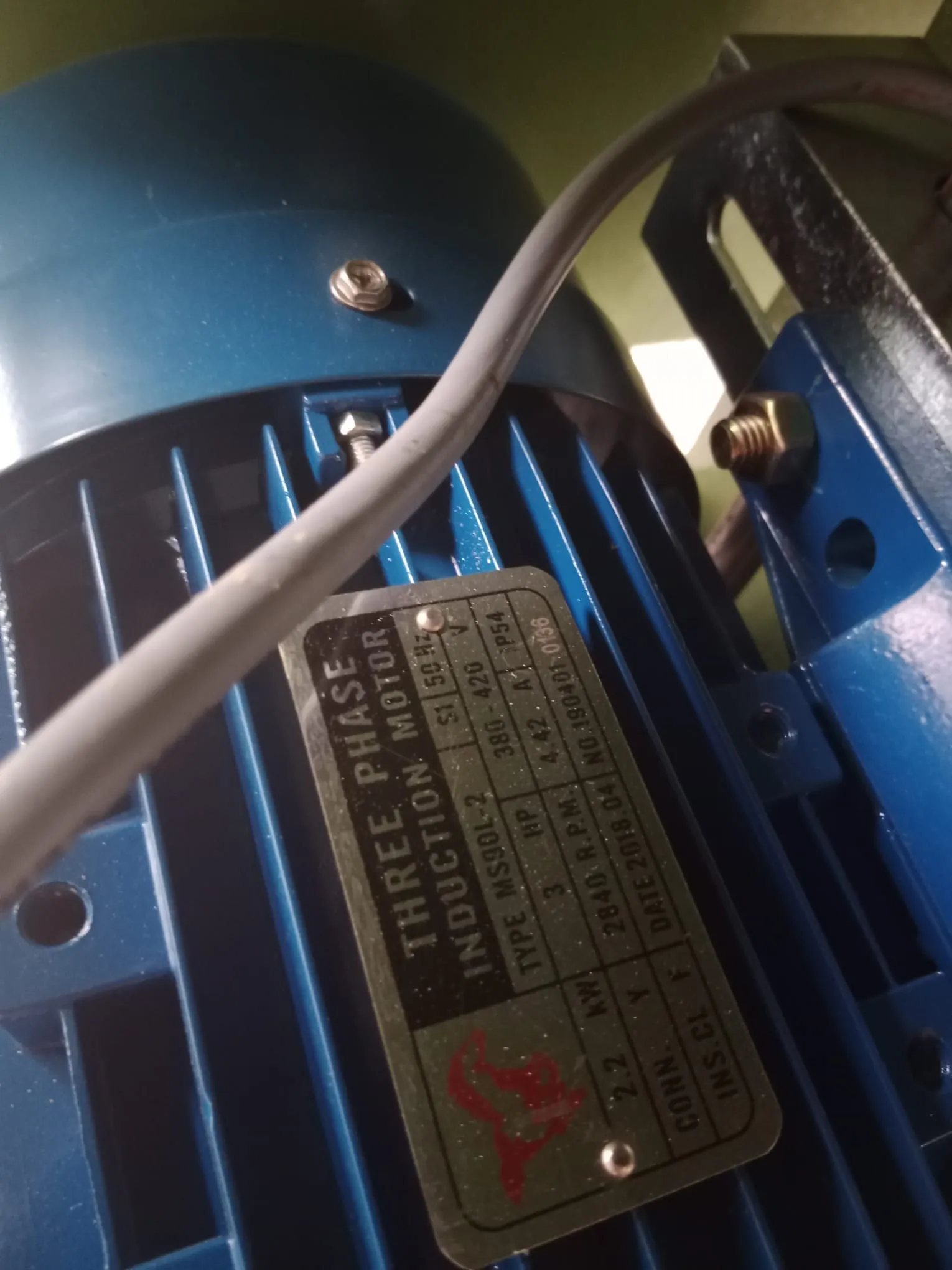

• Main Motor: 2Hp 1 Phase or 3Hp. 3 Phase Motor
• Voltage: 415v / 50Hz
• Nett Weight: 180 Kg
