Product Details
＋

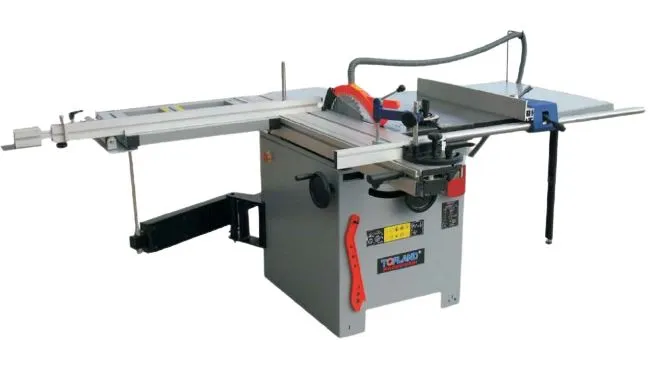

Topline 230V 50HZ Sliding Panel Saw With 1600Mm Sliding Table | Model : PS315/1600
Features :
- Easy adjustable machinism & 2 - piece scoring blade
- Roller on sliding table for easy in feed of wood panel
- Easy adjustable fence lock lever

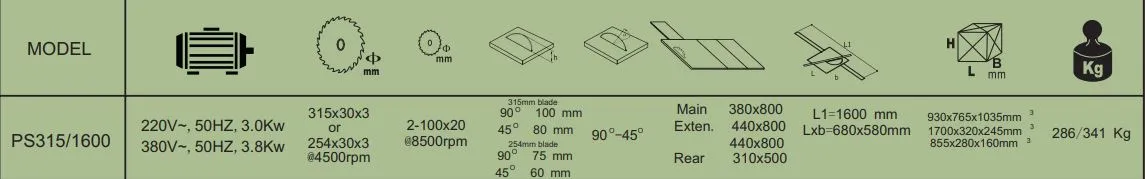

Specifications :
- Model : PS315/1600
- Motor Power
- 220 V ~ 50 Hz . 3 Kw
- Saw Blade Dimension
- 315 x 30 x 3
- 4500 rpm
- Saw Blade Dimension model 2
- 2 - 100 x 20
- 8500 rpm
- 315 mm blade
- 90 . 100 mm
- 45 . 80 mm
- 254 mm blade
- 90. 75 mm
- 45. 60 mm
- Main : 380 x 800 mm
- Exten : 440 x 800 mm
- Rear : 310 x 500 mm
- L1 = 1600 mm
- LxB = 680 x 580 mm
- Packing Size : 930 x 765 x 1035 MM3 / 1700 x 320 x 245 MM3
- Weight : 286 /341 Kg
