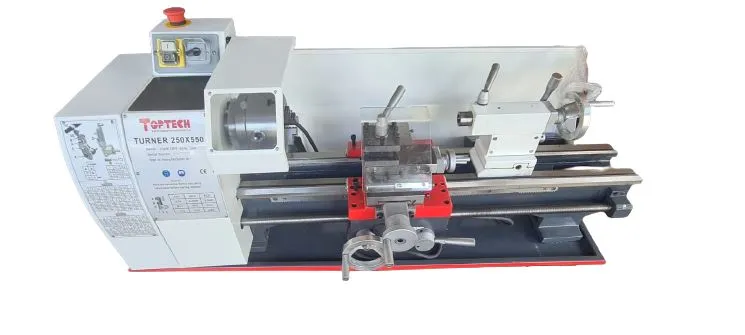

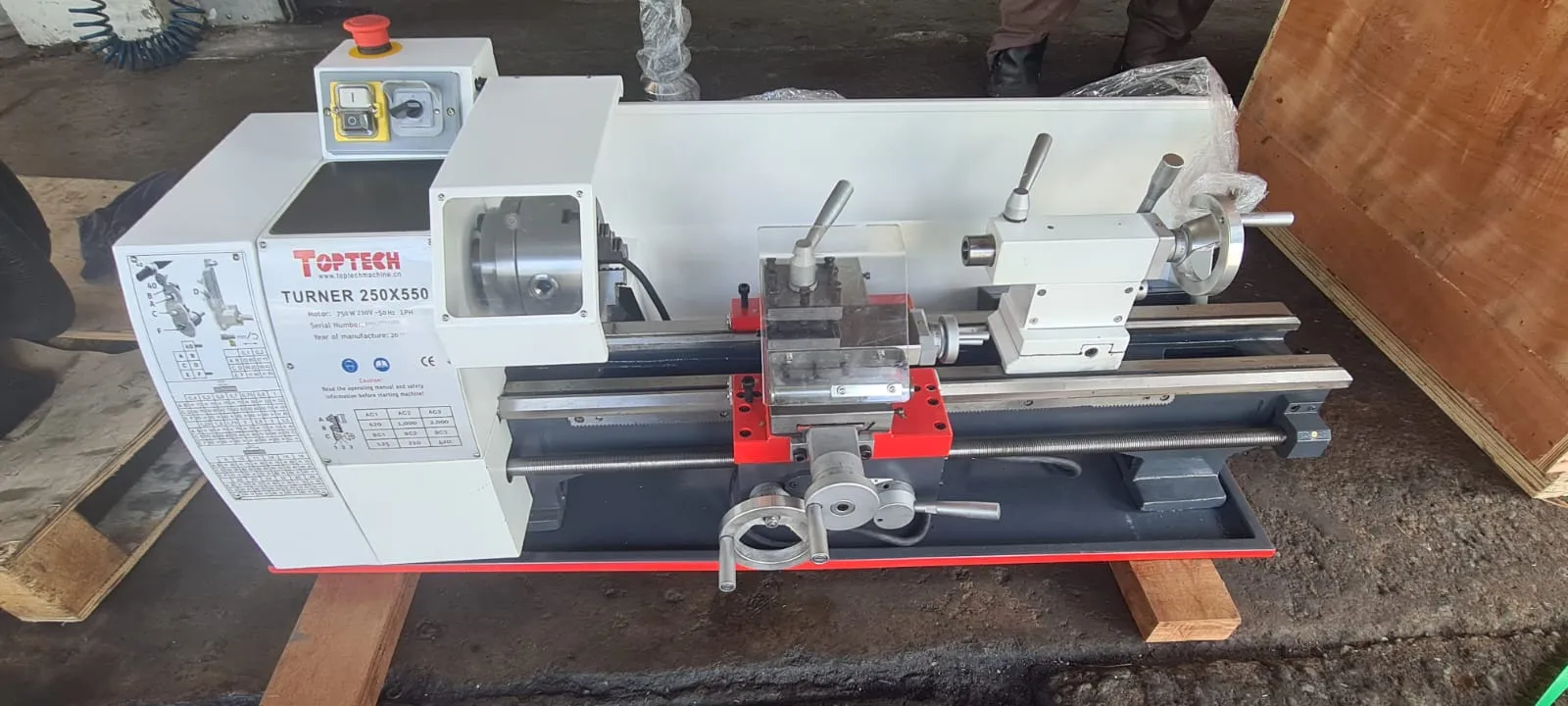

Toptech 230V Mini Lathe 50HZ 1PH | Model : TURNER-250F

Specifications :

Speed change by manually changing gears

• Capacity :

• Swing over bed : 250mm (diameter)
• Swing over cross slide : 150mm (diameter)
• Admits between : 550mm
• Center height : 125mm
• Width of bed : 135mm
• can fit 21mm diameter plate


• Headstock :
• Spindle dore : 21mm (diameter)
• Taper of spindle bore : MT3
• Range of spindle speed : 125 - 2000 rpm
• Feeds and threads :

• Top slide travel : 75mm
• Cross slide travel : 120mm
• Max. section of tool : 12 x 12mm
• Threads metric pitches : 0.4 - 3.5mm
• Threads imperial pitches : 8 - 44 TPI
• Quill :
• Quill diameter : 30mm (diameter)
• Quill travel : 70mm
• Quill taper : MT2
• Cross adjustment : -5mm
• Motor Power : 750W
• Overall Dimension (L x W x H) : 1110 x 500 x 500 mm
• Net Weight : 127kg
• Gross Weight : 145kg
