Product Details
＋

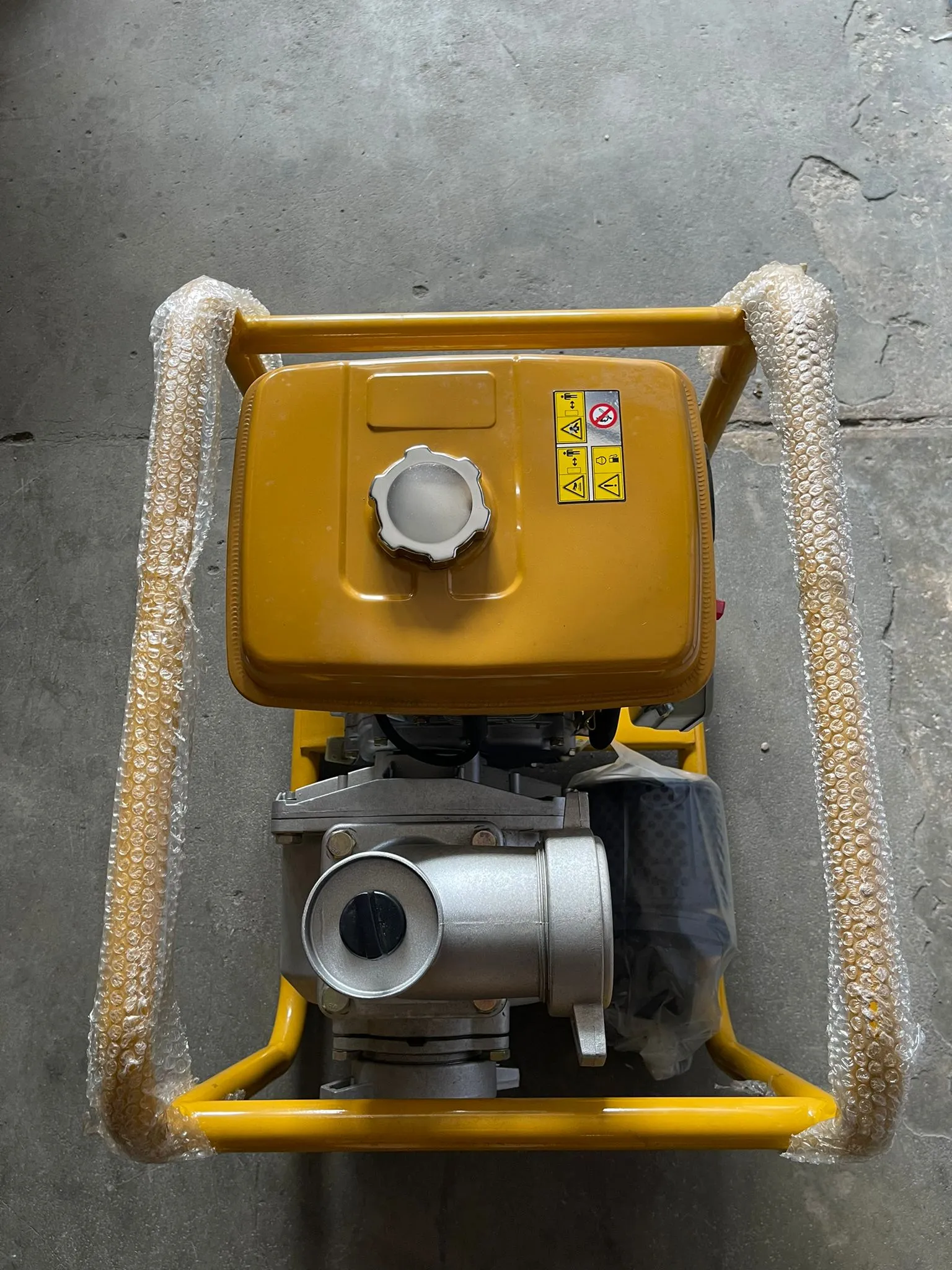

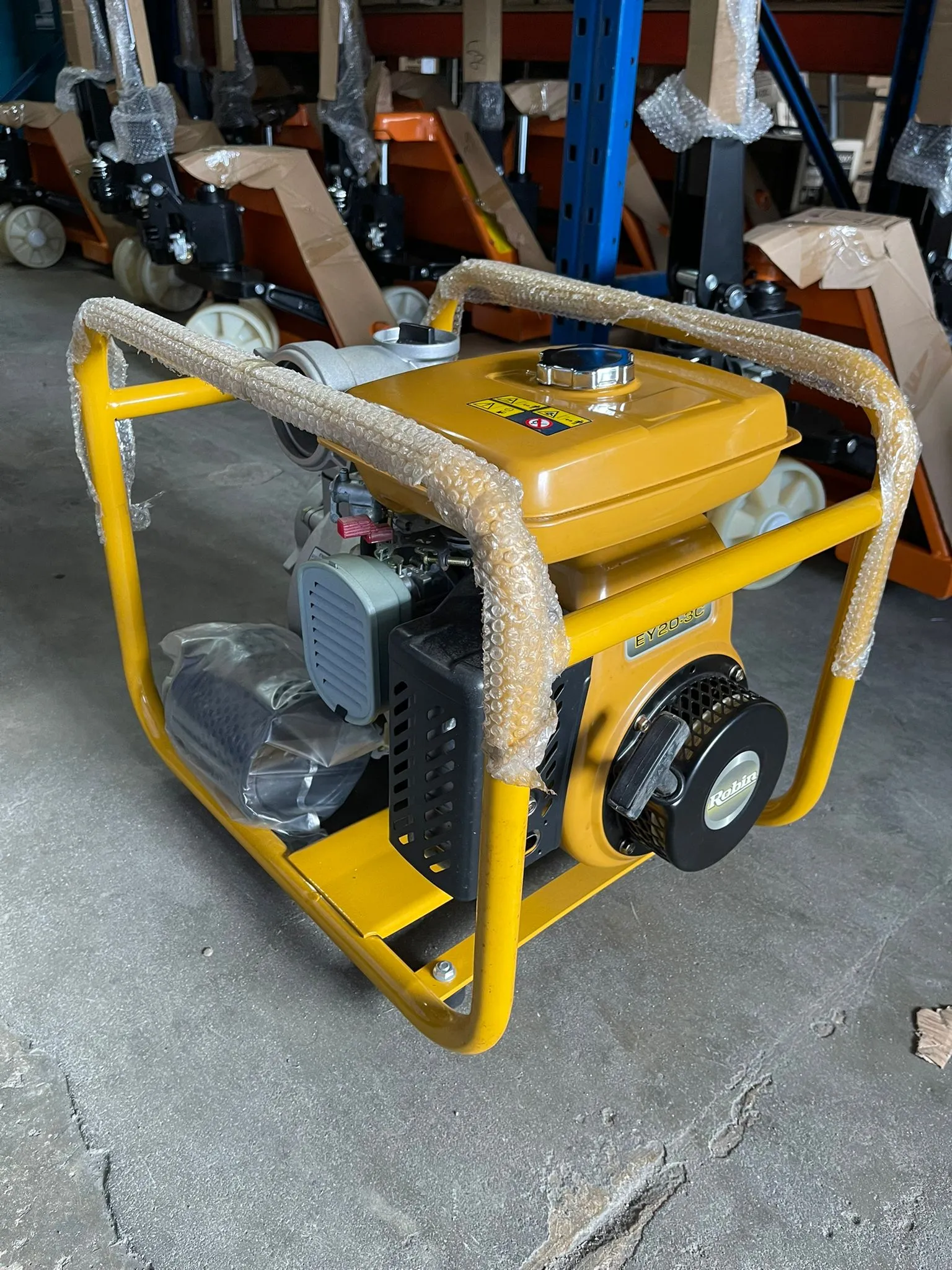

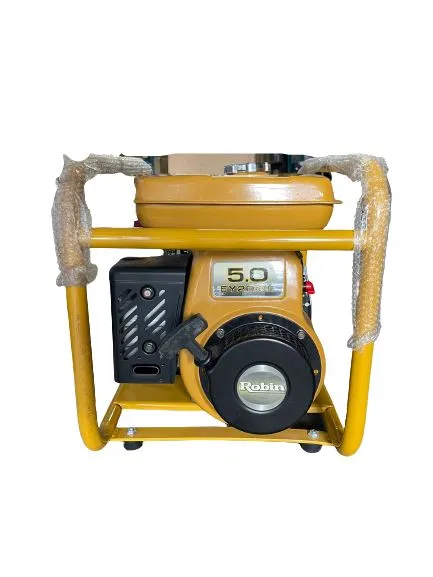

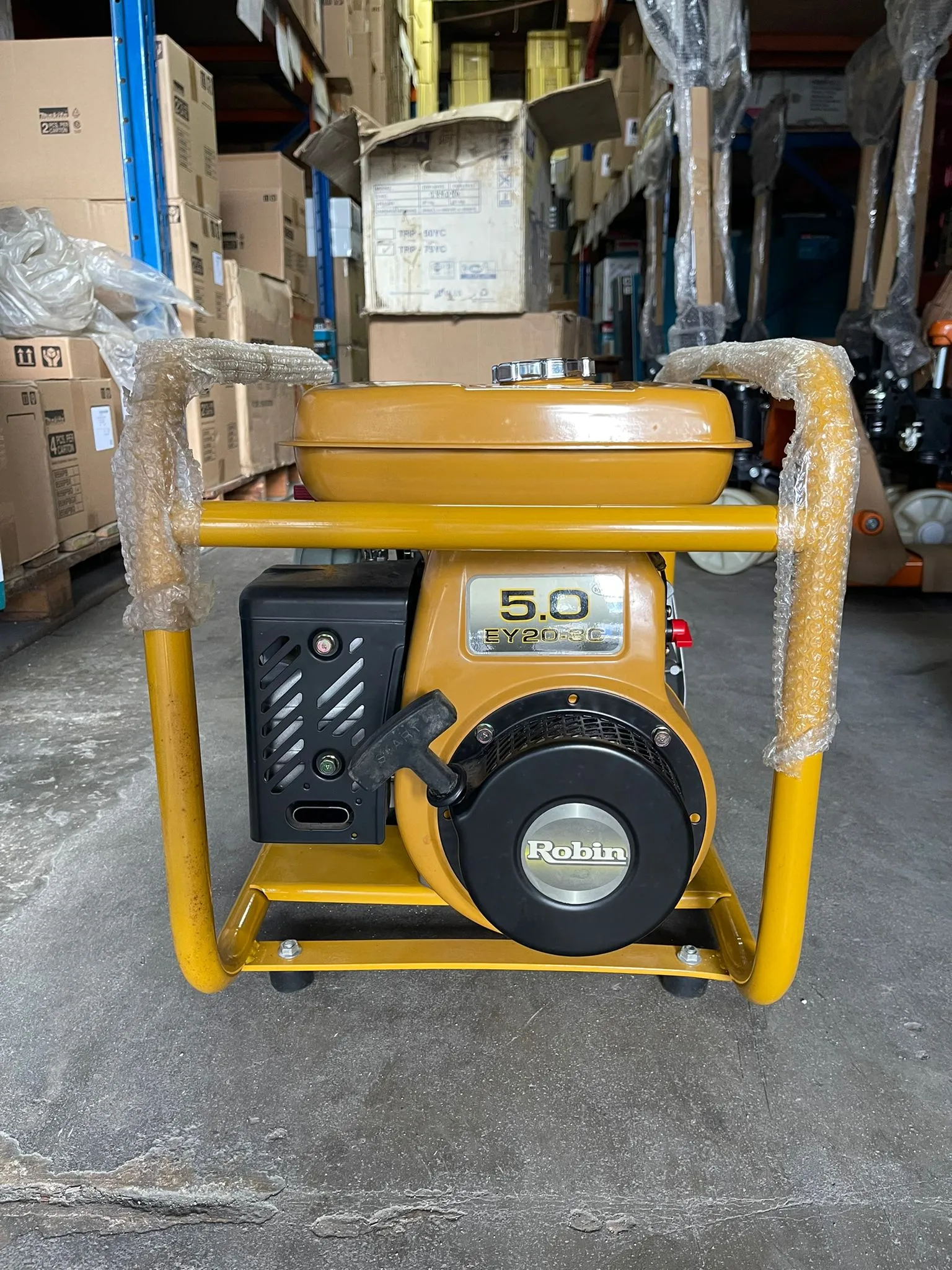

Tropic 3 gasoline 5hp Water Pump come with EY20D robin engine | Model : WP-TRP75YC
Specifications :
- Model : TRP-75YC

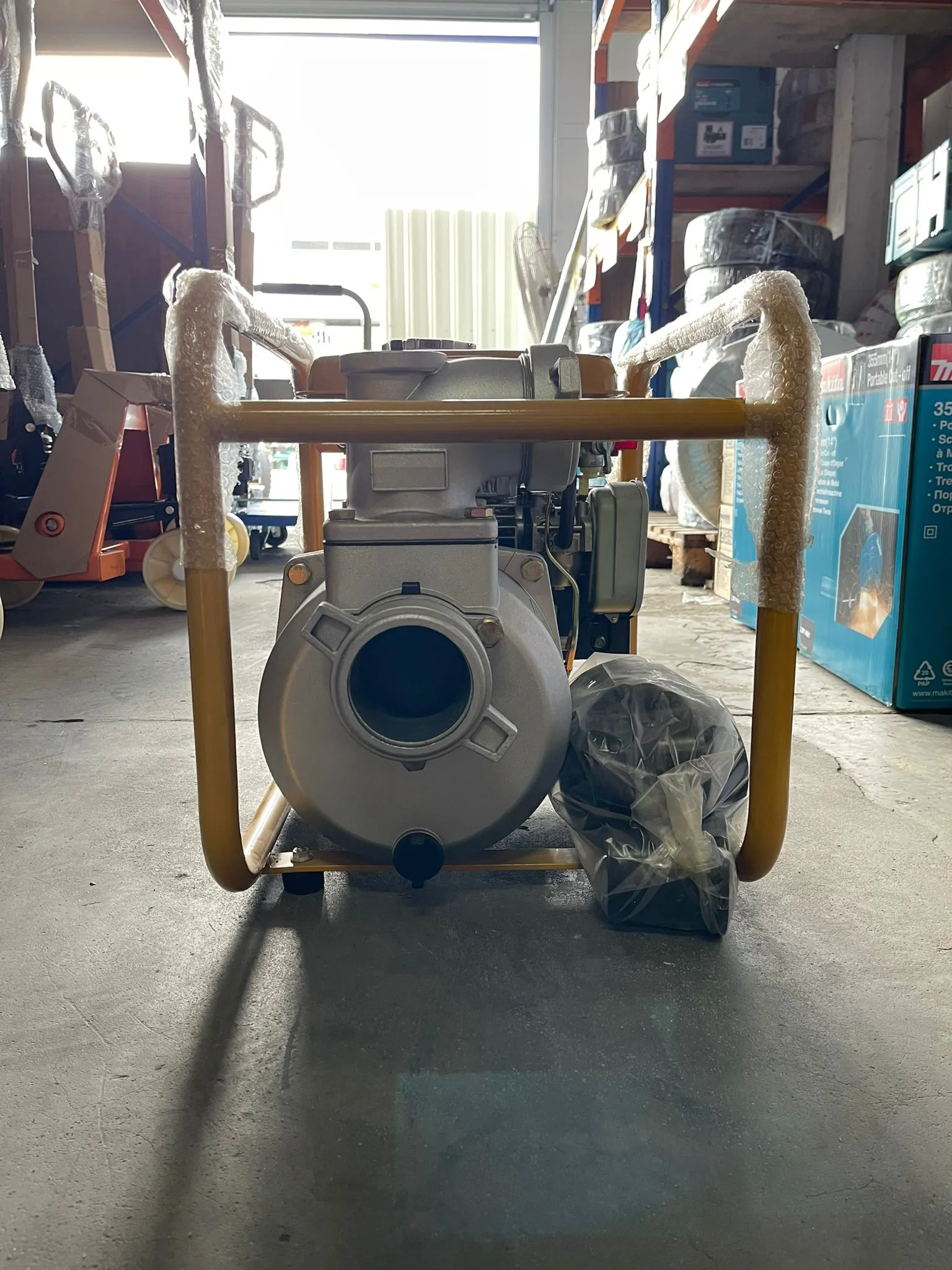

- Suction X Delivery Diameters : 76.2 x 76.2 (3 x 3)
- Delivery Volume Max : 800 L/min
- Suction Head : 8m
- Type : Self - priming centrifugal pump
- Engine : EY20D . Gasoline
- Engine :
- 5.0 Hp
- 4000 rpm
- Starting Type : Recoil
- Weight : 30 kg
- Catron Dimension : 530 x 390 x 460
- Total head : 32 m

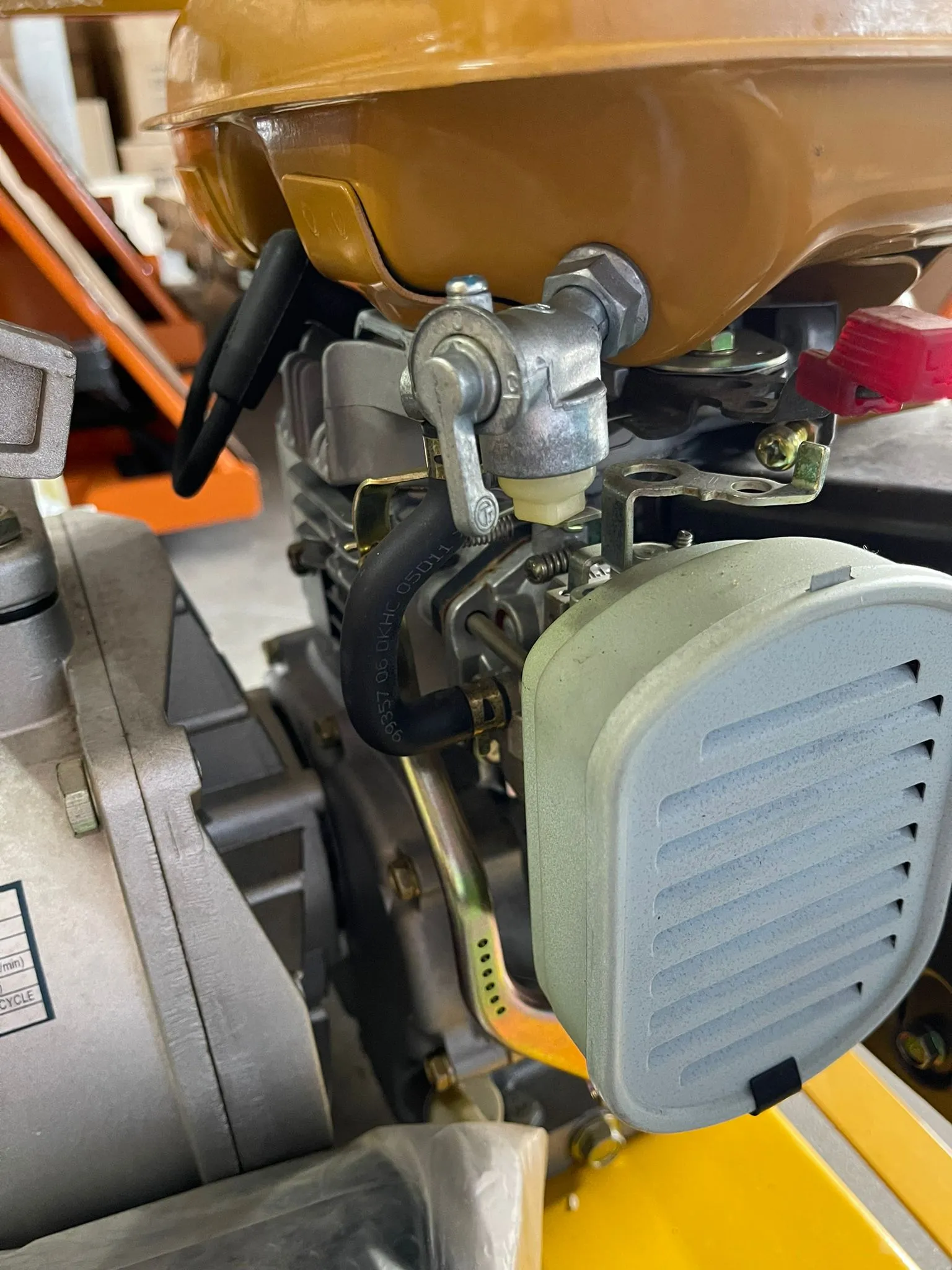

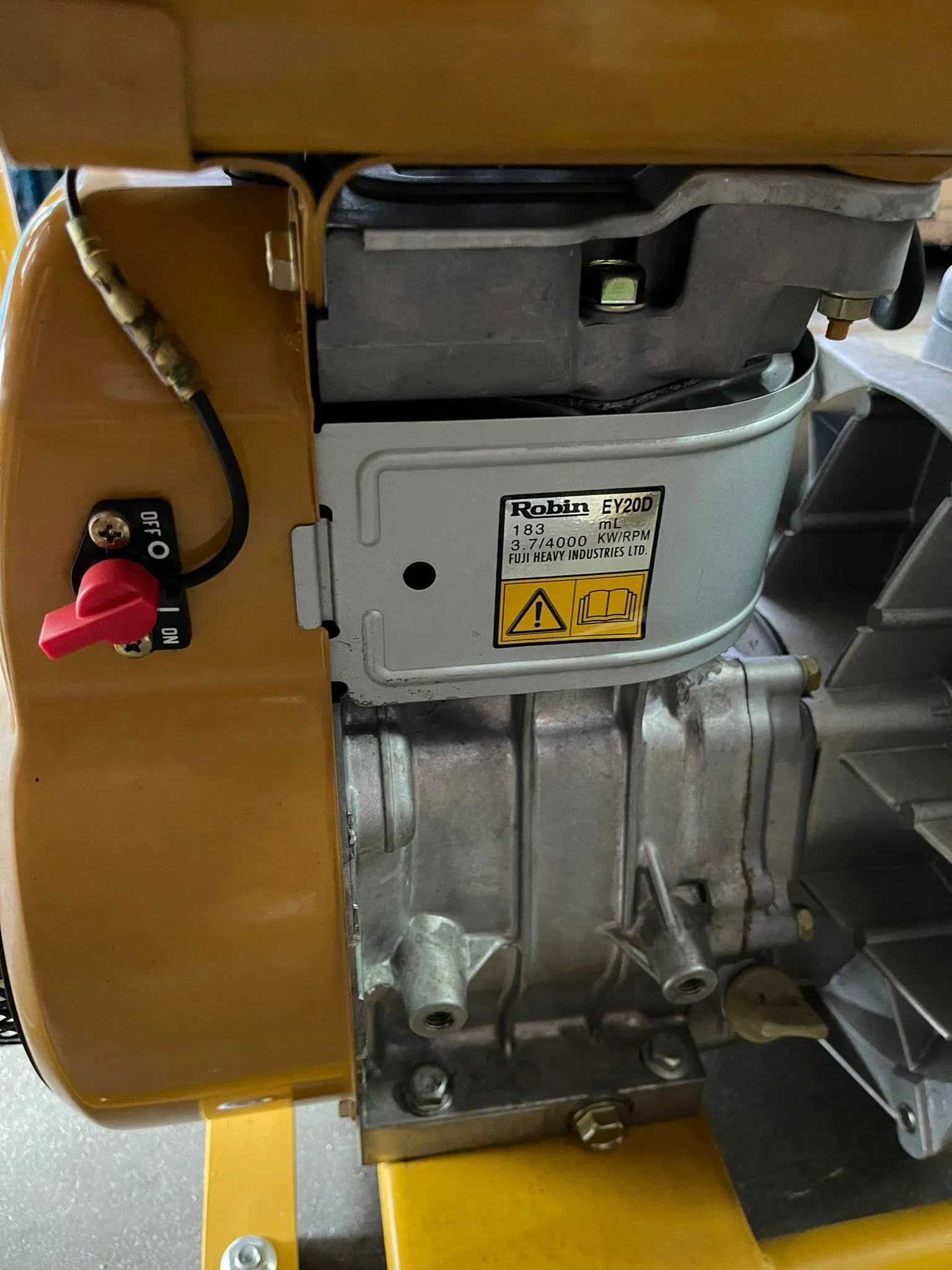

- Engine Model : EY20D
- Type : Air cooled . 4 cycle single cylinder . side Valve . gasoline engine
- Displacement : 183 cm3
- Continuous Output :
- 2.24 kw / 3000 min (3 hp / 3000 rpm)
- 2.61 kw / 3600 min (3.5 hp / 3600 rpm)
- Maximum Output : 3.73 Kw/ 4000 min (5 hp / 4000 rpm)
- Direction of Rotation : Counterclockwise . facing P.T.O . Shaft
- Lubricant : Class SC or higher grade . SAE #20. #30. #40
- Fuel : Automobile gasoline (unleaded)
- Fuel Tank Capacity : 3.8 liters
- Spark Plug : NGK B-6HS
- Starting system : Recoil Starter
- Dry Weight : 16 kg
- Dimension : 303 L x 332 W x 368mm H
