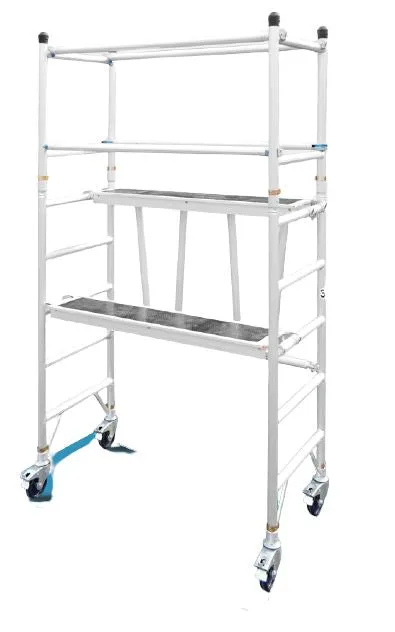

XG Aluminium Multi-Purpose Foldable Mini Scaffolding Mobile Platform | Model : L-XG175A

XG Aluminium Mini Scaffolding that is Light. Foldable and Mobile!

Features :

• Collapsible/foldable type
• Easy to receive
• Build Freely
• Construction Sites
• Home Decoration
• Stores and other multi -purpose use to meet all the needs of climbing

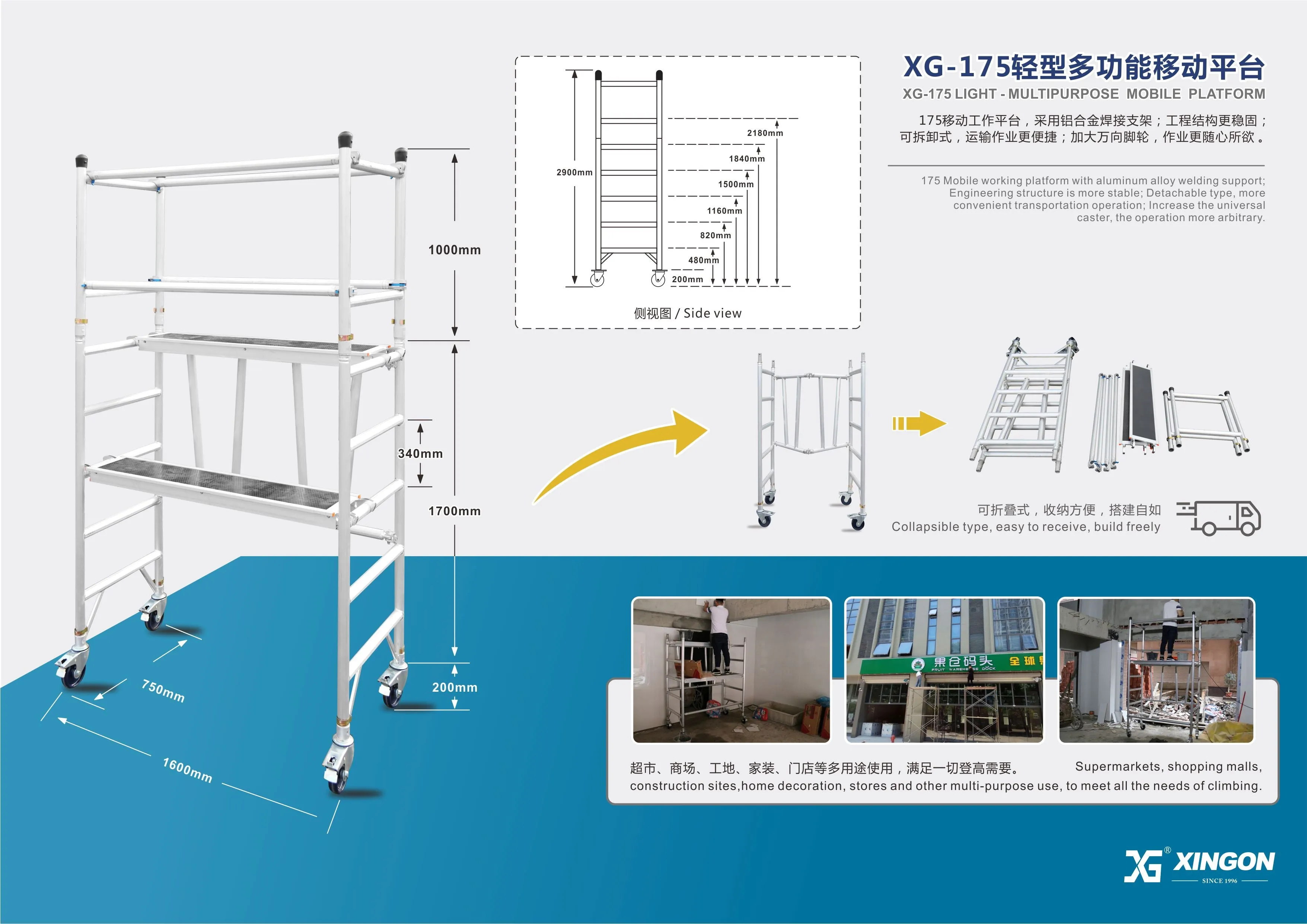

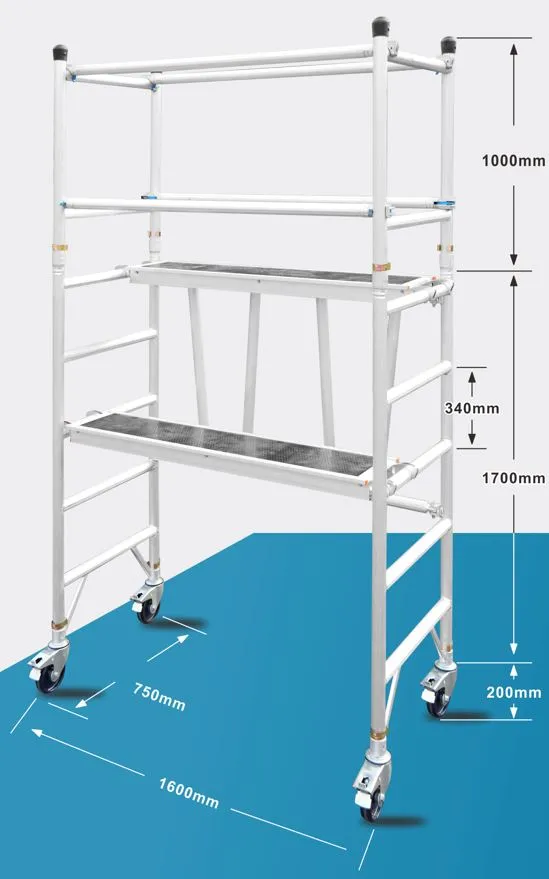

Specifications :

• Height of platform from ground : 1.9 (m)

• Total height :2.9 (m)

• Maximum working height : 3.9 (m)

• Single platform size : 1600300 (mm)

• Maximum platform size : 1600600 (mm)

• Finished size : 1600 x7502900 (mm)
• Model : L-XG175A

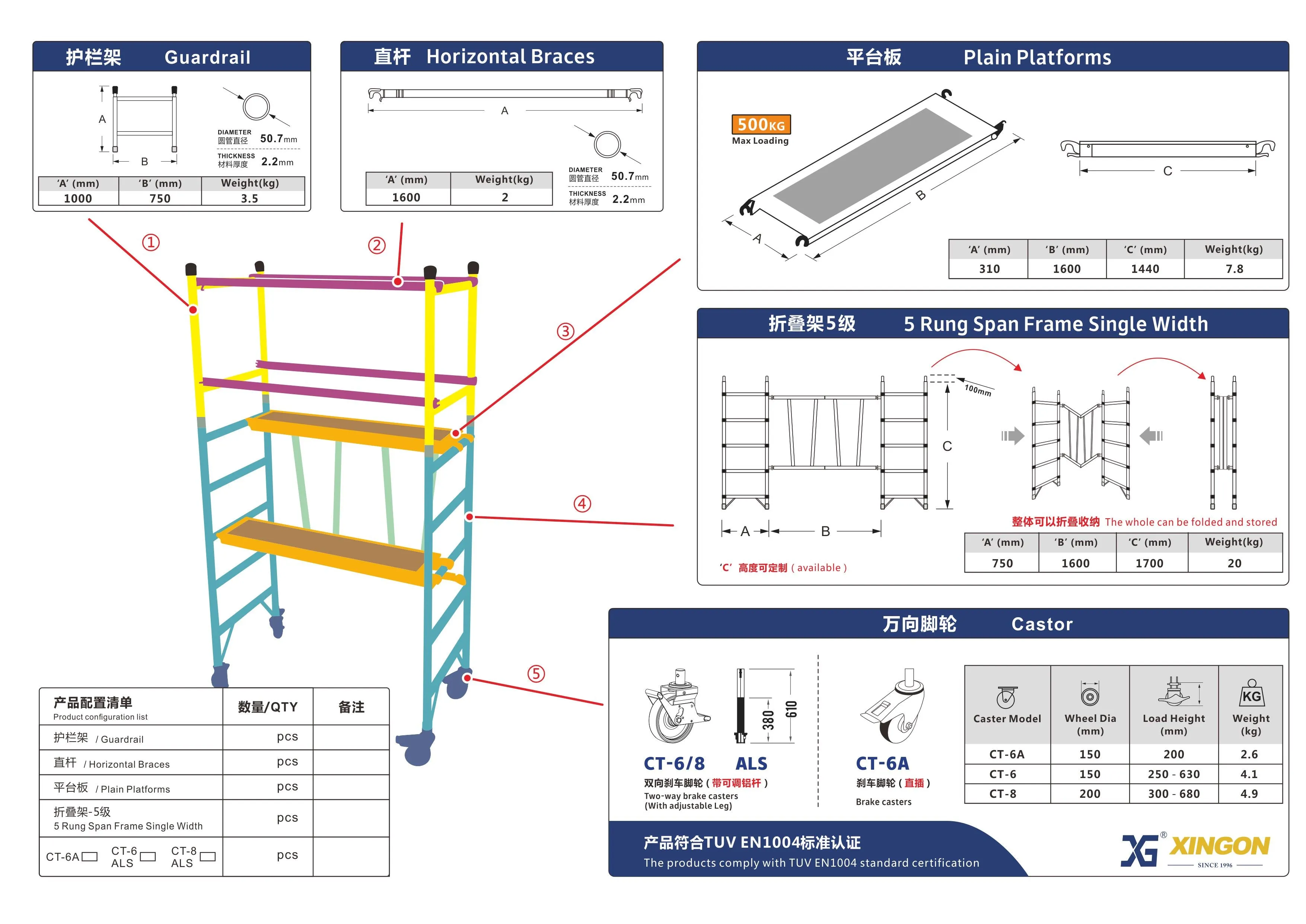

• Guardrail
• Diameter : 50.7 mm
• Thickness : 2.2 mm
• 'A' : 1000 mm
• 'B' : 750 mm
• Weight : 3.5 kg
• Horizontal Braces
• Diameter : 50.7 mm
• Thickness : 2.2 mm
• 'A' : 1600 mm
• Weight : 2 kg

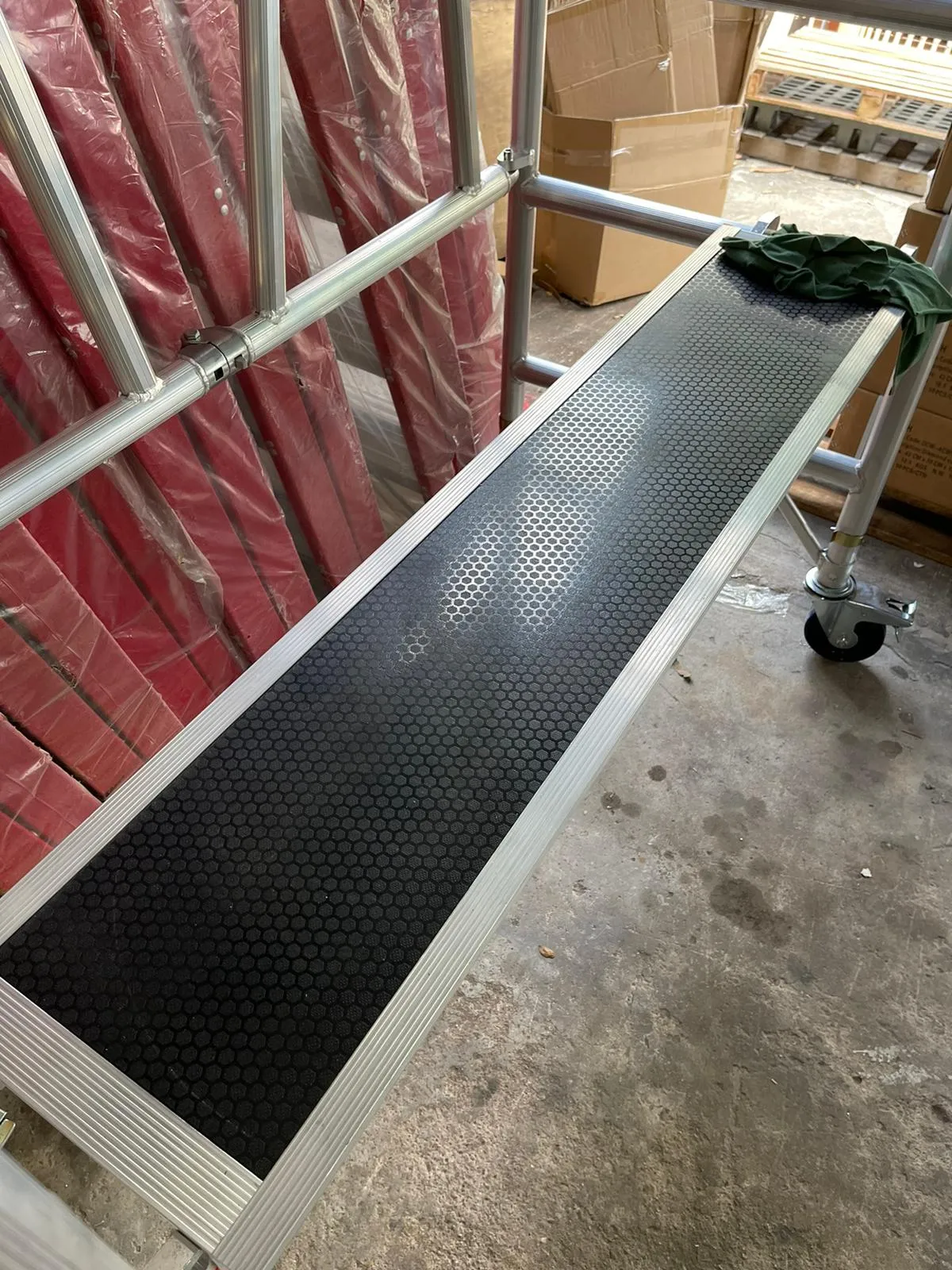

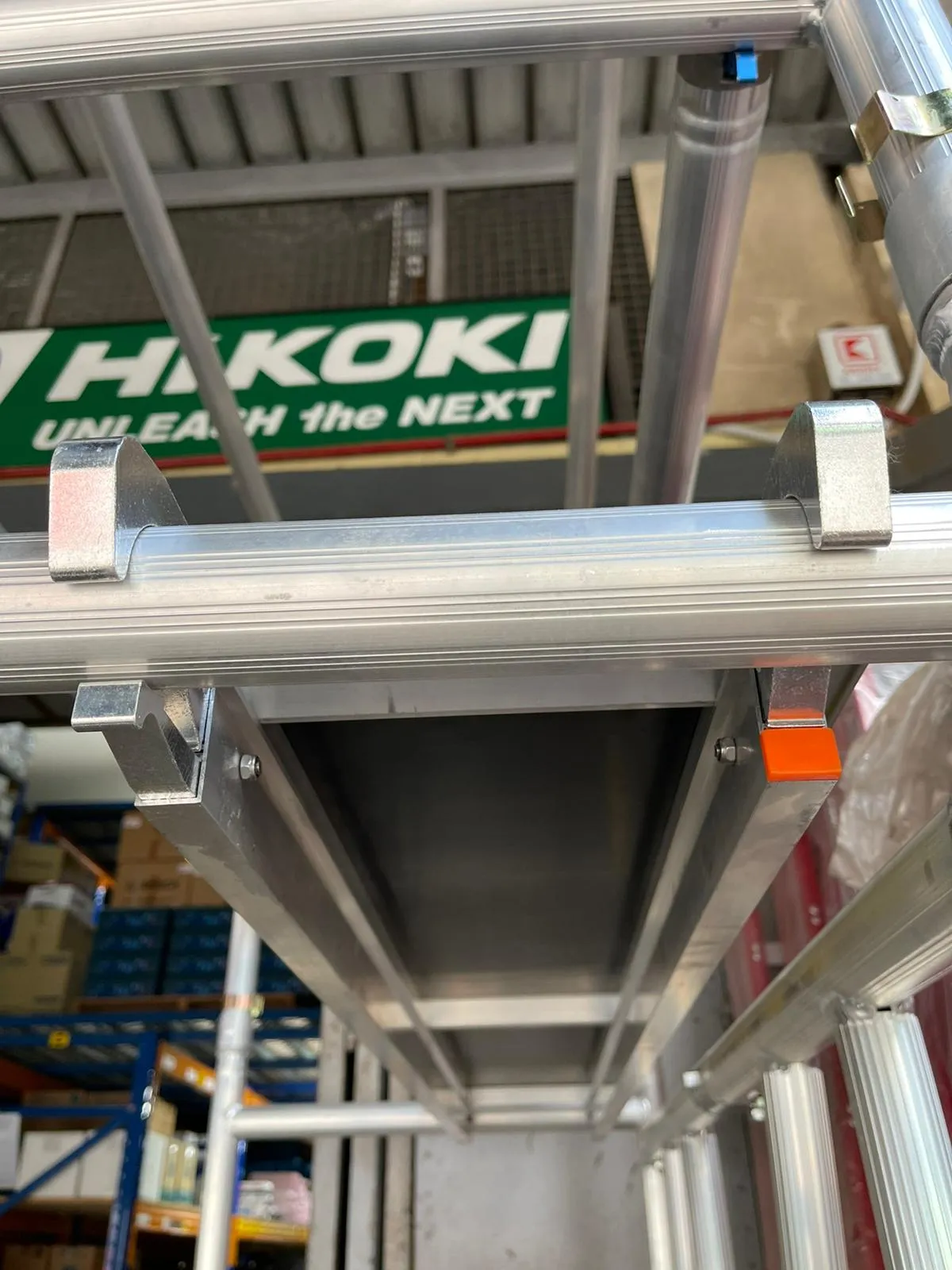

• Plain Platforms
• Max Loading : 500 kg
• 'A' : 310 mm
• 'B' : 1600 mm
• 'C' : 1440 mm
• Weight : 7.8 kg
• 5 Rung Span Frame Single Width
• 'A' : 750 mm
• 'B' : 1600 mm
• 'C' : 1700 mm
• Weight : 20 kg

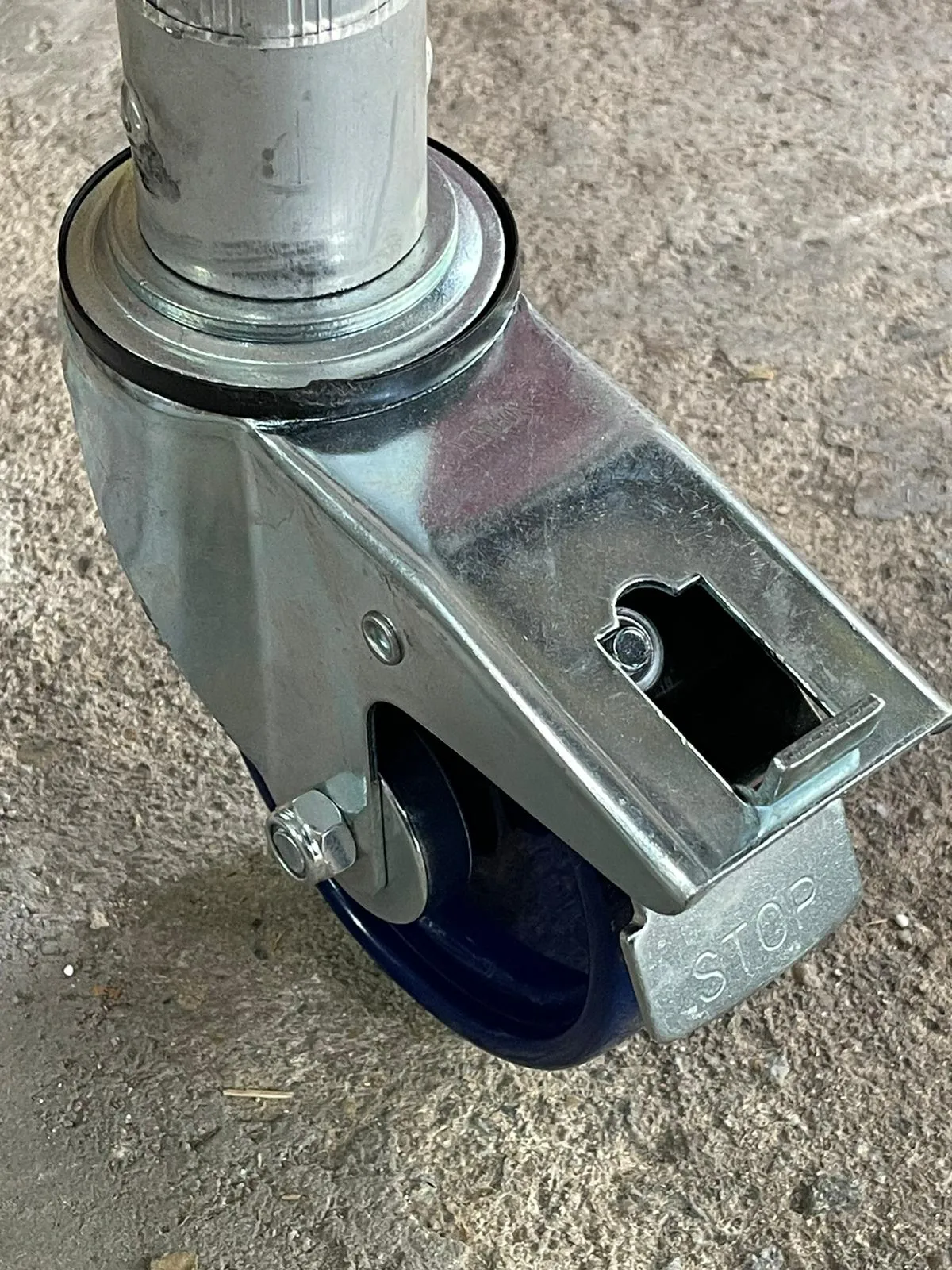

• Castor
• Two - way brake casters (with adjustable leg) : CT6/8
• Brake Casters : CT-6A
