Features :

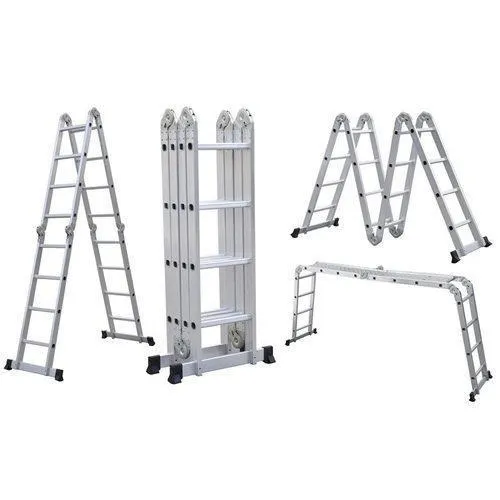

• Adjustable hinge design for multipurpose usage
• Bigger hinge enhances the visibility and ease of visual safety checks
• Robust steel hinge
• Swaged connection
• Extra wide flared bottom for firm support
• (No Warranty)

Specifications :

• Model :XG-115B4 x 3
• Total Steps : 12
• Step Space : 28 Cm
• Extension Height (Fully extended vertically) : 362cm / 11.97 ft
• Extended Height (A Frame) : 178cm / 5.83 ft
• Scaffolding (platform/ Bench shape) Height : 100cm / 3.28 ft
• Weight : 11.6 kg
• Packing Size (L x W X H) : 52 x 26 x 102 cm
• Load Capacity : Max 150 Kg
• Model :XG-115B4 x 4
• Total Steps : 16
• Step Space : 28 Cm
• Extension Height (Fully extended vertically) : 474cm / 15.55 ft
• Extended Height (A Frame) : 230cm / 7.54 ft
• Scaffolding (platform/ Bench shape) Height : 128cm / 4.19 ft
• Weight : 13.3 kg
• Packing Size (L x W X H) : 52 x 26 x 130 cm
• Load Capacity : Max 150 Kg
• Model :XG-115B4 x 5
• Total Steps : 20
• Step Space : 28 Cm
• Extension Height (Fully extended vertically) : 586cm / 19.22 ft
• Extended Height (A Frame) : 285cm / 9.35 ft
• Scaffolding (platform/ Bench shape) Height : 156cm / 5.11 ft
• Weight : 14.6 kg
• Packing Size (L x W X H) : 52 x 26 x 158 cm
• Load Capacity : Max 150 Kg

*There might be minor defects on the ladder during delivery but quality is not affected.

Please take note for ladder. we will have redelivery charge of $50/unit in case of exchange

You must factor in the platform height and working height you need. and check if the ladder can fit into your lift and storage
