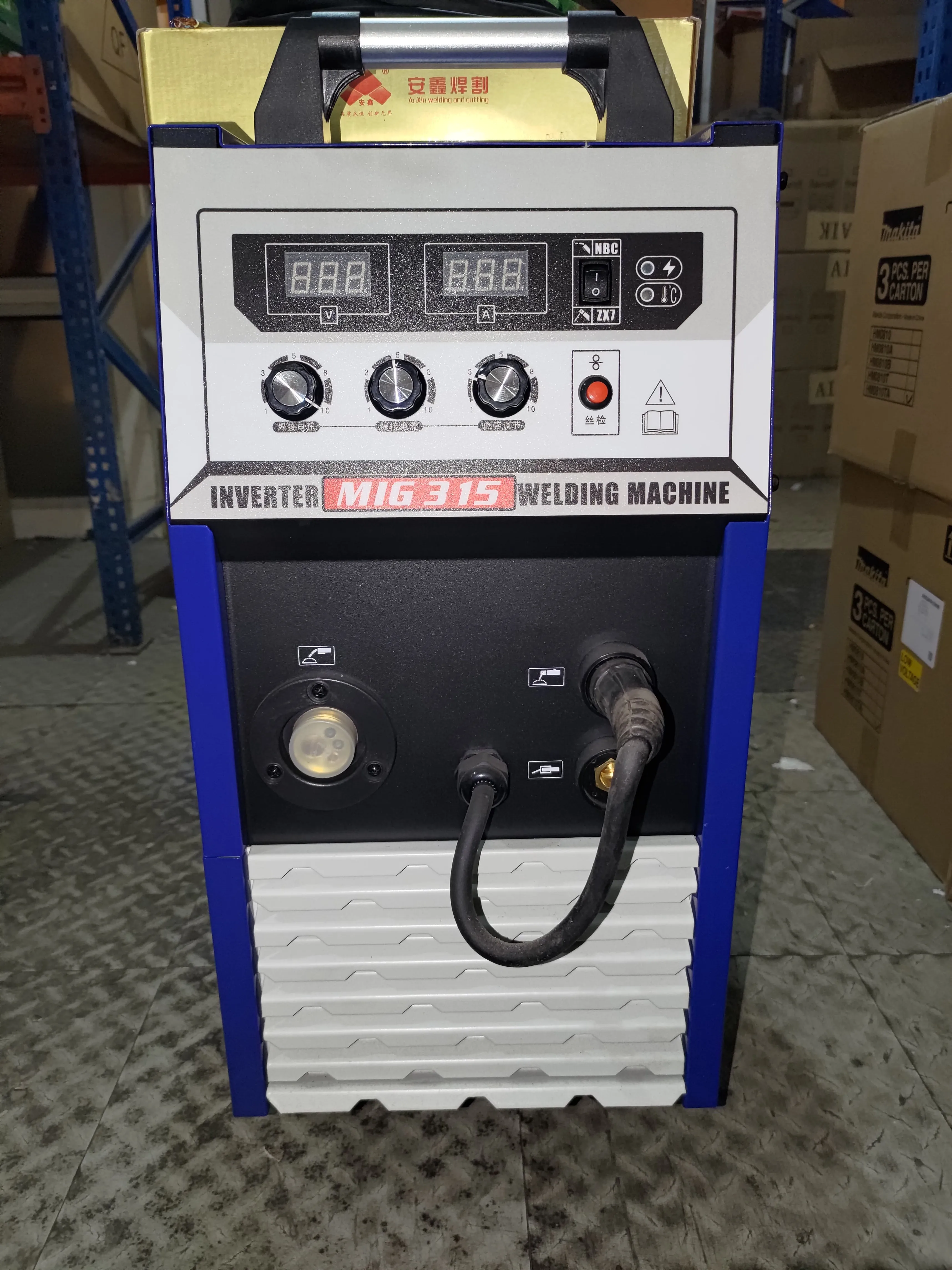

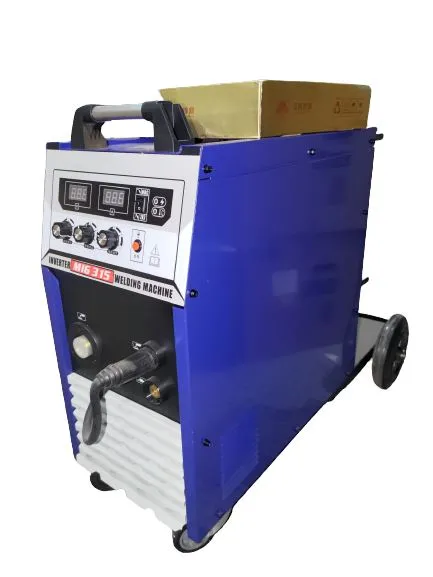

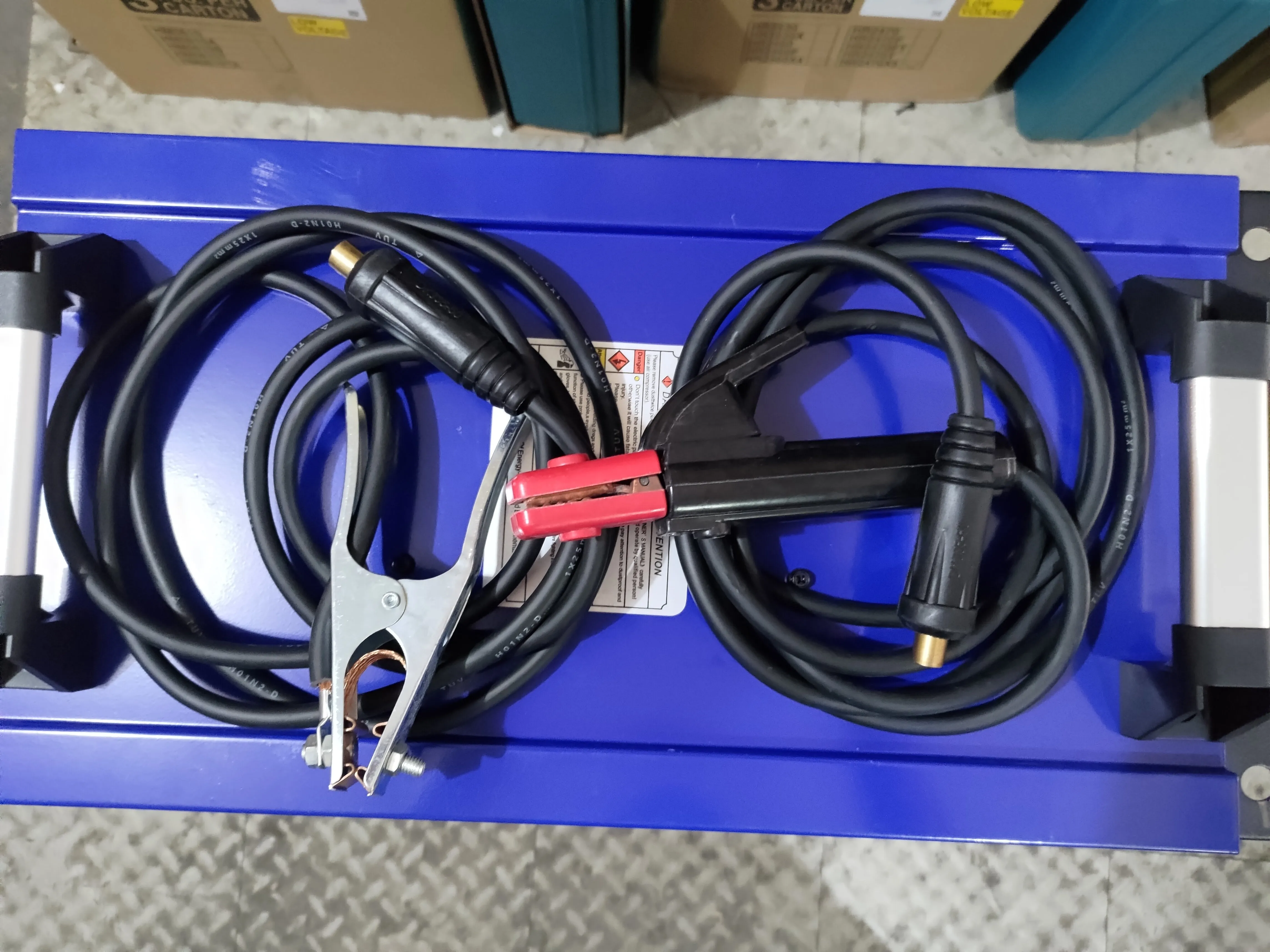

Aiko 380V 60Hz MIG315 Welder With Gas Tank Trolley Dual Voltage come with 4m Torch. 3m Earth Cable & Gas Hose | Model: W-MIG315

Features :

• Industrial Inverter MIG welding machine

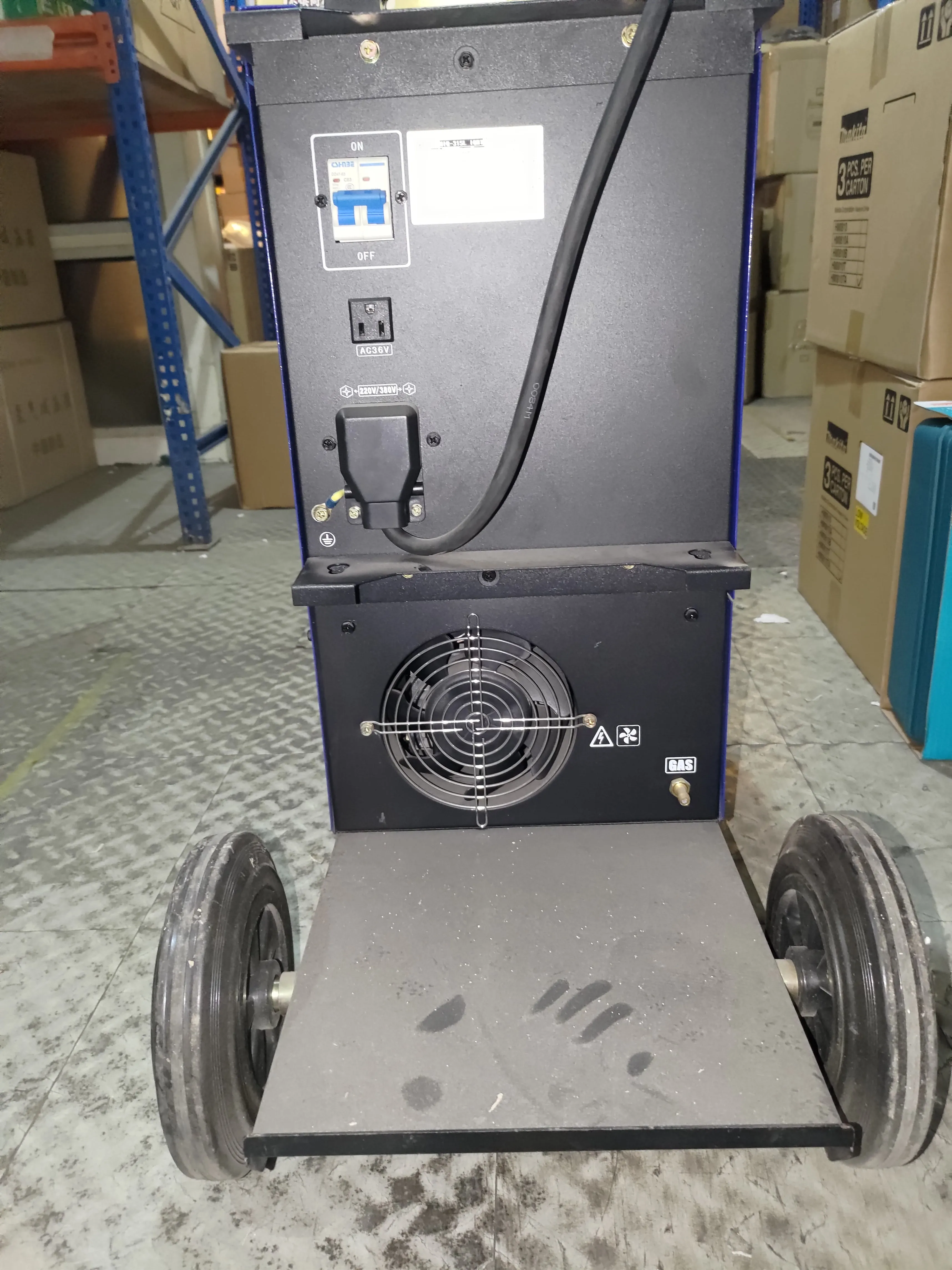

• Gas tank trolley. easy to move full range work area

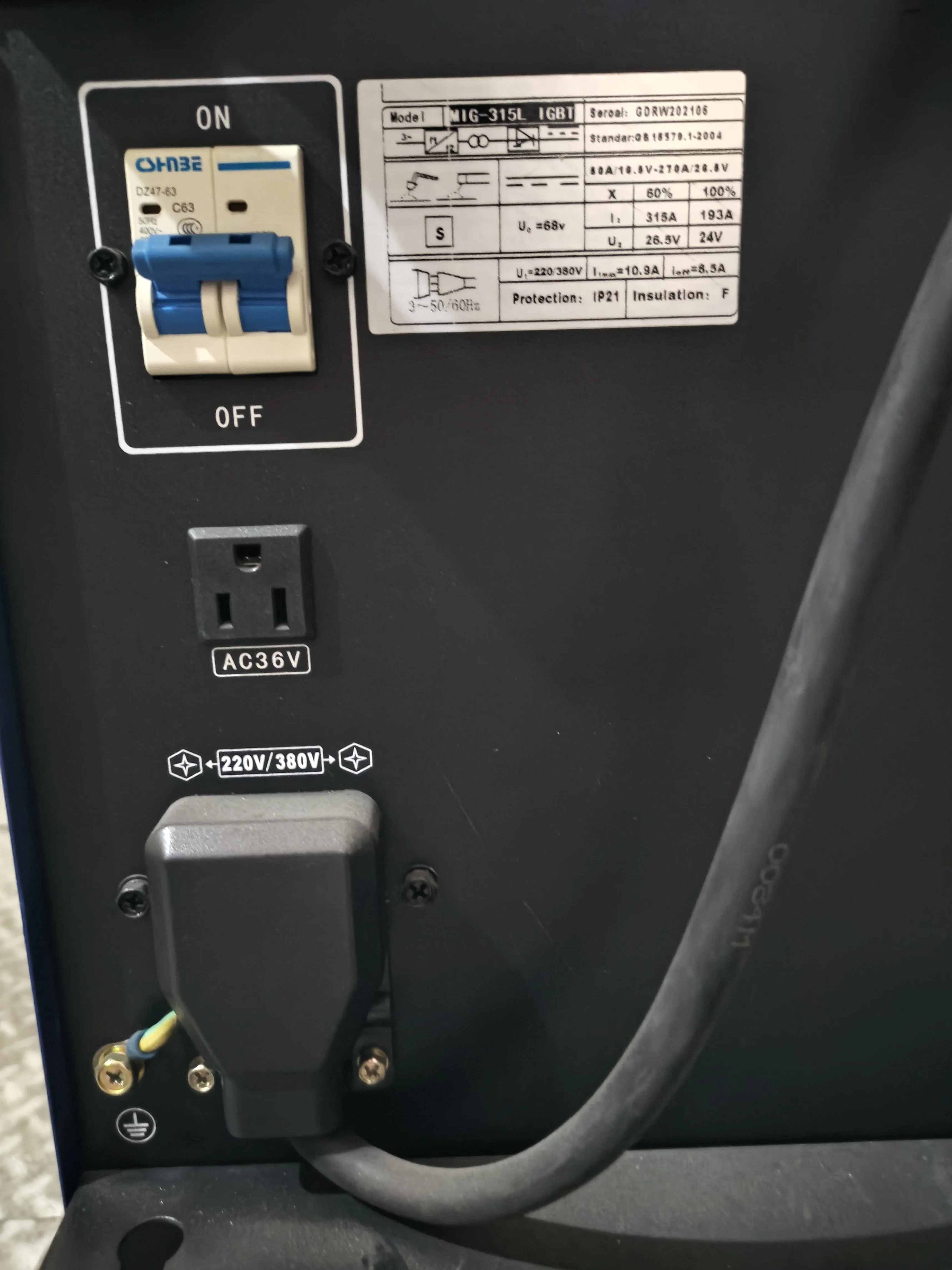

• 220V & 380V 2 in 1 input voltage optional
• Power surplus for 0.8/1.0/1.2. Spatter less and good penetration
• Voltage compensation circuit and auto arc length compensation function thanks to inverter technology to make sure the stable welding
• Low spatter and high deposition rate
• Excellent welding joint and stable arc
• With easy pulse ignition
• Eliminating droplet functionality after welding
• Reduce the welder's labor intensity. especially for long-time welding thanks to self-lock function.
• Highly stable welding speed. light. small and easy to be moved.
• Energy saving and less requirement about circuit capability.

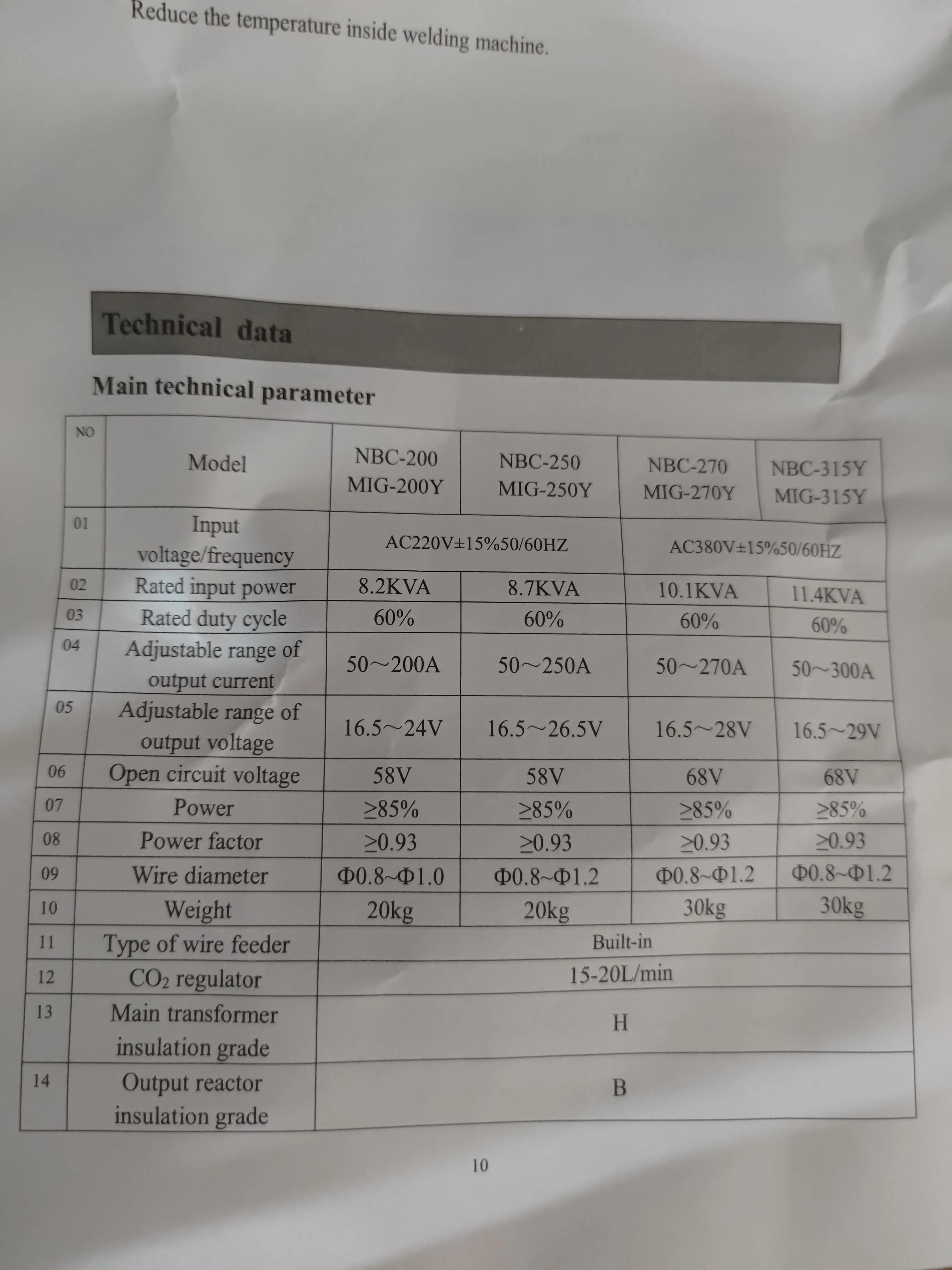

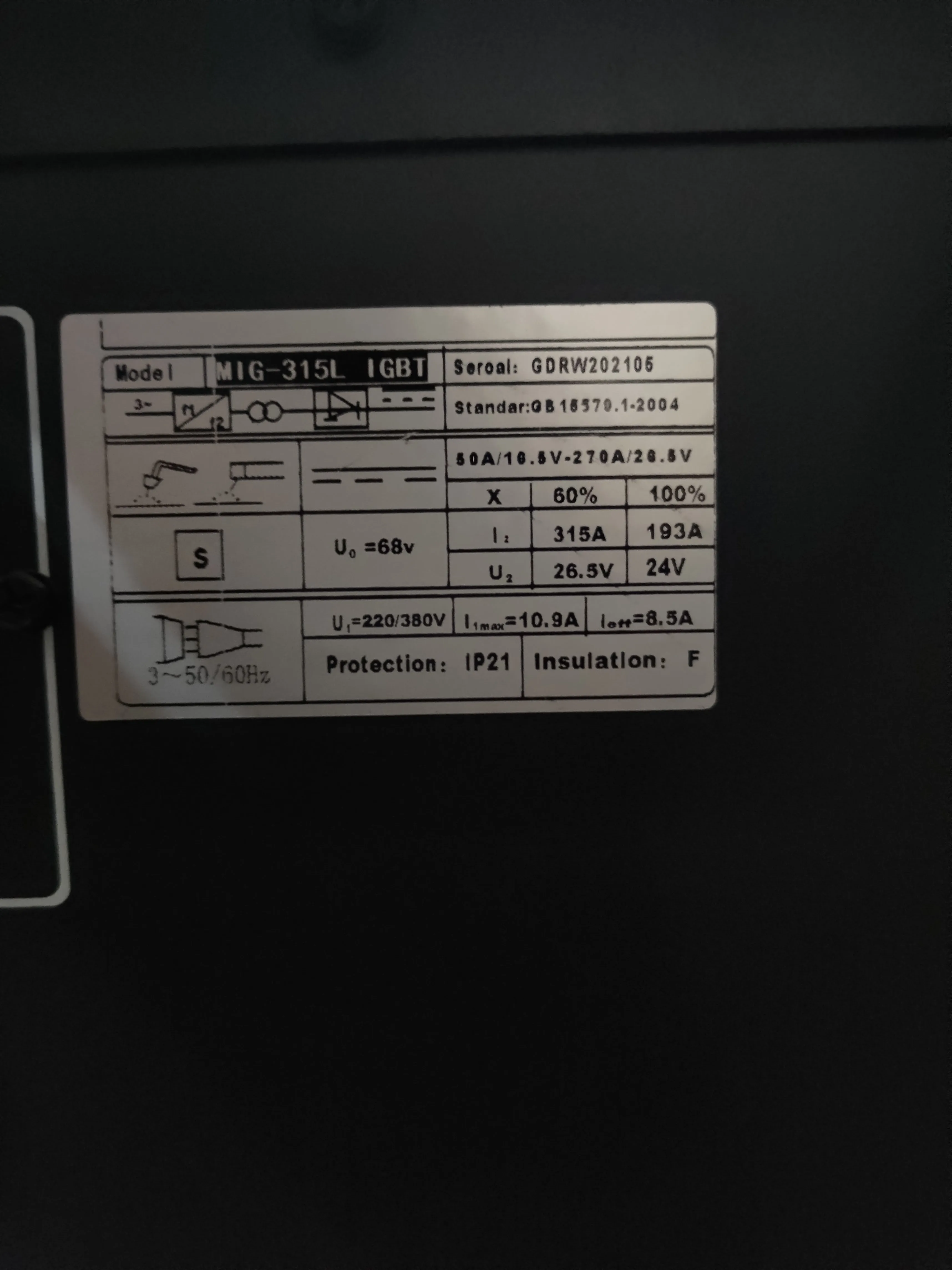

Specifications :

• Model: MIG-315
• Rated Input(V): 3P AC380V15%
• Frequency(Hz): 50/60
• Input Power(KVA): 10.6
• No-Load Voltage(V): 68
• Output Current Range(A): 50-315
• Rated Output Voltage(V): 20-30
• Duty Cycle(%): 60
• No-Load Loss(W): 55
• Efficiency(%): 85
• Power Factor: 0.93
• Insulation Grade: F
• Protection Grade: IP21S
• Weight(Kg): 36.5
• Dimension(mm): 728*432*713
