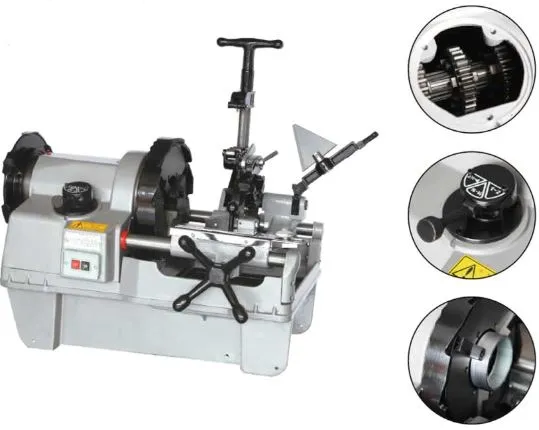

Aiko 4 Auto Threading Machine with Assembly | Model : TM-AK-Z1T100FA

Features :

• Ability to fit REX parts for use
• Features a 1500W copper sensing motor which is driven separately to avoid burning by oil
• Lubricated alloy steel gear with oil to increase machine life span
• With a 3 lever gear design. the Z1T100FA is able to easily and accurately change its gears
• The Cast Steel Lever Change Mechanism reduces the risk of cracking
• Standard Collocation of 100F multi-functional die head

Specifications :

• Threading Capacity : 1/2 - 4
• Power of Motor : 1500 W
• Rotational Speed of Main Shaft :
• Fast Speed : 38 rpm
• Medium Speed : 22 rpm
• Slow Speed : 12 rpm
• Model of Die Head :
• 100F multi-functional die head (1/2 - 2)
• Swift open type copying die head (2 1/2 - 4)
• Gross Weight : 155 kg
• Net Weight : 135 kg
• Dimensions (L x W x H) : 900 x 640 x 680 (mm)

Warranty :

• Valid within 6 months from date of purchase.
• The warranty is limited to manufacturer fault
• If the motor is burnt. the warranty will be void.
